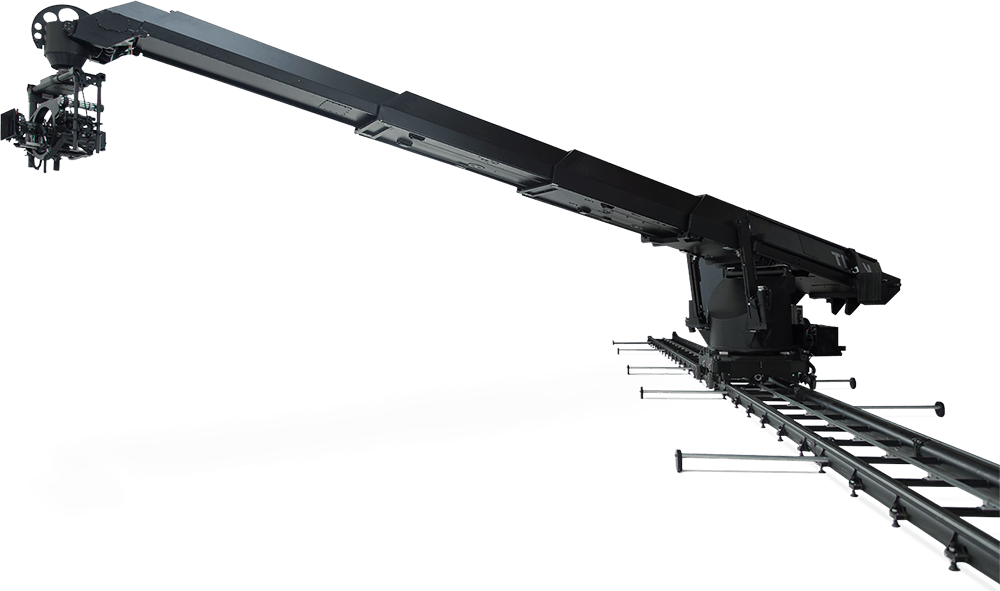

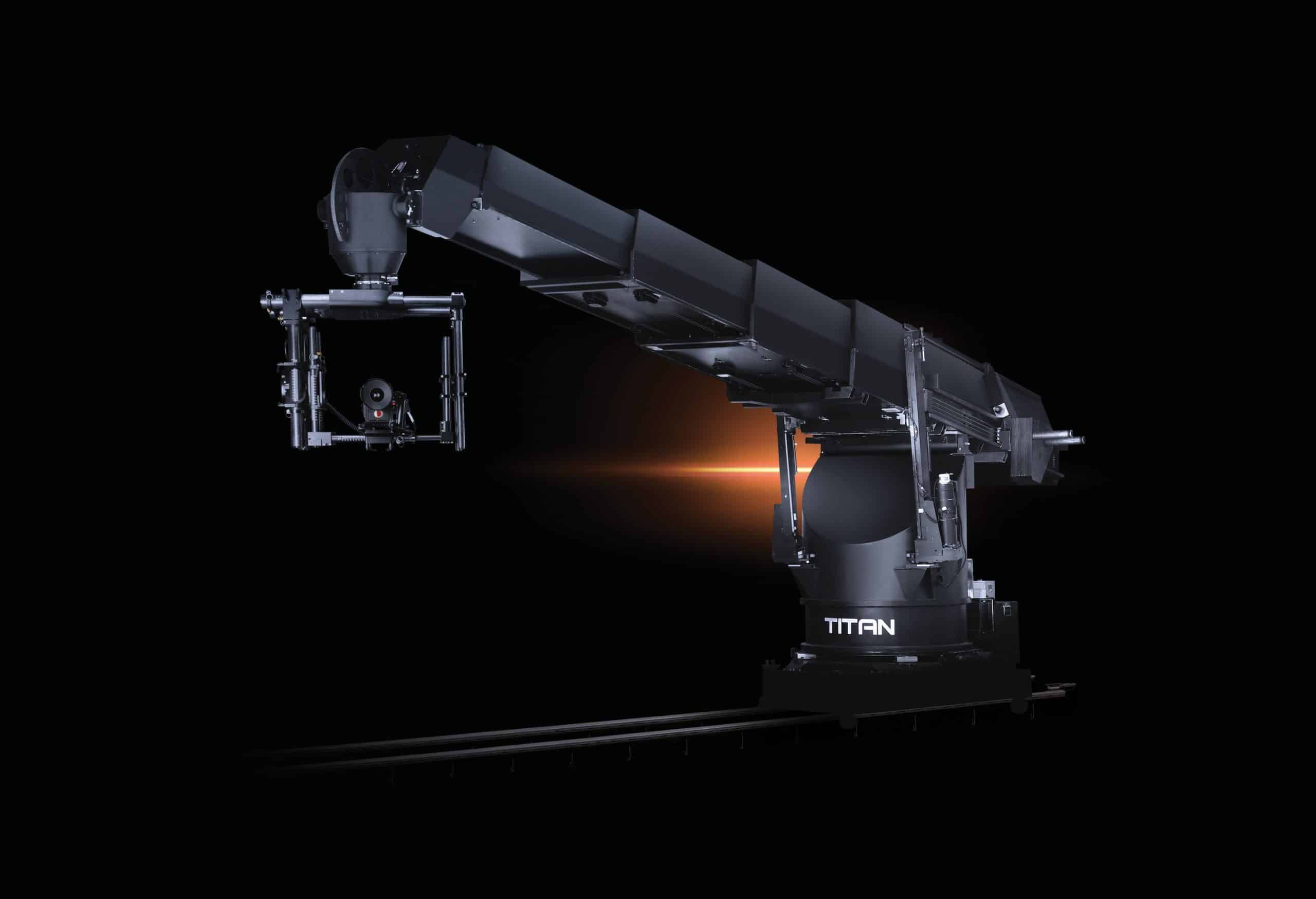

Titan Motion Control Rig

The Titan offers unlimited creativity for Directors and DP’s providing versatility and a style of shooting unachievable with other fixed arm rigs. Available on track, it offers a complete solution for high-end image capture.

Telescopic Travel
6.9
Metres
Camera Payload
45
KG
Max Camera Height
8.7
Metres

Key Features

Creative Freedom

Let your director’s imagination run wild with the Titan arm, offering the largest range of motion and a telescopic arm. When it comes to the Titan, size does matter.

Feature Highlights

HUGE OPERATING ENVELOPE

Telescopic arm, fully repeatable with a much larger reach than a traditional MOCO rig.

HIGH PAYLOAD CAPACITY

The Titan’s robotic head has a payload capacity of up to 45kg.

TELESCOPIC ARM

The telescopic arm allows creatives to capture a wide spectrum of imagery.

Specifications

  • OPERATING ENVELOPE
    • Maximum Height
      8.7m
    • Lowest Position
      -0.75m
    • Maximum Travel (from sub floor)
      12.98m
    • Maximum Reach (from rotate centre)
      9.06m
    • Maximum Reach (from turret)
      8.51m
  • RIG PERFORMANCE
    • Track
      As required in 3m lengths @ 1.1 metres per second
    • Rotate
      Unlimited @ 30 degrees per second
    • Lift
      +/- 45 degrees @ 24 degrees per second
    • Arm Extend
      6.90m @ 1.2 metres per second
    • Outer Arm
      225 degrees @ 40 degrees per second
    • Guinness Pan
      Unlimited @ 120 degrees per second
    • Guinness Tilt
      290 degrees @ 120 degress per second
    • Guinness Roll
      Unlimited @ 120 degrees per second
    • Ulti-Head Pan
      Unlimited @ 120 degress per second
    • Ulti-Head Tilt
      290 degrees @ 120 degress per second
    • Ulti-Head Roll
      Unlimited @ 90 degrees per second
  • POWER CONNECTION
    • Power Requirements
      110-240 Volts, Frequency 50-60 Hz
    • Generator
      6.5 KVA
  • RIG DIMENSIONS (for clearances)
    • Minimum Height (off track)
      2.37m
    • Minimum Height (on track)
      2.49m
    • Width (w/out counterweights)
      1.27m
    • Length (head and angle off while travelling)
      4.20m

Downloads

Leaflet

Controllers

  • FLAIR
  • HANDWHEELS
  • PAN BARS
  • HAND HELD BOX
  • Focus/Iris Controller
  • ZOOM CONTROLLER
  • GRIP STICKS


FLAIR

Flair precisely controls up to 500 axes of motion and is fully compatible with all of our motion control rigs, heads and accessories.



HANDWHEELS

Frame your shot and accurately record manual camera movements for repeated playback in Flair. Compatible with all MRMC Motion Control heads and rigs, and assignable in Flair to control any axis of motion, the MRMC balanced handwheels have a very fluid feel just as top DoPs and directors would expect. Additional standard built-in features like electronic gearing/scaling and direction adjustment make the handwheels a perfect accessory for all rigs.



PAN BARS

A natural and intuitive way of controlling a motion control head, Pan Bars can be used in isolation or conjunction with other axis controllers, and movements can be recorded and accurately played back as required.



HAND HELD BOX

The Hand Held Box, or Jog Box, is a remote unit that connects to a Flair controlled rig, giving the user the freedom to move around the studio when inputting moves. Users can configure the Hand Held Box to individual requirements.



Focus/Iris Controller

Gain accurate manual control of the focus and aperture of your lens. Use the Focus/Iris Controller together with the MSA-20 Handwheels or Flair Motion Control software to record and playback lens movements.



ZOOM CONTROLLER

Manually control the focal length of your lens with the Zoom Controller. Use together with the MSA-20 Handwheels or Flair Motion Control software to record and playback the zoom motion.



GRIP STICKS

Attaching Grips Sticks to your Motion Control rig allows you to control it in the same way as a traditional dolly or crane – by pushing it. The Grip Sticks measure the amount of force exerted on them and move the corresponding motor accordingly. All movements can be recorded for later playback by the Flair Motion Control software.

Accessories

  • BLOOP LIGHTS
  • FOCUS/IRIS/ZOOM/ZOOM LENS CONTROL MOTORS
  • PRESTON/ARRI/C-MOTION INTERFACES
  • TRIGGERS BOX
  • SYNC CABLES


BLOOP LIGHTS

Use Bloop Lights to mark specific frames with a bright flash of light during shooting. The ‘blooped’ frame enables editors to match up angles from a multi-camera shoot quickly.



FOCUS/IRIS/ZOOM/ZOOM LENS CONTROL MOTORS

Playback programmed moves or record manual lens movements for later playback with these precision-machined, highly accurate lens control motors. Compatible with wide a variety of types and sizes of lenses.



PRESTON/ARRI/C-MOTION INTERFACES

Turn Preston, Arri or C-Motion Focus, Iris and Zoom remote wireless units into a full motion control system with the APFIZ unit. Each APFIZ unit can handle three separate motors and allows Flair to record any movements made using the wireless controller.



TRIGGERS BOX

Connect of your external equipment, such as lights, to the Flair Motion Control software using the Triggers Box. This simple solution allows you to trigger all of your equipment through Flair, giving you full, accurate control of every aspect of your shoot.



SYNC CABLES

Connect the rig or Flair software to the different types of camera to enable control of on/off, synchronisation and other camera functions.

Track Options

Precision Bearing Rail

Designed to not bend or twist during any motion or acceleration / deceleration, the Precision Bearing Rail is the best track to use with the Talos. It’s inherent rigidity and straightness provides the ultimate stable platform for the Talos, allowing for high-accuracy at speed, even over uneven ground.

Available in 1.2, 1.8 & 3 metre sections.
