RPS Roaming Pedestal System
TRACKLESS DOLLY SYSTEM FOR ROBOTIC CAMERA SOLUTIONS
The RPS is a next-generation free-roaming camera platform designed for high-end broadcast studios. The RPS provides smooth, on-air-worthy motion, enabling broadcasters to achieve dynamic and previously challenging camera angles with ease and complete creative freedom. Intelligent choreography and built-in collision avoidance ensure multiple units can operate safely within a studio with seamless movement.
The RPS is a next-generation free-roaming camera platform designed for high-end broadcast studios. The RPS provides smooth, on-air-worthy motion, enabling broadcasters to achieve dynamic and previously challenging camera angles with ease and complete creative freedom. Intelligent choreography and built-in collision avoidance ensure multiple units can operate safely within a studio with seamless movement.
KEY FEATURES
DESIGNED FOR STUDIO SPACES

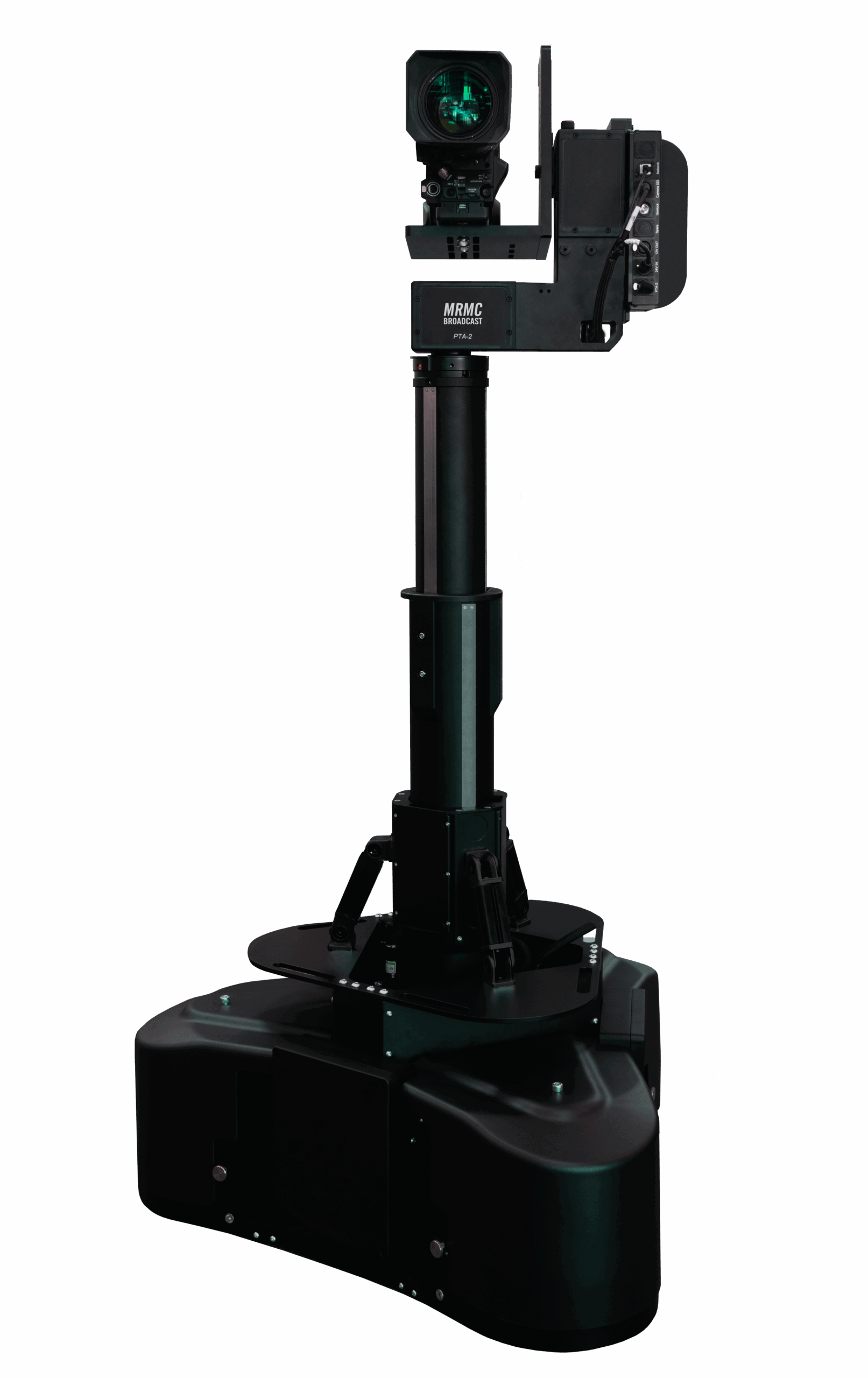

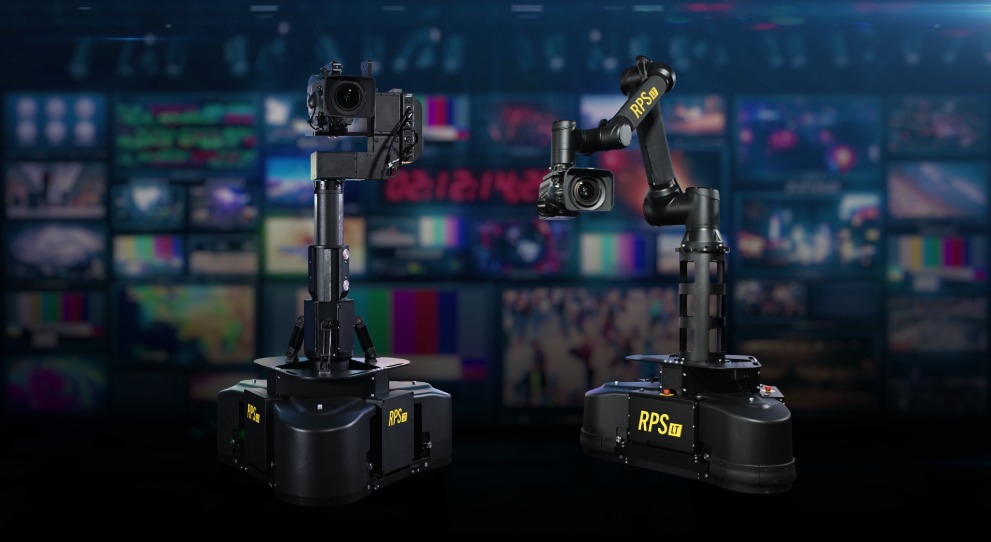

Designed for flexibility, the RPS can be configured with either a lift column (RPS-C2) or an articulated arm (RPS-LT) to suit different production needs. By eliminating floor tracks, the RPS also creates a cleaner, safer studio space, reducing obstacles for presenters and guests while enhancing production efficiency.
Designed for flexibility, the RPS can be configured with either a lift column (RPS-C2) or an articulated arm (RPS-LT) to suit different production needs. Its advanced scanning system enables FreeD positional output, allowing effortless integration into virtual environments. By eliminating floor tracks, the RPS also creates a cleaner, safer studio space, reducing obstacles for presenters and guests while enhancing production efficiency.
A MODULAR SOLUTION
Featuring advanced scanning technology and FreeD positional output, the RPS-C2 and RPS-LT seamlessly integrate into virtual environments for ultimate flexibility. With the option to pair with a broadcast-standard teleprompter, you can maintain perfect on-camera delivery while staying fully immersed in your creative process.
Featuring advanced scanning technology and FreeD positional output, the RPS-C2 and RPS-LT seamlessly integrate into virtual environments for ultimate flexibility. With the option to pair with a broadcast-standard teleprompter, you can maintain perfect on-camera delivery while staying fully immersed in your creative process.
Feature Highlights
ACHIEVE TRACK-LESS MOTION
FLEXIBILITY OF CONFIGURATION
FREED CAPABLE
Specifications
Self Weight
210kg / 463lbs (incl. typlical head, teleprompter and camera system)
Pedestal Positional Accuracy
Integrated LIDAR enabled positional data for tracker-free VR operation (Or) Integration with third-party studio tracking systems
Max. Height (With PTA-2)
1959mm / 77.13in (to the centre of lens in typical camera and teleprompter installation)
Max. Speed (X/Y Motion)
300mm/s / 11.8in/s
Max. Noise
NC40 @ up to 300mm/s (11.8in/s)
Max. Payload (incl. head, prompter, and camera system)
45kg / 99lbs
Safety
Manual e-stop and automatic proximity scanning/detection/collision avoidance
Power
Mains supply (90-240 VAC – auto sensing), DC Output: 24VDC available on pedestal for powering heads/prompters/cameras
Control
Port: Ethernet, SW: Robokam or FLAIR Broadcast
