Broadcast Panel

Control 12 Heads
Presets 16 Buttons
Feature 1 x Joystick

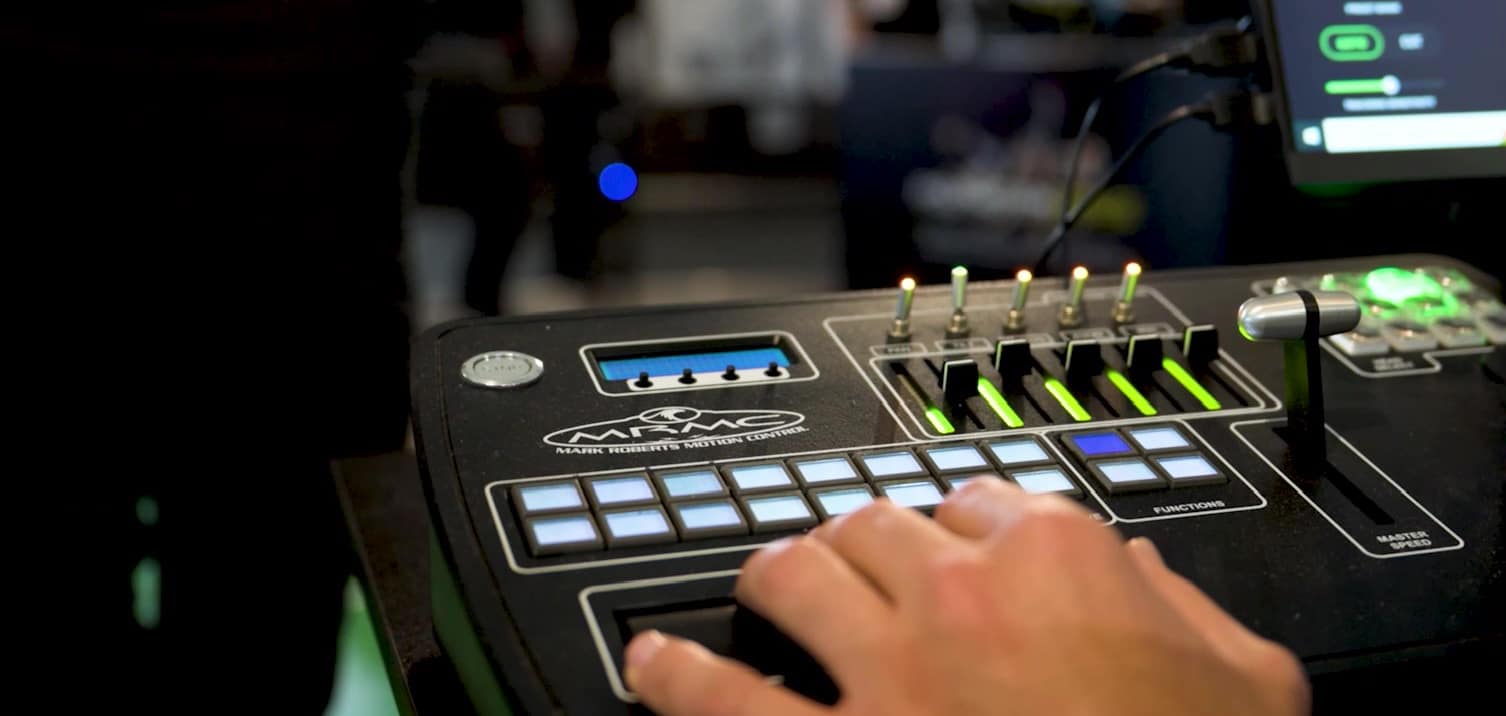

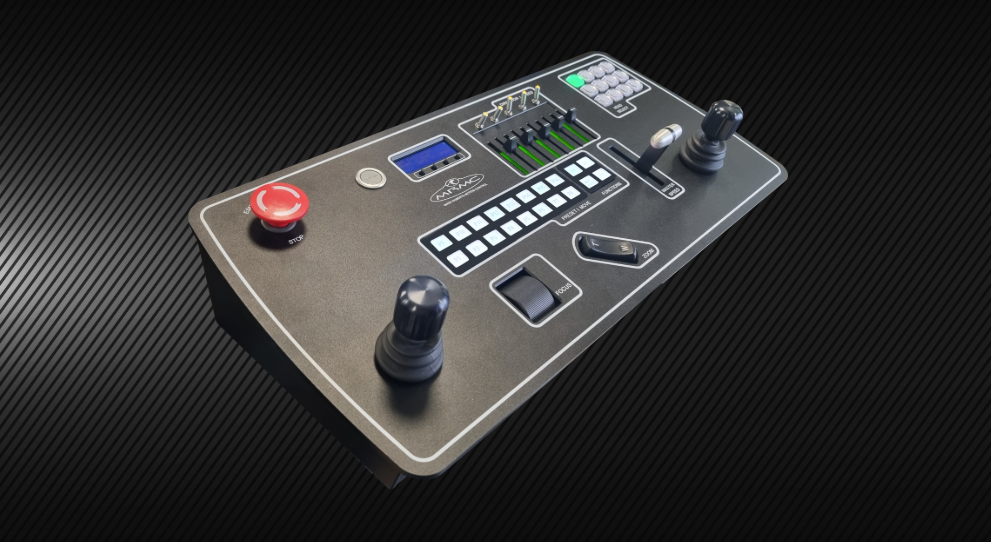

The Broadcast Panel is a robust fit-for-purpose controller designed for day-in, day-out use in professional studios or OB (Outside Broadcast) environments. The ergonomically designed panel provides precise joystick and full axis control of robotic systems and PTZs.

The Broadcast Panel is a robust fit-for-purpose controller designed for day-in, day-out use in professional studios or OB (Outside Broadcast) environments. The ergonomically designed panel provides precise joystick and full axis control of robotic systems and PTZs.

Key Features

CONTROL APPLICATIONS

CONTROL APPLICATIONS

The Broadcast Panel is specifically designed for industry-standard broadcast environments. The control panel’s buttons and controls are in a traditional broadcast layout so an operator can monitor and make easy adjustments as well as creating presets, have full control of all robotic axes (including speed and direction), and control of camera zoom, focus and iris.

The Broadcast Panel works with heads and dolly systems for small, medium and large studios, as well as for other broadcast environments – including universities, auditoriums, OBs or houses of worship.

The Broadcast Panel is specifically designed for industry-standard broadcast environments. The control panel’s buttons and controls are in a traditional broadcast layout so an operator can monitor and make easy adjustments as well as creating presets, have full control of all robotic axes (including speed and direction), and control of camera zoom, focus and iris.

The Broadcast Panel works with heads and dolly systems for small, medium and large studios, as well as for other broadcast environments – including universities, auditoriums, OBs or houses of worship.

Functionality

Functionality

An operator, working with MHC or RT Leaders (as well being Flair compatible), can change button functions allowing for finer user customisation.

  • 1x Speed control knob
  • 1x Iris control knob
  • 1x E-Stop button
  • 5x direction/speed toggle: Pan, Tilt, Focus, Zoom, Iris
  • 1x Master Speed controller
  • 1x LCD message screen
  • 1x Back button
  • 12x Head select buttons
  • 1x Focus wheel
  • 1x Autofocus button
  • 1x Zoom rocker
  • 16x Preset buttons
  • 1x Active group preset button
  • 1x Home selected head button
  • 1x Pan/Tilt/Zoom Joystick

An operator, working with MHC or RT Leaders (as well being FLair compatible), can change button functions allowing for finer user customisation.

  • 1x Speed control knob
  • 1x Iris control knob
  • 1x E-Stop button
  • 5x direction/speed toggle: Pan, Tilt, Focus, Zoom, Iris
  • 1x Master Speed controller
  • 1x LCD message screen
  • 1x Back button
  • 12x Head select buttons
  • 1x Focus wheel
  • 1x Autofocus button
  • 1x Zoom rocker
  • 16x Preset buttons
  • 1x Active group preset button
  • 1x Home selected head button
  • 1x Pan/Tilt/Zoom Joystick

Feature Highlights

USB CONNECTION

Simple to connect

BUTTON FUNCTIONS

Can be changed using MHC Controller Mapping function

MHC AND FLAIR

Compatible with both software solutions

Specifications

Size & Weight

Weight

2.8kg

Length

250mm

Width

420mm

Height

100mm

Temperature & Humidity

Range

-10 to +45°C

Humidity Tolerance

0% to 85% relative humidity, non-condensing

Connections & Power

Connectors

24V (power out) 3 Pin XLR Male 24V (power out) 3 Pin XLR Female USB Type A

Power

24 DC
