AN EXTREMELY VERSATILE REMOTE & MOTION CONTROL HEAD

The Ulti-Head is the ultimate in heavy-load robotic systems designed for high payload capacity, speed and precision. The Ulti-Head offers the best in class for heavy duty camera support with a maximum payload of up 45kg (with side bars), making it the ideal choice for providing fast, fluid, accurate motion for large-format cameras and lenses.

Max Payload
45
Kg
Speeds
120
revs/sec
Torque
47
Nm

Key Features

Convenience, Compatibility & Control

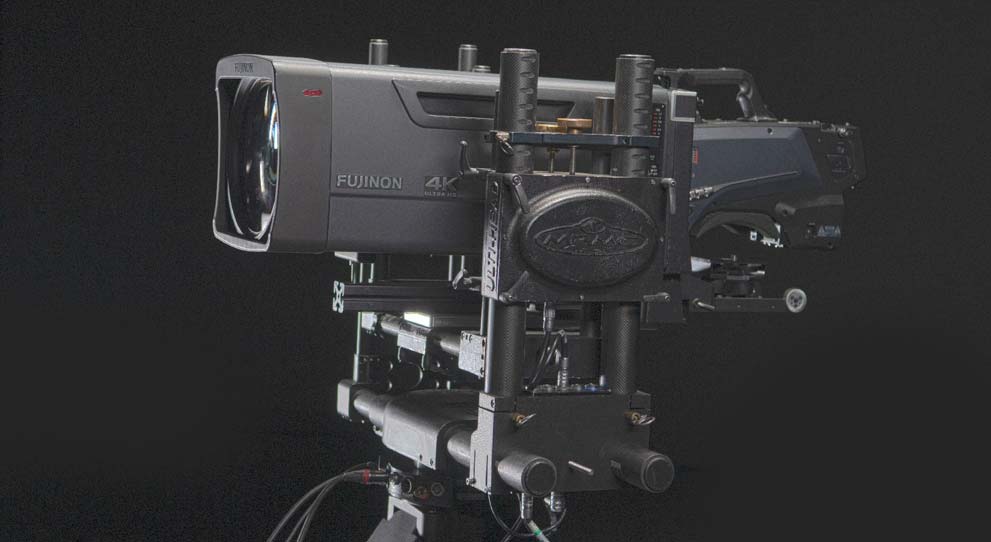

The Ulti-Head boasts a space-saving compact design for high portability, making it easy to deploy on location. It also features a standard crane, dolly and tripod mount for universal use and offers a 360° motion with a tangle-free design.

Whatever your setup, the Ulti-Head has it covered; it works with hand-wheels, joysticks or pan-bars and is fully adjustable for any camera or lens thanks to its adaptable carbon-fibre tubes. The Ulti-Head also works directly with the MSA-20 for remote head use – even wirelessly – and offers full track and lift options and can interface to video lens motors.

The Ulti-Head can be controlled using remote hand-wheels, joystick or pan-bars, or be programmed via computer using our advanced Flair software system to ensure you remain in control of every single shot, no matter where you are.

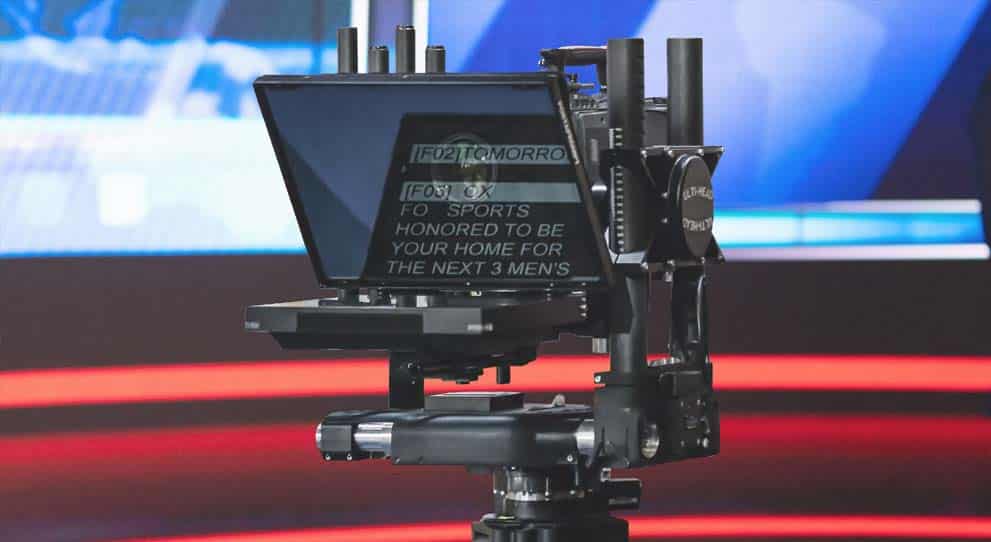

Key Benefits

  • Precise repeatability with the unit’s zero-backlash gearboxes and mechanics.
  • Exploit the Ulti-Head’s extraordinary flexibility thanks to its built-in control of additional motors such as roll, focus, zoom, iris and more; nine axes can be controlled per head.
  • Deploy the built-in homing/zeroing sensors; the head will automatically find its home position after powering up.
    Designed for film, HD and 4K cameras plus 3D stereo rigs.
    Can be run on standard Arri or Panavision batteries.

Feature Highlights

REMOTE CAPTURE OF STILLS AND VIDEO

FULL REMOTE CONTROL OF CAMERA CAPTURE

RELIABILITY OF VIDEO AND STILL CAPTURE

EASY TO USE CONTROL INTERFACE

QUICK TO USE MODULAR SYSTEM

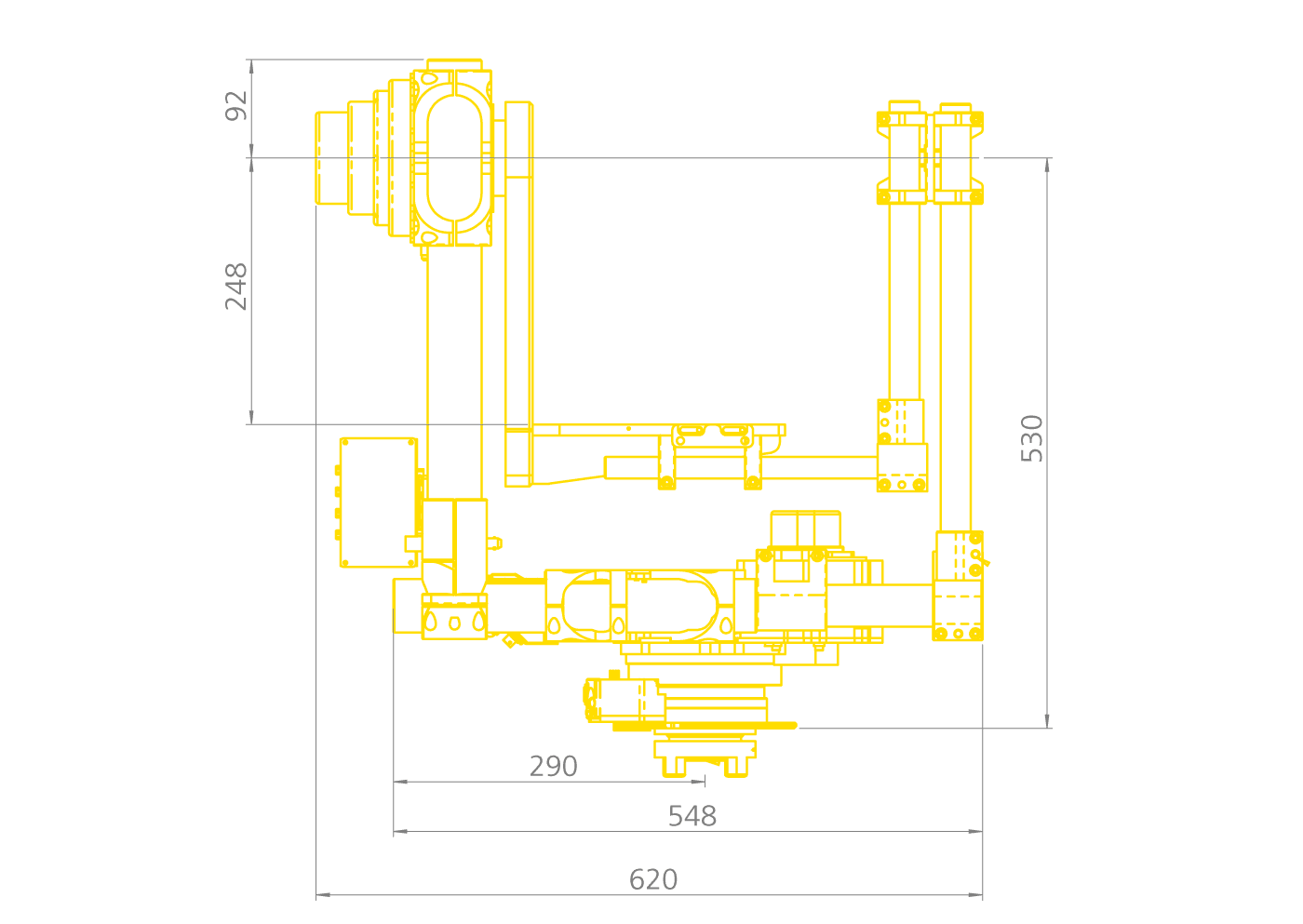

Specifications

  • TECHNICAL INFORMATION
    • Power
      24v (15-35V) Battery P ack or 100/240v AC 50/60 Hz Power Supply
    • Current Consumption
      0.5 Amps typical stationary / 3 Amps typical accelerating
    • Maximum Motor Power
      35V 8A channel
    • Weight
      23kg (exc. options and battery pack)
    • Maximum Camera Weight
      45kg (with side bars)
    • Torque
      47nm
    • Speeds
      120˚/sec / 0.33 r evs/sec (subject to supply voltage)
    • Control Protocol
      Ethernet or Serial
