Static Lift Head (SLH)

Static Robotic System

Max Payload 60KG / 132 Lb
Max Elevation 1501MM
Column Max. Speed 150MM/S

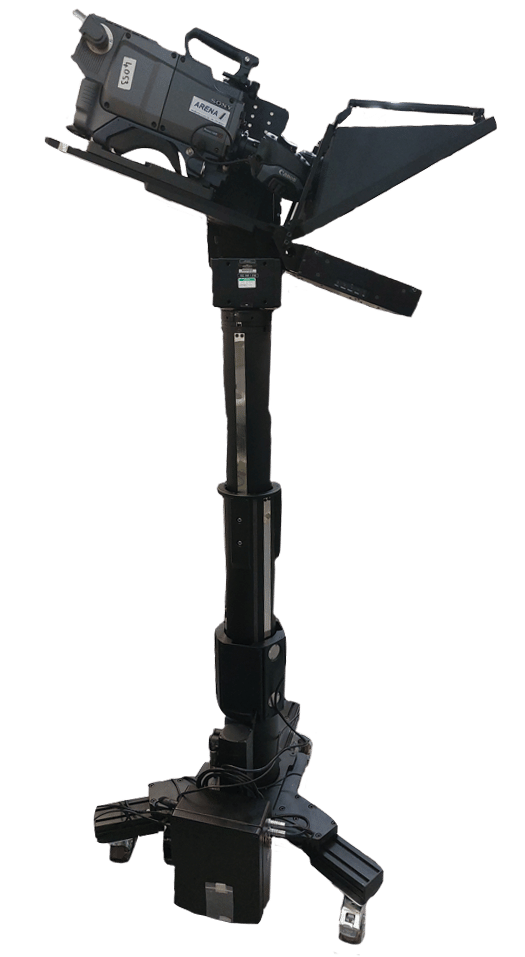

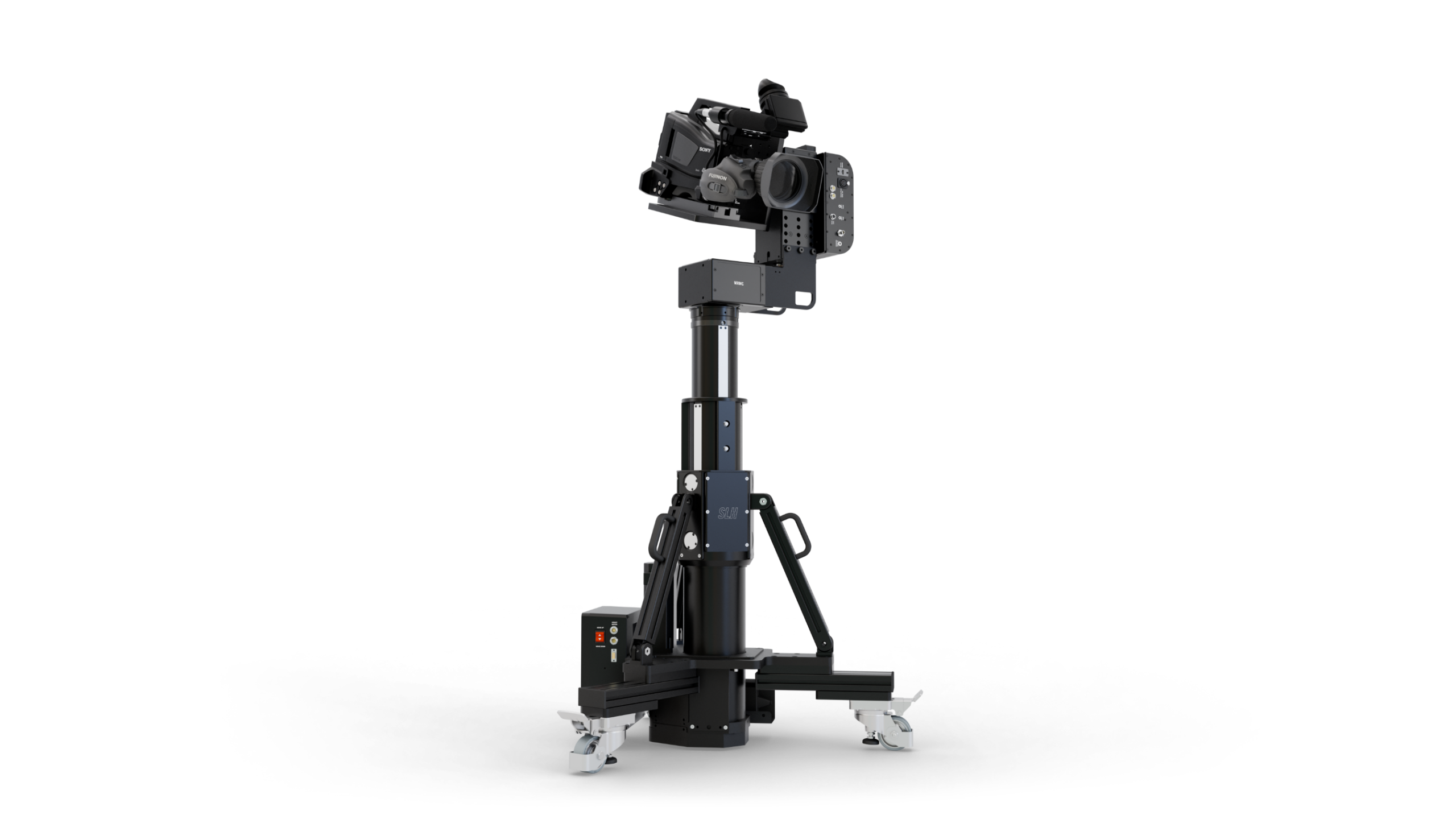

MRMC’s Static Head System (SLH) is a class-leading static, studio robotic solution that provides extremely smooth movement. Ideal for broadcast studios but also for live events such as concerts, festivals and houses of worship. Flexible height options and different heads are supported enabling support for teleprompters and over crowd shots. It is available in a single (SLH-1) and dual-stage (SLH-2) version.

MRMC’s Static Lift Head (SLH) is a class-leading static, studio robotic solution that provides extremely smooth movement. Ideal for broadcast studios but also for live events such as concerts, festivals and houses of worship. Flexible height options and different heads are supported enabling support for teleprompters and over crowd shots. It is available in a single and dual-stage version.

Smooth & Precise

Broadcast panel features

Designed for Studio Production

Designed for a heavy payload, the SLH can accommodate a full-system camera, typical studio lens, as well as a teleprompter. System can be paired with any of MRMC’s robotic heads, such as the PTA-2. Fully IP-controlled and can be controlled via MRMC’s MHC and Polymotion Chat systems, which allows it to offer lift movement, combined with industry-leading/award-winning talent tracking.

Designed for a heavy payload, the SLH can accommodate a full-system camera, typical studio lens, as well as a teleprompter. System can be paired with any of MRMC’s robotic heads, such as the PTA-2. Fully IP-controlled and can be controlled via MRMC’s MHC and Polymotion Chat systems, which allows it to offer lift movement, combined with industry-leading/award-winning talent tracking.  The system can also be controlled via Robokam, making seamless integration of the SLH alongside the likes of MRMC’s StudioBot XL and TRH possible.

Advanced Intergration For Virtual Production

The SLH offers FreeD output data from the lift column and camera head, which can be combined to provide real-time positional telemetry to third-party VR environments. The system can also be paired with MRMC’s XY-Scanner repositioning system, allowing it to be quickly realigned with the VR environment via a simple push-button reconfiguration after repositioning around a studio floor between productions.

The SLH offers FreeD output data from the lift column and camera head, which can be combined to provide real-time positional telemetry to third-party VR environments. The system can also be paired with MRMC’s XY-Scanner repositioning system, allowing it to be quickly realigned with the VR environment via a simple push-button reconfiguration after repositioning around a studio floor between productions.

Feature Highlights

SMOOTH MOVEMENT

Quiet Icon

VERY QUIET SYSTEM

Flexible PAyload Icon

FLEXIBLE PAYLOAD OPTIONS

Connectivity Icon

FULLY IP CONNECTED

Teleprompter Icon

SUPPORTS A TELEPROMPTER

Specifications

SLH-1

Payload and Performance

Max. Payload

60kg / 132lbs

Column Height

Max. 1317mm, Min. 817mm (top of column)

Column Height Adjust Speed

Max. 75mm/s (2.95in/s)

Column Height Adjust Accel

Max. 50mm/s2

SLH-2

Payload

45kg / 99lbs

Column Height

Max. 1501mm, Min: 731mm (top of column).

Column Height Adjust Speed

Max. 150mm/s (6.9in/s)

Column Height Adjust Accel

Max. 80mm/s2

Connectivity & Power

Connection

RJ45 Gigabit Ethernet (1000 BASE-T) (IEEE 802.3ab) for Camera

Power

110-240V AC IEC 10A
