Bolt Jr+

Bolt Jr+

Compact high-speed rig with extended reach

Track 3M/S
Payload 10KG
Reach 1.4M

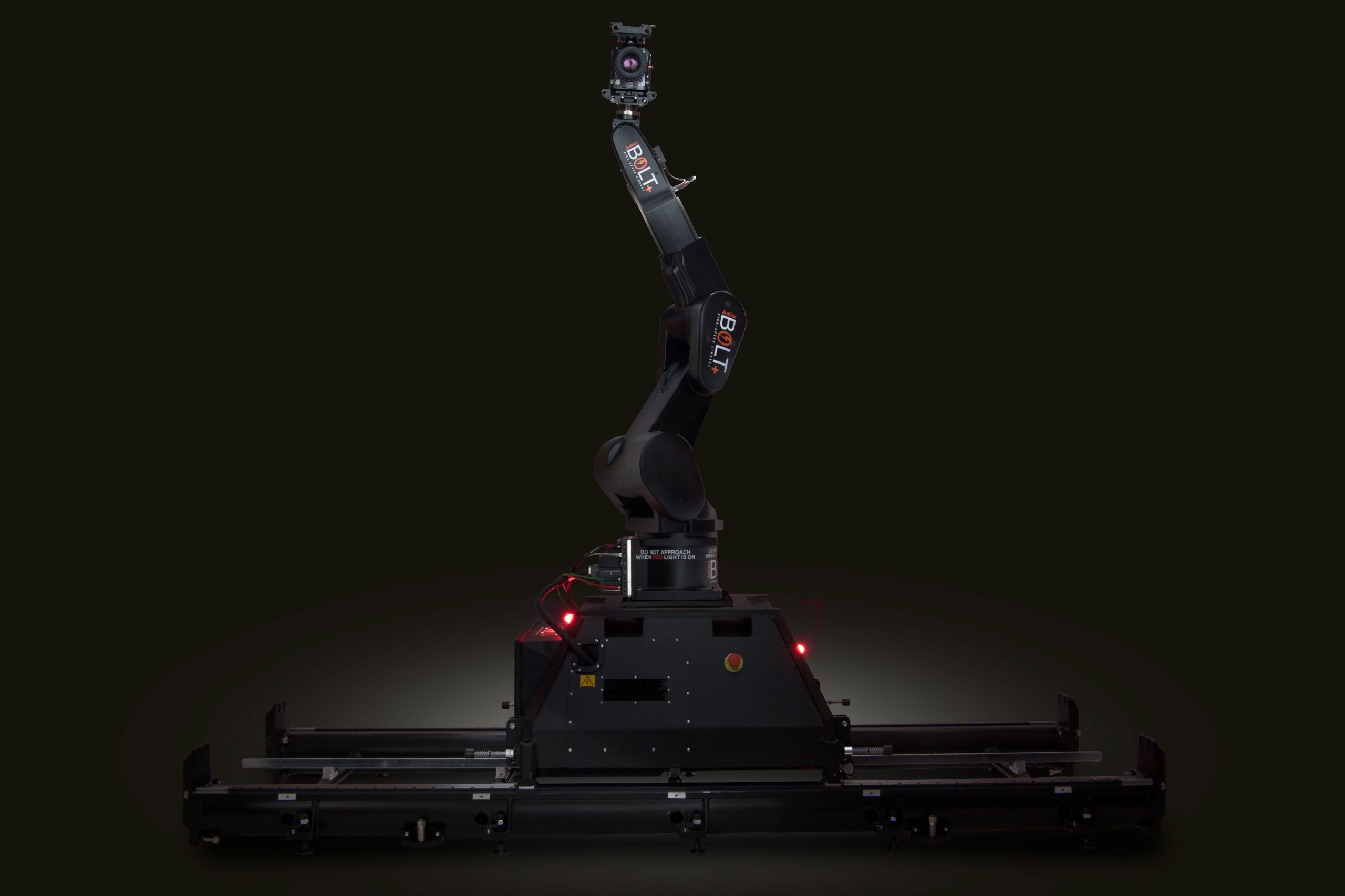

Bolt™ Jr+ is a compact, lighter weight high-speed camera robot with a longer reach than the Bolt™ Jr. The agile, smaller rig also comes with an increased camera payload (10kg) and is an ideal solution for smaller spaces or location work.

Bolt™ Jr+ is a compact, lighter weight high-speed camera robot with a longer reach than the Bolt™ Jr.

Key Features

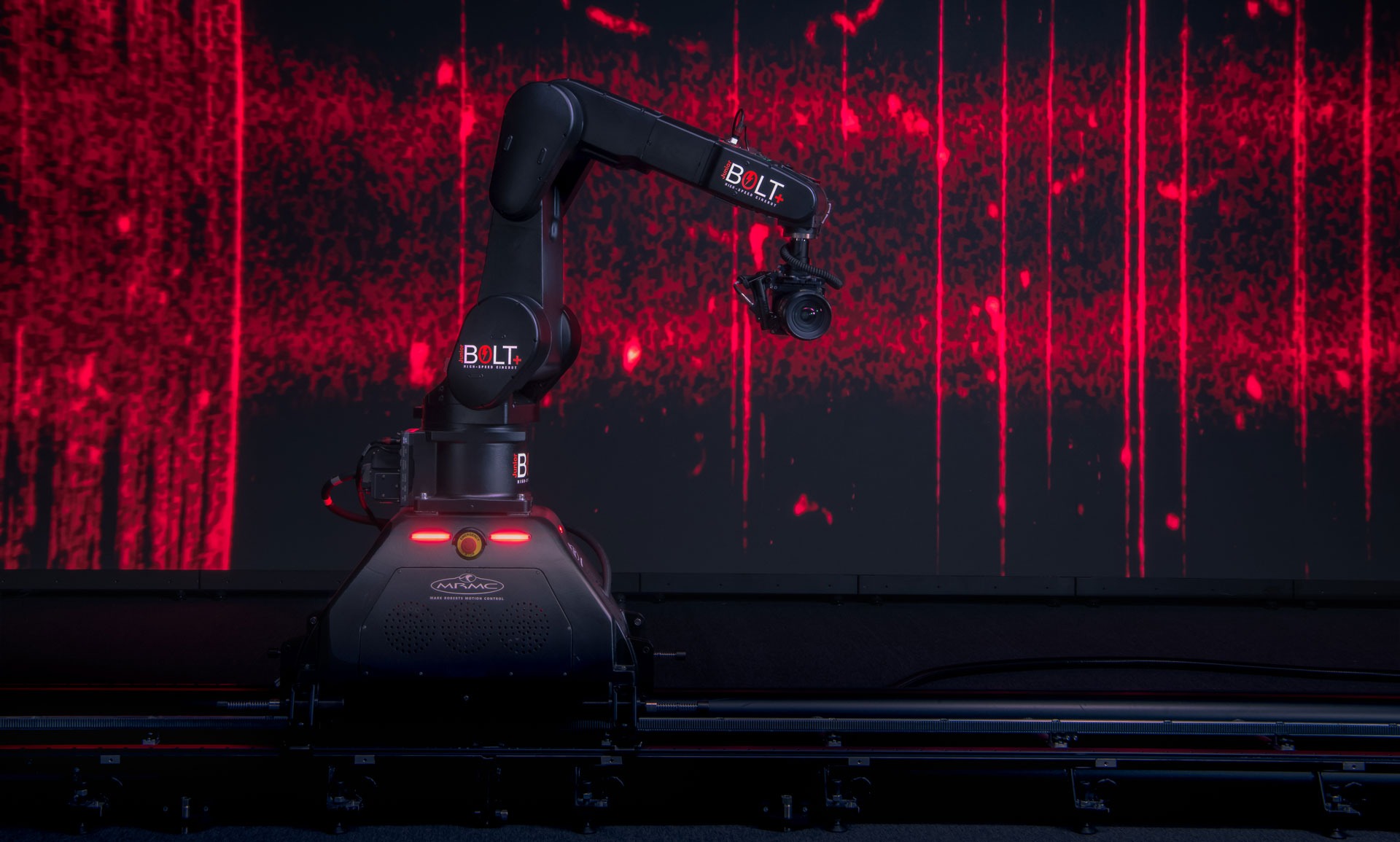

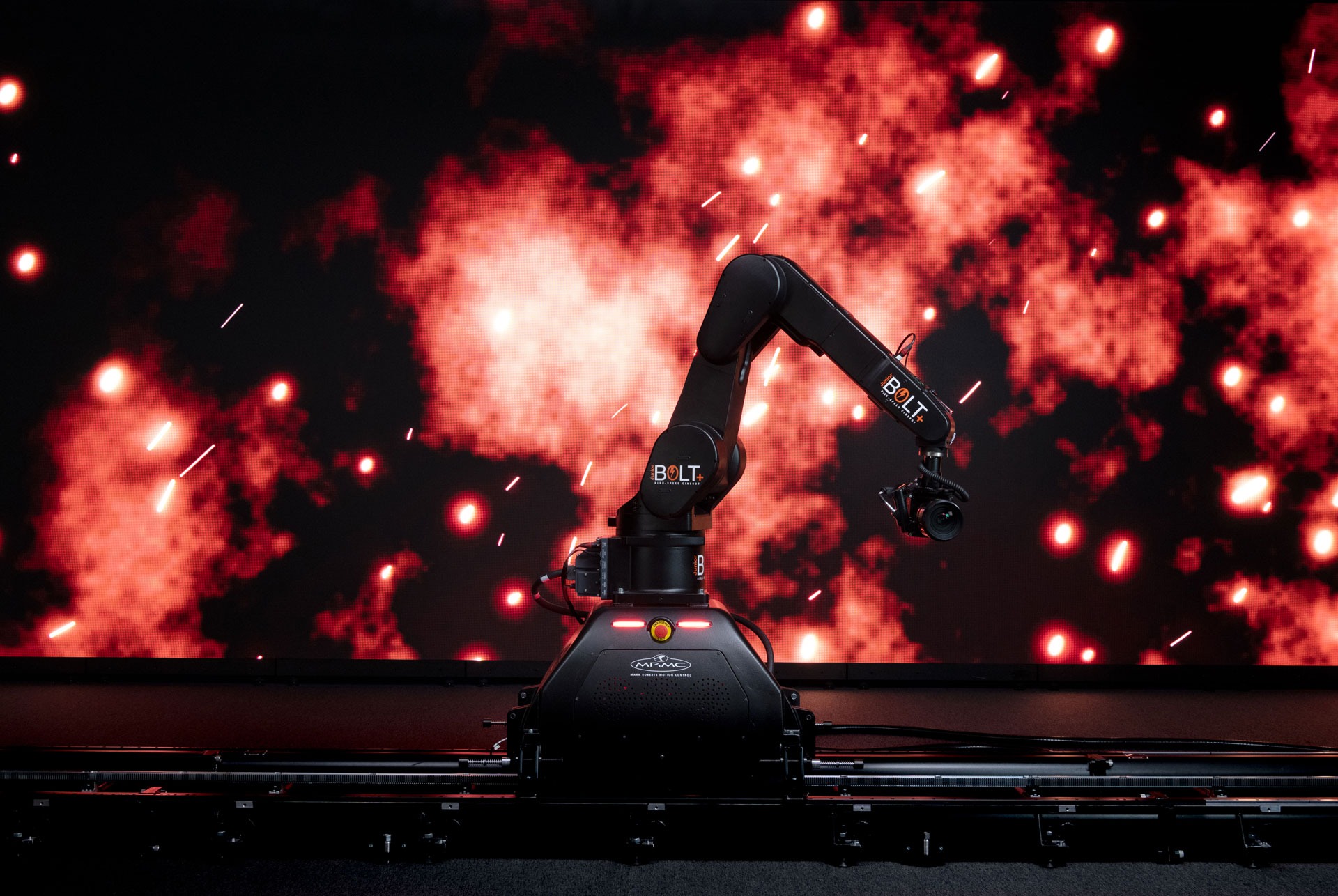

Bolt Jr+ High-speed Cinebot LED background

Bolt Jr+ Highlights

Comparison

  • Longer reach than the Bolt Jr. (1.4m)
  • High payload capacity (10kg)
  • Small and portable
  • Under half the weight of Bolt rig
  • Can be used as both camera rig or model mover
  • Track speed in excess of 3m/sec
  • Longer reach than the Bolt Jr. (1.4m)
  • High payload capacity (10kg)
  • Small and portable
  • Under half the weight of Bolt rig
  • Can be used as both camera rig or model mover
  • Track speed in excess of 3m/sec

Compact Lightweight System

Impressive and sophisticated high-speed automated image capture

The compact Bolt Jr+ is ideal for working in small studio spaces. At half the weight of Bolt, Bolt Jr+ is a portable motion control option that can be set up and ready for action in under an hour, making it an obvious choice for use on location.

The compact Bolt Jr+ is ideal for working in small studio spaces. At half the weight of Bolt, Bolt Jr+ is a portable motion control option that can be set up and ready for action in under an hour, making it an obvious choice for use on location.

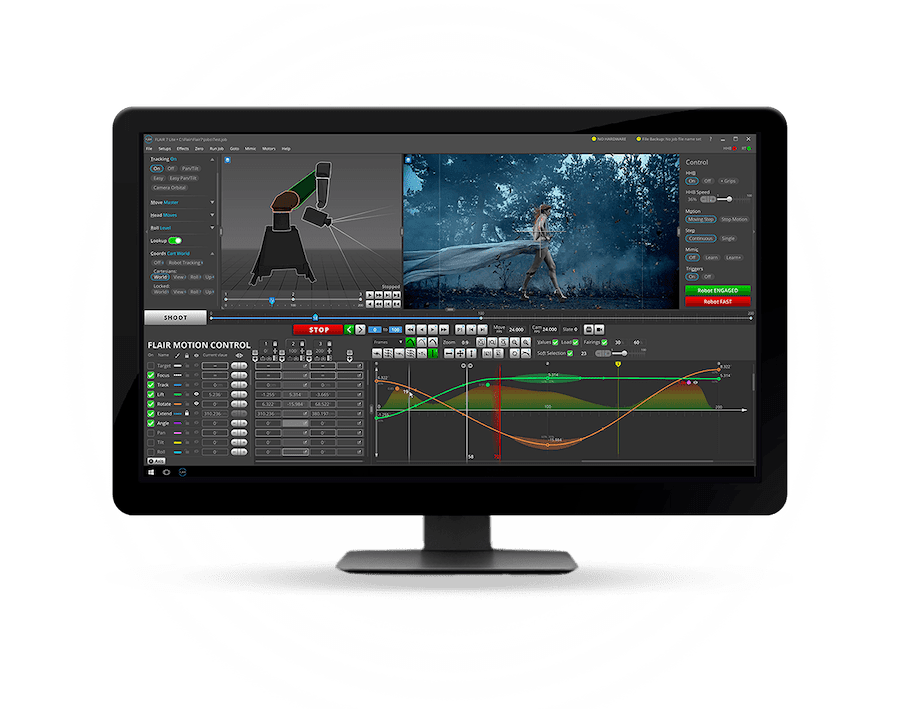

Bolt and Flair MRMC’s premier motion control software

Industry Standard Software

Flair is MRMC’s premier motion control software

Designed to give exceptional command over camera movement, Flair precisely controls up to 500 axes of motion and interfaces seamlessly with CGI packages. Flair is the tool that makes your vision reality.

Designed to give exceptional command over camera movement, Flair precisely controls up to 500 axes of motion and interfaces seamlessly with CGI packages. Flair is the tool that makes your vision reality.

Feature Highlights

Turntables

Synchronised motion with external triggers, model movers for extreme precision timing

Portable

Portable, lightweight, designed to be set-up and ready for shooting in under an hour

DMX

Timecode based DMX lighting control

Timelapse

Create incredible timelapse with dynamic movement and feel

Repeatable

Every camera move under complete control. Precisely, repeatable.

Target Tracking

Define location of your object in space, to simplify any complex move
lens control icon

Lens Control

Precise control of zoom, iris & focus with the fastest & most powerful motors in the world

Maya

Take moves from Maya and feed them into the Bolt – or interface to AR/VR in real-time

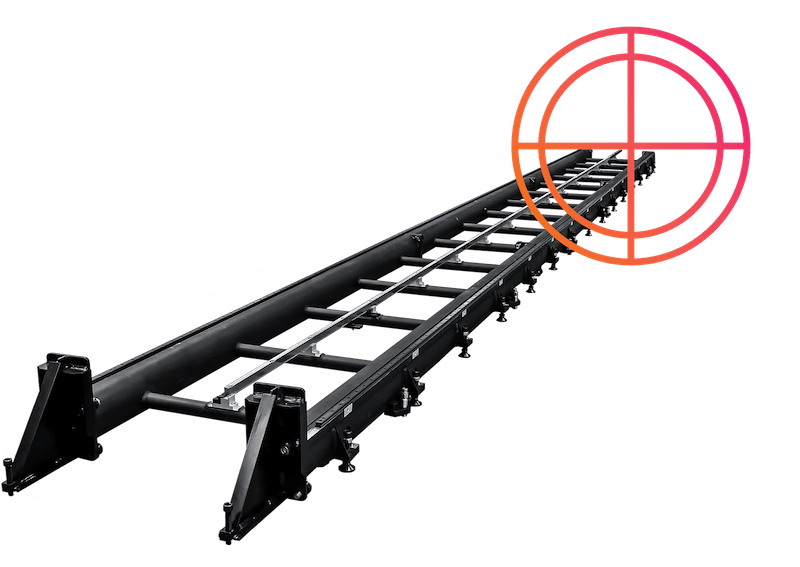

Track Options

Pan Bars Slide

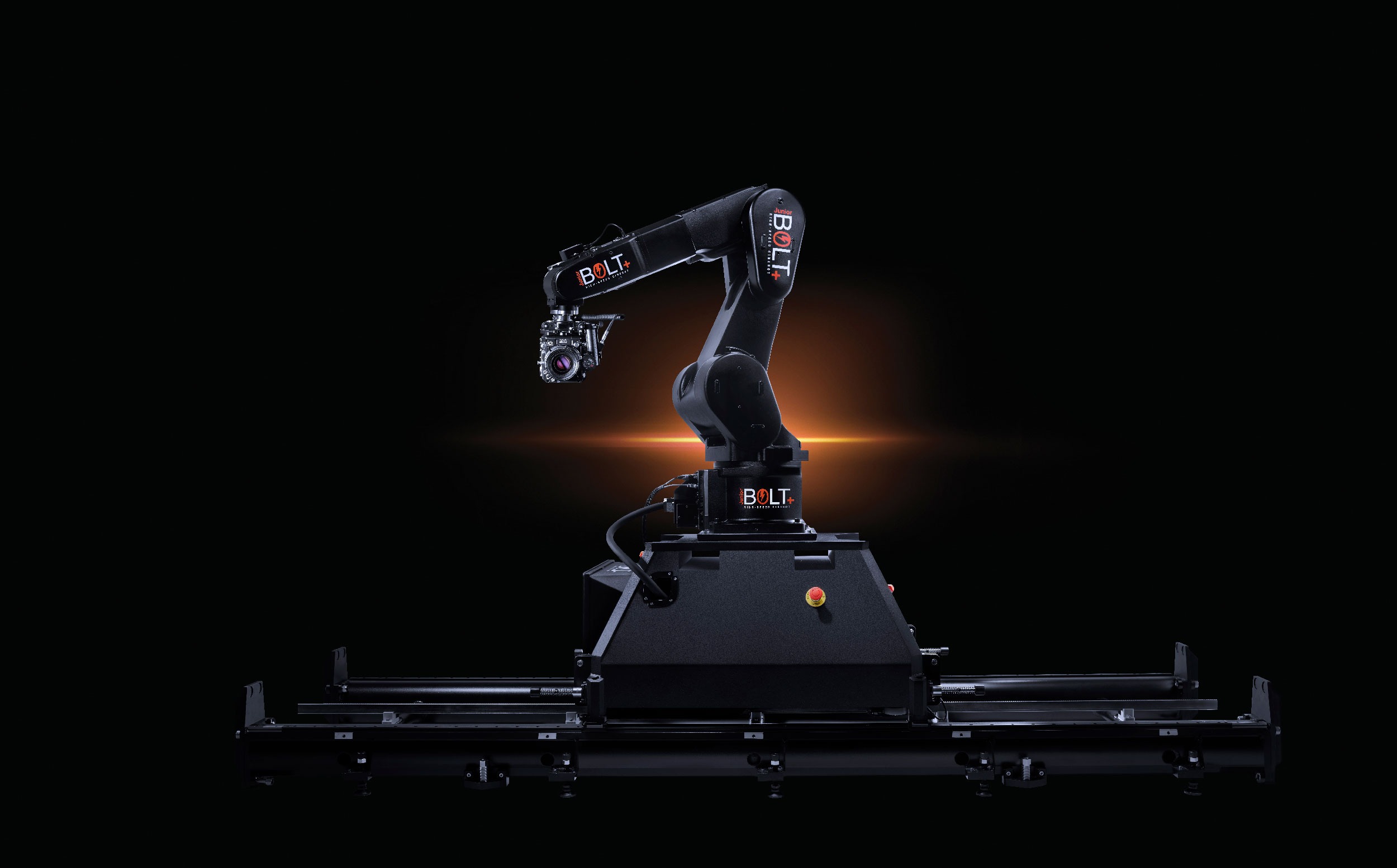

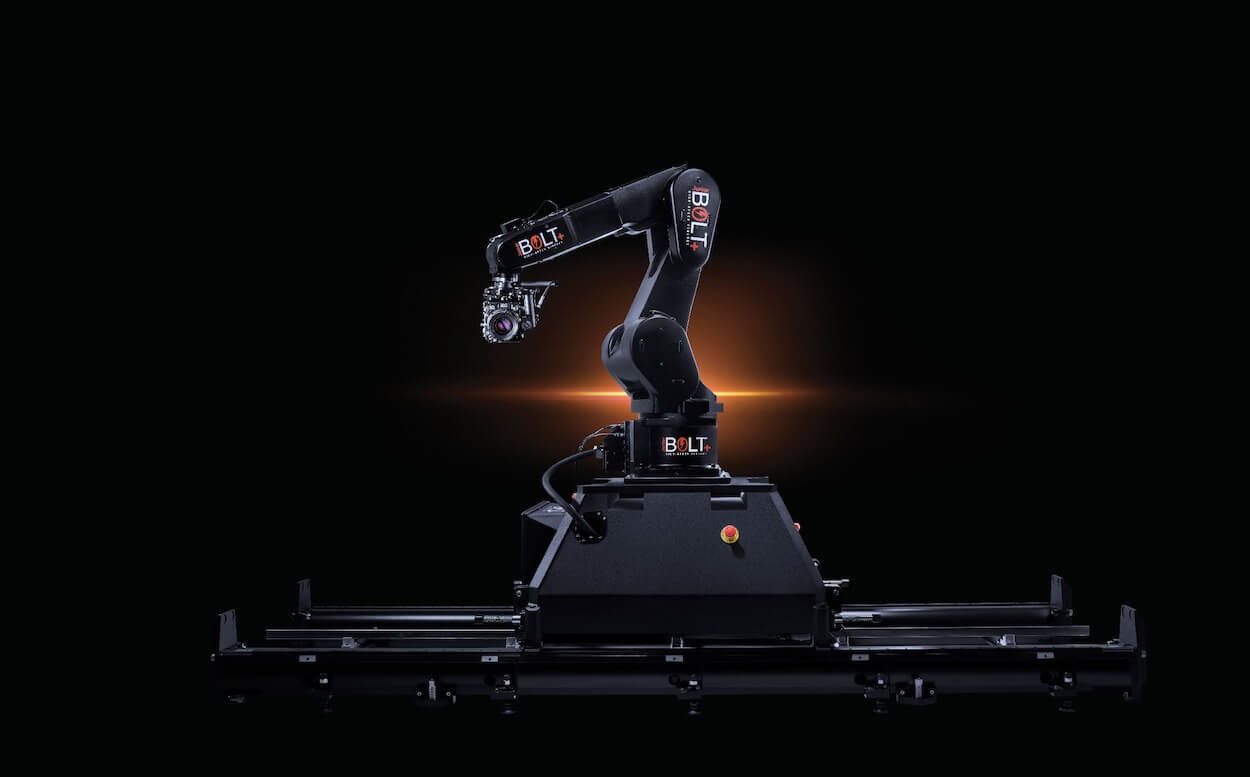

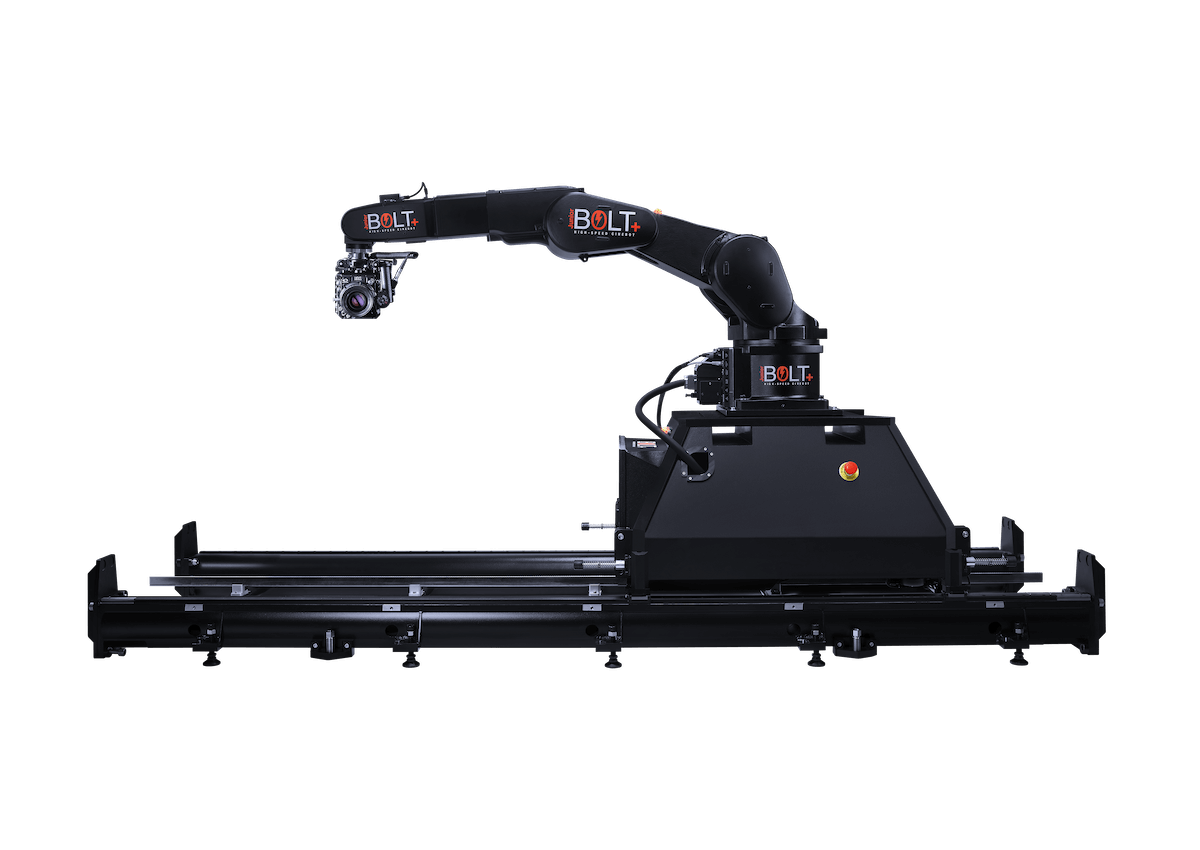

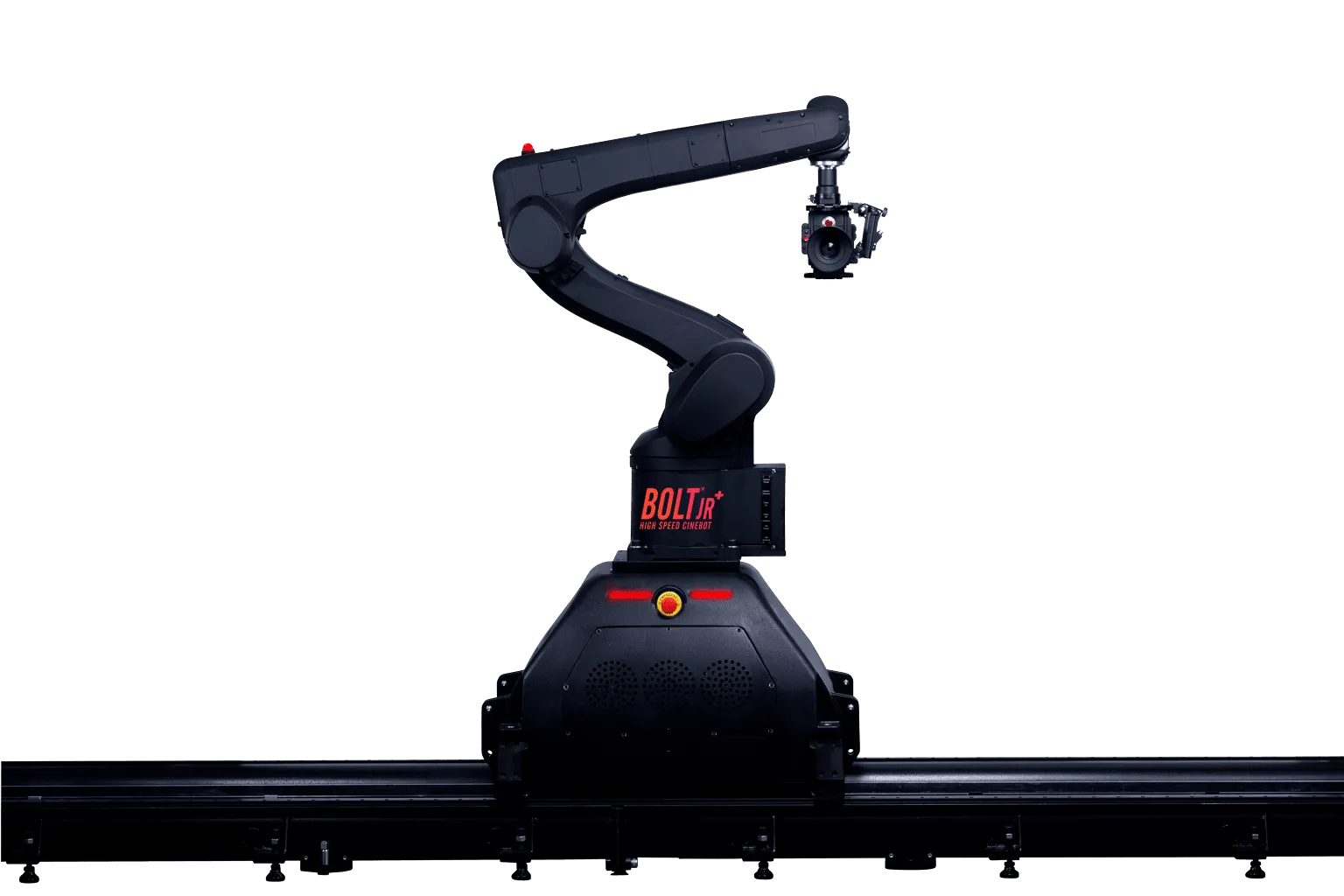

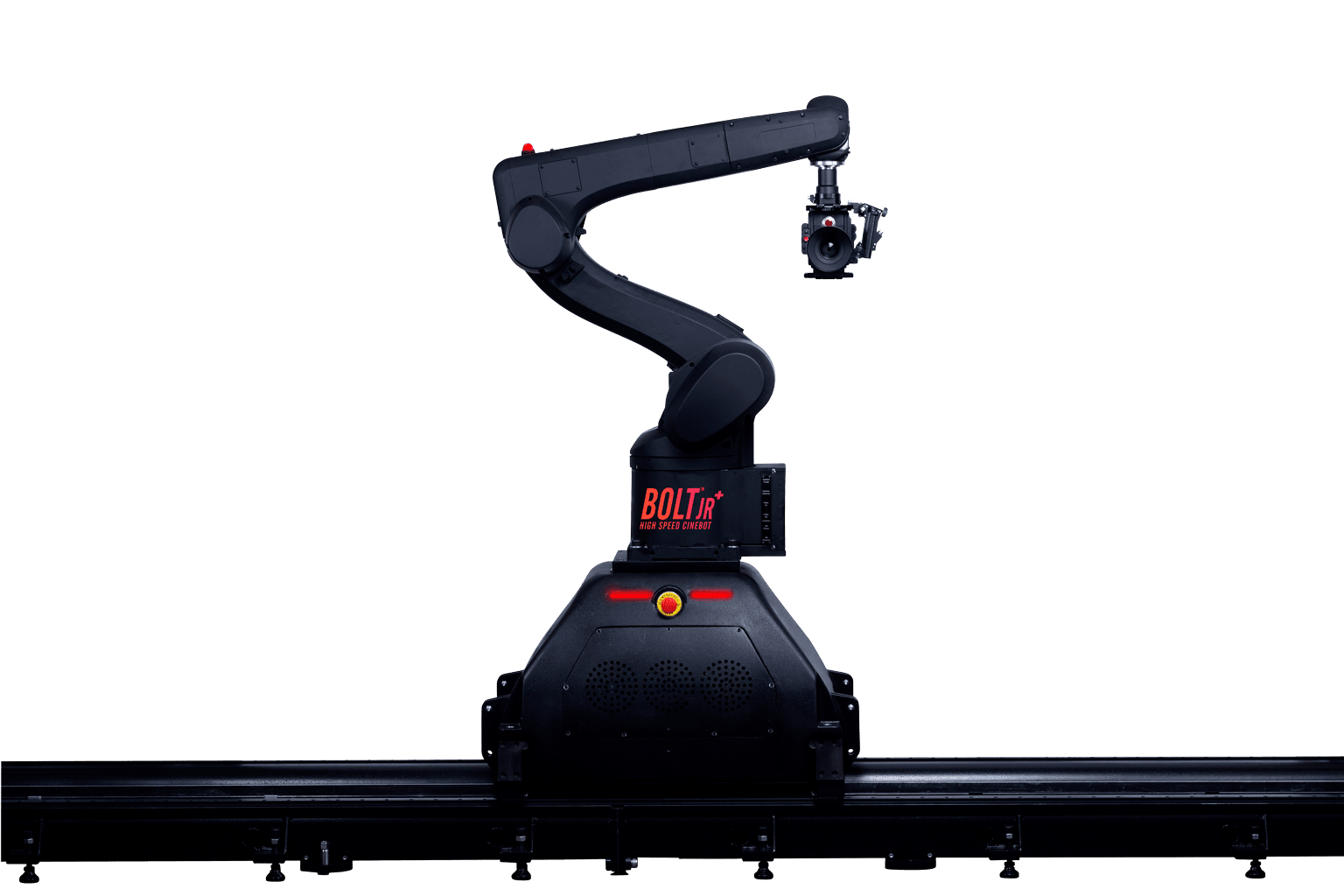

Bolt JR+ On Track

To add another dimension of movement for the Bolt Jr+, you can run the high-speed camera system on track. Run the Bolt Jr+ along a track and follow any object, person, or landscape – giving much more flexibility in terms of visual creativity. With rapid acceleration, the Bolt Jr + on Track can reach 3 meters per second. Additionally, through MRMCs Flair software, you have programmable acceleration profiles so you can consistently reach and maintain desired speeds with pinpoint accuracy.

Specifications

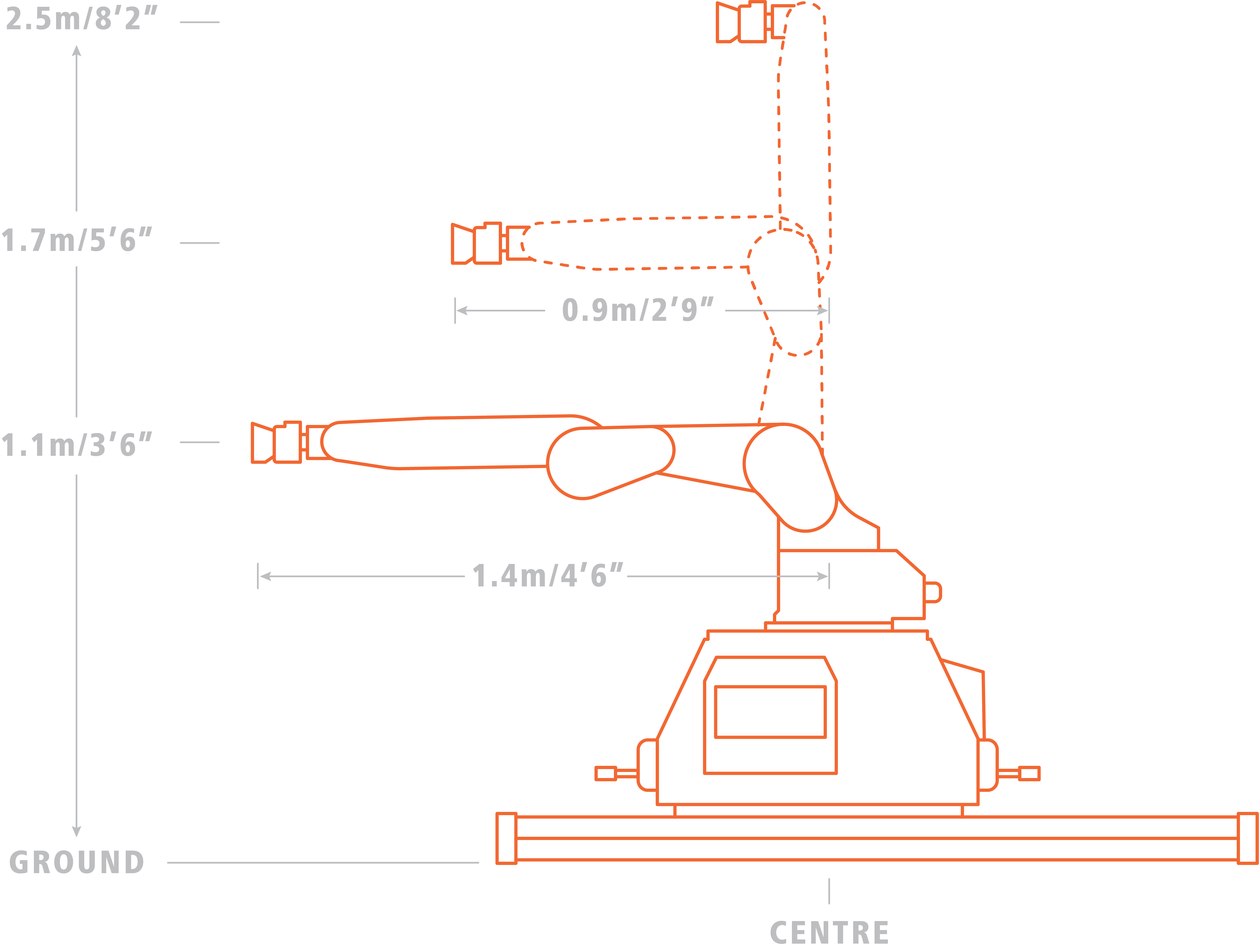

Operating envelope

Max Height (from ground)

2.5m / 8'2"

Max Reach (from rotate centre)

1.4m / 4'6"

Lowest Position

0m / 0'

Rig Performance

Arm ARC Move Max Speed @ Camera

5 m/s

Arm with Track Max Speed @ Camera

8 m/s

Track

Unlimited range of travel

Rotate

+/- 190˚ range of travel

Lift

+150˚/ -90˚ range of travel

Arm

+157˚ / -10˚ range of travel

Pan

+/- 200˚ range of travel

Tilt

+/- 120˚ range of travel

Roll

+/- 360˚ range of travel

Rig Weights

Bolt Jr+

318kg (701 Ibs) +
Transport wheels 50kg (110 Ibs)

Maximum camera payload

10kg / 22lbs

Power Connection

Power Requirements

1 x 200-220 VAC

Downloads

Controllers

Pan bars

Pan Bars

Pan Bars

A natural and intuitive way of controlling a motion control head, Pan Bars can be used in isolation or conjunction with other axis controllers, and movements can be recorded and accurately played back as required.

A natural and intuitive way of controlling a motion control head, can be used in isolation or conjunction with other axis controllers, and movements can be recorded and accurately played back.

Handwheels

Handwheels

Handwheels

Frame your shot and accurately record manual camera movements for repeated playback in Flair. Compatible with all MRMC Motion Control heads and rigs, and assignable in Flair to control any axis of motion, the MRMC balanced handwheels have a very fluid feel just as top DoPs and directors would expect. Additional standard built-in features like electronic gearing/scaling and direction adjustment make the handwheels a perfect accessory for all rigs.

Compatible with all MRMC Motion Control heads and rigs, and assignable in Flair to control any axis of motion, the MRMC balanced handwheels have a very fluid feel just as top directors would expect.

prev
next

Accessories

Lens Motor Slide

LENS CONTROL MOTORS

LENS CONTROL MOTORS

Playback programmed moves or record manual lens movements for later playback with these precision-machined, highly accurate lens control motors. Compatible with wide a variety of types and sizes of lenses.

Playback programmed moves or record manual lens movements for later playback with these precision-machined, highly accurate lens control motors. Compatible with wide a variety of types and sizes of lenses.

Trigger Box

Triggers Box

Triggers Box

Connect of your external equipment, such as lights, to the Flair Motion Control software using the Triggers Box. This simple solution allows you to trigger all of your equipment through Flair, giving you full, accurate control of every aspect of your shoot.

Connect your equipment to the Flair software using the Triggers Box. This allows you to trigger your equipment through Flair, giving you accurate control of every aspect of your shoot.

prev
next

Videos

Other Rigs

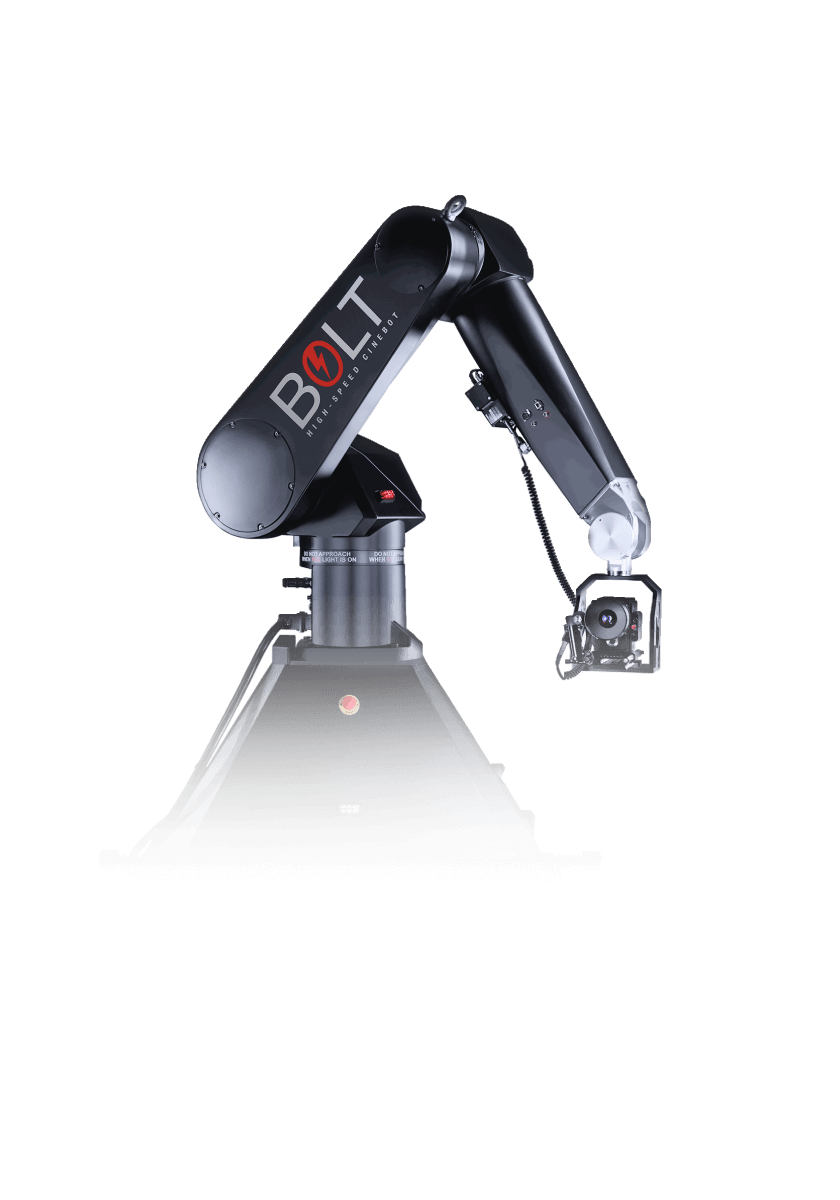

Bolt - Robotic Motion Control Camera Arm
