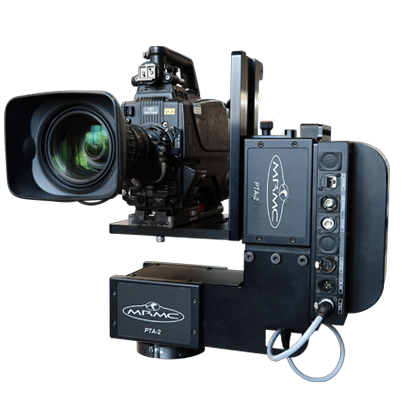

PTA-2 Robotic Arm

BROADCAST CAMERA PLATFORM

Speed 180 degrees /s
Payload 25kg / 55lb
VR/AR FreeD

The PTA-2 is a robotic camera platform specifically designed for supporting heavier broadcast cameras and lenses in studio applications. MRMC also offers a variation, the PTA-2B designed to carry heavy-payload box lenses to be used in sports productions.

The PTA-2 is a robotic camera platform specifically designed for supporting heavier broadcast cameras and lenses in studio applications. MRMC also offers a variation, the PTA-2B designed to carry heavy-payload box lenses to be used in sports productions.

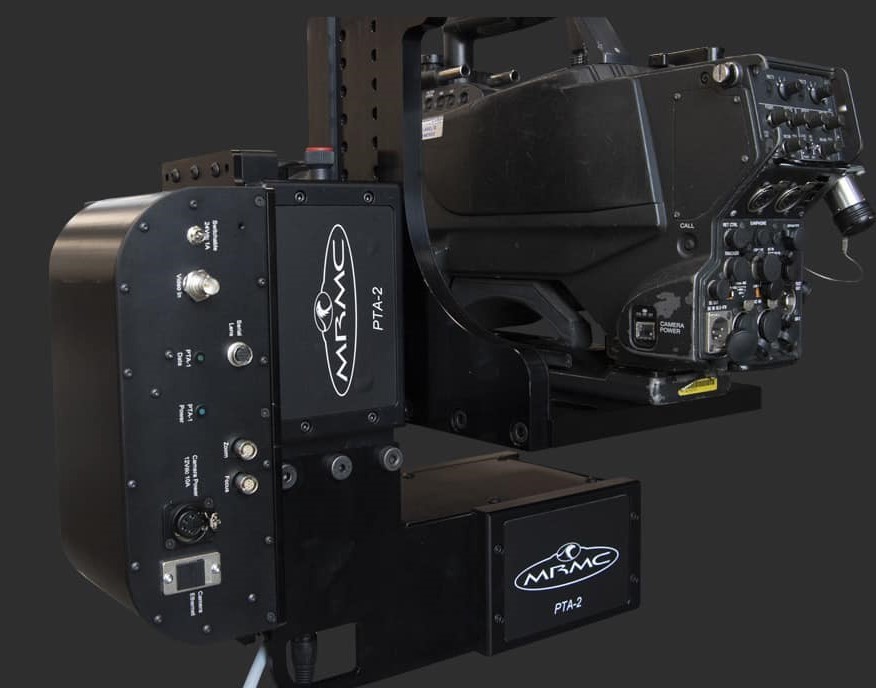

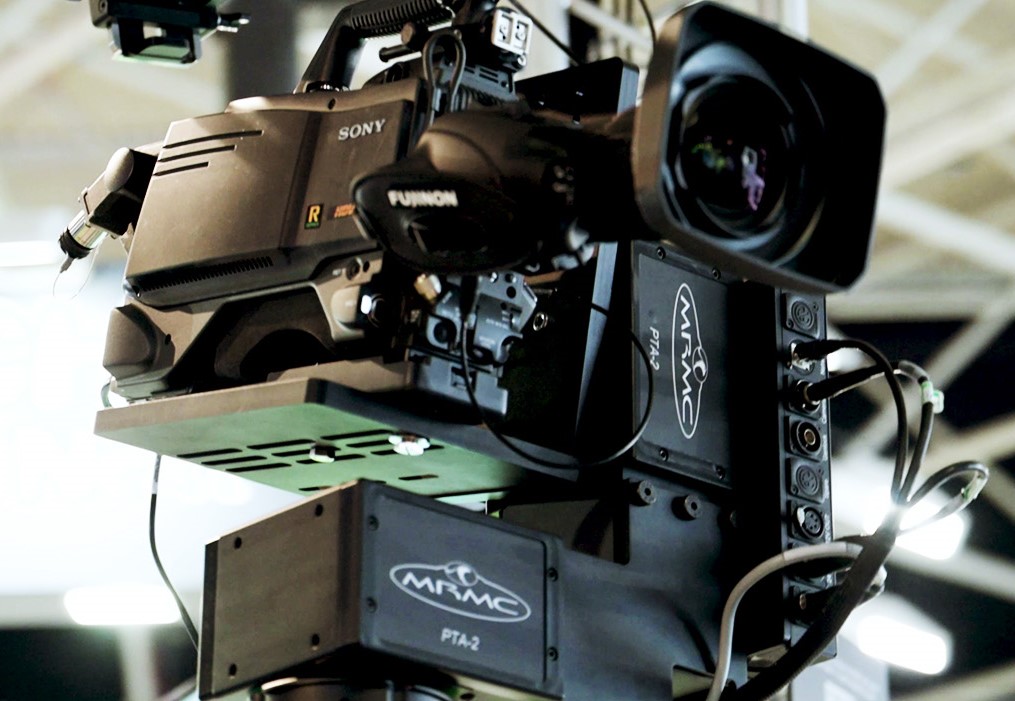

PTA-2 - Studio Robotic Head

HIGH PAYLOAD DESIGN

Designed to flexbility and best-in-class performance, the PTA-2 is a high payload robotic arm that can be paired with the TRH-1 track solution to take your content creation to new levels.

The PTA-2 can carry up to 25 kg (55lb) when used with optional sidearm, and 15 kg (33lb) as standard, making is capable of supporting high-quality broadcast cameras and teleprompters.

Designed to flexbility and best-in-class performance, the PTA-2 is a high payload robotic arm that can be paired with the TRH-1 track solution to take your content creation to new levels.

The PTA-2 can carry up to 25 kg (55lb) when used with optional sidearm, and 15 kg (33lb) as standard, making is capable of supporting high-quality broadcast cameras and teleprompters.

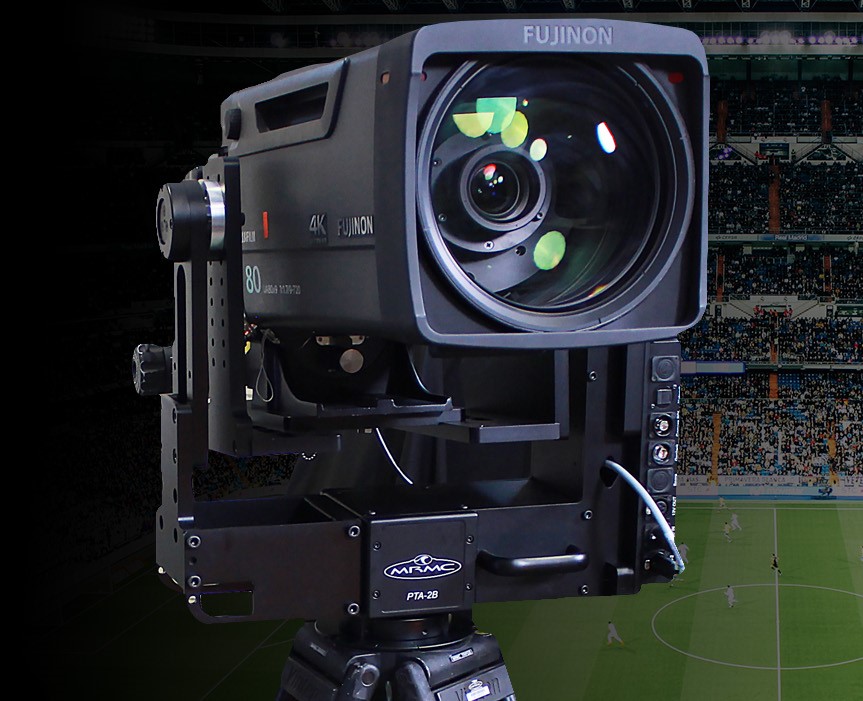

PTA-2B - Remote Aquisition Head

Designed for Sports

Like the PTA-2, the PTA-2B also features a nodal head design, ensuring the load is centred above the pan-axis. With the ability to take up to a 40kg (88lb) payload, the PTA-2B is the perfect option for box lenses commonly used in sports broadcast. Like the rest of MRMC’s robotics range, the PTA-2B integrates with MHC and can be controlled via pan-bars, joystick or automatically via integration with Polymotion Player or Polymotion Relay. As the PTA-2B can be controlled over an IP network, it is well suited for remote operation.

Like the PTA-2, the PTA-2B also features a nodal head design, ensuring the load is centred above the pan-axis. With the ability to take up to a 40kg (88lb) payload, the PTA-2B is the perfect option for box lenses commonly used in sports broadcast. Like the rest of MRMC’s robotics range, the PTA-2B integrates with MHC and can be controlled via pan-bars, joystick or automatically via integration with Polymotion Player or Polymotion Relay. As the PTA-2B can be controlled over an IP network, it is well suited for remote operation.

KEY FEATURES

  • Delivers smooth motion with quiet operation, ideal for studio and remote production.
  • The PTA-2 can also be used on MRMC robotic columns or rails.
  • Both the PTA-2 and PTA-2B integrate with MRMC Polymotion Chat for full automation with natural motion.
  • The PTA-2B can integrate with MRMC’s Polymotion Player solution for automated control and camera-follow-camera operation.
  • The PTA-2 can carry up to 25 kg (55lb), while the PTA-2B can carry up to 40 Kg (88lb)
  • Delivers smooth motion with quiet operation, ideal for studio and remote production.
  • The PTA-2 can also be used on MRMC robotic columns or rails.
  • Both the PTA-2 and PTA-2B integrate with MRMC Polymotion Chat for full automation with natural motion.
  • The PTA-2B can integrate with MRMC’s Polymotion Player solution for automated control and camera-follow-camera operation.
  • The PTA-2 can carry up to 25 kg (55lb), while the PTA-2B can carry up to 40 Kg (88lb)

EASY TO USE INTERFACE

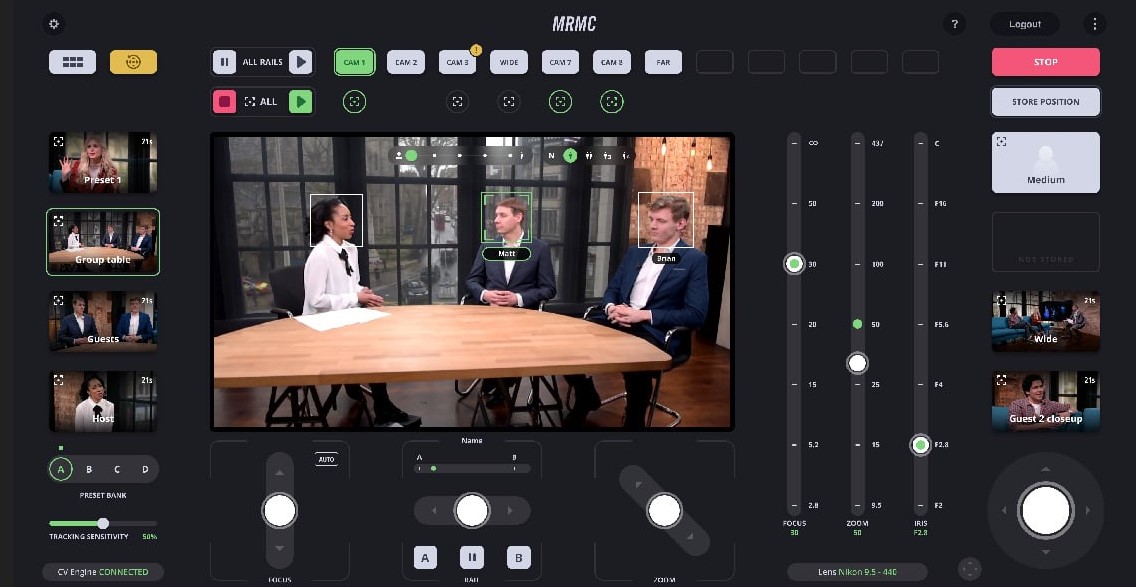

MHC is a class leading next generation remote control platform. This software comes in two parts, MHC server and MHC client. MHC server can dynamically control an unlimited number of robots.

The servers role is to take input information, from multiple users and sources, and then translate this to smooth fluid camera moves on any of the MRMC robotic heads.

MHC is a class leading next generation remote control platform. This software comes in two parts, MHC server and MHC client. MHC server can dynamically control an unlimited number of robots.

The servers role is to take input information, from multiple users and sources, and then translate this to smooth fluid camera moves on any of the MRMC robotic heads.

Feature Highlights

FULL REMOTE OPERATION/PRODUCTION

Easy to use icon

EASY TO USE CONTROL INTERFACE

Modular Icon

QUICK TO USE MODULAR SYSTEM

HIGH PAYLOAD (PTA-2b)

PTA-2B With Pan Bar Control

Specifications

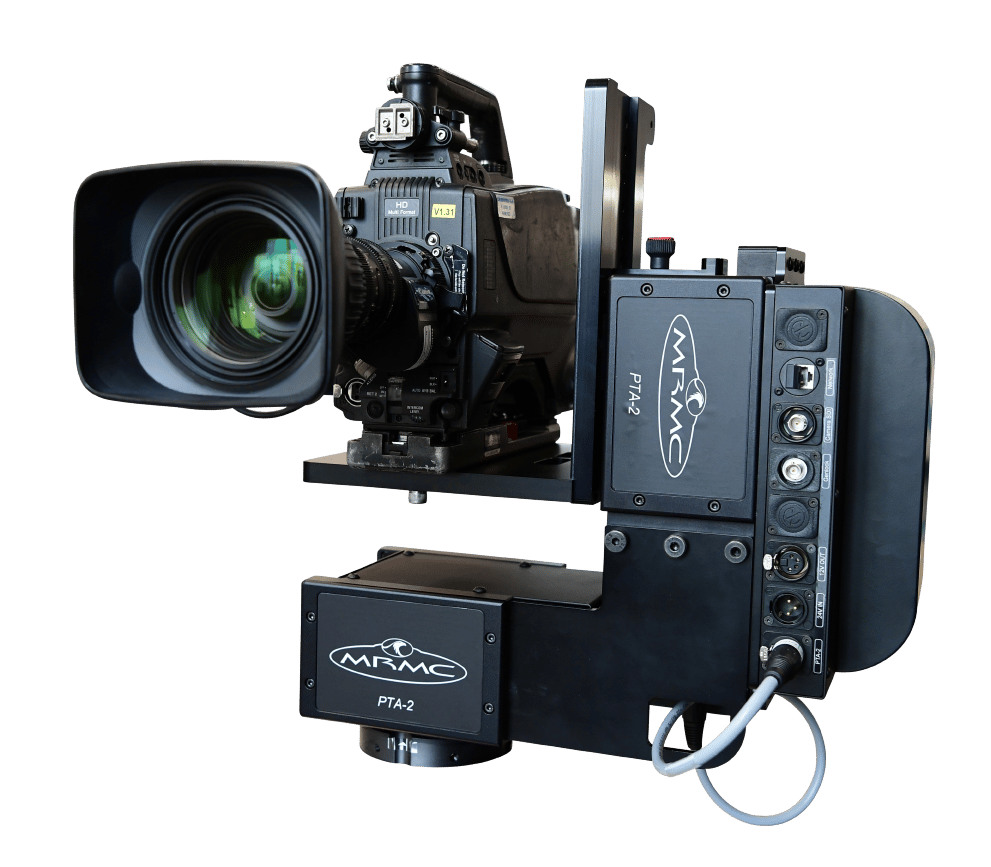

PTA-2

Size of operational space

~ 1m3 / ~ 39in3

Self Mass (including cradle)

20kg / 44lb

Payload Mass

Up to 25kg / 55 lb with sidearm 15kg / 22 lb standard

Payload Inertia

2.5kgm2

Absolute Pan

720º (subject to cabling)

Axes Speed - (both axes)

180º/s

Tilt

+/- 45 ° (typical - limited by camera payload dimensions)

Axes Speed for Studio

45º/s

PTA-2B

Self Weight

25 kg / 55 lb

Payload Mass

Up to 40 Kg / 88 lb

Absolute max axes speed

250°/s

Max. accel/decel

200°/s

Connections & Power

RJ45

1000base-t

SDI pass-through for camera

3G max. output 1080p 50/60 fps

Genlock

Power

Supplied with 240V 16A Optional 110V 16A and UK/EU/US
