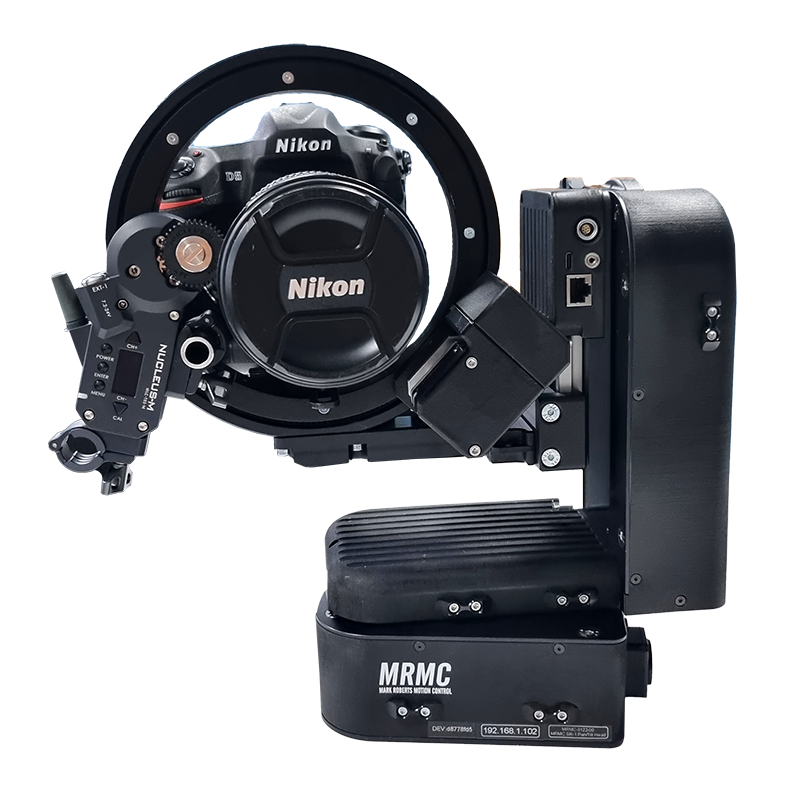

SR-1 Small Robotic Head
Pan-Tilt Head for Professional Photography & Videography

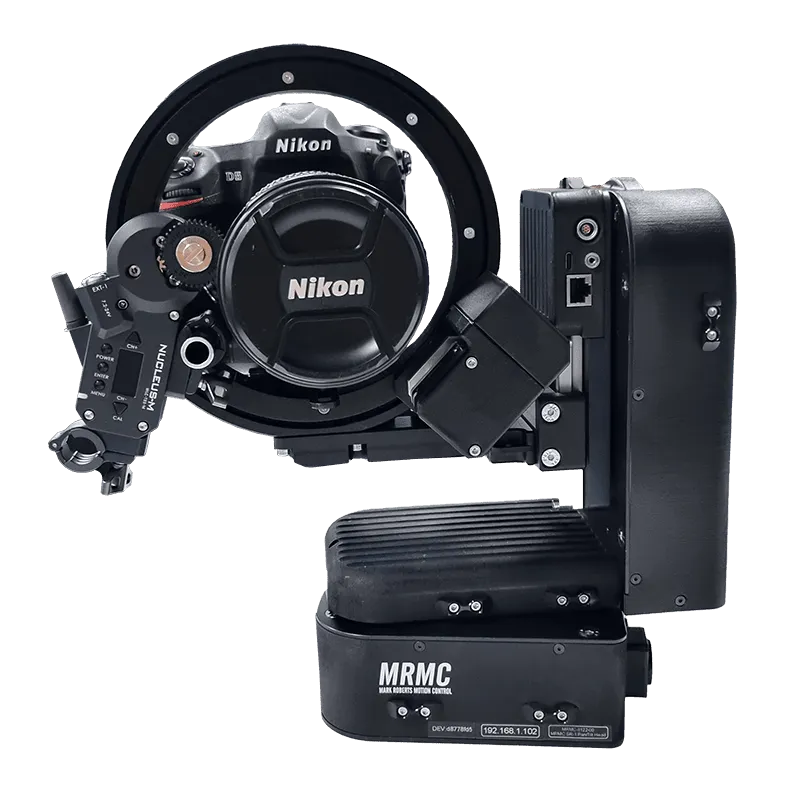

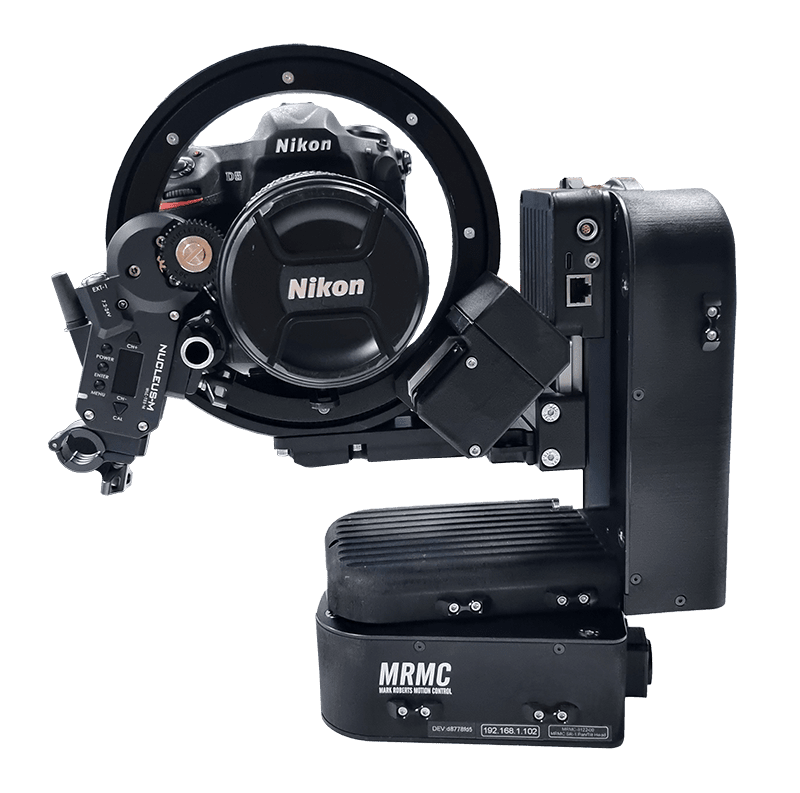

The SR-1 Small Robotic Head is a new pan-tilt head for professional photography and videography. Designed to be used in locations that are difficult for camera operators to access, this next-generation, remote production tool enhances the creativity of shots, helps capture new angles and achieve shots that would be ‘impossible’ by hand with ease.
The SR-1 Small Robotic Head is a new pan-tilt head for professional photography and videography. Designed to be used in locations that are difficult for camera operators to access, this next-generation, remote production tool enhances the creativity of shots, helps capture new angles and achieve shots that would be ‘impossible’ by hand with ease.
Simplicity In Motion
Lightweight Specification

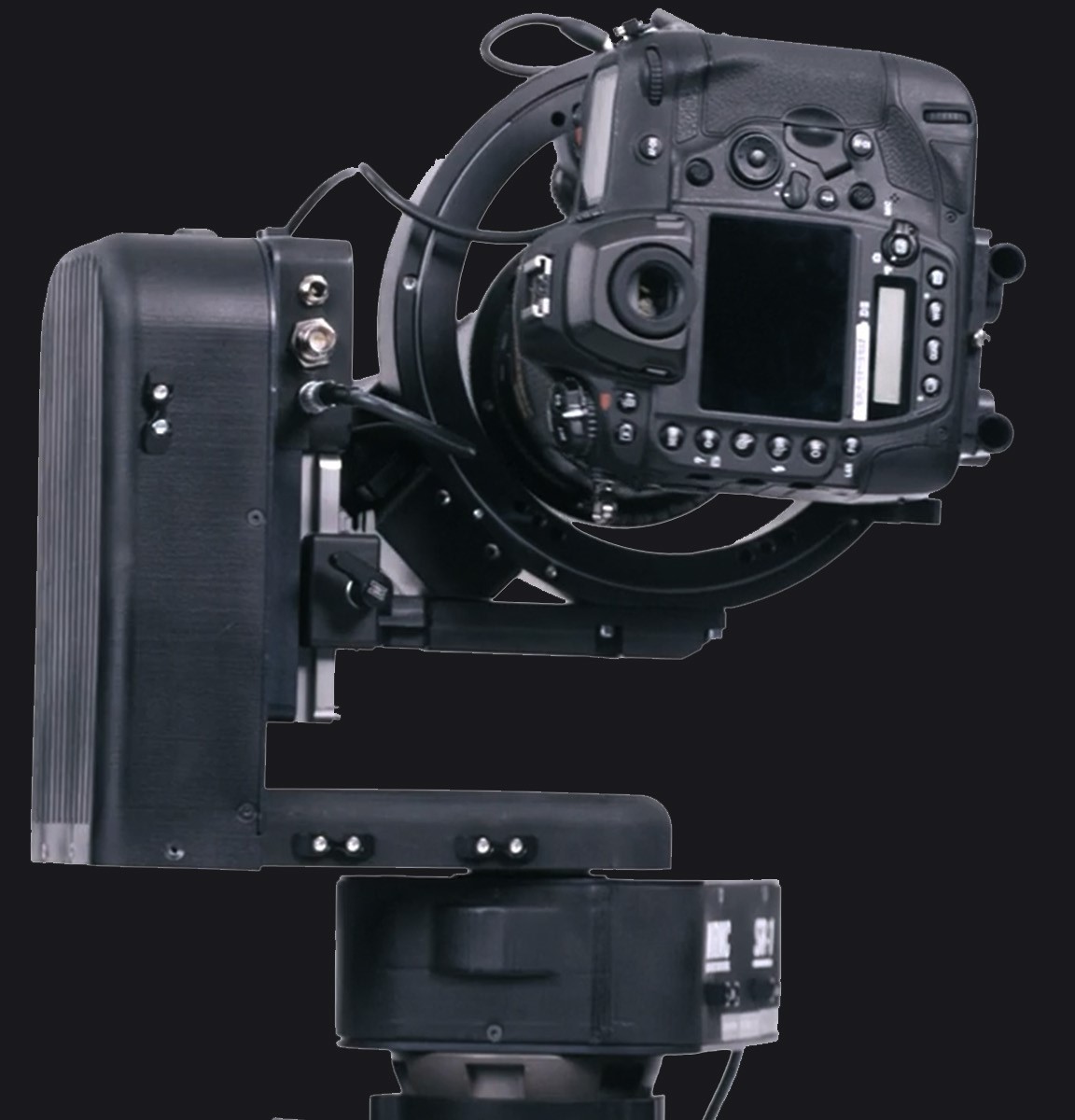

The SR-1 is compact and lightweight, making it easy to transport and set up and is easy to mount and control. It is compatible with Nikon cameras, including the Z9, D5 and D6 and can support a payload of up to 4kg. The head has an axis speed of 52 degrees per second and a pan range of +/- 150 degrees.
The SR-1 is compact and lightweight, making it easy to transport and set up and is easy to mount and control. It is compatible with Nikon cameras, including the Z9, D5 and D6 and can support a payload of up to 4kg. The head has an axis speed of 52 degrees per second and a pan range of +/- 150 degrees.
Use Anywhere

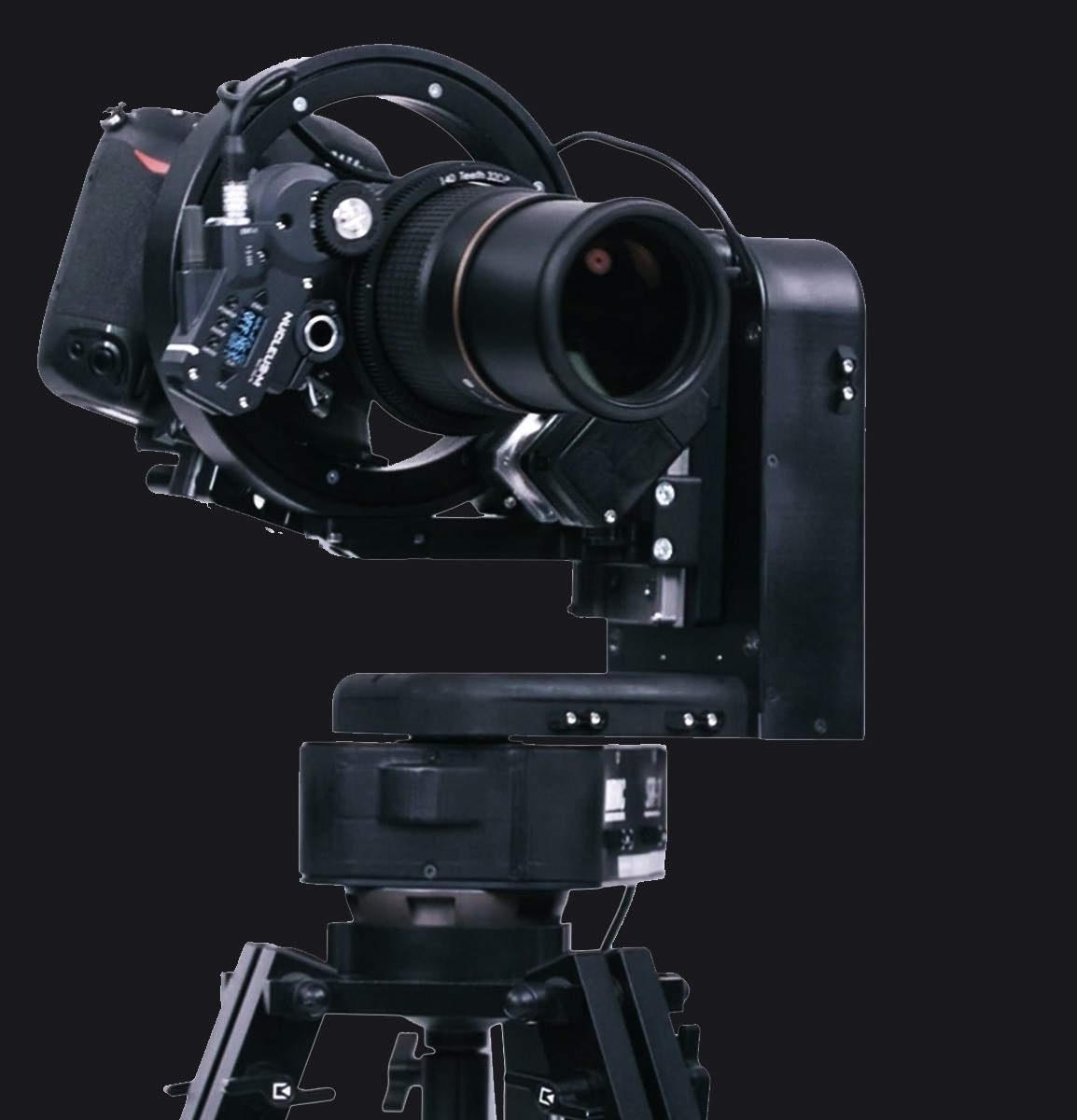

The SR-1 system is also camera and lens-agnostic, so users can also use it with a variety of different equipment. The SR-1 has full IP control, is controllable via MHC or third-party systems and is compatible with Polymotion Chat automated tracking software.
The SR-1 system is also camera and lens-agnostic, so users can also use it with a variety of different equipment. The SR-1 has full IP control, is controllable via MHC or third-party systems and is compatible with Polymotion Chat automated tracking software.

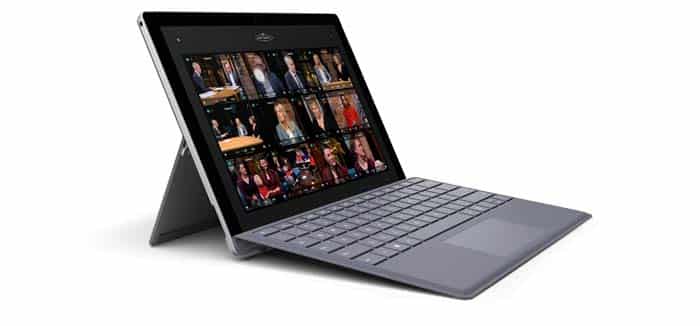

Controllers
Introducing the SR-1 Small Robotic Head
SR-1 In Action
REMOTE VIDEO & PHOTO CAPTURE
EASY TO CONTROL

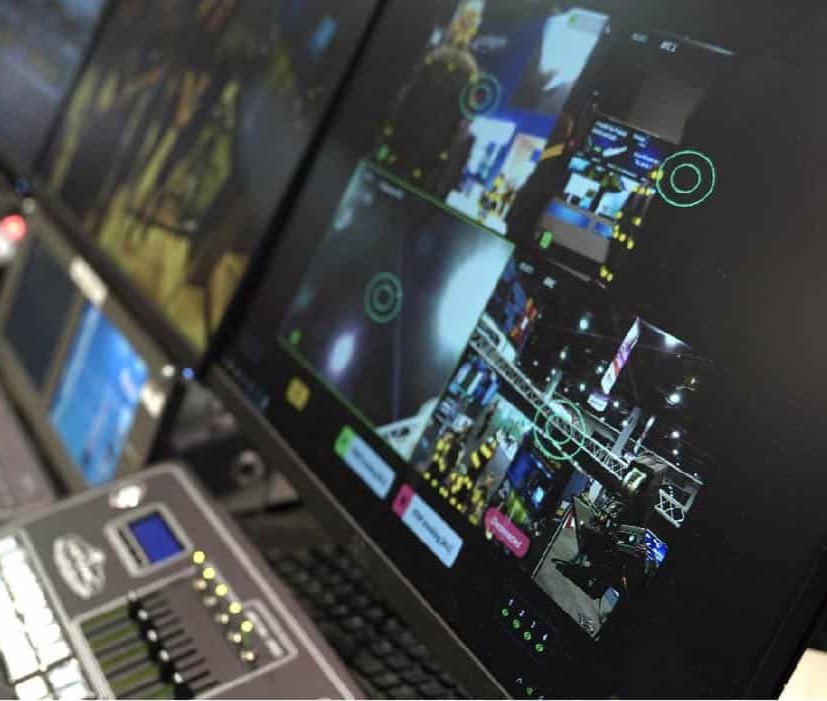

MHC & POLYMOTION CHAT COMPATIBLE
LIGHTEST IN CLASS
Specifications
General
Self-Weight
5kg / 11 lb
Camera Payload
4kg / 9 lb
Weight with Roll Axis
6.1 kg / 13 lb
Axes speed
30°/s
PAN
Max Speed
30°/s +/-5%
Max Acceleration
270 °/s² +/-5%
Range
-90°/+90°
Repeatability (Preset) possible error
<0.05°
Home Tolerance
+/-5% Forward / Upright / Level
TILT
Max Speed
30°/s +/-5%
Max Acceleration
270 °/s² +/-5%
Range (Normal)
-60°/+60° +/-5%
Range (Inverted)
-120°/0° +/-5%
Home Tolerance
+/-5% Forward / Upright / Level
Repeatability (Preset) possible error
<0.05°
ROLL
Max Speed
18°/s +/-5%
Max Acceleration
90°/s² +/-5%
Range
-90°/+90° +/-5%
Repeatability (Preset)
+/-1%
Home
+/-5% Forward / Upright / Level

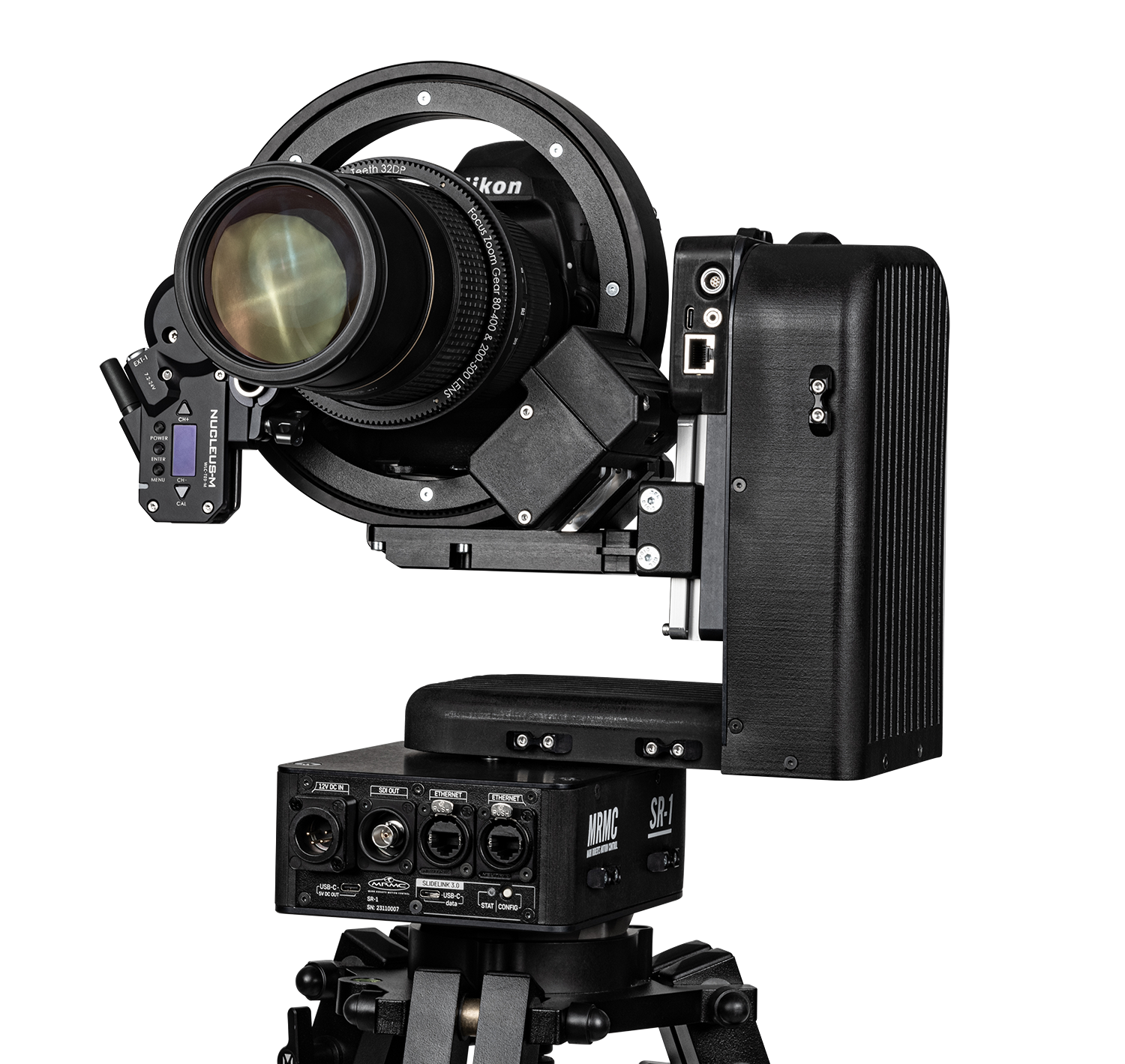

Connections
BNC
Video support (pass thru of head): 12G-SDI
4-pin XLR
Power: 12V DC 11.5A Max
USB-C
Control/Config of head
USB-C
5V DC OUT for powering external glue logic (e.g., HDMI->SDI converters).
Ethernet (RJ-45) x2
SR-1 Control, Camera control, Connect to switch inside (so only one cable required
Lemo x2
External lens drive, Optional roll axis power/control
Nikon 10-pin
Only Remote shutter trigger (photography)/focus supported.
