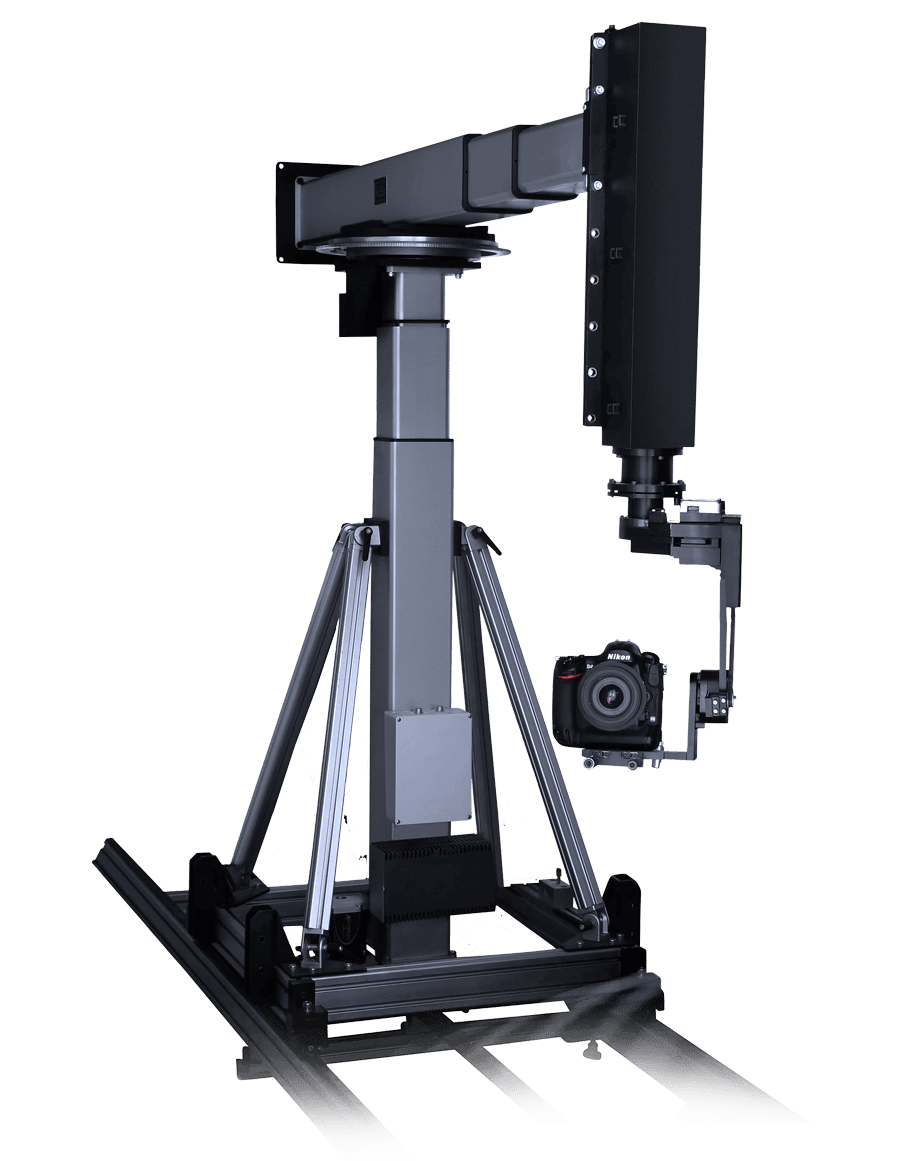

Animoko Motion Control Rig

The Animoko is a versatile, low-cost animation rig that delivers professional-level precision. Designed for stop-frame and 3D stereoscopic animation, where live action speeds are not required. The Animoko features very precise zero backlash gearing to ensure pinpoint accuracy.



Axes
8
of Motion
Track
0.5
Metres per Second
Rotate
360
Degrees

Key Features

Low-cost multi-axis animation rig

Designed in collaboration with veteran Cinematographer, Kommer Kleijn, the Animoko is a professional table-top animation motion control rig that integrates with animation suites like Dragonframe.

Feature Highlights

LOW COST ANIMATION

Designed for stop-frame and 3D stereoscopic animation, where live action speeds are not required, the Animoko features very precise zero backlash gearing to ensure pinpoint accuracy.

MULTI-AXIS OPERATION

The Animoko is ideal for table-top animation with full control of the track, extend, lift, rotate, pan and tilt axes; plus has optional focus and zoom controls, delivering excellent flexibility for animators.

EASY STORAGE

When fully retracted for storage the unit is very small, making it ideal for studios and education centres where space is at a premium.

TARGET TRACKING

The Animoko rig uses MRMC’s Flair software to control its motion and integrates well with the Target Tracking feature, to deliver incredibly precise camera movement.

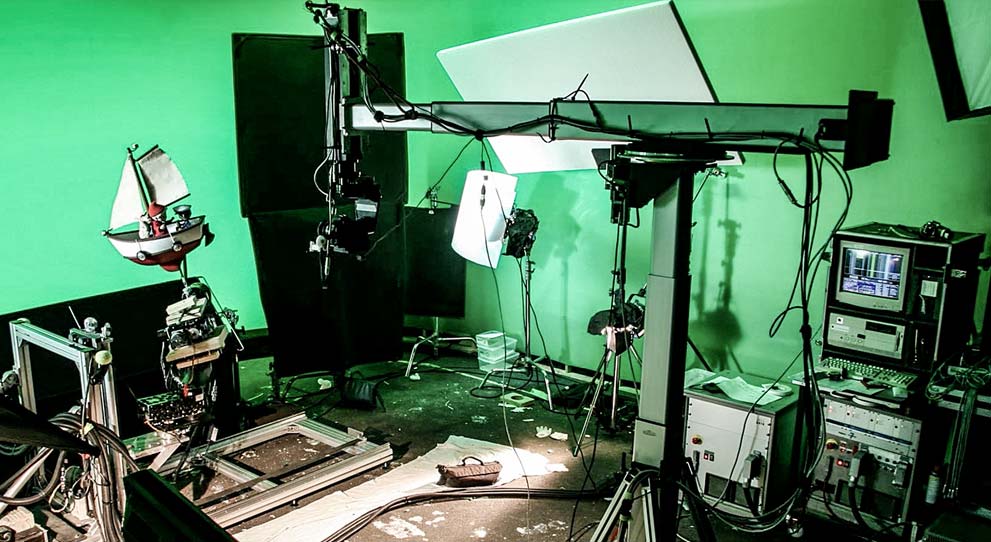

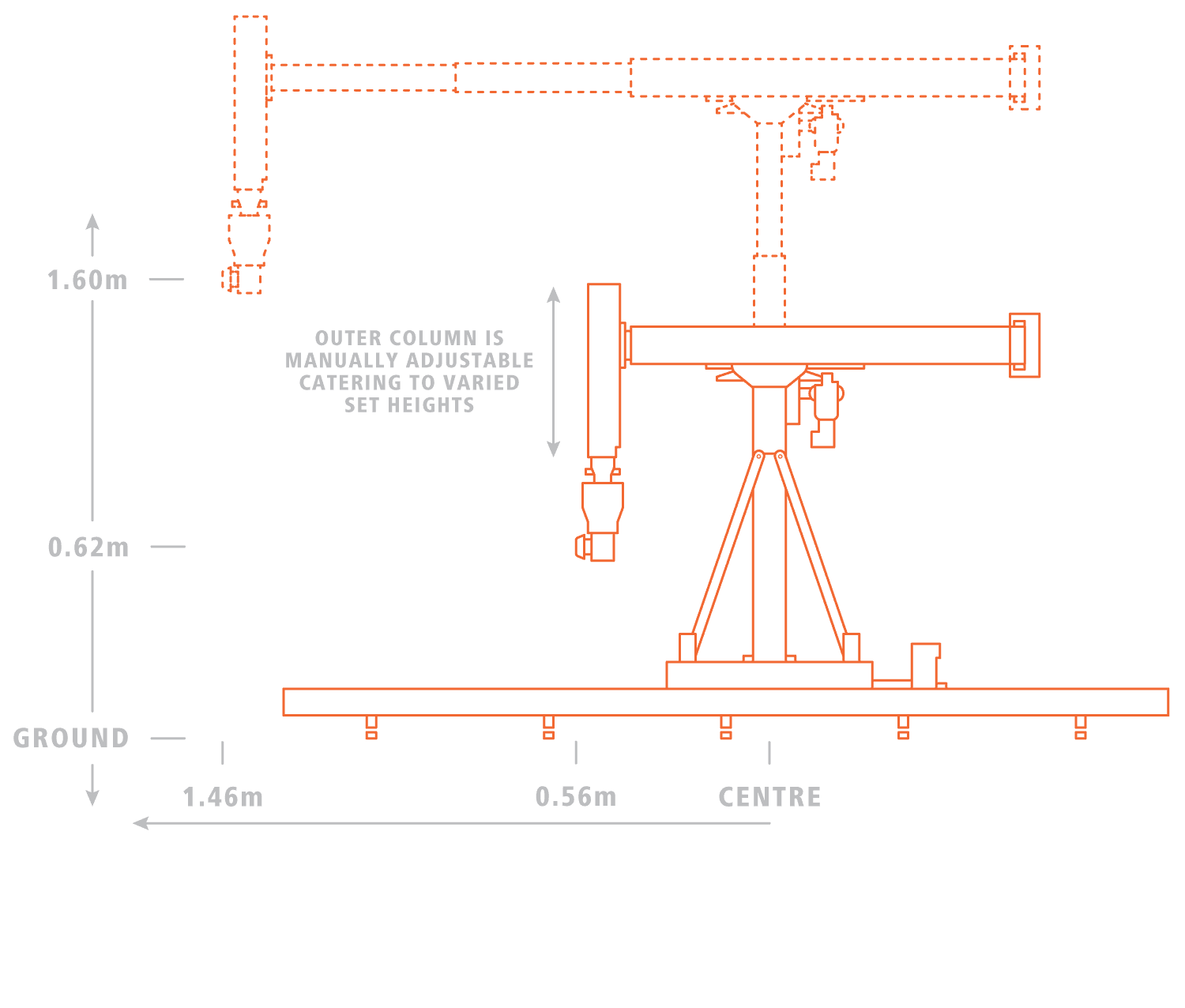

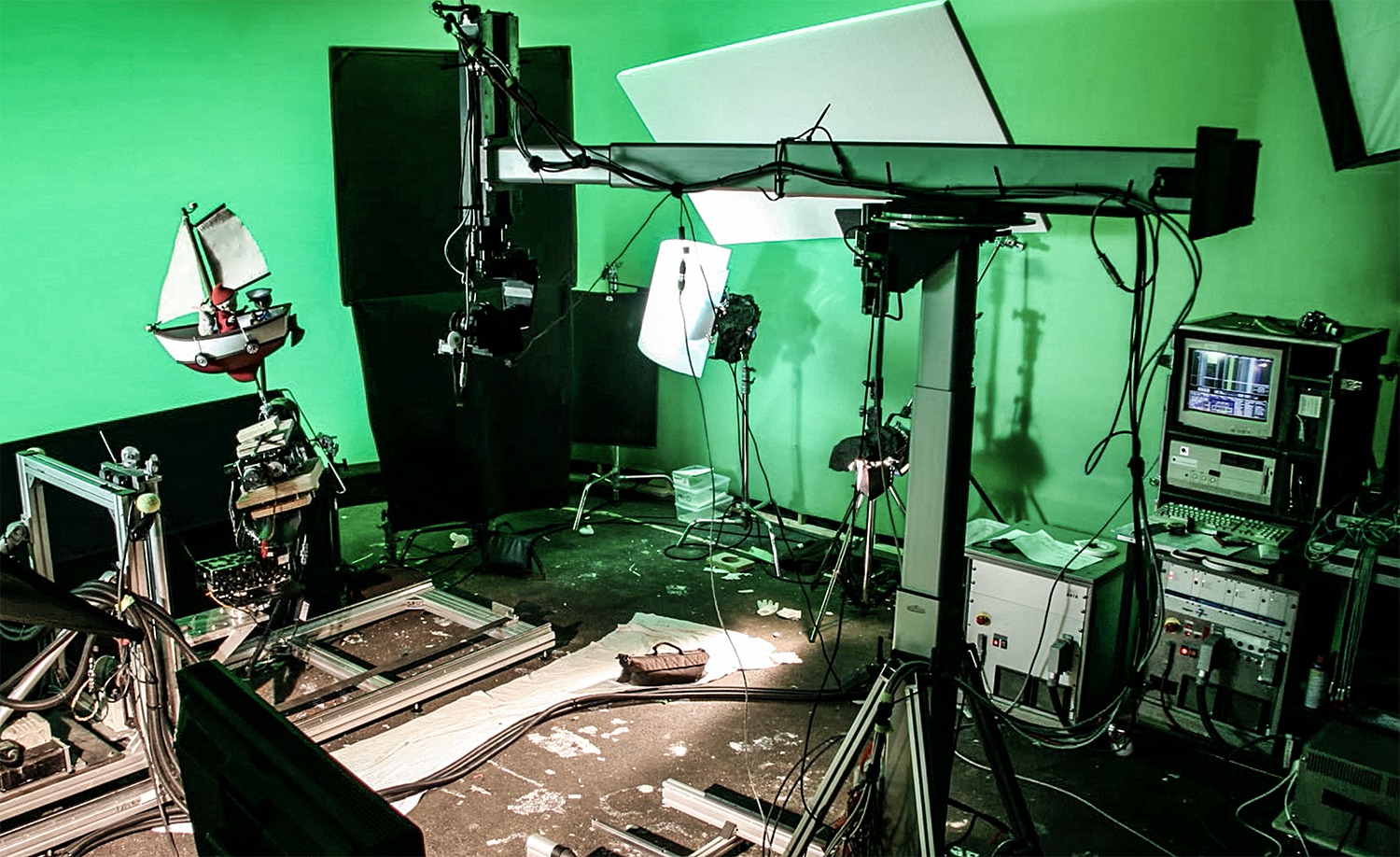

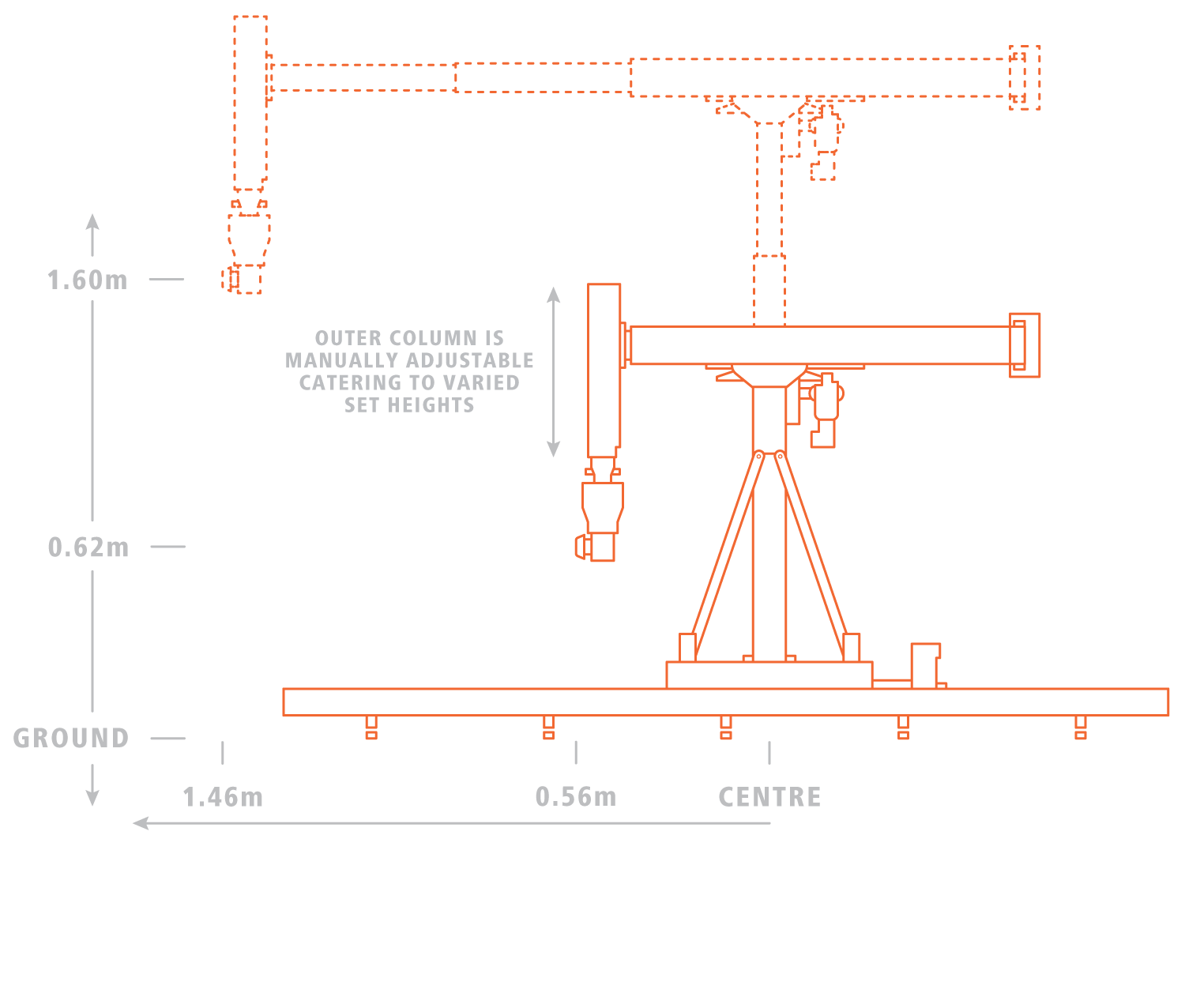

Specifications

  • OPERATING ENVELOPE
    • Height
      1.6m
    • Lowest position
      0.62m
    • Maximum Travel
      0.98m
    • Maximum reach (from rotate centre)
      1.46m
    • Maximum reach (from turret)
      0.9m
    • Minimum height (off track)
      1.35m
    • Minimum height (on track)
      1.50m
    • Base length (with track motor)
      0.75m
    • Length (head on)
      1.05m
  • RIG PERFORMANCE
    • Track
      As required in 3m lengths @ 0.5m/s
    • Rotate
      360˚ @ 3˚/s
    • Lift
      0.98m @ 2cm/s
    • Arm Extend
      0.90m @ 2cm/s
    • Pan
      360˚ @ 30˚/s
    • Tilt
      360˚ @ 30˚/s
  • POWER CONNECTION
    • Power Requirements
      Single Phase 110-240 volts, 50/60Hz
    • Generator
      6.5k
Download

Controllers

  • FLAIR
  • HANDWHEELS
  • PAN BARS
  • HAND HELD BOX
  • Focus/Iris Controller
  • ZOOM CONTROLLER


FLAIR

Frame your shot and accurately record manual camera movements for repeated playback with the MSA-20 Handwheels. The MSA-20 is a convenient, easy-to-use, portable alternative to using the Flair Motion Control software.



HANDWHEELS

Frame your shot and accurately record manual camera movements for repeated playback with the MSA-20 Handwheels. Compatible with all MRMC Motion Control heads, including the popular Ulti-Head, the MSA-20 is a convenient, easy-to-use, portable alternative to using the Flair Motion Control software.



PAN BARS

A natural and intuitive way of controlling a motion control head, Pan Bars can be used in isolation or conjunction with other axis controllers, and movements can be recorded and accurately played back as required.



HAND HELD BOX

The Hand Held Box, or Jog Box, is a remote unit that connects to a Flair controlled rig, giving the user the freedom to move around the studio when inputting moves. Users can configure the Hand Held Box to individual requirements.



Focus/Iris Controller

Gain accurate manual control of the focus and aperture of your lens. Use the Focus/Iris Controller together with the MSA-20 Handwheels or Flair Motion Control software to record and playback lens movements.



ZOOM CONTROLLER

Manually control the focal length of your lens with the Zoom Controller. Use together with the MSA-20 Handwheels or Flair Motion Control software to record and playback the zoom motion.

Accessories

  • BLOOP LIGHTS
  • FOCUS/IRIS/ZOOM/ZOOM LENS CONTROL MOTORS
  • PRESTON/ARRI/C-MOTION INTERFACES
  • TRIGGERS BOX
  • SYNC CABLES


BLOOP LIGHTS

Use Bloop Lights to mark specific frames with a bright flash of light during shooting. The ‘blooped’ frame enables editors to match up angles from a multi-camera shoot quickly.



FOCUS/IRIS/ZOOM/ZOOM LENS CONTROL MOTORS

Playback programmed moves or record manual lens movements for later playback with these precision-machined, highly accurate lens control motors. Compatible with wide a variety of types and sizes of lenses.



PRESTON/ARRI/C-MOTION INTERFACES

Turn Preston, Arri or C-Motion Focus, Iris and Zoom remote wireless units into a full motion control system with the APFIZ unit. Each APFIZ unit can handle three separate motors and allows Flair to record any movements made using the wireless controller.



TRIGGERS BOX

Connect of your external equipment, such as lights, to the Flair Motion Control software using the Triggers Box. This simple solution allows you to trigger all of your equipment through Flair, giving you full, accurate control of every aspect of your shoot.



SYNC CABLES

Connect the rig or Flair software to the different types of camera to enable control of on/off, synchronisation and other camera functions.

Track Options

Precision Bearing Rail

Designed to not bend or twist during any motion or acceleration/deceleration, the Precision Bearing Rail is the best track to use with the Talos. It’s inherent rigidity and straightness provides the ultimate stable platform for the Talos, allowing for high-accuracy at speed, even over uneven ground.

Available in 1.2, 1.8 and 3 metre sections.



Lightweight Bearing Rail

Delivering higher levels of performance than industry standard dolly rails, the Lightweight Bearing Rail is lighter and more portable than the Precision Bearing rail and can be taken apart if necessary for easy transportation.

Available in 1.6, 1.8 and 3 metre sections.
