Pan Bars

SMOOTH NATURAL REAL-TIME CONTROL

Pan Range 360 Degrees
Tilt Range 360 Degrees
Weight 4KG

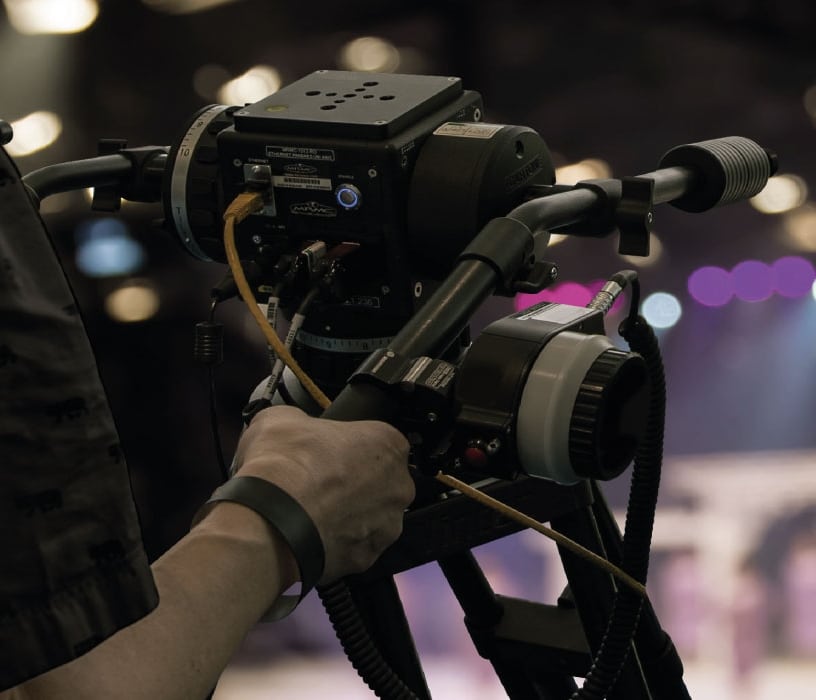

The MRMC Pan Bars are designed to allow a remote operator to have the natural feel of controlling a camera in a traditional way.
By placing a monitor or viewfinder on top of the pan bars, the extremely low latency control over IP means an operator can be located anywhere with an internet connection.

The MRMC Pan Bars are designed to allow a remote operator to have the natural feel of controlling a camera in a traditional way. By placing a monitor or viewfinder on top of the pan bars, the extremely low latency control over IP means an operator can be located anywhere with an internet connection.

KEY FEATURES

PRECISE MIRRORED MOVEMENTS

PRECISE MIRRORED MOVEMENTS

MRMC pan bars allows direct degree- by-degree mirrored movement of the camera head, ideal for remote production. It gives you smooth, real-time control over your choice of camera axes (pan and tilt) and camera control (zoom and focus), with correlating angular/velocity controls with Robots.

KEY FEATURES

  • Correlating angular/velocity controls with Robot
  • Smooth, precise real-time control
  • Versatile robot connectivity
  • Adjustable resistance

Feature Highlights

SMOOTH, PRECISE REAL-TIME CONTROL

VERSATILE ROBOT CONNECTIVITY

CORRELATING ANGLE/SPEED CONTROLS

ADJUSTABLE RESISTANCE

INTUITIVE CONTROL

Specifications

Payload and Size

Max. Payload

25kg

Weight

4.1kg

Bowl Diameter

100mm

Range

Pan Range

360° without end stop

Tilt Range

360° without end stop

Fluid Drag

Continuous

Temperature Range

-25°/+60°

Encoder Transmission

Direct, no gears

Connectivity & Power

Connection

Ethernet

Power

24v DC
