Robotic Pod M2
Robotic Pod M2

Robotic Pod M2

WEATHER PROOF UNIT

Pan/Tilt Speed 90° /s
Weight 28kg / 68 lb
Output 4k

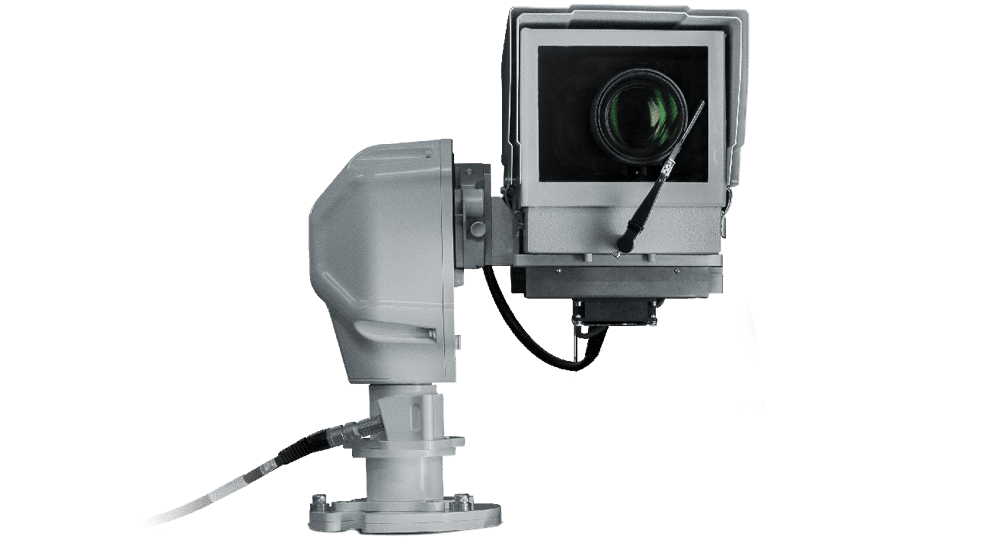

Robotic Pod M2 is a high-accuracy pan/tilt platform incorporated with an environmentally protected high-specification broadcast camera and lens. The system is capable of 4K output at 22x zoom range

Robotic Pod M2 is a high-accuracy pan/tilt platform incorporated with an environmentally protected high-specification broadcast camera and lens. The system is capable of 4K output at 22x zoom range.

Key Features

Robotic Pod M2

ALL-WEATHER SYSTEM

The Robotic Pod M2’s environmental housing incorporates a solar-shield with active semi-conductor cooling and heating, together with a window wash-wipe capability.

Designed for integration into live broadcast via remote operation, the package is connected via fibre optic infrastructure and can be mounted in situ permanently.

The system is built to house a multitude of different broadcast cameras and lenses, such as Grass Valley with Fujinon lens, making the unit a complete package for outside broadcast.

The Robotic Pod M2’s environmental housing incorporates a solar-shield with active semi-conductor cooling and heating, together with a window wash-wipe capability.

Designed for integration into live broadcast via remote operation, the package is connected via fibre optic infrastructure and can be mounted in situ permanently.

The system is built to house a multitude of different broadcast cameras and lenses, such as Grass Valley with Fujinon lens, making the unit a complete package for outside broadcast.

KEY FEATURES

  • Can be fully controlled remotely through MHC
  • IP66 Rated for outdoor use
  • High accuracy with smooth motion
  • 4K video output
  • Fibre connectivity
  • Can be deployed in locations where camera operators cannot easily work (height-restricted areas etc.)
  • Can be fully controlled remotely through MHC
  • IP66 Rated for outdoor use
  • High accuracy with smooth motion
  • 4K video output
  • Fibre connectivity
  • Can be deployed in locations where camera operators cannot easily work (height-restricted areas etc.)

Case Study

Robotic Pod M2 - Die Welt

ROBOTIC POD M2 CASE STUDY

DIE WELT PROJECT

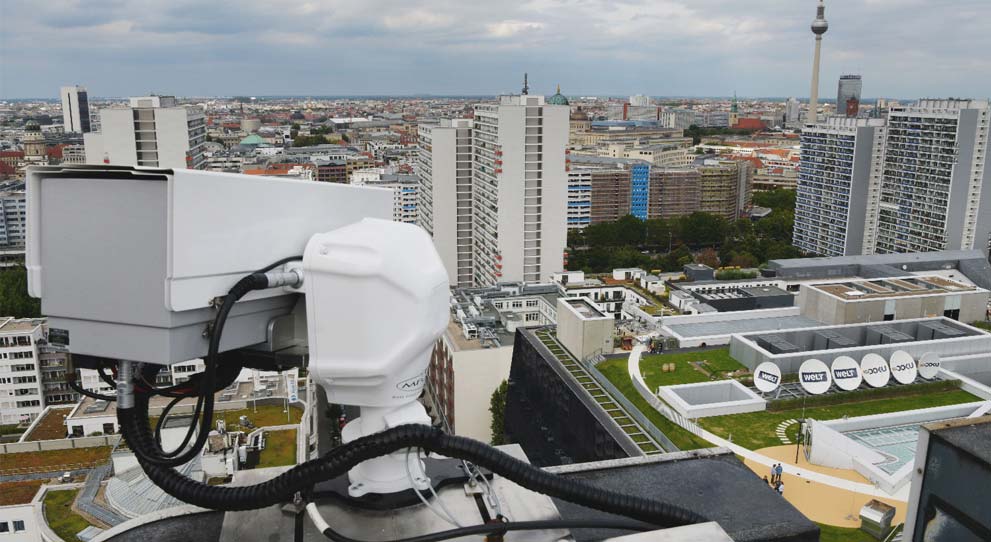

WELT (the biggest privately-owned news channel in Germany) who broadcast content 24 hours a day and based in Berlin, wanted to show panoramic views of the city as part of their daily broadcast segments. They wanted to feature live footage of the city’s iconic buildings such as Berliner Fernsehturm, so they teamed up with MRMC and Qvest Media, to provide a solution.

Read Case Study

WELT (the biggest privately-owned news channel in Germany) who broadcast content 24 hours a day and based in Berlin, wanted to show panoramic views of the city as part of their daily broadcast segments. They wanted to feature live footage of the city’s iconic buildings such as Berliner Fernsehturm, so they teamed up with MRMC and Qvest Media, to provide a solution.

Read Case Study

Feature Highlights

FULL REMOTE OPERATION/PRODUCTION

Easy to use icon

EASY TO USE CONTROL INTERFACE

WEATHER PROOF AND ROBUST

Specifications

Size & Weight

Length

620mm

Width

457mm

Height

602mm

Weight

28.5kg (excl. camera & lens)

Axes

Pan (Max)

90°/s (Infinite movement)

Tilt (Max)

90°/s (+/- 45 ° movement)

Connections & Power

Interface/RJ45

10/100

SDI Output

3G via pan slipring

Fibre

Optional plug in SFP for optical SDI output

Power

Supplied with 240V 16A Optional 110V 16A and UK/EU/US
