Polymotion Chat

TRACK > FOLLOW > CAPTURE

Pro 1-3 PTZs
Studio 1-6 PTZs
Broadcast With Advanced Features

Using limb and face detection software Polymotion Chat tracks subject movements and provides stable and natural-looking content. The camera agnostic automated subject tracking system is available for multiple broadcast and capture scenarios with 3 different solutions available.

Using limb and face detection software Polymotion Chat tracks subject movements and provides stable and natural-looking content. The camera agnostic automated subject tracking system is available for multiple broadcast and capture scenarios with 3 different solutions available.

AUTOMATED CAMERA TRACKING SOFTWARE

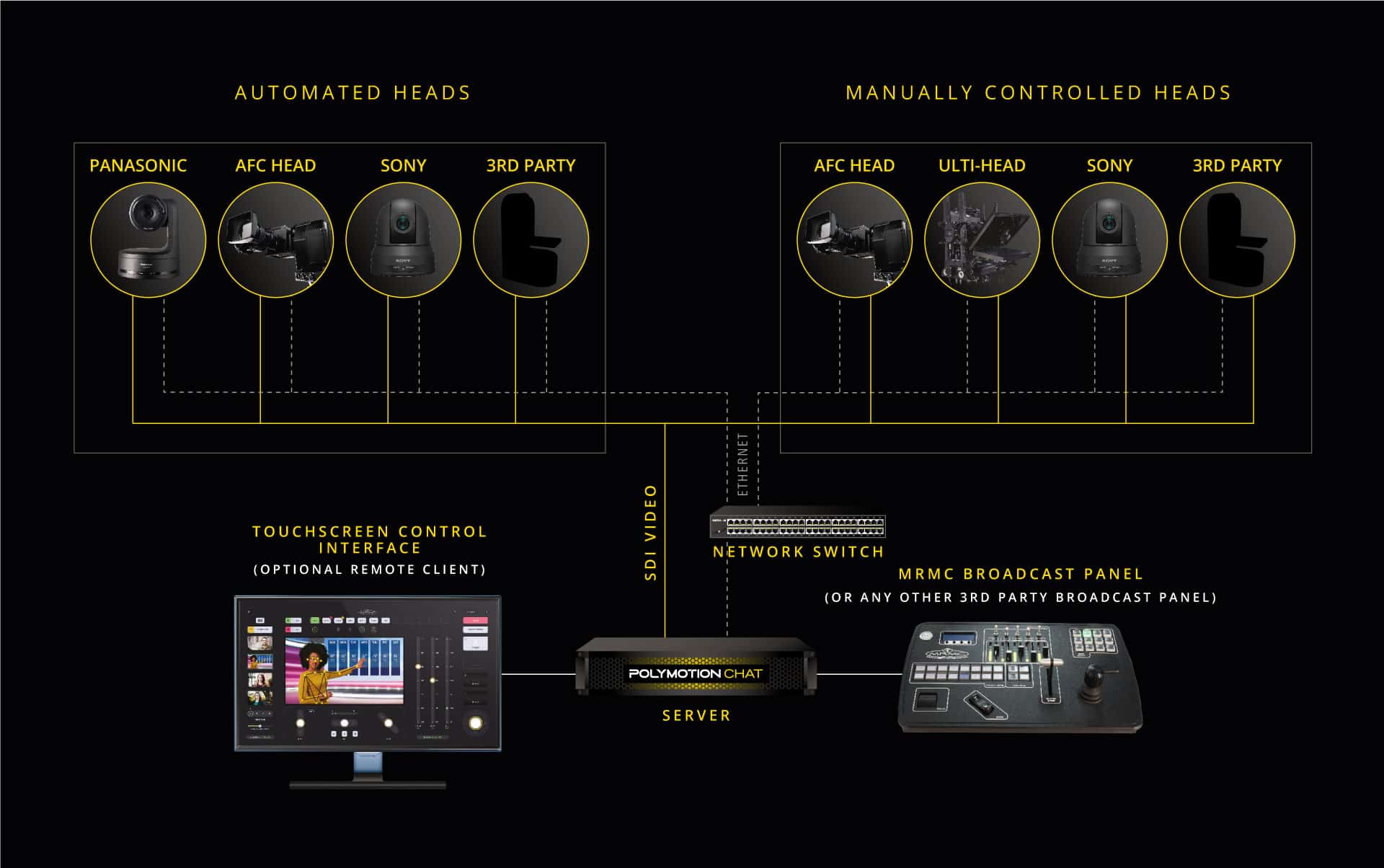

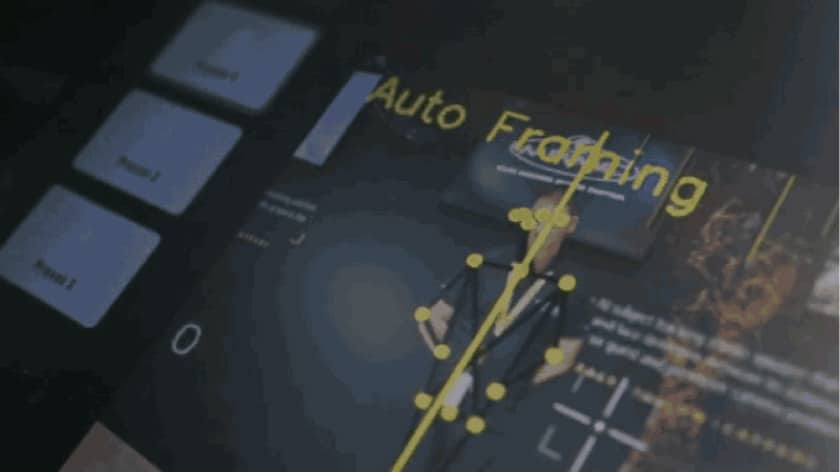

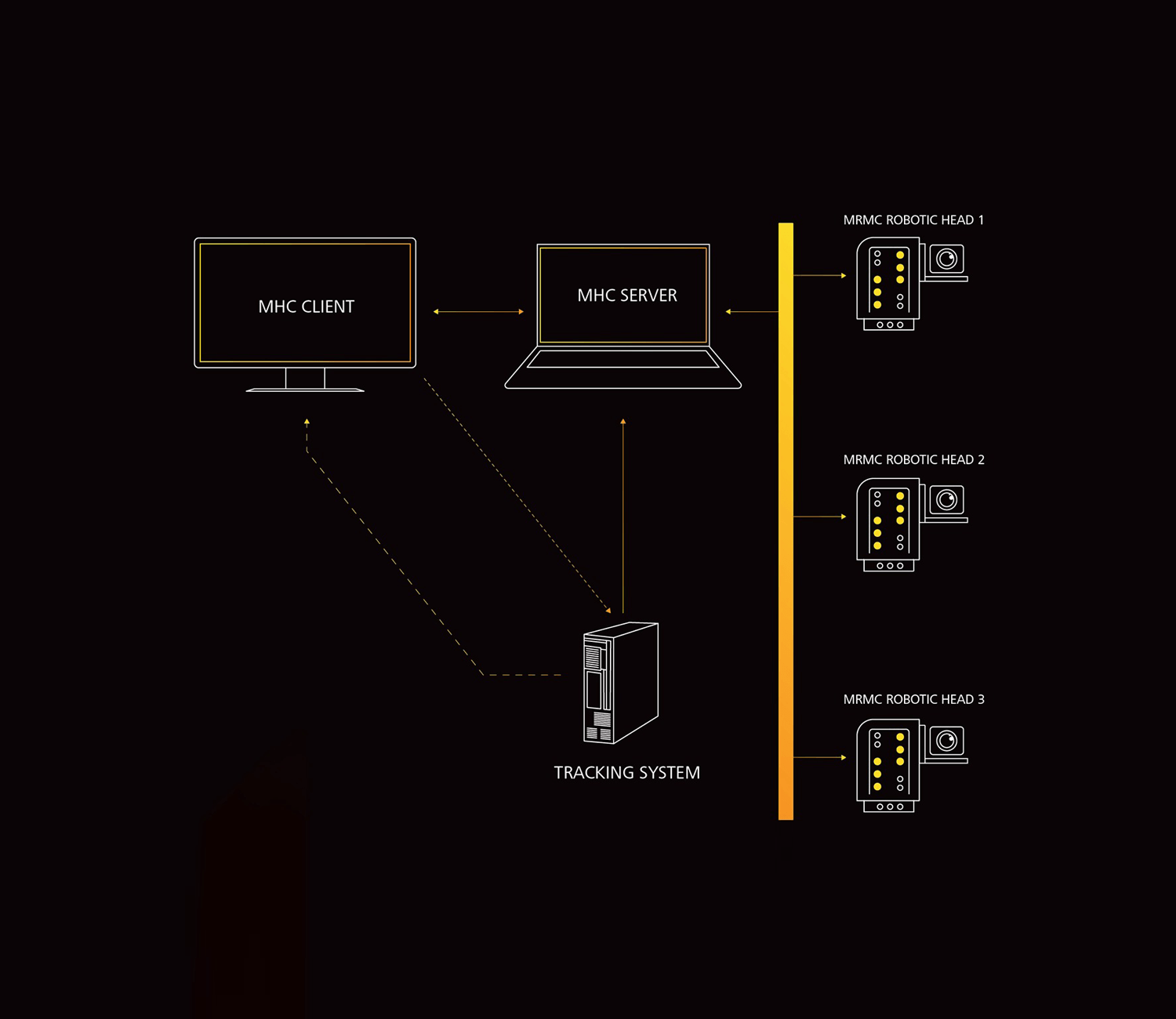

Polymotion Chat’s computer vision engine detects limbs and builds a stick model to enable it to track subjects. This not only means the camera tracking system creates high-quality broadcast level output (without losing resolution — like some pan and scan systems), it is more reliable than other facial tracking solutions and is able to deal with occlusion — such as people crossing in front of each other. The system can be designed to work at any level, from simple 3 camera control for live streaming and conference evnets, through to multi-camera productions for broadcast. Polymotion Chat integrates with MRMC robotic heads and third party PTZs and studios systems.

Explore the Range

POLYMOTION CHAT PRO

POLYMOTION CHAT PRO

Polymotion Chat Pro is a low-cost automated subject tracking solution for up to 3 PTZ cameras where reliability and smooth natural movements are important.

The simple UI means any operator can concentrate on getting their message out, without having to worry about who is going to control the cameras. There is support for Panasonic, Sony, Birddog and many other 3rd Party PTZs.  You can also mix vendors, controlling 3 different cameras at the same time

Polymotion Chat Pro is a low-cost automated subject tracking solution for up to 3 PTZ cameras where reliability and smooth natural movements are important.

KEY FEATURES

KEY FEATURES

  • Simple automated PTZ tracking for 1-3 cameras
  • Real-time automated control
  • Slow, gentle movements, like a cameraman
  • Support for 3rd party PTZ cameras
  • Optional hardware controller
  • NDI Control (including video preview) & VISCA over IP Control
  • Simple automated PTZ tracking for 1-3 cameras
  • Real-time automated control
  • Slow, gentle movements, like a cameraman
  • Support for 3rd party PTZ cameras
  • Optional hardware controller
  • NDI Control (including video preview) & VISCA over IP Control

Hardware Specs

Reccomended Hardware Specs

Minimum Hardware Specs

  • Operating System: Windows 10
  • CPU: Intel i7, AMD Ryzen 7 or equivalent
  • Graphics Card: NVIDIA GTX1080 or greater (GPU must be NVIDIA to support CUDA)
  • RAM: 16GB

Recommended Hardware Specs

  • Operating System: Windows 10
  • CPU: Intel i9, AMD Ryzen 9 or equivalent
  • Graphics Card: NVIDIA RTX4000 (GPU must be NVIDIA to support CUDA)
  • RAM: 32GB
  • Operating System: Windows 10
  • CPU: Intel i9, AMD Ryzen 9 or equivalent
  • Graphics Card: NVIDIA RTX4000 (GPU must be NVIDIA to support CUDA)
  • RAM: 32GB
prev
next

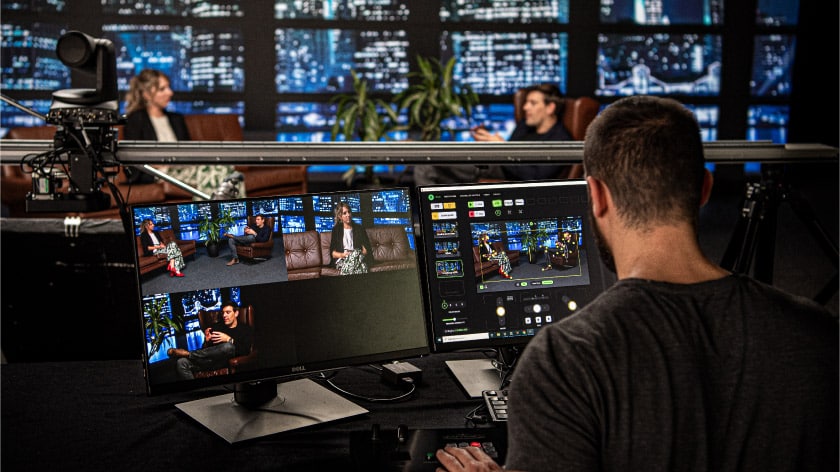

POLYMOTION CHAT STUDIO

POLYMOTION CHAT STUDIO

Polymotion Chat Studio is designed for studios and other live productions where operators need more control. Live person recognition allows presets to be created and tuned for specific shots (e.g. weather presenter or product demonstrations) and more advanced tracking features allows offsets in the shot for tracking or natural closeups.

Polymotion Chat Studio can control up to 6 cameras and has a wider range of framing options allowing more flexibility and control.

Designed for studios and other live productions  featuring live person recognition allows presets to be created and tuned for specific shots and more advanced tracking features allows offsets in the shot for tracking or natural closeups.

KEY FEATURES

KEY FEATURES

  • Tracking up to 6 cameras (more with daisy-chained servers)
  • Advanced tracking and framing
  • Tracking and non-tracking presets for recall of regular shots
  • Switch between fully automated, semi-automated and manual modes
  • Facial recognition allowing for automated presets to be used
  • Support for MRMC and 3rd party robotic heads including PTZ cameras from most vendors inc Sony, Panasonic, Birddog etc.
  • NDI Control (including video preview) & VISCA over IP Control
  • Tracking up to 6 cameras (more with daisy-chained servers)
  • Presets for recall of regular shots
  • Switch between fully automated, semi-automated and manual modes
  • Facial recognition for automated presets
  • NDI Control (including video preview) & VISCA over IP Control
prev
next

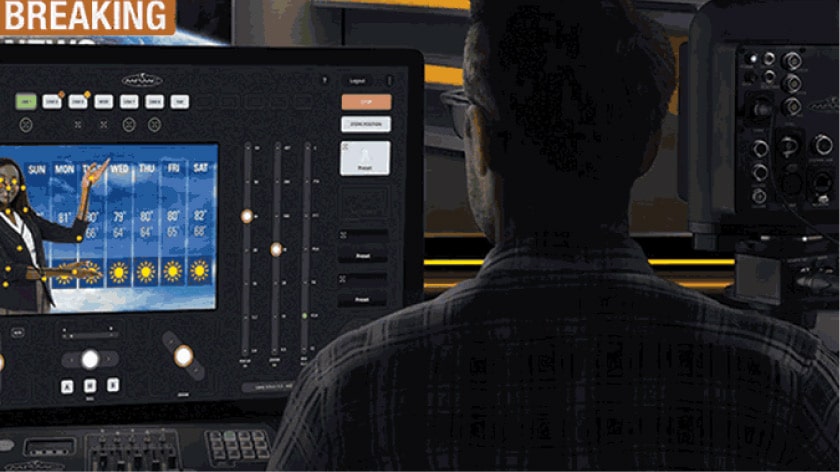

POLYMOTION CHAT BROADCAST

POLYMOTION CHAT BROADCAST

For broadcast environments where control is everything, Polymotion Chat Broadcast edition is the ultimate broadcast camera tracking solution. The system is complete with all the features and camera tracking capabilities of Studio and Pro, as well as additional features, including Presenter Profiles, Scene Recognition, Advanced Sequencing and more.

Control for 3rd party robotics and PTZ cameras makes Polymotion Chat Broadcast the perfect hub for automated studio workflows. The ability to integrate with studio automation systems is integral to Polymotion Chat Broadcast and with the CV camera control engine, for the first time genuine complete studio automation is possible.

The ultimate broadcast camera tracking solution, complete with all the features and camera tracking capabilities of Studio and Pro, plus Presenter Profiles, Scene Recognition, Advanced Sequencing and more.

KEY FEATURES

KEY FEATURES

  • All the features of Polymotion Chat Studio
  • Presenter profiles
  • Scene recognition
  • Advanced sequencing for pre-defined camera moves
  • Studio Automation capable
  • NDI Control (including video preview) & VISCA over IP Control
  • All the features of Polymotion Chat Studio
  • Presenter profiles
  • Scene recognition
  • Advanced sequencing for pre-defined camera moves
  • Studio Automation capable
  • NDI Control (including video preview) & VISCA over IP Control
prev
next

Compare the Range

PROSTUDIOBROADCAST
Maximum number of tracking cameras
366
Slow, gentle, smooth movements like a cameraman
Support for 3rd party PTZ cameras & MRMC robotics
Real-time automated control
Optional hardware controller
Advanced tracking & framing, semi-automated & manual modes
Tracking and non-tracking presets
Facial recognition allowing for automated presets
Scene recognition
Advanced sequencing for pre-defined camera moves
Presenter profiles
Studio automation capable
Support for complex robotics (free roaming pedestals, robotic arms)

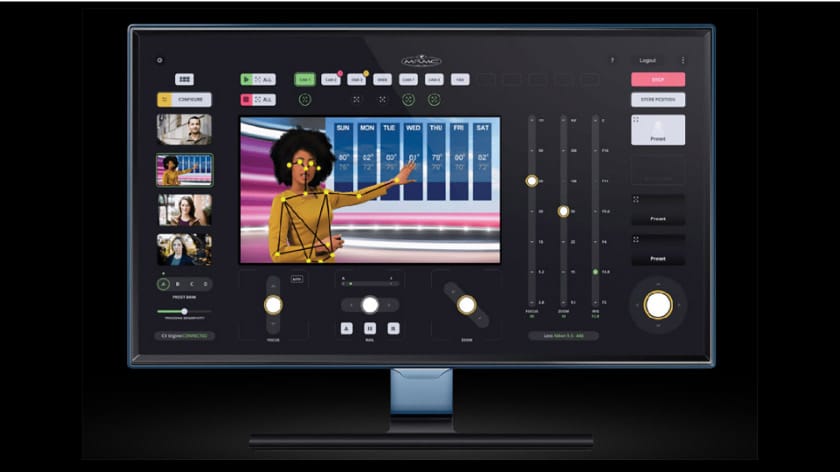

SIMPLE & EASY TO USE UI

SIMPLE & EASY TO USE UI

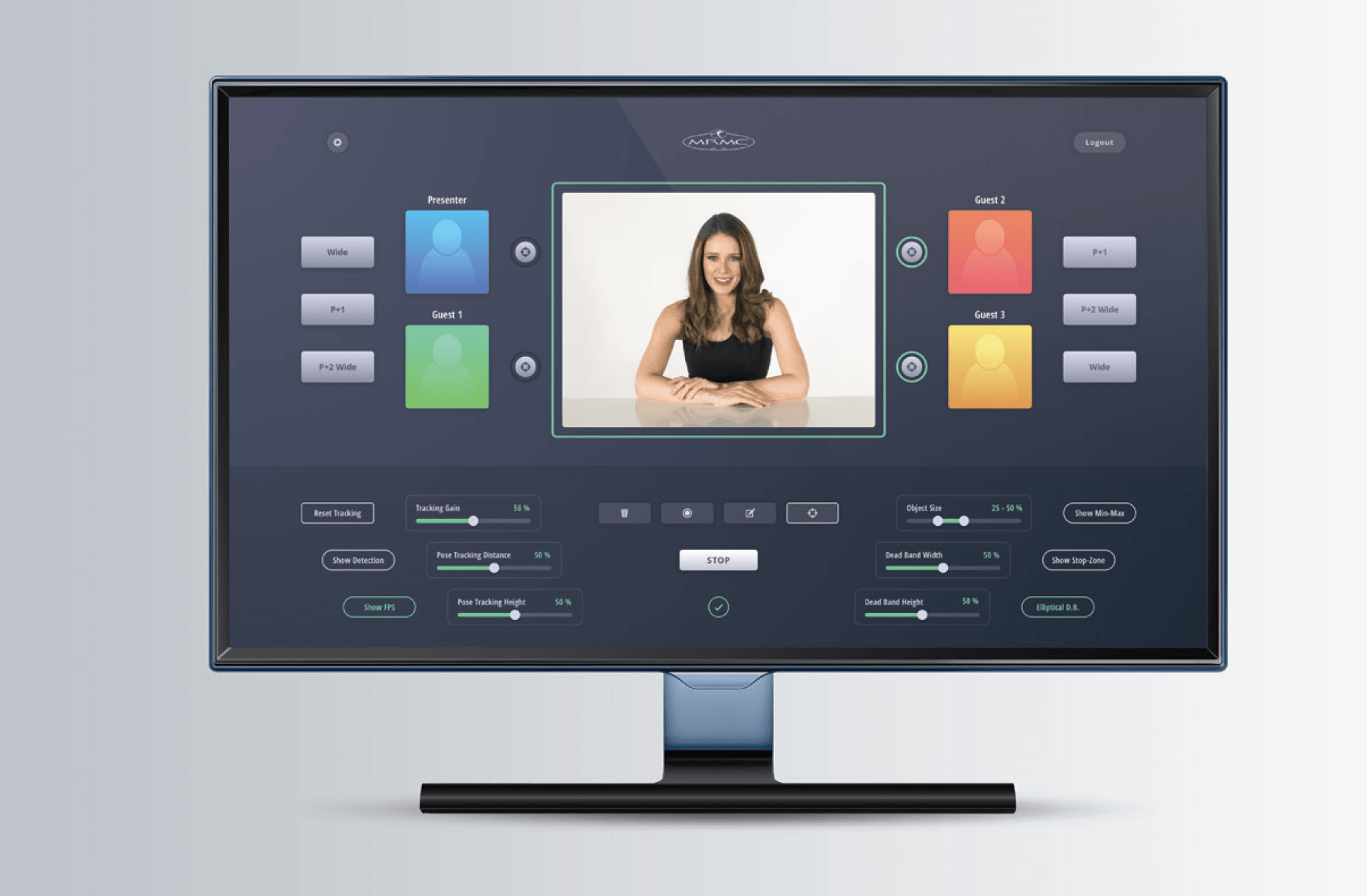

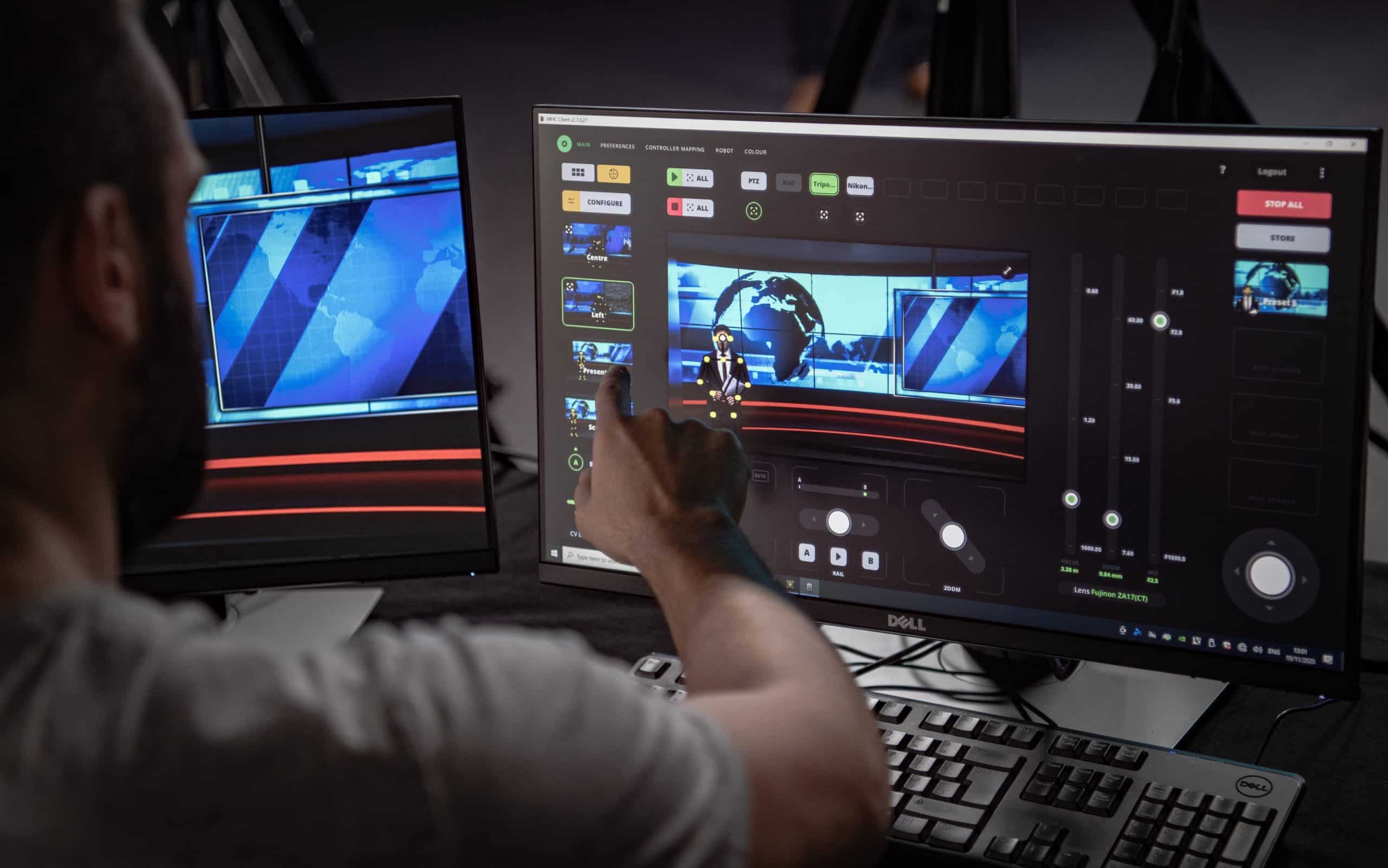

Polymotion Chat has an intuitive touch-screen UI designed for simplicity, flexibility and ease of use. The UI can be customised with preset buttons, preset moves and much more.  Streamlining operator workflow with simple, smooth automated PTZ tracking.

Polymotion Chat has an intuitive touch-screen UI designed for simplicity, flexibility and ease of use. The UI can be customised with preset buttons, preset moves and much more.  Streamlining operator workflow with simple, smooth automated PTZ tracking.

Supported PTZs

Sony

Sony

All Sony BRC PTZ Cameras Supported Chat tested with: – BRC-X1000 (firmware 2.10) – Model: BRC-H800

PTZ Optics

PTZ Optics

All PTZ Optics Cameras Supported Chat tested with: – Model PT-12X SDI / NDI (firmware v6.3.91) – Model PT-30X SDI

Bird Dog

Bird Dog

All BirdDog PTZ Cameras Supported Chat tested with: – Model: P200 (firmware P200A4-A5 21.04.3389)

Panasonic

Panasonic

All Panasonic PTZ Cameras Supported Chat tested with: – Model: HE-130 (firmware v2.2) – Model: AW UE-100 (firmware v0.142) – Model AW UE-150 (firmware v02.68)

JVC

JVC

All JVC PTZ Cameras Supported Chat tested with: – Model: KY-PZ100W

Lumens

Lumens

All Lumens PTZ Cameras Supported Chat tested with: – Model: vc-a71p

Canon

Canon

Canon PTZ support for CR-N500 & CR-N300Chat tested with: – Model: CR-N500
