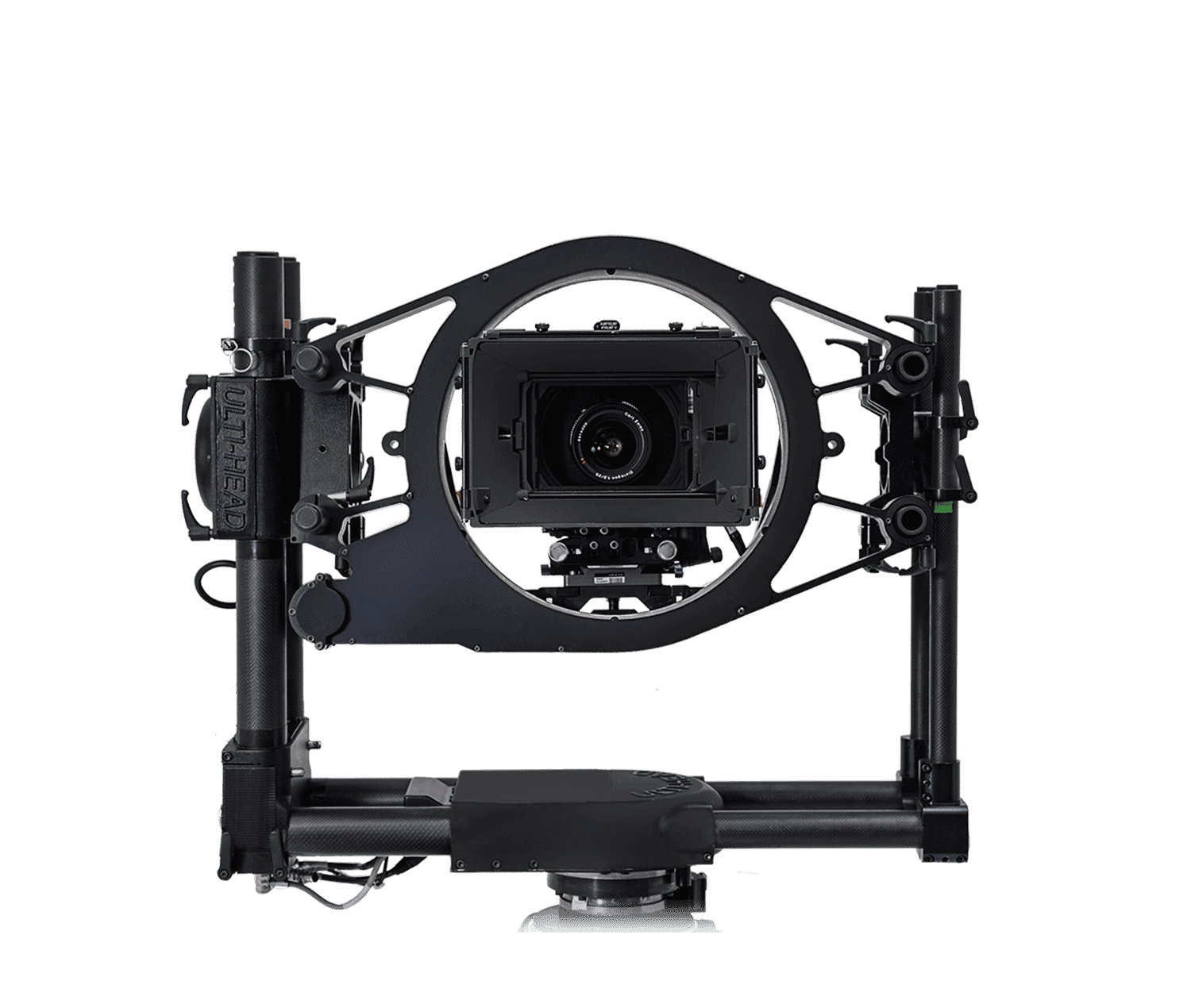

Ulti-Head

VERSATILE REMOTE & MOTION CONTROL HEAD

Max Payload 45kg
Speeds 120°/S
Torque 47NM

Heavy-duty fast and precise head capable of carrying up to 45kg of payload at speeds in excess of 120 degrees/ second. Same head as used on the Modula, Talos & Titan arm, as well as being able to be used as a remote head with record and playback facilities on 3rd party cranes.

Heavy-duty fast and precise head capable of carrying up to 45kg of payload at speeds in excess of 120 degrees/ second. Same head as used on the Modula, Talos & Titan arm, as well as being able to be used as a remote head with record and playback facilities on 3rd party cranes.

Key Features

CONVENIENCE, COMPATIBILITY & CONTROL

CONVENIENCE, COMPATIBILITY & CONTROL

Whatever your setup, the Ulti-Head has it covered; it works with hand-wheels, joysticks or pan-bars and is fully adjustable for any camera or lens thanks to its adaptable carbon-fibre tubes. The Ulti-Head also works directly with the MSA-20 for remote head use – even wirelessly – and offers full track and lift options and can interface to video lens motors.

The Ulti-Head can be controlled using remote hand-wheels, joystick or pan-bars, or be programmed via computer using our advanced Flair software system to ensure you remain in control of every single shot, no matter where you are.

Whatever your setup, the Ulti-Head has it covered; it works with hand-wheels, joysticks or pan-bars and is fully adjustable for any camera or lens thanks to its adaptable carbon-fibre tubes. The Ulti-Head also works directly with the MSA-20 for remote head use – even wirelessly – and offers full track and lift options and can interface to video lens motors.

The Ulti-Head can be controlled using remote hand-wheels, joystick or pan-bars, or be programmed via computer using our advanced Flair software system to ensure you remain in control of every single shot, no matter where you are.

KEY BENEFITS

KEY BENEFITS

  • IP connectivity, sliprings for unrestricted panning, roll axis option. Built drives for focus, zoom & iris (nine axes can be controlled per head).
  • Adjustable for different sized cameras and lenses. Lightweight for size & payload. Extremely portable. Can be wireless with wifi connection and battery power.
  • Precise repeatability with the unit’s zero-backlash gearboxes and mechanics.
  • Deploy the built-in homing/zeroing sensors; the head will automatically find its home position after powering up.
  • Designed for film, HD and 4K cameras plus 3D stereo rigs.
  • Can be run on standard Arri or Panavision batteries.
  • Features a standard crane, dolly and tripod mount for universal use
  • Offers a 360° motion with a tangle-free design.
  • IP connectivity, sliprings for unrestricted panning, roll axis option. Built drives for focus, zoom & iris (nine axes can be controlled per head).
  • Adjustable for different sized cameras and lenses. Lightweight for size & payload. Extremely portable. Can be wireless with wifi connection and battery power.
  • Precise repeatability with the unit’s zero-backlash gearboxes and mechanics.
  • Deploy the built-in homing/zeroing sensors; the head will automatically find its home position after powering up.
  • Designed for film, HD and 4K cameras plus 3D stereo rigs.
  • Can be run on standard Arri or Panavision batteries.
  • Features a standard crane, dolly and tripod mount for universal use
  • Offers a 360° motion with a tangle-free design.

Controllers

Flair

Flair

Flair precisely controls up to 500 axes of motion and is fully compatible with all of our motion control rigs, heads and accessories.

Flair learn more

Flair precisely controls up to 500 axes of motion and is fully compatible with all of our motion control rigs, heads and accessories.

Flair learn more

Pan Bars

Pan Bars

A natural and intuitive way of controlling a motion control head, Pan Bars can be used in isolation or conjunction with other axis controllers, and movements can be recorded and accurately played back as required.

A natural and intuitive way of controlling a motion control head, Pan Bars can be used in isolation or conjunction with other axis controllers, and movements can be recorded and accurately played back as required.

Handwheels

Frame your shot and accurately record manual camera movements for repeated playback in Flair. Compatible with all MRMC Motion Control heads and rigs, and assignable in Flair to control any axis of motion, the MRMC balanced handwheels have a very fluid feel just as top DoPs and directors would expect. Additional standard built-in features like electronic gearing/scaling and direction adjustment make the handwheels a perfect accessory for all rigs.

Frame your shot and accurately record manual camera movements for repeated playback in Flair. Compatible with all MRMC Motion Control heads and rigs, and assignable in Flair to control any axis of motion, the MRMC balanced handwheels have a very fluid feel just as top DoPs and directors would expect. Additional standard built-in features like electronic gearing/scaling and direction adjustment make the handwheels a perfect accessory for all rigs.

prev
next

Video

Feature Highlights

REMOTE CONTROL AND CAPTURE OF STILLS AND VIDEO

RELIABILITY OF VIDEO AND STILL CAPTURE

EASY TO USE CONTROL INTERFACE

QUICK TO USE MODULAR SYSTEM

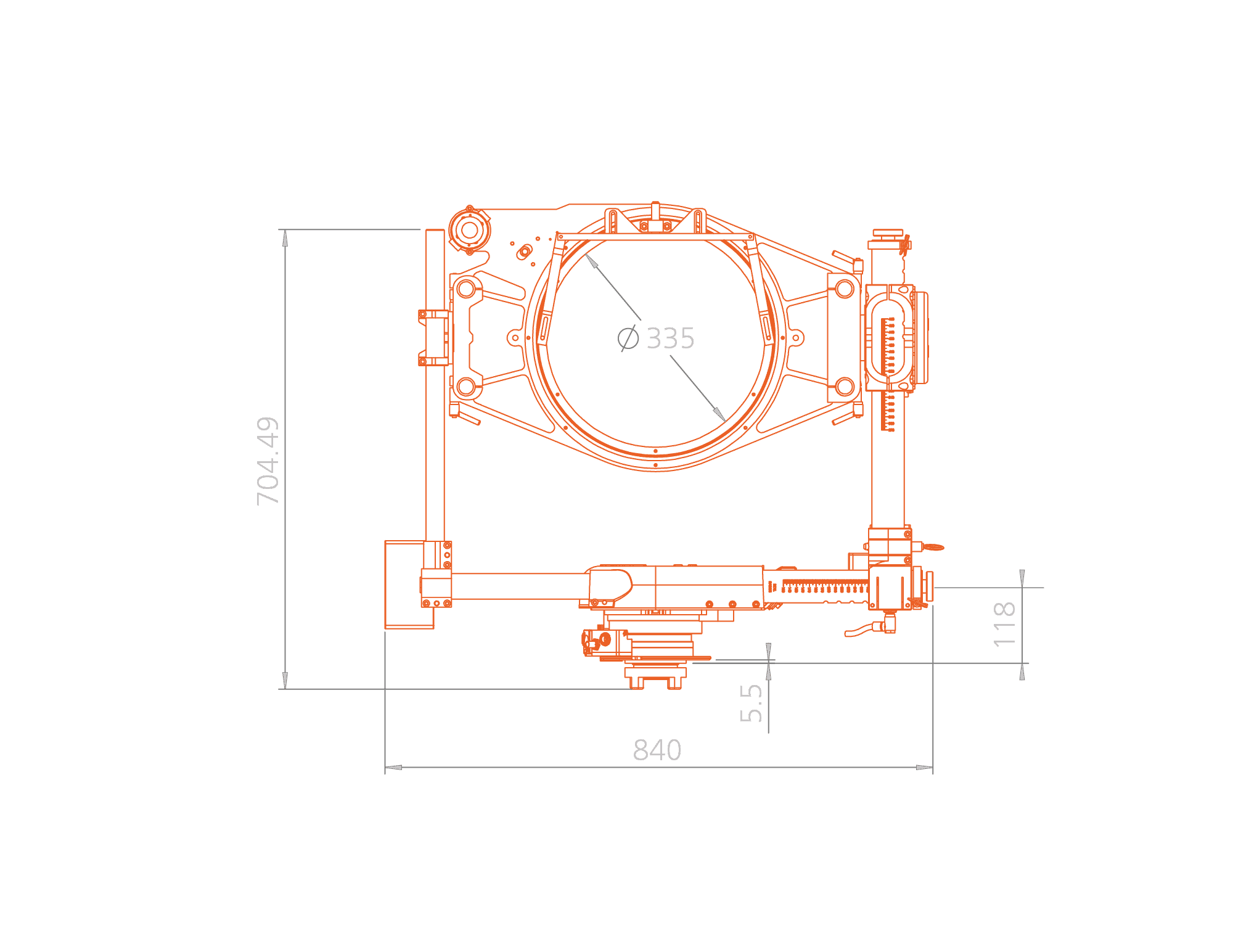

Specifications

Specifications

Technical Information

Power

24v (15-35V) Battery P ack or 100/240v AC 50/60 Hz Power Supply

Current Consumption

0.5 Amps typical stationary / 3 Amps typical accelerating

Maximum Motor Power

35V 8A channel

Weight

23kg (exc. options and battery pack)

Maximum Camera Weight

45kg (with side bars)

Torque

47nm

Speeds

120˚/sec / 0.33 r evs/sec (subject to supply voltage)

Control Protocol

Ethernet or Serial

Specifications
