TRH Track Robotic Head

ROBOTIC TRACK SYSTEM

Payload 60kg / 132 lb
Track Speed 300mm/s / 11.8in/s
Axis 4

MRMC’s Track Robotic System (TRH) is a class-leading track-based robotic solution that provides extremely quiet and smooth movement. Ideal for broadcast studios but also for live events such as concerts, festivals and houses of worship, the TRH provides flexible height options while supporting different heads and teleprompters. The system is available as a single-stage (TRH-1) and dual-stage lift version (TRH-2) making it perfect for over-head shots.

MRMC’s Track Robotic System (TRH) is a class-leading track-based robotic solution that provides extremely quiet and smooth movement. Ideal for broadcast studios but also for live events such as concerts, festivals and houses of worship, the TRH provides flexible height options while supporting different heads and teleprompters. The system is available as a single-stage (TRH-1) and dual-stage lift version (TRH-2) making it perfect for over-head shots.

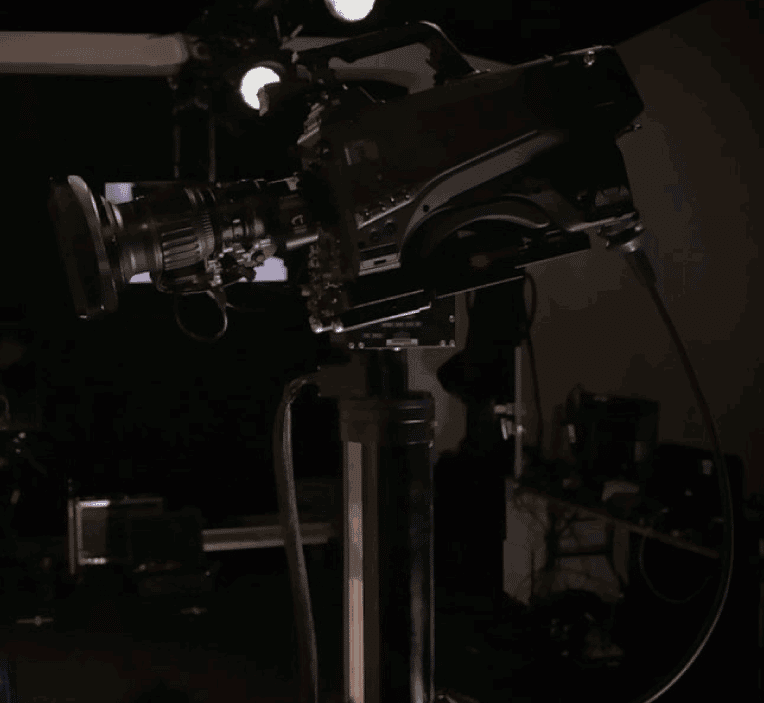

Smooth & Precise

KEY FEATURES

  • Extremely quiet system
  • Very smooth precise movement
  • Flexible payload options
  • Supports Teleprompter
  • Payload – 60kg / 132 lbs (TRH-1), 45kg / 99lbs (TRH-2)
  • Fully IP Connected
  • Positional output data for virtual sets
  • Highly accurate absolute encoders

IP CONNECTION FOR VIRTUAL SETS

The TRH track robotic system offers incredible strength and precision, supporting a wide range of cameras and heads, ideal for use in a number of broadcast, film and live event applications. The System also supports VR workflows, offers FreeD output synchronised to the station-reference genlock signal. Using the MRMC FreeD Sync/Merge box, FreeD data from the track, lift, and camera head can be combined to provide real-time positional telemetry to third-party VR environments.

The TRH track robotic system offers incredible strength and precision, supporting a wide range of cameras and heads, ideal for use in a number of broadcast, film and live event applications. The System also supports VR workflows, offers FreeD output synchronised to the station-reference genlock signal. Using the MRMC FreeD Sync/Merge box, FreeD data from the track, lift, and camera head can be combined to provide real-time positional telemetry to third-party VR environments.

Feature Highlights

SMOOTH MOVEMENT

Quiet Icon

VERY QUIET SYSTEM

Flexible PAyload Icon

FLEXIBLE PAYLOAD OPTIONS

Connectivity Icon

FULLY IP CONNECTED

Teleprompter Icon

SUPPORTS A TELEPROMPTER

TRH Videos

Specifications

TRH-1

Max. Payload

60kg / 132lb

Column Height

Min: 860mm / 33.8in, Max: 1340mm / 52.7in

Range of Motion

480mm / 18.8in

Column Height Adjust Speed

75mm/s, 2.95in/s

Column Height Adjust Acceleration

50mm/s² / 1.9in/s²

TRH-2

Max. Payload

45kg / 99lb

Column Height

Min: 783mm / 30.8in, Max: 1533mm / 60.3in

Range of Motion

750mm / 29.5in

Column Height Adjust Speed

150mm/s, 6.9in/s

Column Height Adjust Acceleration

80mm/s² / 3.1in/s²

Range

Track Speed

300mm/s / 11.8in/s

Track Acceleration

200mm/s² / 7.9in/s²

Track Gauge Standard

622mm/24.5in

Track Gauge Option

450mm/17.8in

Height range is measured from the floor to the top of the column, so variances will occur depending on how the TRH is mounted.

The TRH is often used with a PTA-2 robotic head, which when measured with a typical camera/lens combo provides the below heights: TRH-1: Min: 1260mm / 49.6in, Max: 1740mm / 68.5in TRH-2: Min: 1183mm / 46.5in, Max: 1933mm / 76.1in

Connectivity & Power

Connection

Ethernet

Power

100-240VAC 16A
