Remote Capture for Stills or Video

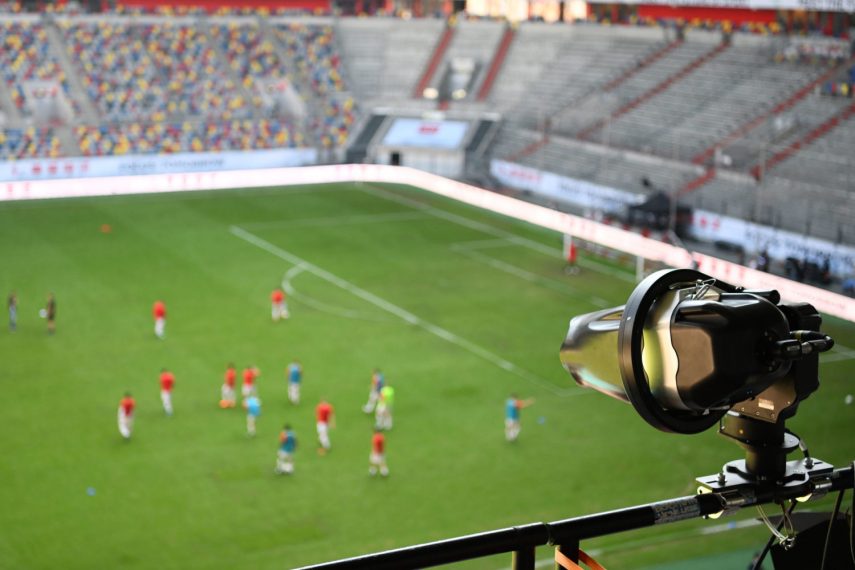

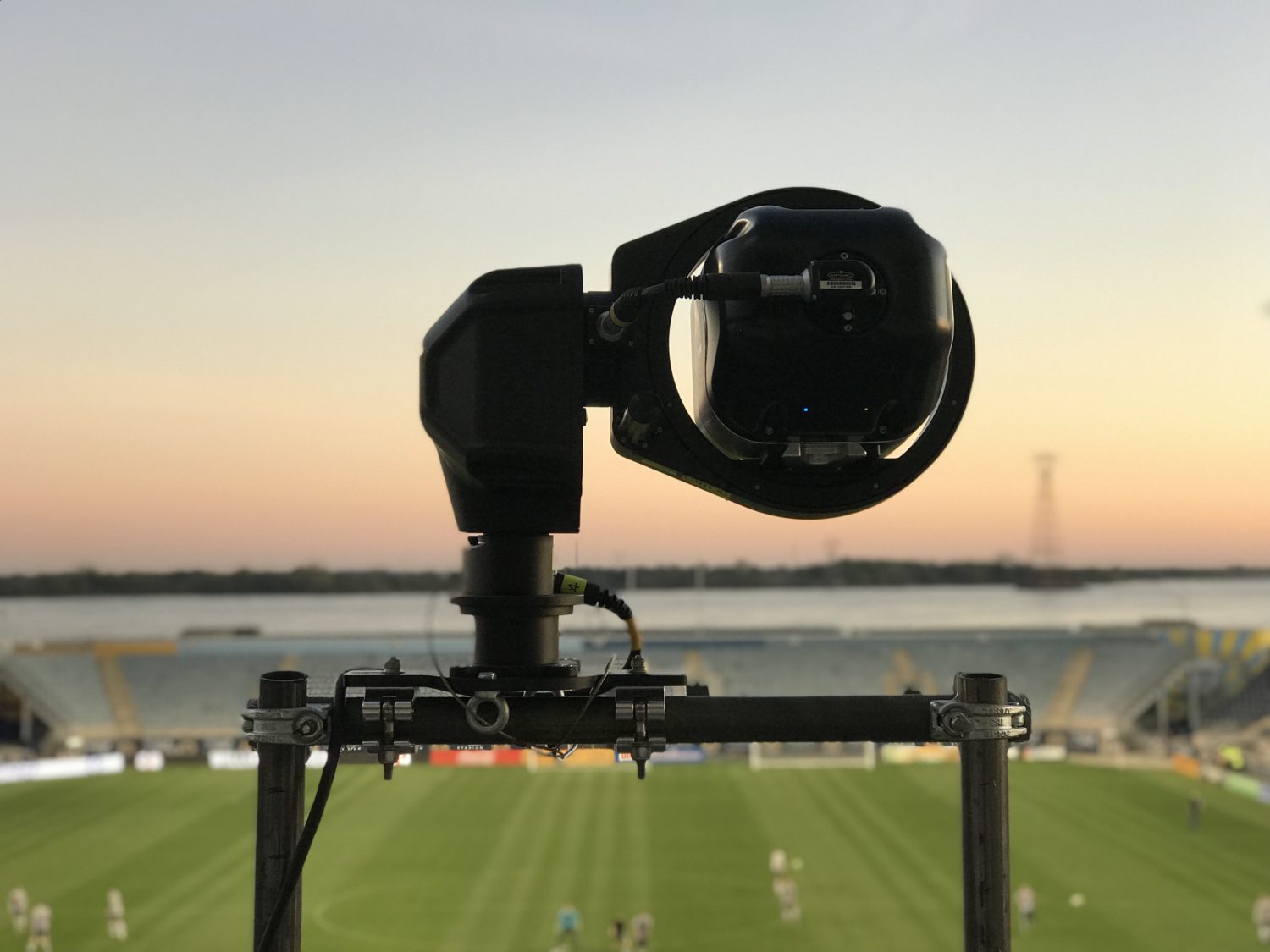

The Robotic Pod system is a leading, next generation, remote production tool. Designed for the toughest of tasks, in the most remote of locations, this system helps capture new angles with ease.

Pan/Tilt
180
°/s
Weight
10
Kg (Max)
Range of
5
Lens sizes

Key Features

Robotic Pod System

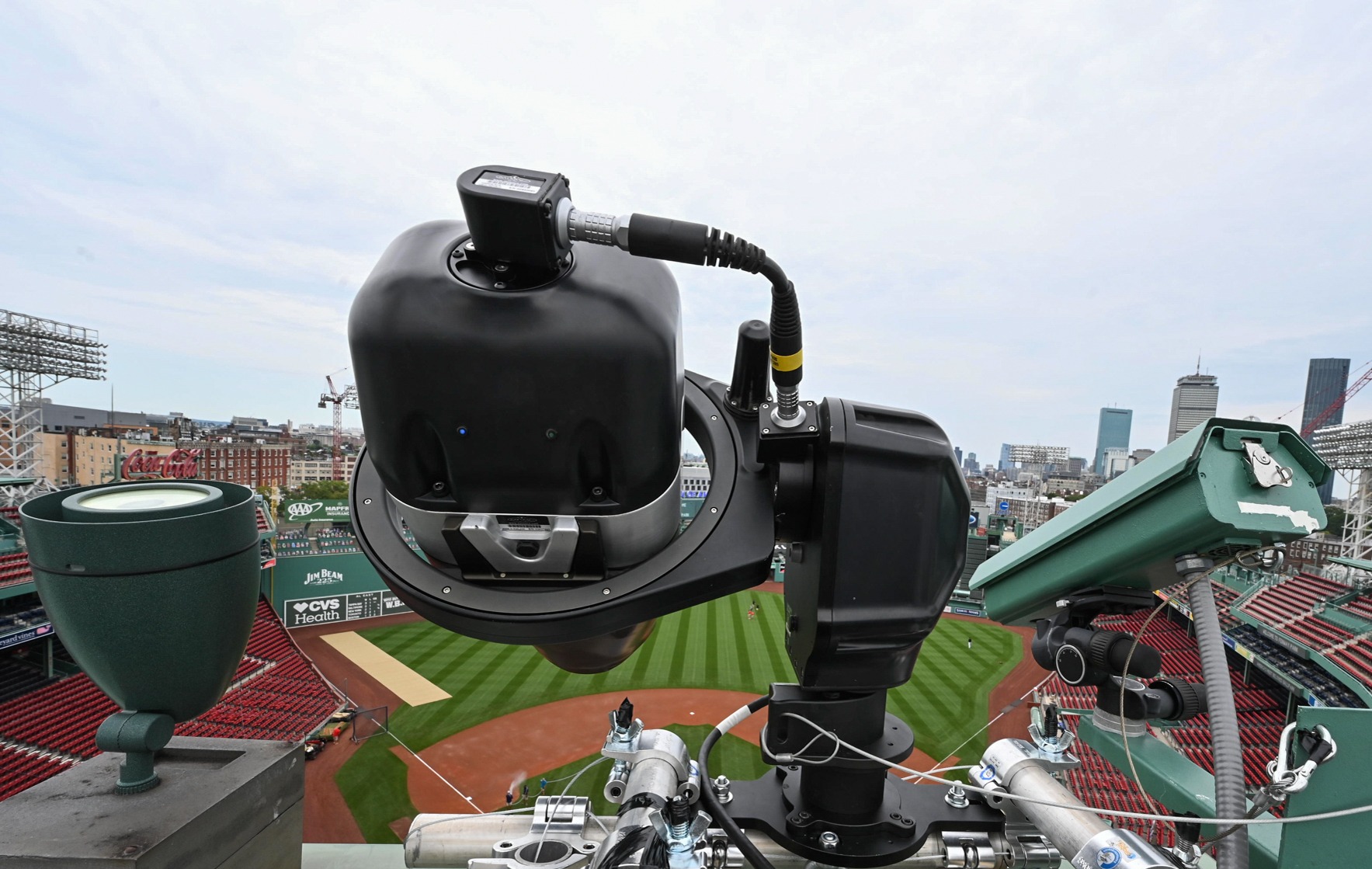

The Robotic Pod sets a new level of safety for remote event capture. By having only one cable between the Robotic Pod and the arm the chances of the robot becoming entangled are significantly decreased and – unlike other pan/tilt arms – there’s no birds nest of cables that could potentially come loose during operation.

Modular System

The modular system enables you to quickly and easily change your remote position from a wide to a super-tight shot. The Nikon FX size sensor provides fantastic dynamic range, colour depth and low noise sensor performance – as well as a vast range of lens options.

Nikon Technology

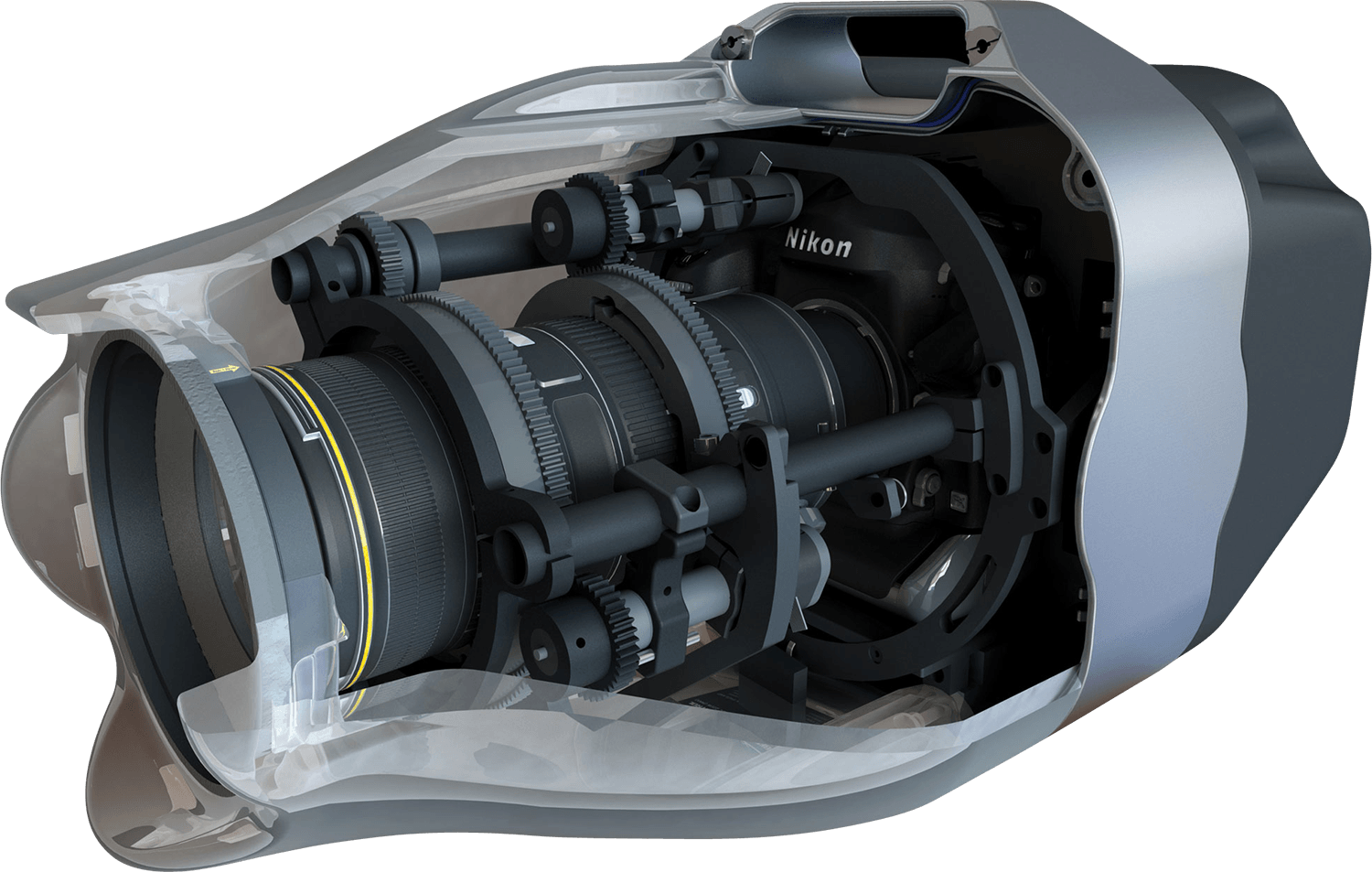

In the middle of every Robotic Pod is a Nikon D5 DSLR camera. With it’s class leading performance, focus accuracy and incredible image quality – for both stills and video, it is the perfect capture device for almost any application.

Specially modified boards integrate the camera with the robot, allowing the two components to work as one and ensuring the capture of video and still imagery is effortless.

Easy Installation

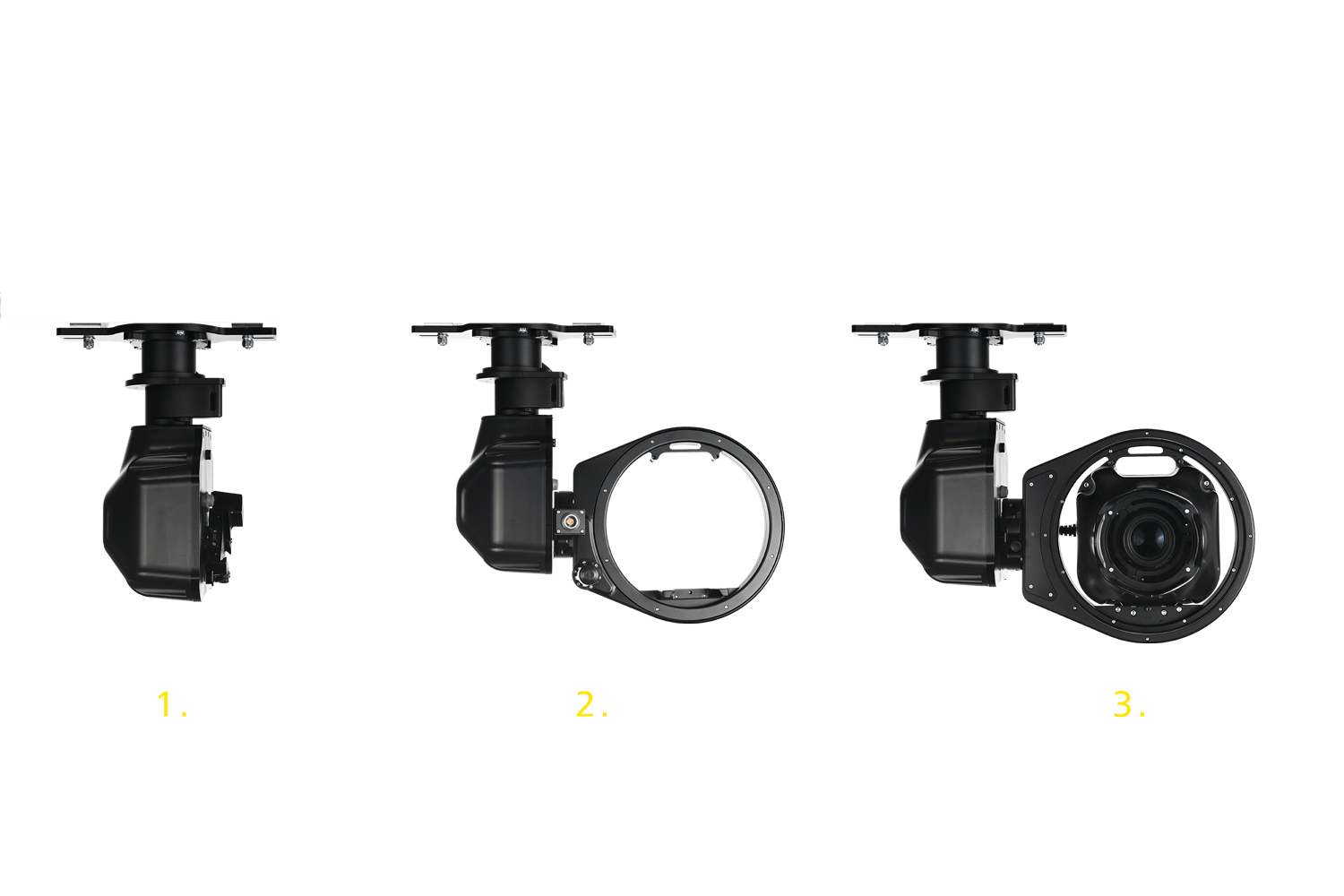

The Pod breaks down into three key components, enabling even the largest robotic pod to be installed by one person. The Robotic Pod is one of the fastest and easiest systems to rig on the market.

Modular System

By using a modular system it is easy to quickly change the Robotic Pod, in minutes you can change your remote position from a wide to a super tight shot. The Nikon FX size sensor means you get the advantage of fantastic dynamic range, colour depth and low noise sensor performance as well a vast range of lens options.

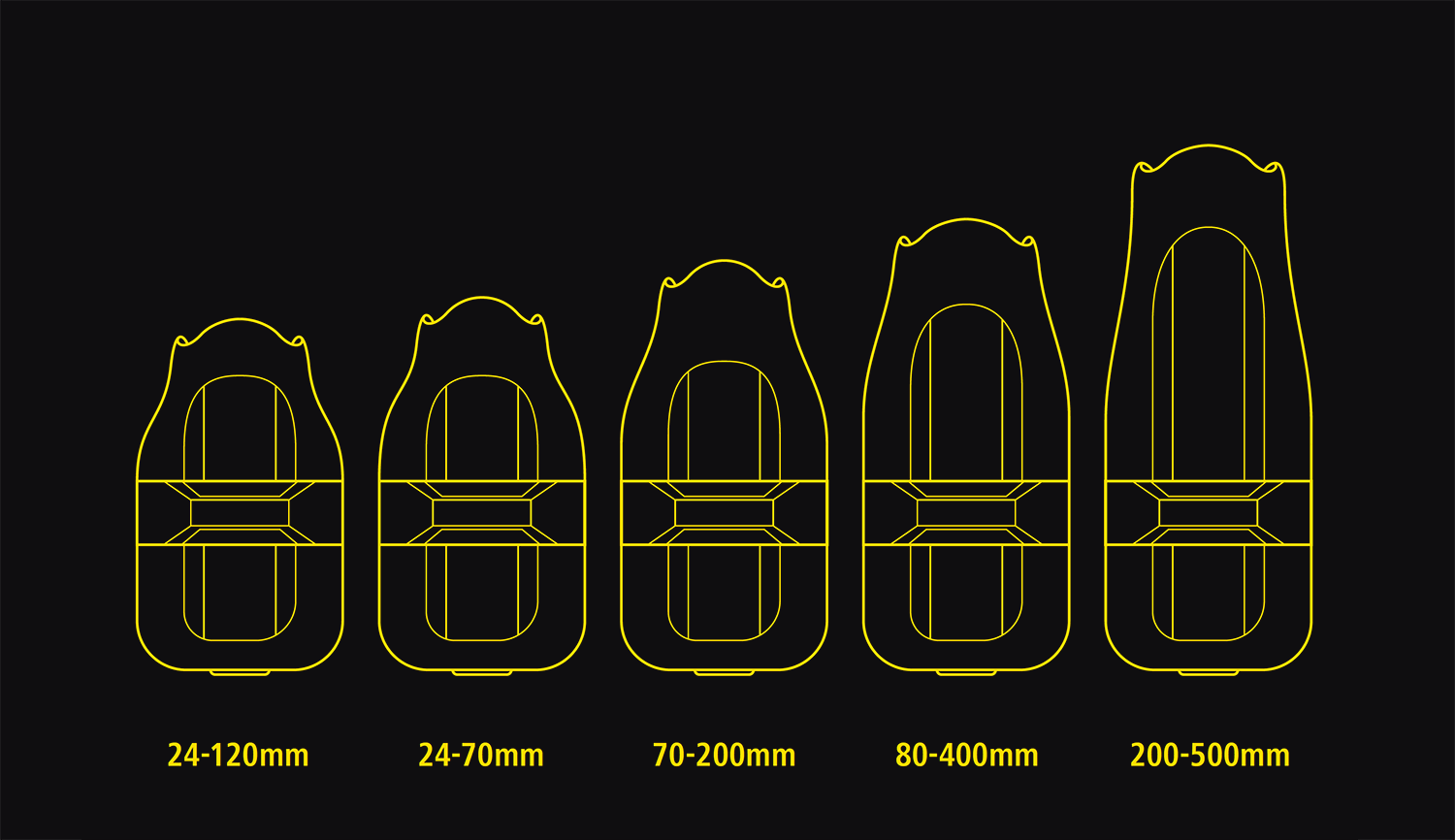

Choice of Lenses

  • 24-120mm
  • 24-70mm
  • 70-200mm
  • 80-400mm
  • 200-500mm

Easy to Use Interface

MHC is a class leading next generation remote control platform. This software comes in two parts, MHC server and MHC client. MHC server can dynamically control an unlimited number of robotic pods.

The servers role is to take input information, from multiple users and sources, and then translate this to smooth fluid camera moves on any of the MRMC robotic heads.

Feature Highlights

REMOTE CAPTURE OF STILLS AND VIDEO

FULL REMOTE CONTROL OF CAMERA CAPTURE

RELIABILITY OF VIDEO AND STILL CAPTURE

EASY TO USE CONTROL INTERFACE

QUICK TO USE MODULAR SYSTEM

WEATHER PROOF AND ROBUST

Specifications

  • Size & Weight
    • Size
      Operational space ~1.2 m3
    • POD Weight
      7-10 kg depending on unit
    • PTA-1 Weight
      11.8 kg
    • RA-1
      4.7 kg
  • Axes
    • Pan (Max)
      180°/s infinite movement Tilt max
    • Tilt (Max)
      180°/s infinite movement
    • Roll (Max)
      90°/s 340° movement
  • Connections & Power
    • RJ45
      1000base-t
    • SDI
      3G max. output 1080p 50/60 fps
    • Fibre
      Optional plug in SFP for optical SDI output
    • Power
      Supplied with 240V 16A Optional 110V 16A and UK/EU/US
  • Stills
    • Image Sensor
      FX, CMOS, 35.9mm x 23.9mm
    • Total Pixels
      21.33 million (20.8 million effective)
    • Frame advance rate
      12fps
    • ISO sensitivity
      100 to 102,400 with a Hi 5 setting of EV (328,0000 equivalent) above 102,400
  • Video
    • Movie frame size (pixels) and frame rate
      3840 x 2160 (4K UHD): 30p (progressive), 25p, 24p; (internal recording) 1920 x 1080: 60p, 50p, 30p, 25p, 24p;
    • 1920 x 1080 crop
      60p, 50p, 30p, 25p, 24p; 1280 x 720: 60p, 50p; Actual frame rates for 60p, 50p, 30p, 25p, and 24p are 59.94, 50, 29.97, 25, and 23.976 fps via SDI
    • All tri-level sync standards, cross lock compatible
      exceptions 1080p 50/59.94/60Hz
