LLS Light Lift System
Versatile Robotic System
The LLS Light Lift System makes it incredibly easy, and not to mention cost-effective, to add vertical motion to your production. No matter how you need to mount the kit, it can be positioned to capture talent, crowd shots or even seamlessly integrate with your broadcast and virtual productions workflows.
The LLS Light Lift System makes it incredibly easy, and not to mention cost-effective, to add vertical motion to your production. No matter how you need to mount the kit, it can be positioned to capture talent, crowd shots or even seamlessly integrate with your broadcast and virtual productions workflows.
Highest Quality Vertical Motion
Achieve On-air Quality Motion
Designed to be quiet in operation, the LLS offers a configurable vertical lift speed of 0.5 – 60mm/s making it ideal for on-air movement of PTZs.
The system is easily contolled using our Multi-Head Controller software, or Polymotion Chat for automated movement.
The LLS can also integrate with third-party systems via our MRP (Mark Roberts Protocol).
Designed to be quiet in operation, the LLS offers a configurable vertical lift speed of 0.5 – 60mm/s making it ideal for on-air movement of PTZs.
The system is easily contolled using our Multi-Head Controller software, or Polymotion Chat for automated movement.
The LLS can also integrate with third-party systems via our MRP (Mark Roberts Protocol).
Integrated PTZ Solution
The LLS system expands our PTZ enablement range and its modular design means the system can be used in a multitude of ways, for example, combined with the QRS rail, to provide a unique lift system with horizontal rail motion. The LLS can be quickly reconfigured from floor, to wall, to ceiling and also has genlock sync input to allow synchronised FreeD positional data to be output from the LLS, enabling its use with virtual graphics’ systems.
The LLS is also supplied with a Vesa mount to allow small/lightweight display-based prompter to be added underneath the PTZ.
The LLS system expands our PTZ enablement range and its modular design means the system can be used in a multitude of ways, for example, combined with the QRS rail, to provide a unique lift system with horizontal rail motion. The LLS can be quickly reconfigured from floor, to wall, to ceiling and also has genlock sync input to allow synchronised FreeD positional data to be output from the LLS, enabling its use with virtual graphics’ systems.
The LLS is also supplied with a Vesa mount to allow small/lightweight display-based prompter to be added underneath the PTZ.

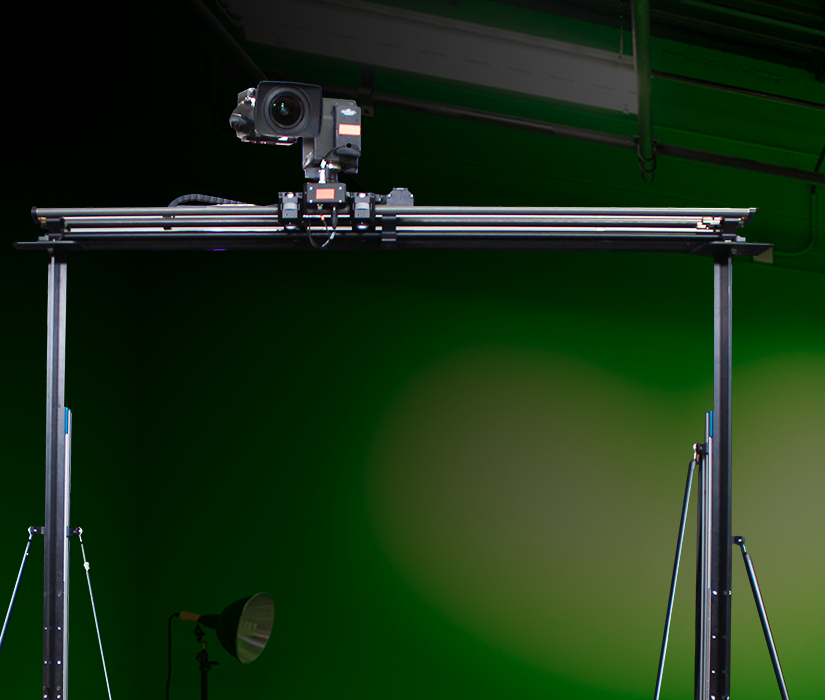

Pair With The QRS To Achieve Horizontal Motion
The RLS Rail Lift System
Expand your range of motion by creating a dual lift system that comprises two LLS lifts and a QRS rail. This solution shares the quiet and smooth rail operation of the QRS and the same core 655mm of smooth lift travel offered by the LLS. The RLS also has genlock sync input to allow synchronised FreeD positional data to be output and used with virtual graphics systems.
This modualar system is highly reconfigurable and comfortably covers both sitting and standing shots in studios. Ask the MRMC Broadcast team about mounting options.
Expand your range of motion by creating a dual lift system that comprises two LLS lifts and a QRS rail. This solution shares the quiet and smooth rail operation of the QRS and the same core 655mm of smooth lift travel offered by the LLS. The RLS also has genlock sync input to allow synchronised FreeD positional data to be output and used with virtual graphics systems.
This modualar system is highly reconfigurable and comfortably covers both sitting and standing shots in studios. Ask the MRMC Broadcast team about mounting options.

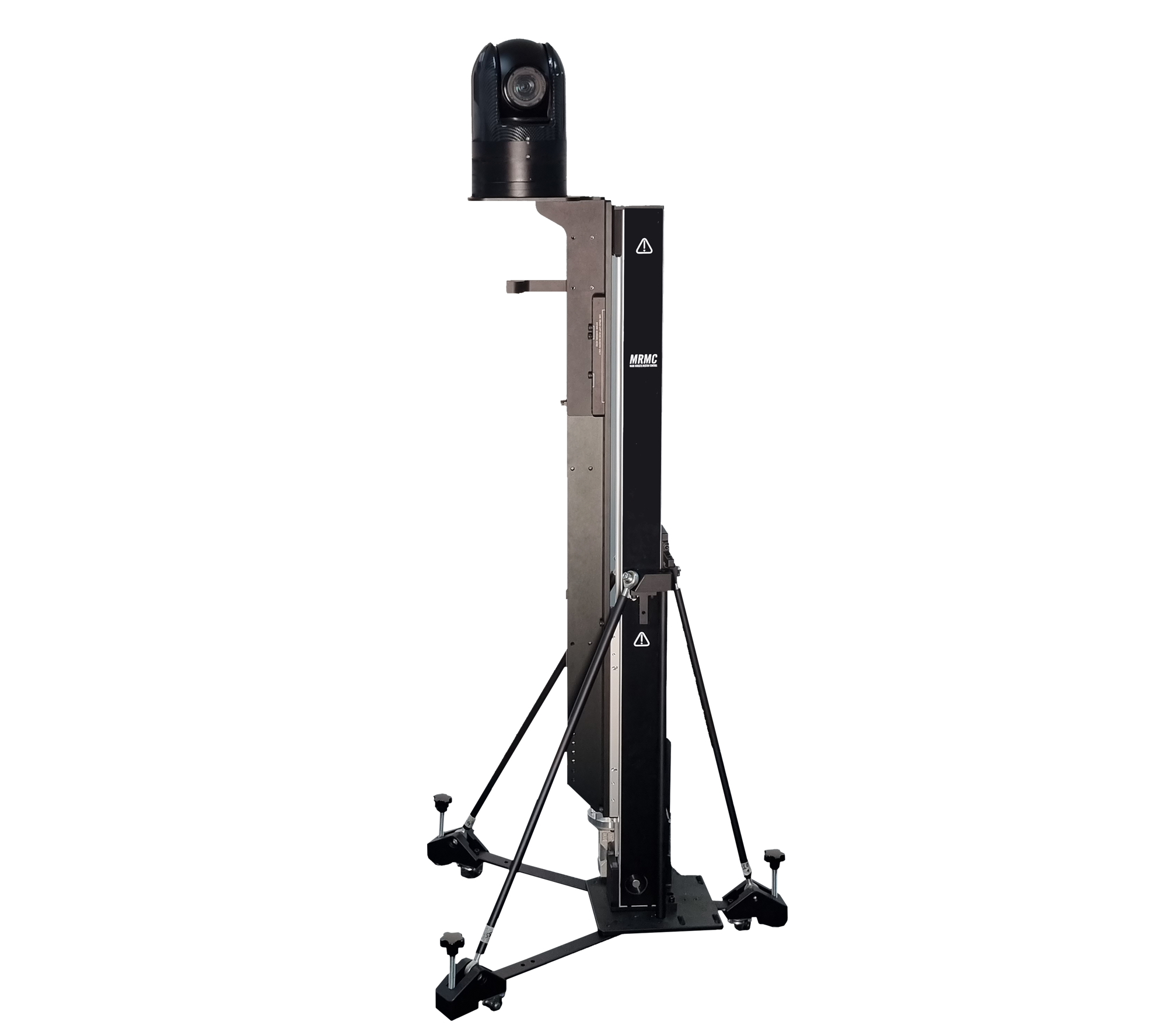

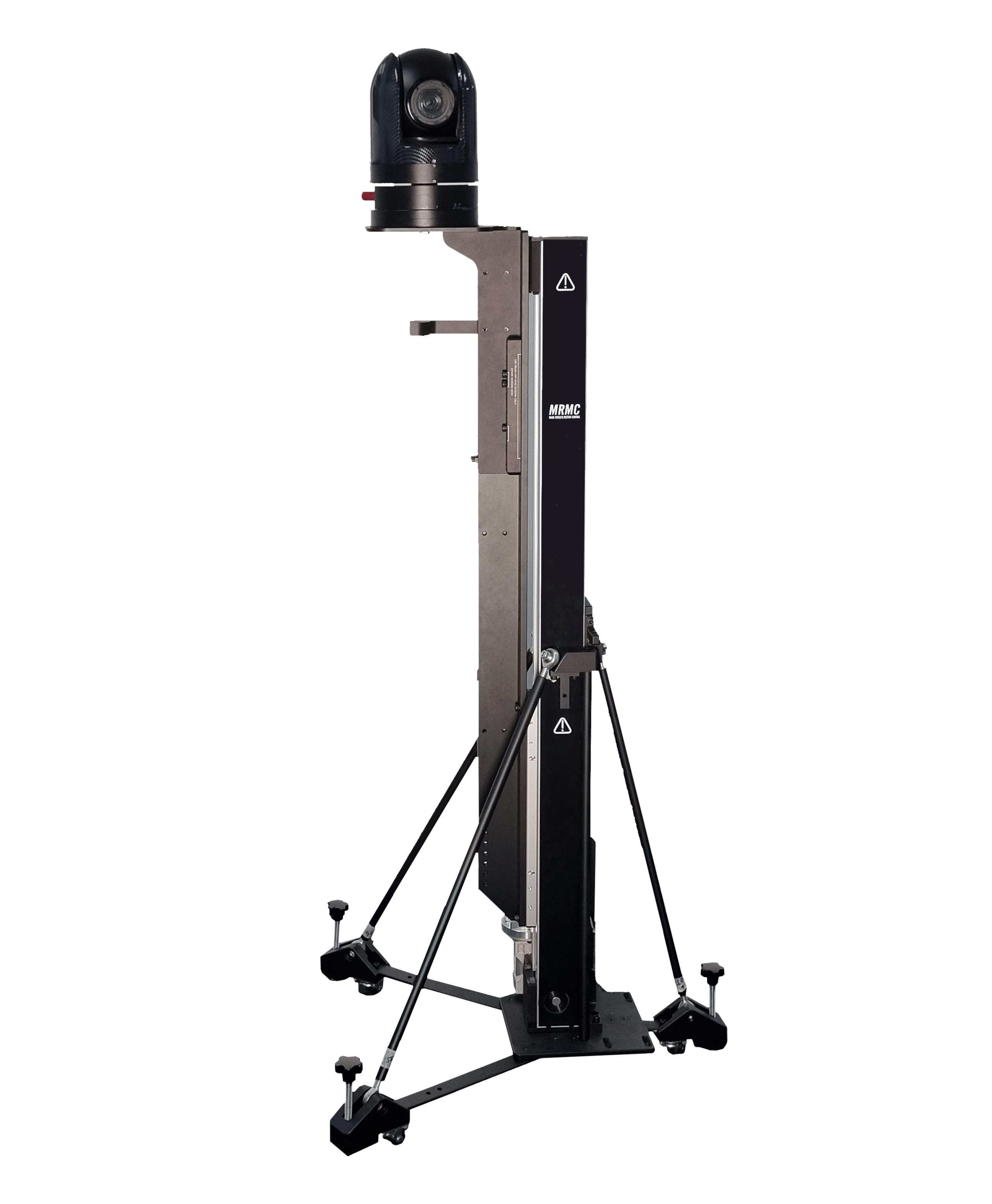

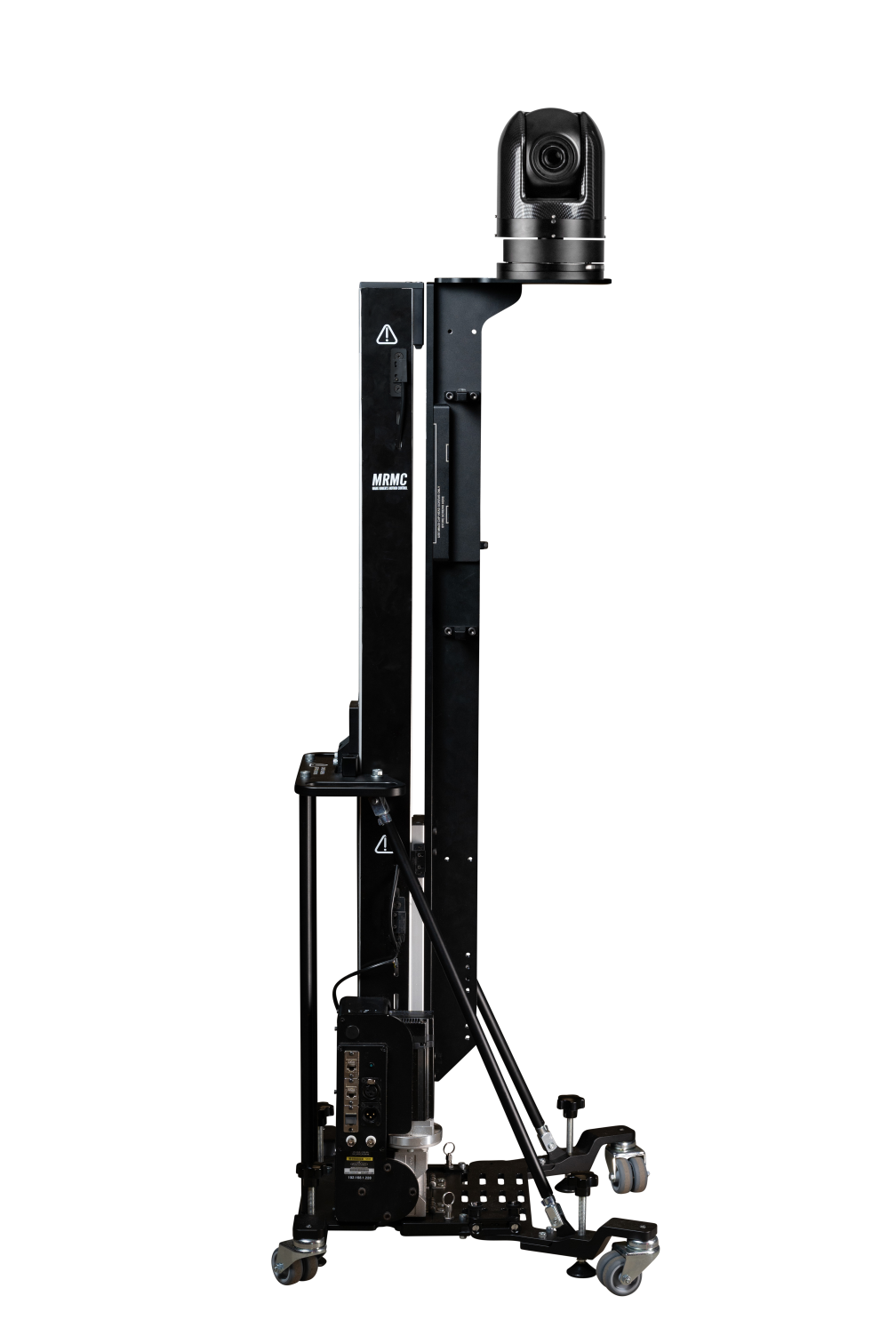

Overview of the LLS Light Lift System
Feature Highlights
SMOOTH MOVEMENT
VERY QUIET
FLEXIBLE MOUNTING & CONTROL
FULLY IP CONNECTED
SUPPORTS A TELEPROMPTER
Specifications
General
Weight (Core Lift Unit)
21.5 kg / 47lb
Weight (Rolling Base Option)
30.3kg / 66.8lb
Weight (Wall/Truss Kit Option)
25.5kg / 56.2lb
Height / Lift Range - Low Mode
Lowest: 516mm - 1171mm / 20in - 46in
Height / Lift Range - Low Mode
Highest: 830mm - 1485mm / 33in - 58in
Height / Lift Range - Extended Mode
Lowest: 950mm - 1605mm / 37in - 63in
Height / Lift Range - Extended Mode
Highest: 1505mm - 2160mm / 59in - 85in
Performance
Max. Payload
10kg / 22 lb
Max Lift Speed
60mm/s / 2.4in/s
Max Lift Acceleration
30mm/s² / 1.2in/s²
Control
Power
110-240 AV 24V DC - 3.3A 10kg lift at max speed
Control Type
IP / Manual Switch
Setup & Installation
Operations Temperature
5° to 30°C / 41° to 86°F 0-80% Humidity (non-condensing)
Mounting
Floor, wall, truss, ceiling
