Orbital Rig

Automated Capture 360˚
Photos 40p/min
Camera Payload 15kg

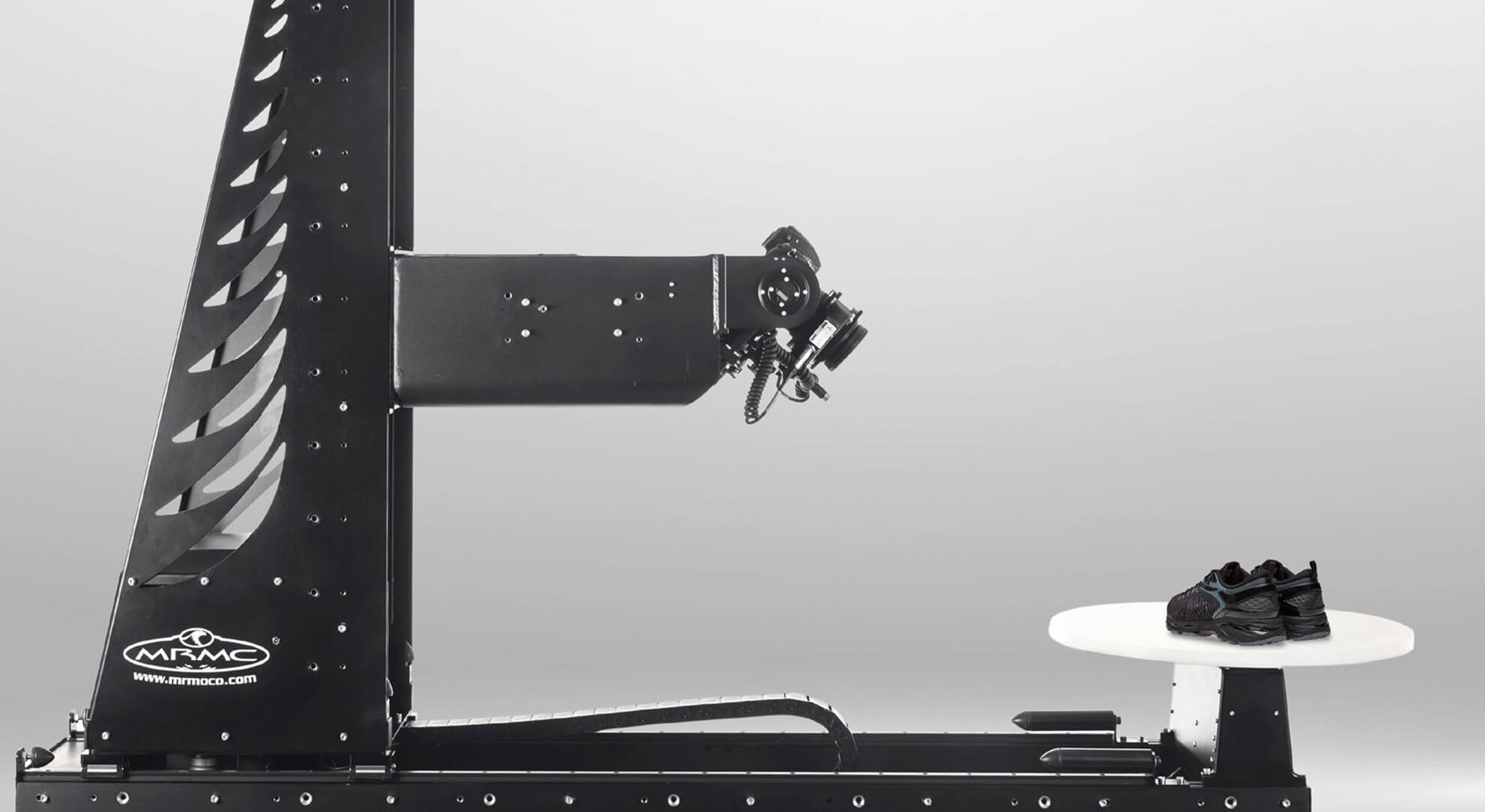

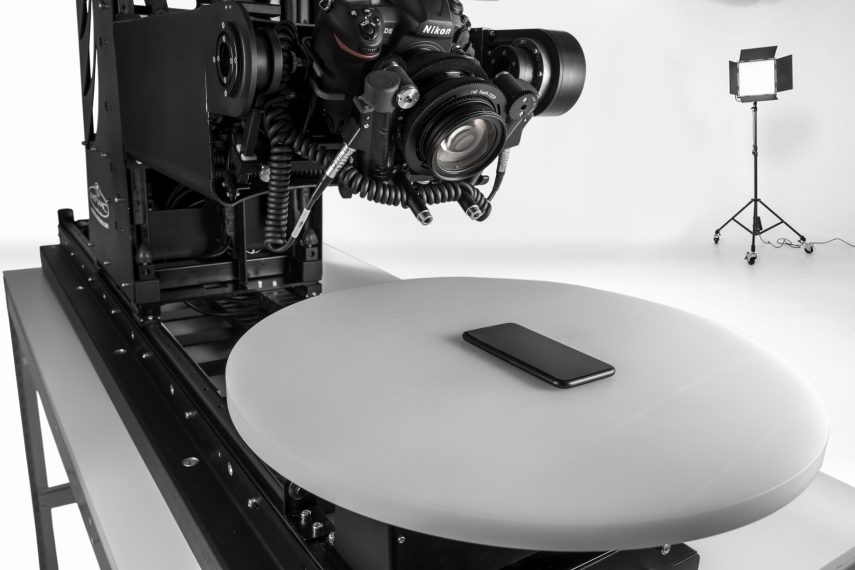

The Orbital is a powerful robotic camera rig developed to capture high volume product shots and video. With programmable, saveable presets, the Orbital brings production line efficiency, accuracy and reliability to the world of product photography. Create high volume consistent product images and videos at the touch of a button.

The Orbital is a powerful robotic camera rig developed to capture high volume product shots and video. With programmable, saveable presets, the Orbital brings production line efficiency, accuracy and reliability to the world of product photography. Create high volume consistent product images and videos at the touch of a button.

AUTOMATED PRODUCT PHOTOGRAPHY

FULL CONTROL

FULL CONTROL

Used in conjunction with our range of turntables, the Orbital’s operating system allows for the control of camera height, distance, focus, exposure, zoom and shutter, while automatically rotating the selected turntable through user defined rotations.

1 click. 8 angles. 15 Seconds. Job Done

Key Features

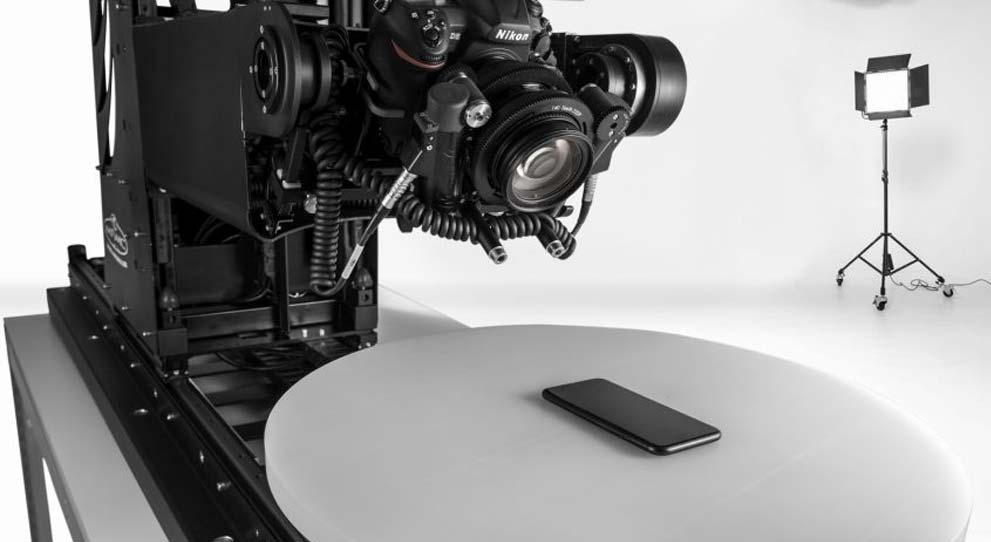

HIGH VOLUME PRODUCT PHOTOGRAPHY

HIGH VOLUME PRODUCT PHOTOGRAPHY

The Orbital is custom-made for taking high-volume product shots, bringing production-line simplicity and reliability to the world of product photography.

Even if you’re taking everything from stills, 360 Spins, multi-row photography or shooting video, the Orbital offers a complete e-commerce solution.

The Orbital is custom-made for taking high-volume product shots, bringing production-line simplicity and reliability to the world of product photography.

Even if you’re taking everything from stills, 360 Spins, multi-row photography or shooting video, the Orbital offers a complete e-commerce solution.

PROGRAMMABLE PRESETS

PROGRAMMABLE PRESETS

Simply position the product and press the button: the Orbital moves through your pre-programmed rotations and camera positions with absolute precision. Images are automatically passed through to your post-processing system.

Whether you’re shooting 10,000 or 100,000 images, the Orbital revolutionises workflows and delivers major cost savings per image.

Simply position the product and press the button: the Orbital moves through your pre-programmed rotations and camera positions with absolute precision. Images are automatically passed through to your post-processing system.

Whether you’re shooting 10,000 or 100,000 images, the Orbital revolutionises workflows and delivers major cost savings per image.

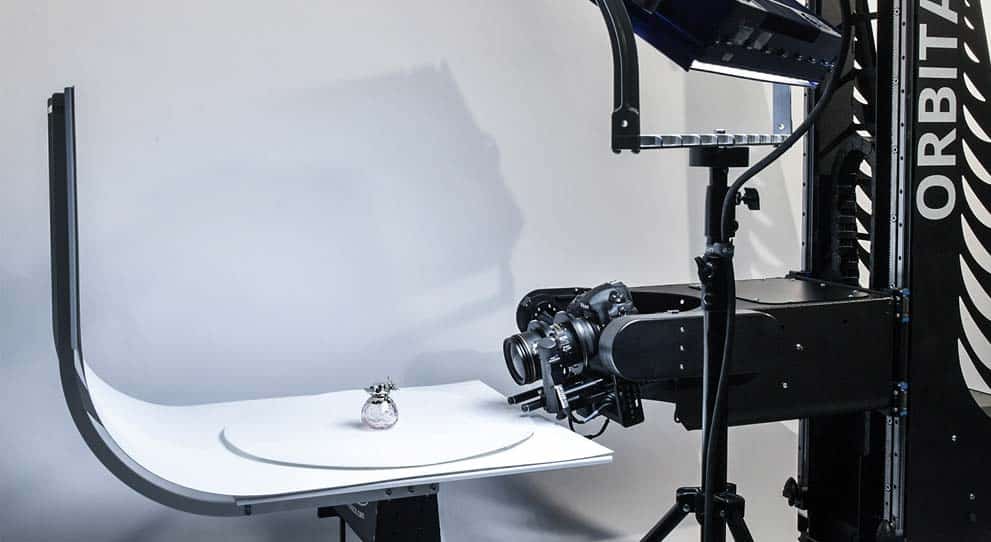

AUTOMATED WORKFLOW

AUTOMATED WORKFLOW

Bring the same level of automation you demand from your product and delivery lines to your product photography. The Orbital dramatically reduces set-up times by removing the need for the photographer to manually set up individual shots between each shutter movement.

Bring the same level of automation you demand from your product and delivery lines to your product photography. The Orbital dramatically reduces set-up times by removing the need for the photographer to manually set up individual shots between each shutter movement.

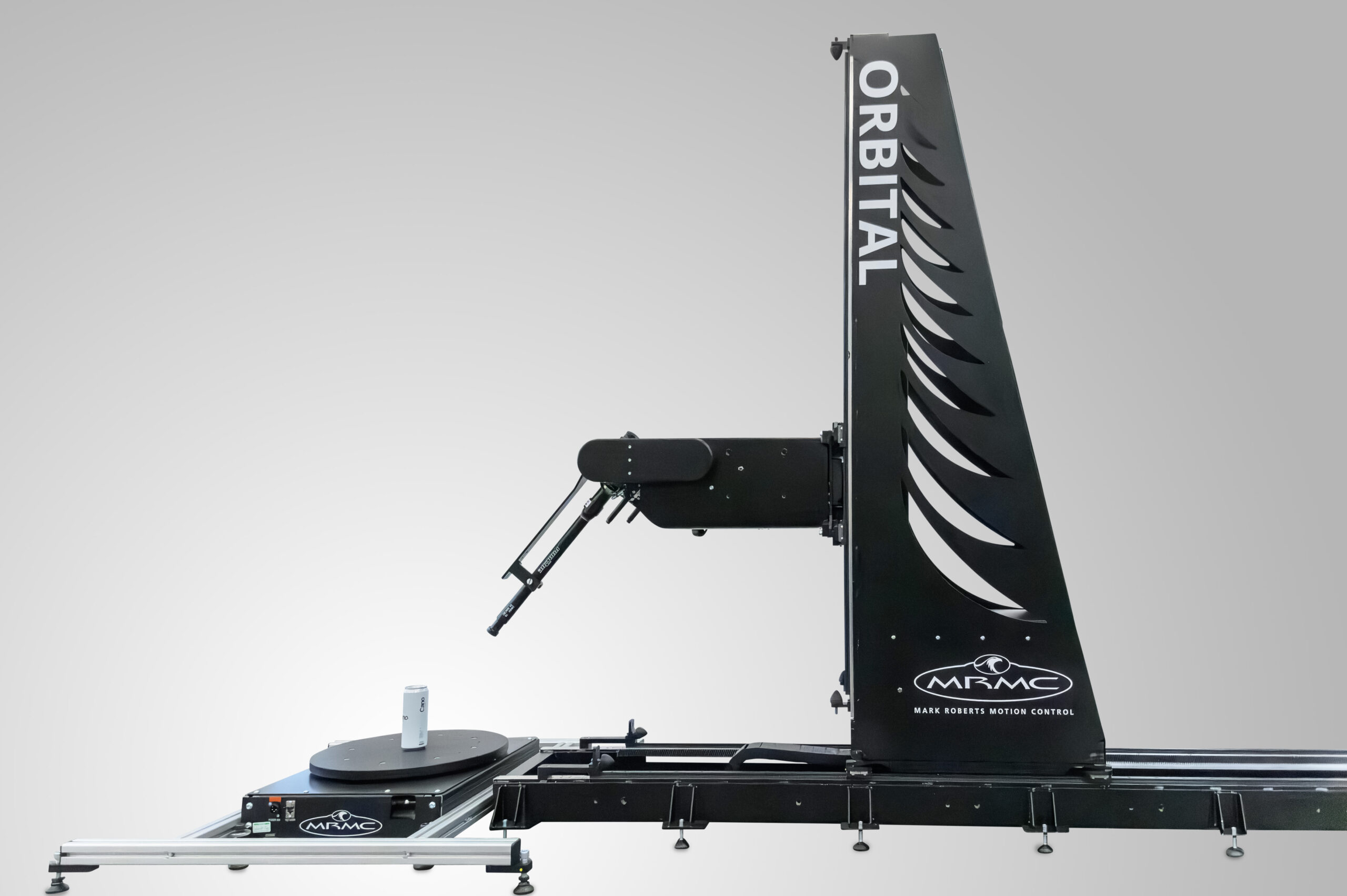

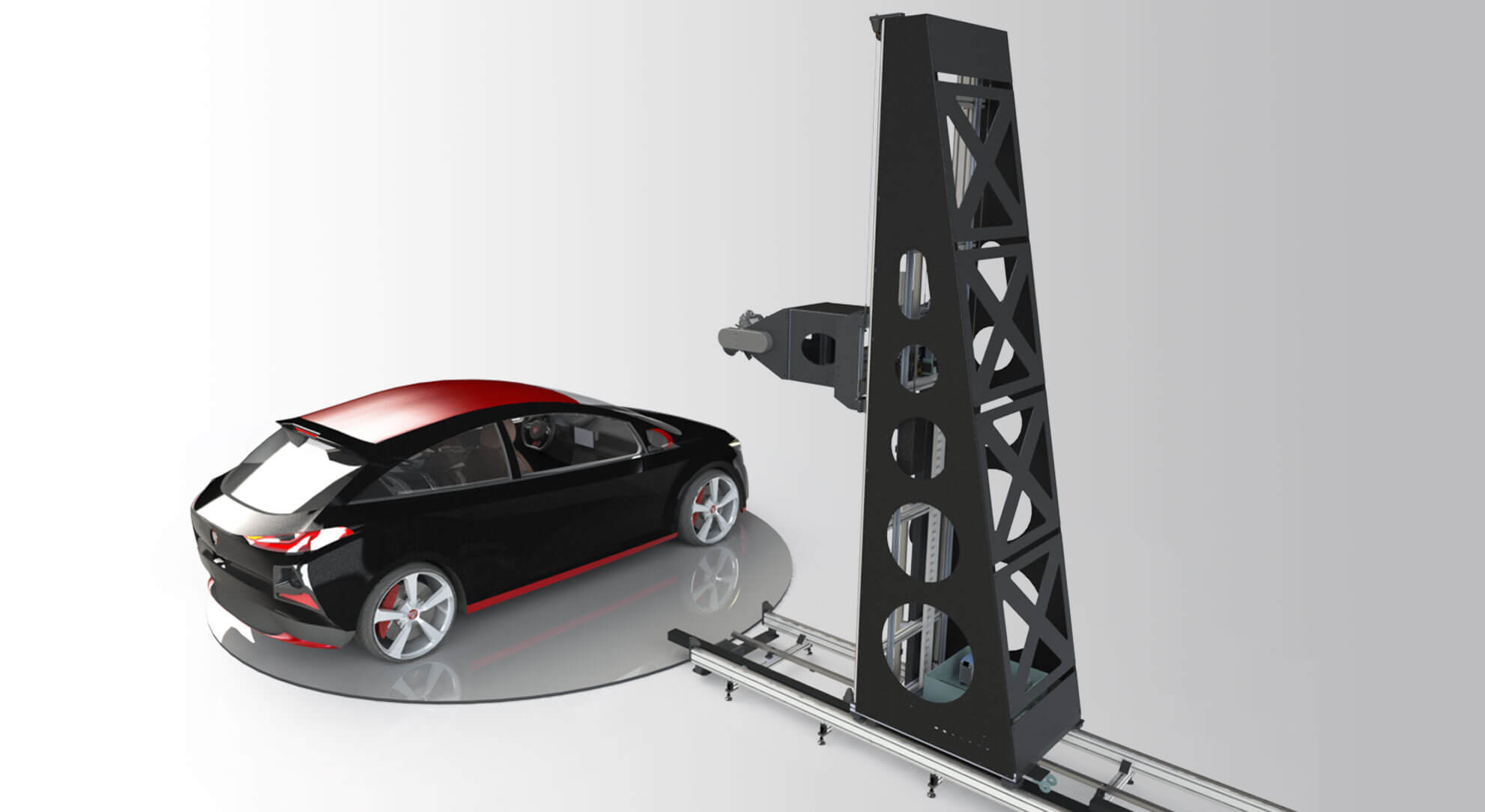

Orbital XL

Orbital XL

Looking for a larger system? The Orbital rig can also come as an XL option. With a much larger operating envelope, the XL is ideal for shoots requiring more reach & height. With a 2.4m height, you can get right over the top of larger products, such as larger household appliances, furniture or even cars.

Feature Highlights

Capture

Shoot stills, 360 spins, multi-row images and ultra-smooth video.

Precision Position

Precision management of camera positions with full settings for lens height, distance, focus and rotational speeds of changeable turntables.

Saveable Presets

Create and save defined camera and turntable moves for an automated capture workflow.

Orbital XL

For larger products there is the Orbital XL Rig. Specifically designed to capture larger items such as fridges, beds or even cars.

Digital Asset Management

Images automatically delivered directly to your digital asset management system.

Easy, Intuitive Control

Produce high-quality images in all of your product photography with our powerful Flair Motion Control software, supplied as standard.

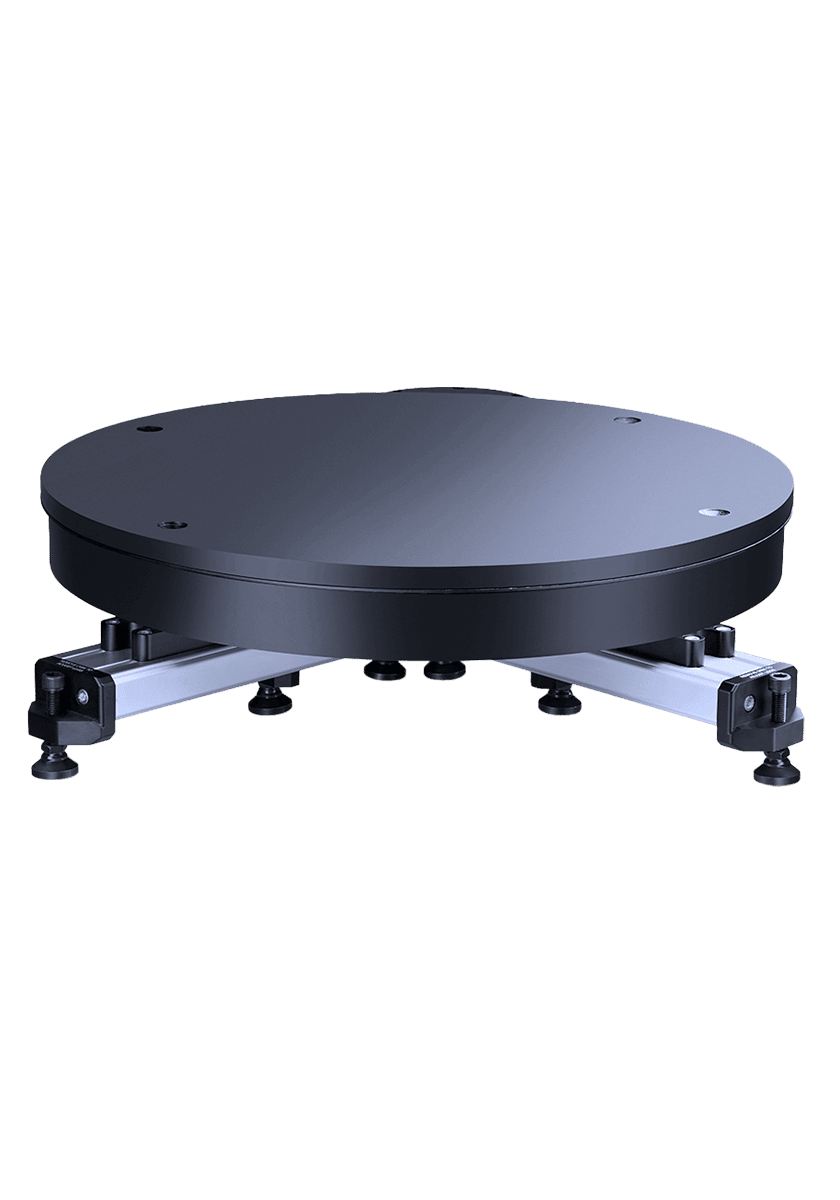

Zero-backlash Turntables

The Orbital is compatible with all of MRMC’s zero-backlash turntables. Available in Small, Medium and Large – with payloads up to 600kg.

Automated Workflow

No need to manually reposition products between shots. Program the Orbital with the movements and shot angles required.

Specifications

Specifications

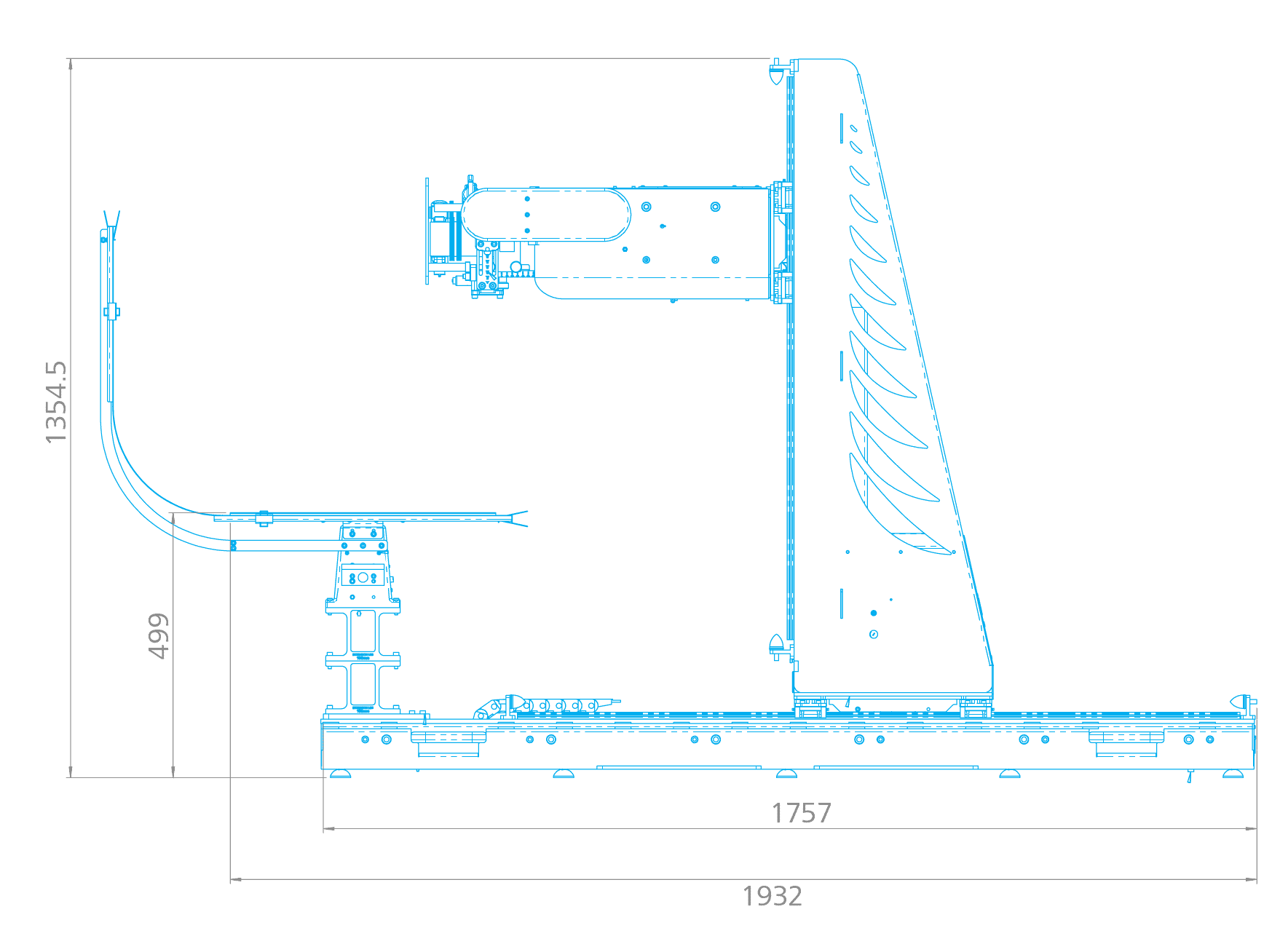

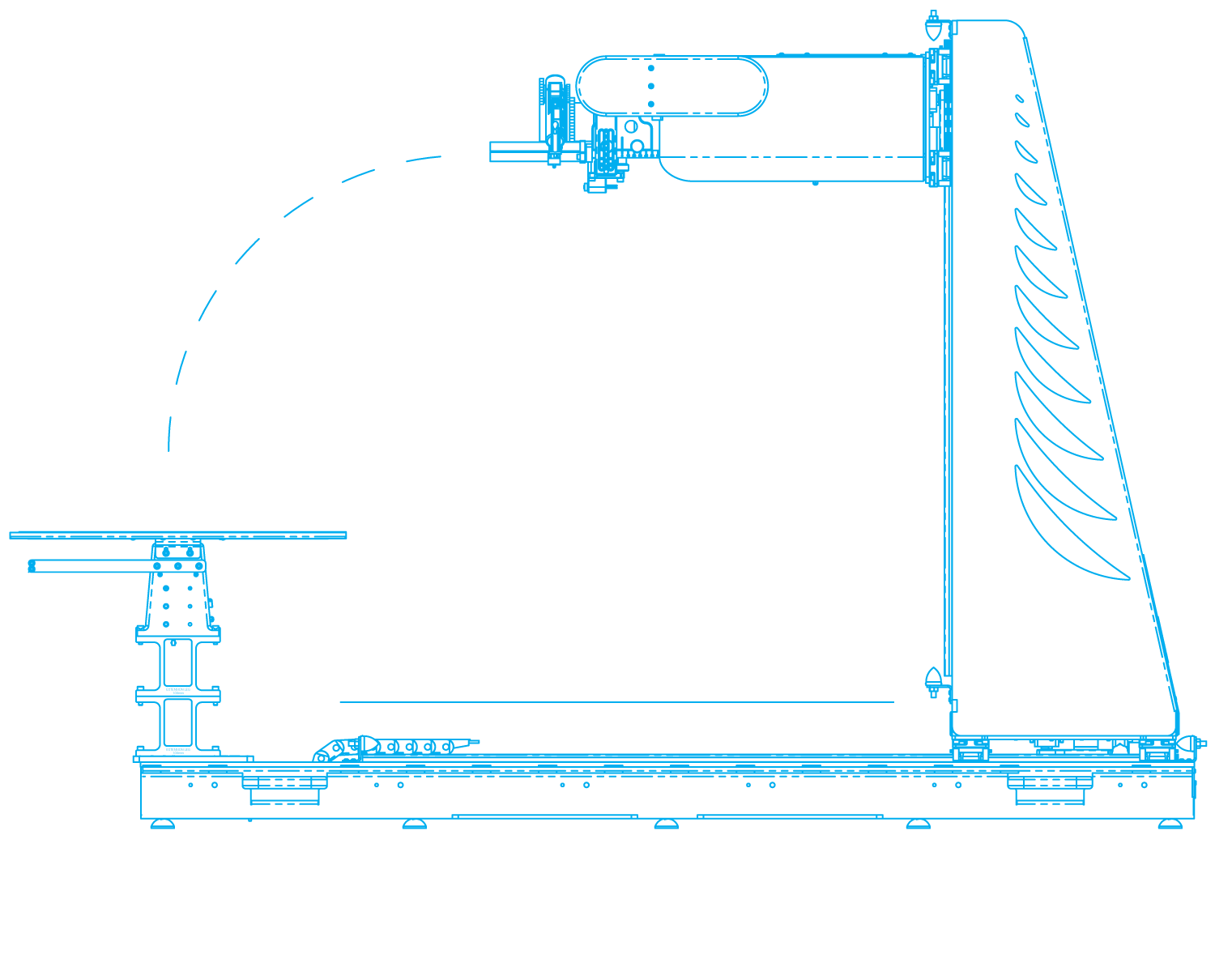

Orbital Specifications

Weight

75kg

Camera Payload

Up to 15kg

Maximum Speed

Up to 130mm/sec

Arc of Motion

1395 x 1850 x 420mm

Power

110-240 VAC

Downloads

Specifications
Specifications

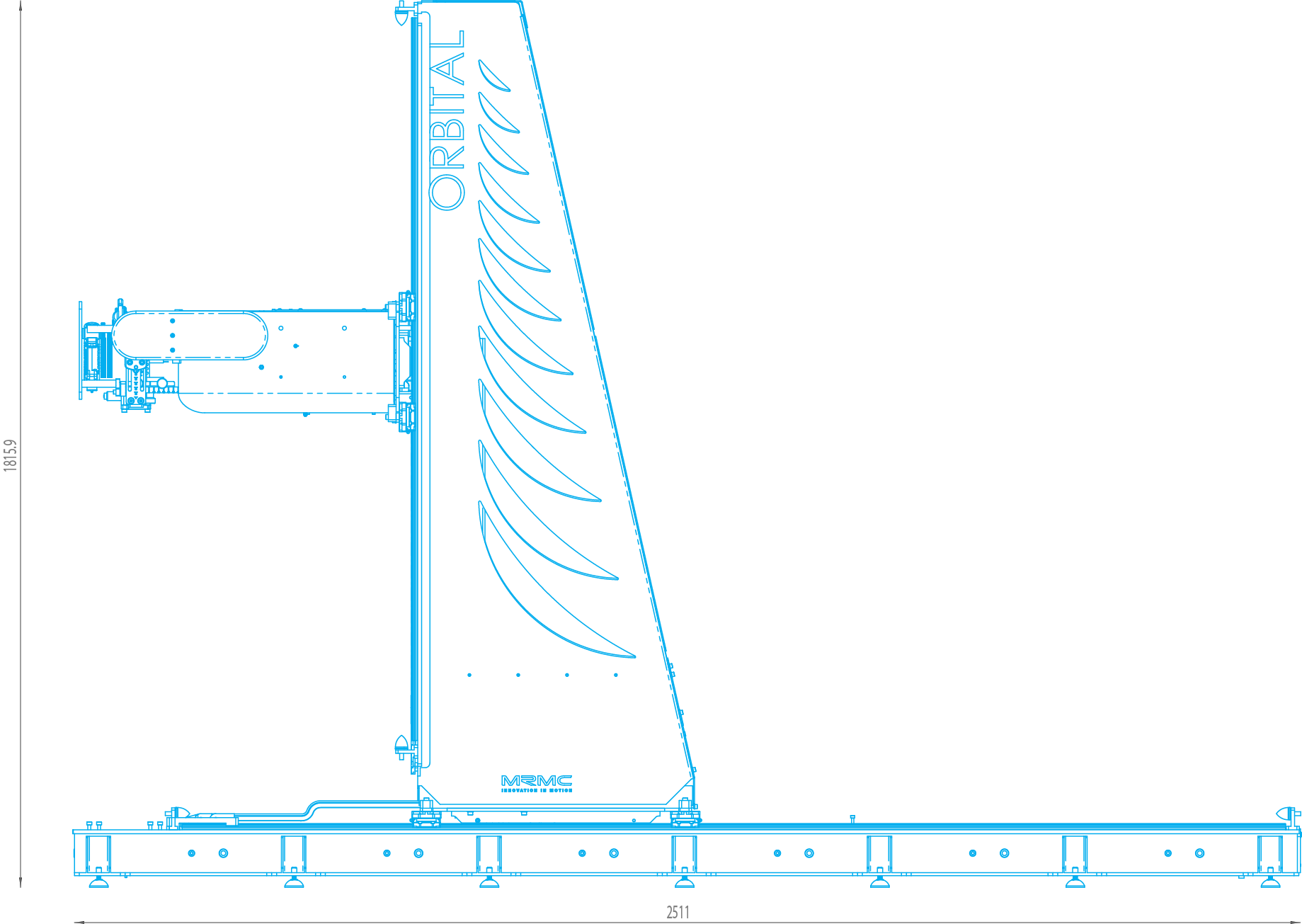

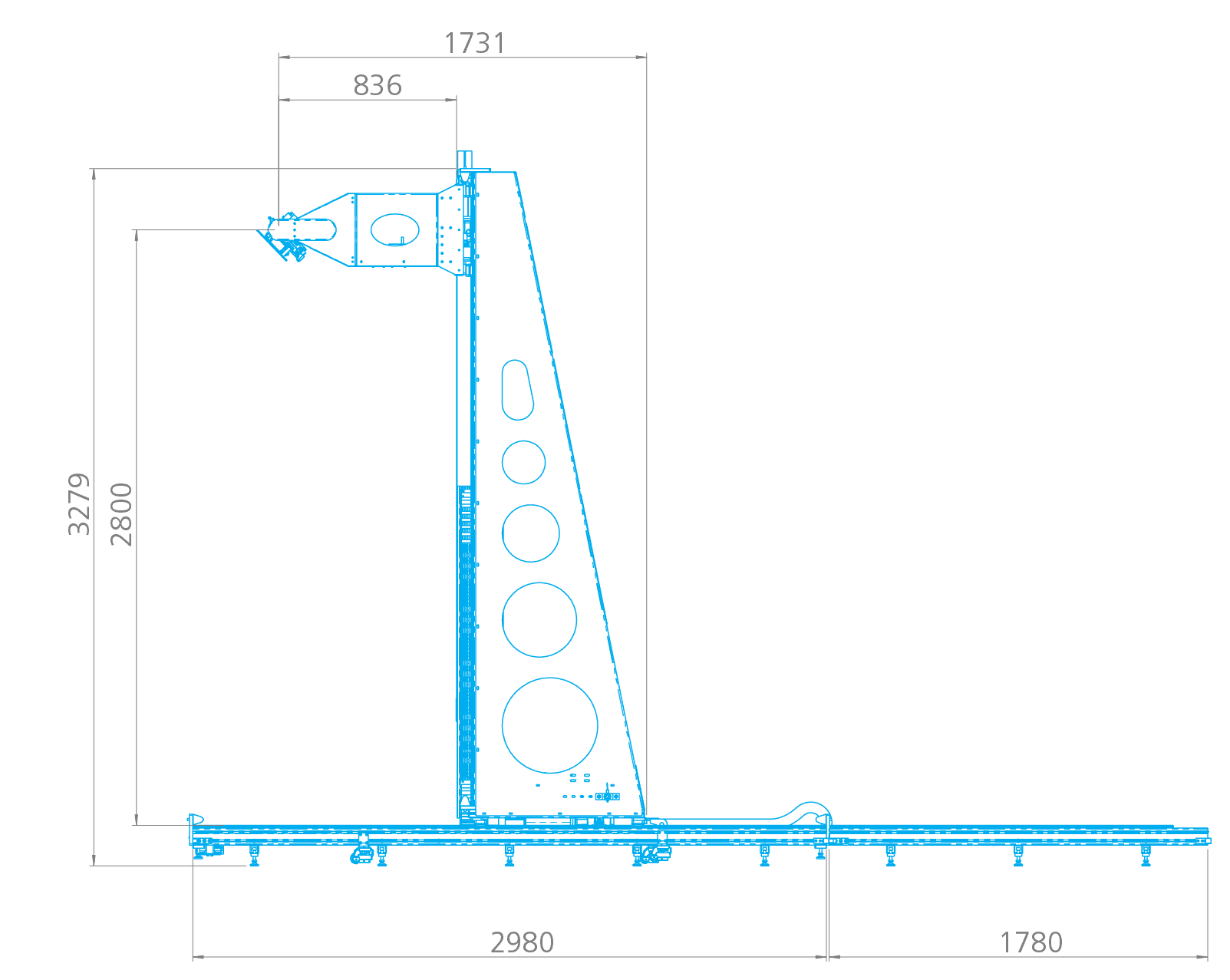

Orbital XL Specifications

Weight

260kg

Weight of Additional Rail

55kg (each)

Camera Payload

Up to 15kg

Maximum Speed

600 mm/s

Horizontal Travel

2.1m

Vertical Travel

2.4m

Rotate Travel Range

+/- 90˚

Extension Track

2.9m (each)

Overall Dimension

3.3m H x 3.1m L x 0.75m W

Specifications
