Bolt Mini Model Mover

BIG ON CREATIVITY. SMALL ON PRICE.

Reach 3ft
Payload 8kg
Weight 42kg

The Bolt Mini Model Mover is an extremely versatile lightweight 6-axis high-speed arm capable of full manipulation of products with repeat pass precision, timing and triggering capabilities. Starting at only £49k ($68k) the Bolt Mini Model Mover is our entry-level system to start working with high-speed robotics — enter into the world of motion control!

The Bolt Mini Model Mover is an extremely versatile lightweight 6-axis high-speed arm capable of full manipulation of products with repeat pass precision, timing and triggering capabilities. Starting at only £49k ($68k) the Bolt Mini Model Mover is our entry-level system to start working with high-speed robotics — enter into the world of motion control!

Key Features

Bolt Mini Model Mover With Trainer

Full Product Manipulation

The Bolt Mini Model Mover can be used as a standalone system or synchronised with a camera shooting bot and enables full manipulation of products with repeat pass precision, timing and triggering capabilities.

The model mover comes with three mount options, including chuck mount and cheese plate giving users a wide range of capture possibilities. There’s also a gripper option.

The Bolt Mini Model Mover can be used as a standalone system or synchronised with a camera shooting bot and enables full manipulation of products with repeat pass precision, timing and triggering capabilities.

The model mover comes with three mount options, including chuck mount and cheese plate giving users a wide range of capture possibilities. There’s also a gripper option.

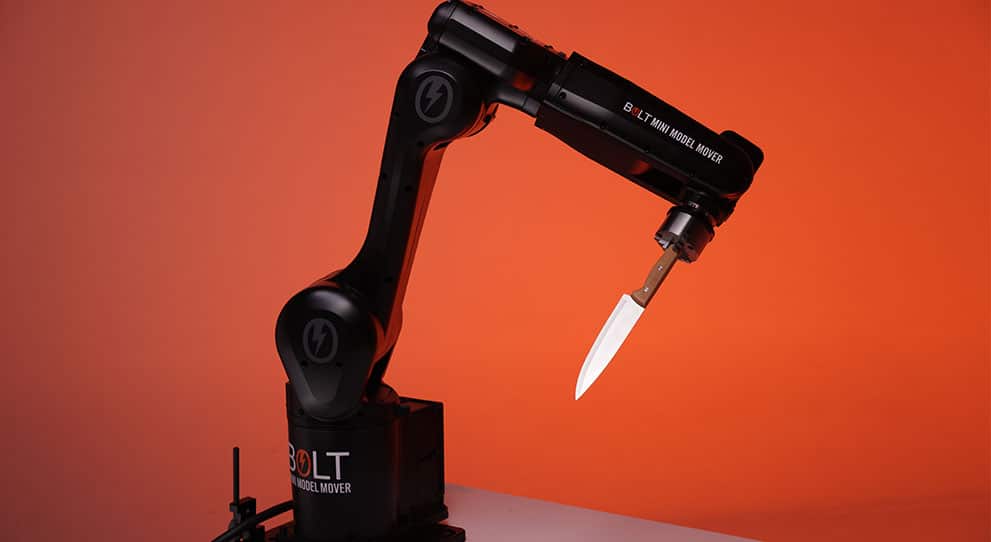

Bolt-Mini-Model-Mover-Knife-Mobile

Elevate your Creativity

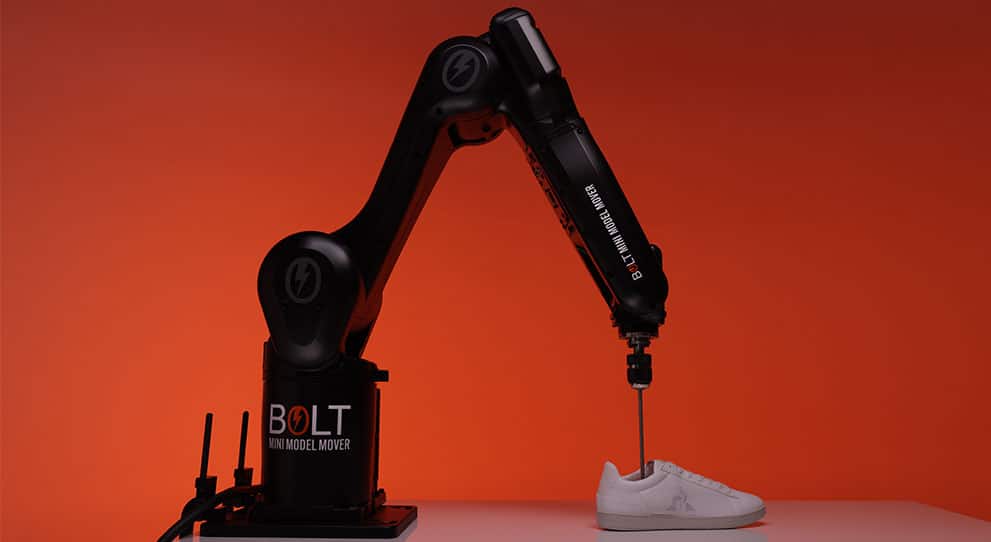

Working with our industry-leading moco software, Flair, shoot classic liquid pours, stirs, whirls and splashes or mount utensils like forks, spoons or even sports accessories such as shoes or rackets to get the most dynamic high-end shots.

The model is designed to be set-up quickly and can be mounted to a table or set on the floor and comes transport ready in a compact flight case.

Working with our industry-leading moco software, Flair, shoot classic liquid pours, stirs, whirls and splashes or mount utensils like forks, spoons or even sports accessories such as shoes or rackets to get the most dynamic high-end shots.

The model is designed to be set-up quickly and can be mounted to a table or set on the floor and comes transport ready in a compact flight case.

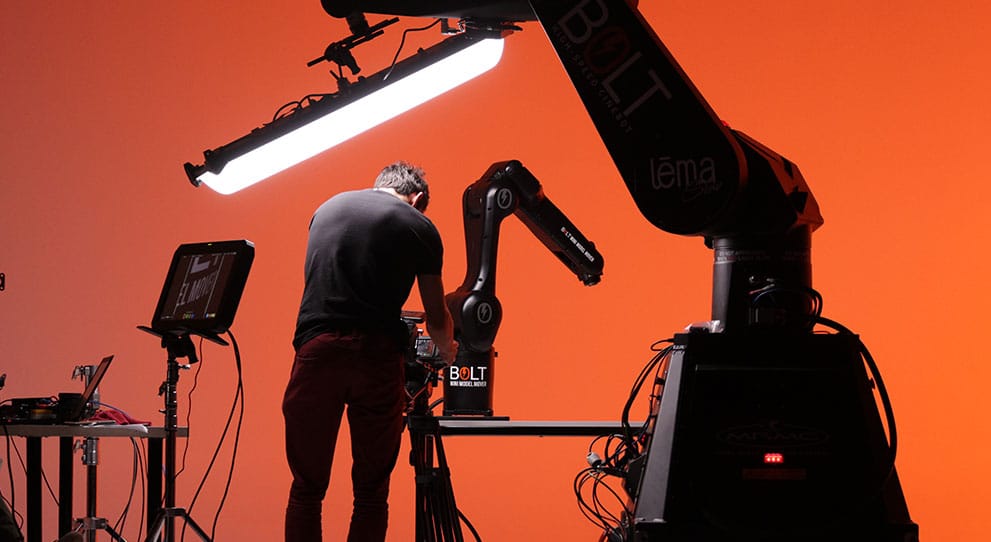

Bolt-Mini-Model-Mover-Studio-Lema-Mobile

Mini Model Highlights

  • Runs on Flair
  • Payload 8kg
  • Weight 42kg
  • Single Phase Power
  • Comes in a flight case
  • Runs on Flair
  • Payload 8kg
  • Weight 42kg
  • Single Phase Power
  • Comes in a flight case

Feature Highlights

Lightweight

At only 42kg and with a flightcase, then Bolt Mini Model Mover is an extremely portable system.

Portable

Portable, lightweight robotic unit, designed to be set-up and ready for shooting in under an hour.

Repeatable

Every arm move under complete control – precisely repeatable.

Timecode | Lighting

Trigger from timecode. Control DMX Lighting.

Turntables

Synchronised motion with external triggers and model movers for extreme precision timing.

Maya

Take moves planned in Maya and feed them into the Bolt Mini Model Mover or interface to AR and VR in real-time.

Specifications

Rig Specs.

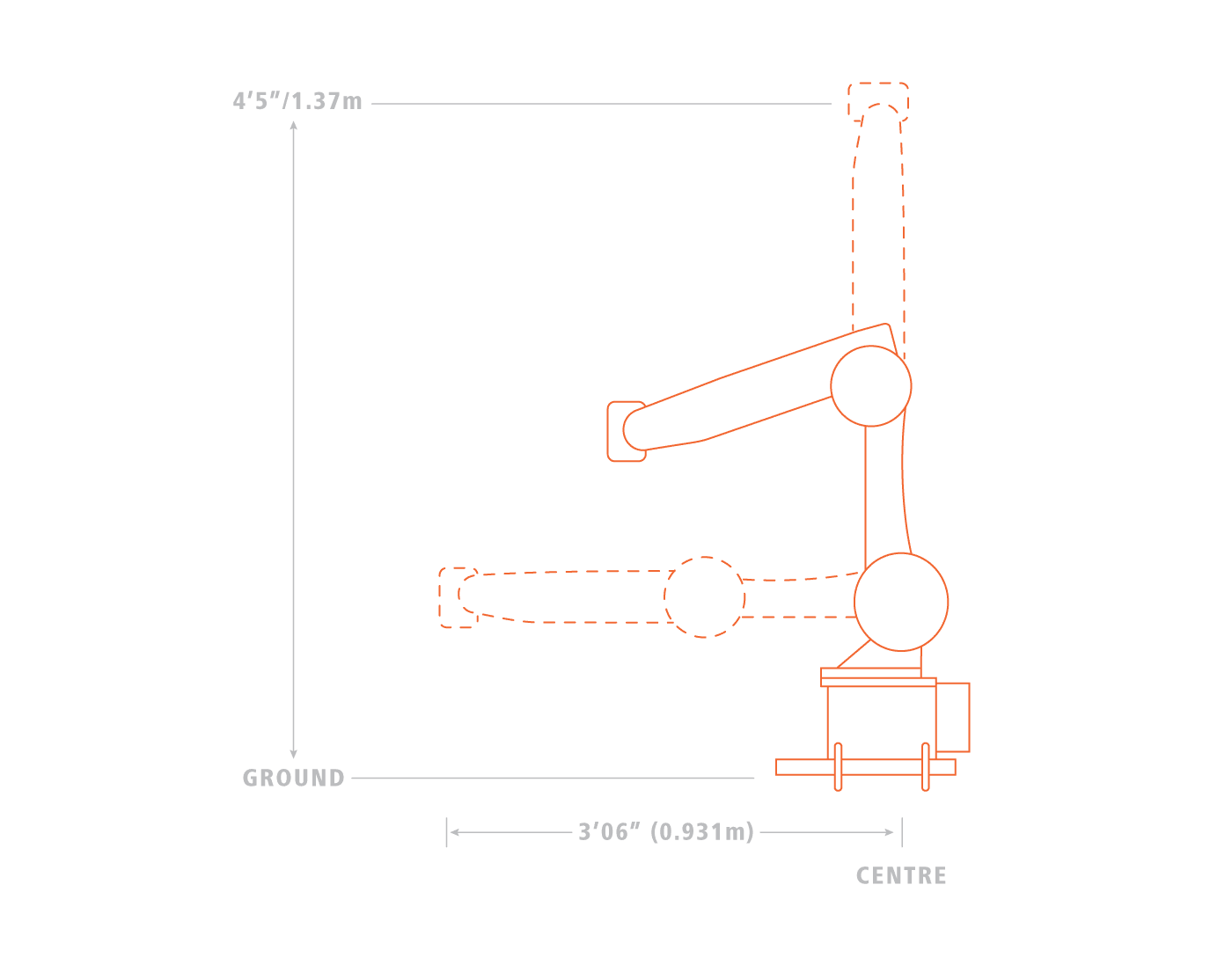

Reach Radius

0.931m

Degrees of Freedom

6

Max. Speed

270˚/s

Max. Combined Axis Speed

10.5 m/s

Repeatability

+/- 0.02mm

Footprint

200 x 300mm

Weight

42kg

Payload

8kg

Power Connection

Power Requirements

200-230V AC Single Phase
