X-HEAD STUDIO

2-axis remote pan tilt head

Payload 16 KG
Rotation Speed 72°/s (360°/5s)
Accel. 360°/s2

The X-HEAD STUDIO is designed to work in a professional studio environment. Featuring a heavyweight gearbox, and tilt axis the X-HEAD STUDIO is incredibly stable and not prone to vibration.

The X-HEAD STUDIO is designed to work in a professional studio environment. Featuring a heavyweight gearbox, and tilt axis the X-HEAD STUDIO is incredibly stable and not prone to vibration.

For Heavy, Professional Cameras

Reinforced Design

Reinforced Design

The X-HEAD STUDIO has a high payload capacity of up to 16kg and high stability for precise motion. The head is designed to work in either orientation (upright or underslung) on jibs, cranes, or overhang sliders and on tripods, rails, etc.

Can Be Overslung and Underslung

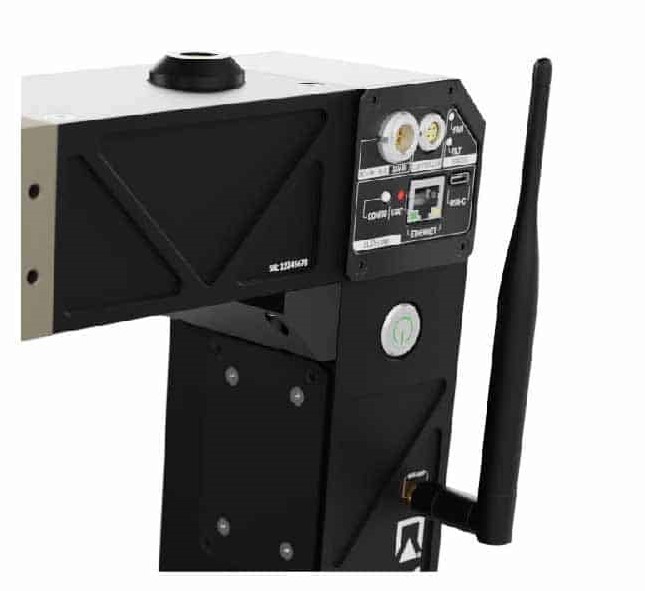

HIGH-QUALITY CONNECTORS

HIGH-QUALITY CONNECTORS

The X-HEAD STUDIO is equipped with our unified head mount, compatible with the QRS-1 rail, and SLIDEKAMERA’s heavy TITAN slider, as well as our jibs and tripods.

This ensures that the head is mounted firmly and allows to attach the unit safely in an upside-down configuration.

CONTROLLER OPTIONS

OPTIONAL AION 2D CONTROLLER

OPTIONAL AION 2D CONTROLLER

  • simple and lightweight
  • up to two axes (head only)
  • intuitive control with a joystick
  • adjustable speed and acceleration
  • 3 memory banks to store and playback motion path
  • simple and lightweight
  • up to two axes (head only)
  • intuitive control with a joystick
  • adjustable speed and acceleration
  • 3 memory banks to store and playback motion path

OPTIONAL KAIROS CONTROLLER

OPTIONAL KAIROS CONTROLLER

  • up to 6 axes
  • support for lens drives
  • dedicated inputs (knobs, joysticks) for all axes
  • adjustable speed and acceleration
  • 8 memory banks to store and playback positions and motion paths
  • ethernet and Wi-Fi connection (requires devices with Slidelink v3.0)
  • frequent firmware upgrades – futureproof
  • up to 6 axes
  • support for lens drives
  • dedicated inputs (knobs, joysticks) for all axes
  • adjustable speed and acceleration
  • 8 memory banks to store and playback positions and motion paths
  • ethernet and Wi-Fi connection (requires devices with Slidelink v3.0)
  • frequent firmware upgrades – futureproof

MULTI-HEAD CONTROL (MHC) SOFTWARE

MULTI-HEAD CONTROL (MHC) SOFTWARE

Whether you want an interface (skin) for different sporting events such as tennis, darts etc., or for studios, stadiums or other live events, MHC can be tailored to the user’s requirements for complete speed, control and functionality.

LEARN MORE

Whether you want an interface (skin) for different sporting events such as tennis, darts etc., or for studios, stadiums or other live events, MHC can be tailored to the user’s requirements for complete speed, control and functionality.

LEARN MORE

BROADCAST PANEL

BROADCAST PANEL

The Broadcast Panel is a robust fit-for-purpose controller designed for day-in, day-out use in professional studios or OB (Outside Broadcast) environments. The ergonomically designed panel provides precise joystick and full axis control of robotic systems and PTZs.

LEARN MORE

The Broadcast Panel is a robust fit-for-purpose controller designed for day-in, day-out use in professional studios or OB (Outside Broadcast) environments. The ergonomically designed panel provides precise joystick and full axis control of robotic systems and PTZs.

LEARN MORE

prev
next

Integrates with Polymotion Chat

Automated Control of Robotic Heads and PTZs

Automated Control of Robotic Heads and PTZs

Using limb and face detection software Polymotion Chat tracks subject movements and provides stable and natural-looking content. The camera agnostic automated subject tracking system is available for multiple broadcast and capture scenarios with 3 different solutions available.

LEARN MORE

PRODUCT HIGHLIGHTS

FULL REMOTE OPERATION / PRODUCTION

ONE-BUTTON TOUCH PRE-SET RECALL

RELIABLE FOR VIDEO AND STILL CAPTURE

POLYMOTION CHAT AND MHC COMPATIBLE

REPEATABLE MOVES

SPECIFICATIONS

Maximum payload capacity

16kg

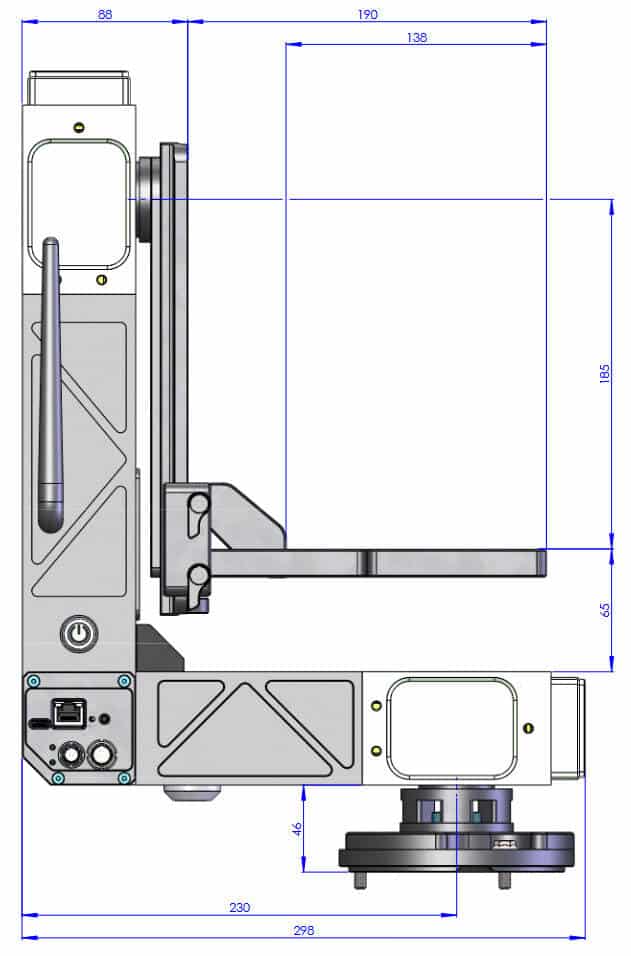

Dimensions

Width: 298mm, Depth: 133 mm, Height: 424 mm

Weight

8Kg

Maximum rotation speed

72°/s (360°/5s)

Maximum acceleration

360°/s2

Inputs

HET-BUS & DC 36V

LEMO 6-pin

Controller

mini-LEMO 4-pin (includes 12V power out for the controller

Service Port

2 x USB-C

Outputs

LCS

mini-LEMO 6-pin

Trigger

mini-jack 2.5mm

USB-C

RJ-45 (Ethernet)

Power

Power

24V to 36V DC max 120W + PDMOVIE (3 axes) max 40W
