The Largest Telescopic Motion Control Rig in the World

The Titan X is the latest edition to our larger motion control rigs. With a huge 7m telescopic arm, the Titan X robotic camera rig gives a much larger creative freedom with its much larger operating envelope.

Max Reach
9.7
Metres
Payload
45
KG
Max Camera Height
9.3
Metres

Key Features

Bigger is Better!

The Titan X has a huge 7m telescopic arm, capable of moving 2m per second – giving a 10m reach from the centre of the rig. The extremely fast base moves 3m per second on track; the two combined with rotate give you blistering camera speeds and creativity with maximum reach!

Feature Highlights

LARGEST MOTION CONTROL RIG

The largest motion control rig in the world

LARGEST OPERATING ENVELOPE

The Titan X has the largest operating envelope of any motion control rig

CAMERA SPEED

Titan X has a 5m per/second in camera speed

TIMELAPSE

Create incredible timelapse with dynamic movement and feel

STABILITY

Extreme stability for close up filming

SIMPLE SHOOT PLANNING

Arm reach allows for simple shoot planning, as the track can be placed ‘outside’ the shooting area.

EASY MOVEMENT

Hydraulic rail for easy movement of the whole rig to different positions.

MAYA

Take moves planned in Maya and feed them into the Bolt – or interface to augmented or virtual reality in real-time.

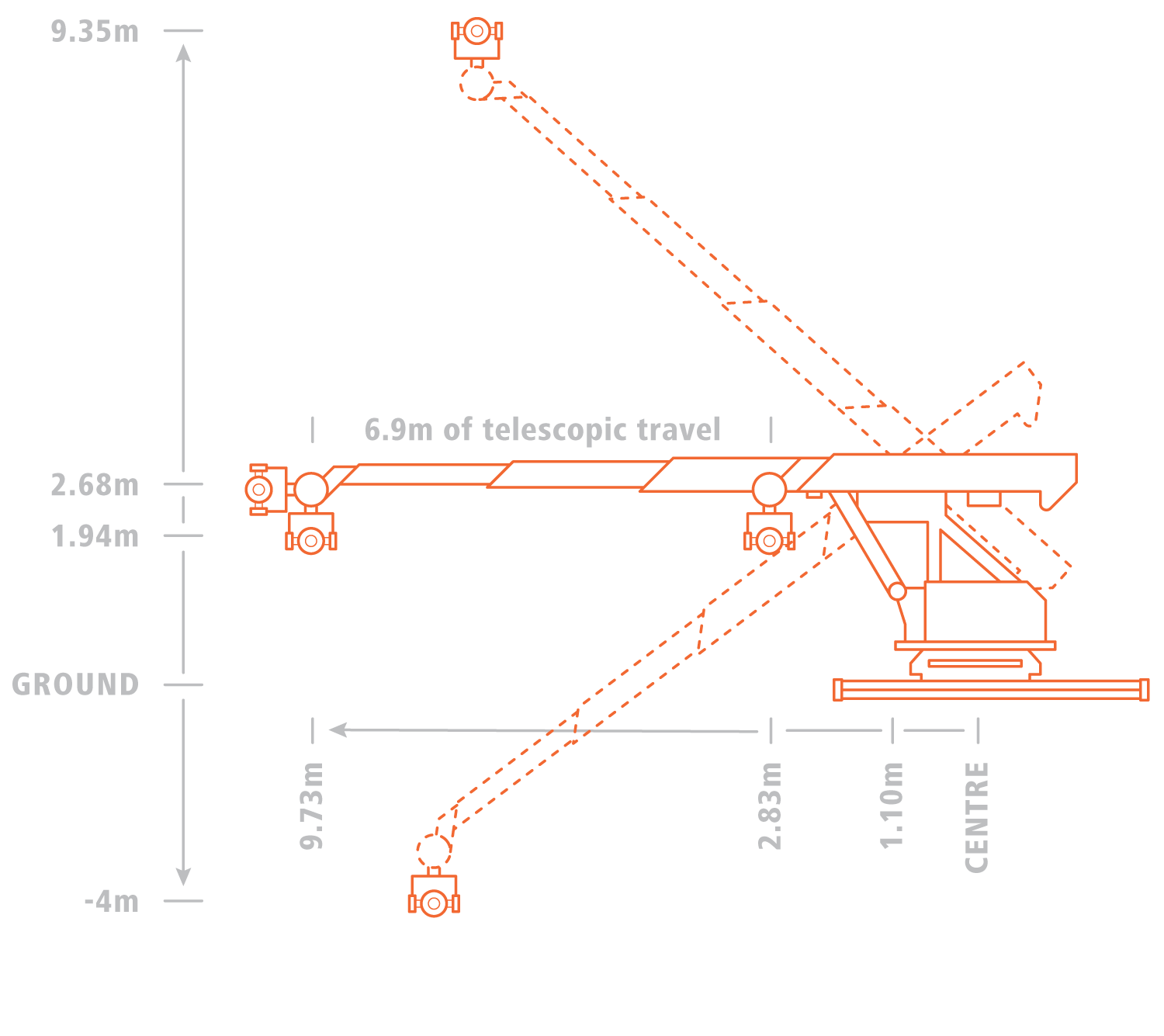

Specifications

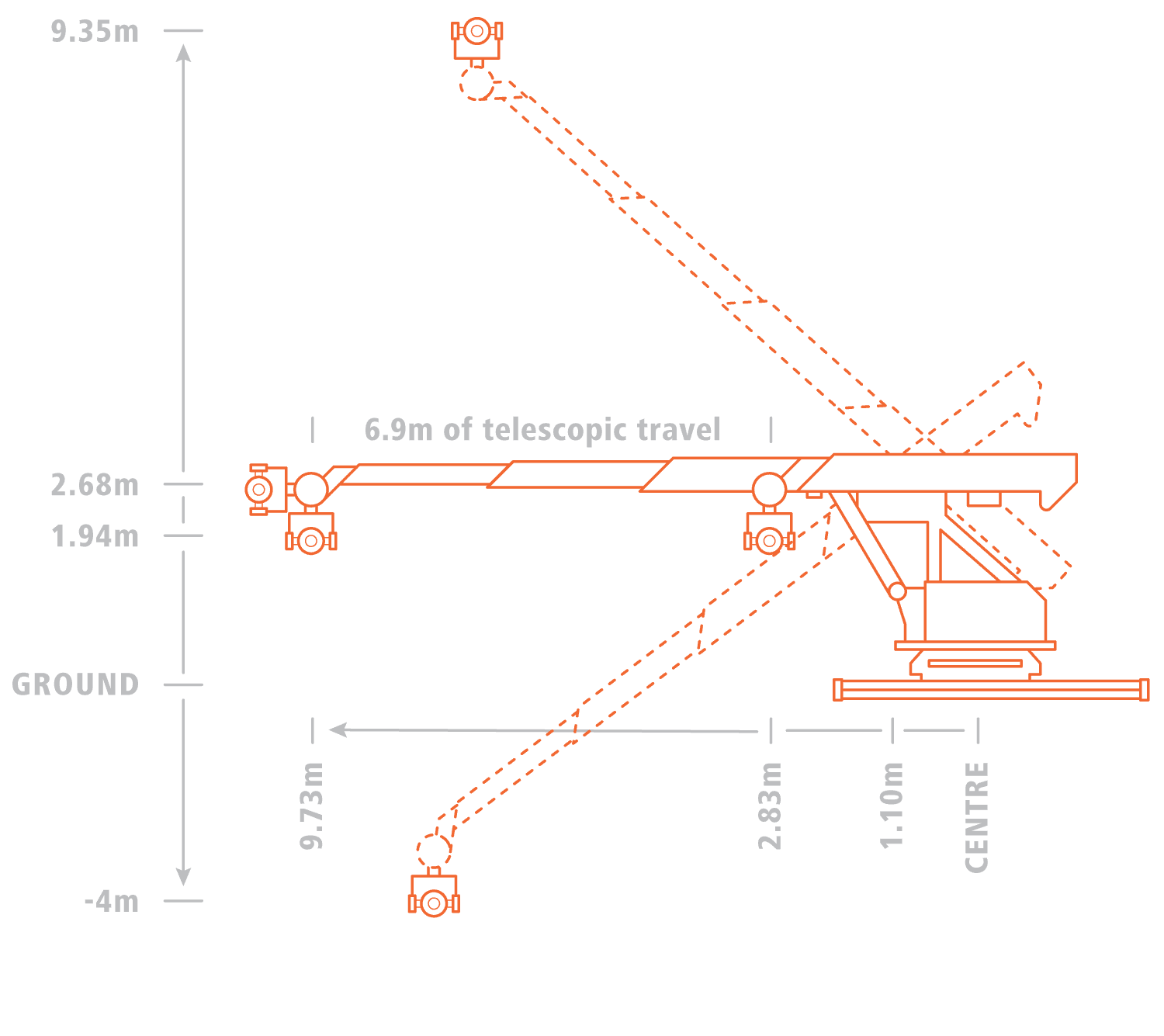

  • OPERATING ENVELOPE
    • Max Height (from ground)
      9.35m
    • Min Lens Height
      0.25m
    • Minimum lens height from deck
      -3.4m
    • Maximum reach from rotate centre
      -3.4m
  • CLEARANCES
    • Height on track
      3.5M
    • Height off track
      3.6m
    • Width
      2.11m
    • Length
      4.8m
  • RIG PERFORMANCE
    • Track
      12m fixed length or 18m (2x9m) @ 2m/s
    • Rotate
      +/- 360˚ @ 18˚/s
    • Lift
      +30˚ – 35˚ @ 25˚/s
    • Reach
      6.5m @ 2.5m/s
    • Angle
      225˚ @ 40˚/s
    • Pan
      Unlimited @ 120˚/s
    • Tilt
      Unlimited @ 120˚/s
    • Roll
      Unlimited @ 120˚/s
  • RIG WEIGHTS
    • Cyclops base
      2170kg / 4784lbs
    • Titan arm
      625kg / 1378lbs
    • Titan nose angle
      20kg / 44lbs
    • Weights for using Ulti-Head
      578kg (34x17kg) / 1274lbs
    • Power supply & driver unit
      124kg / 273lbs
    • Ulti-Head with roll
      55kg / 121lbs
    • Total weight of robot
      3572kg / 7875lbs
    • 12m rail
      2780kg / 6129lbs
    • 9m rail
      1980kg / 4365lbs

Controllers

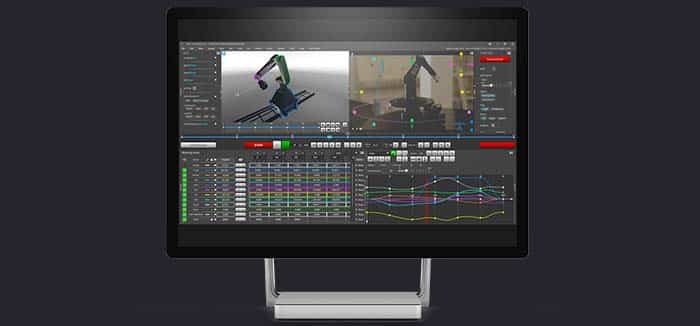

  • FLAIR
  • HANDWHEELS
  • PAN BARS
  • HAND HELD BOX
  • FOCUS
  • ZOOM

Accessories

  • BLOOP LIGHTS
  • FOCUS/IRIS/ZOOM LENS CONTROL MOTORS
  • TRIGGERS BOX
  • SYNC CABLES
