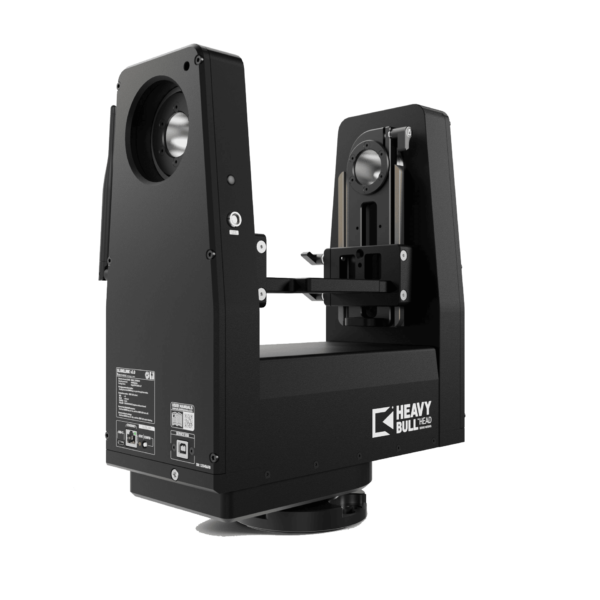

HEAVY BULLHEAD

2D Remote head

Payload 20 kg / 44 lb
Rotation Speed 120°/s (360°/3s)
Flexible Control Ethernet or Wireless

The HEAVY BULLHEAD provides a payload up to 20 kg and is suitable for use in a professional environment with fully equipped, heavy broadcast and cinema cameras.

The HEAVY BULLHEAD provides a payload up to 20 kg and is suitable for use in a professional environment with fully equipped, heavy broadcast and cinema cameras.

Designed for Demanding Applications

Reinforced Design

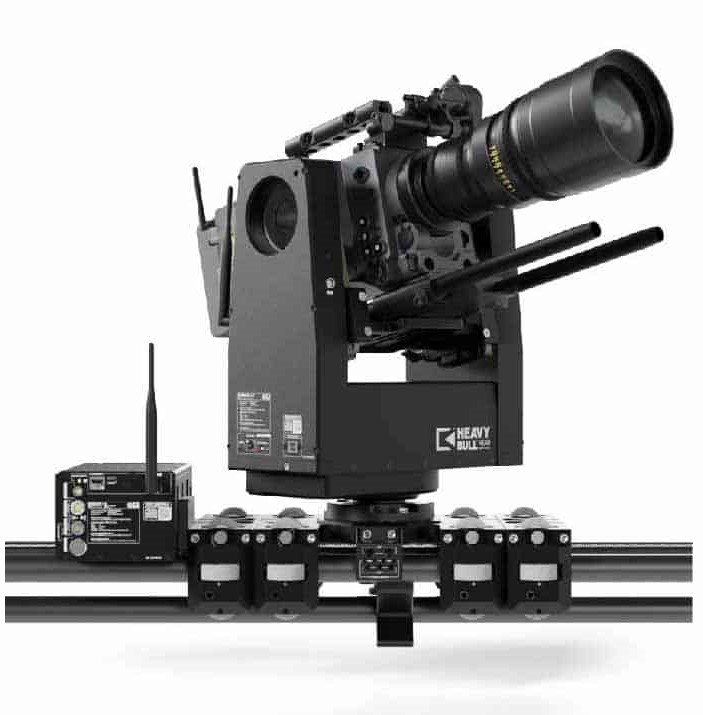

Its reinforced construction and perfectly crafted machinery makes the HEAVY BULLHEAD extremely precise. It’s ideal for creating special effects where repetitive and accurate movement is essential. It works perfectly as a remote head for cranes and rails. Together with the QRS-1 rails, it creates an unified 3D motion control system.

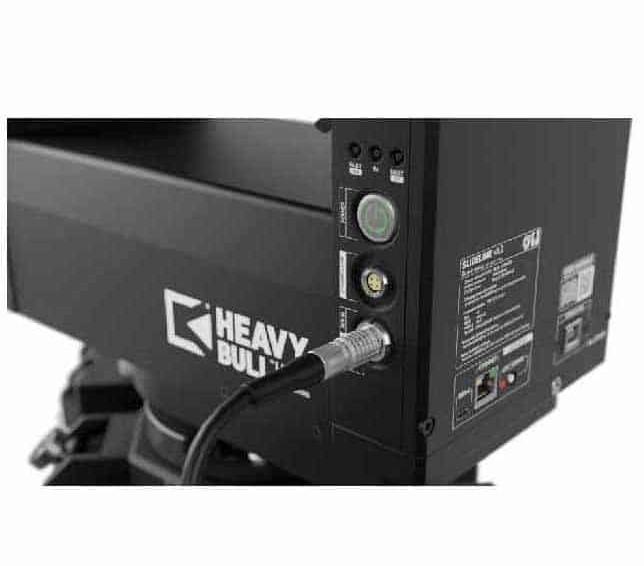

HIGH-QUALITY CONNECTORS

The HEAVY BULLHEAD uses heavy-duty LEMO connectors. The design includes power and data connections in one cable, which allows you to work faster and safer – without tangling the unnecessary wires. The connectors are compatible with a wide range of AC adaptors, from small chargers for one device to large power bricks with communication modules designed for big setups.

CONTROLLER OPTIONS

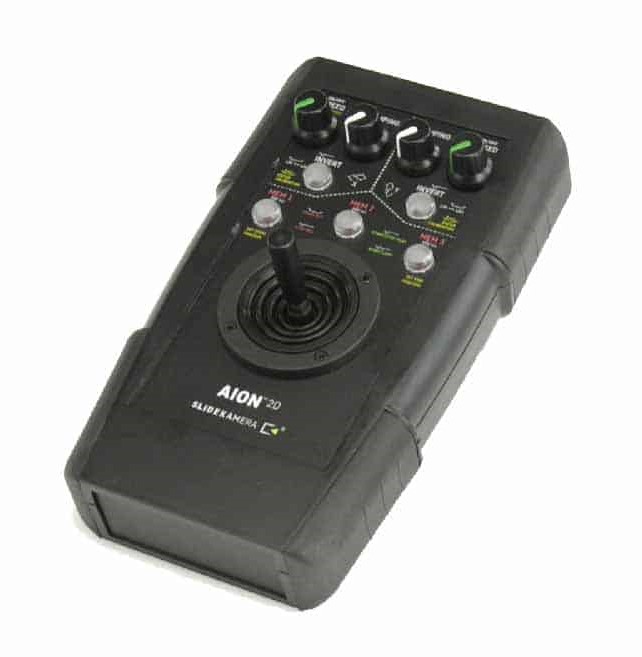

OPTIONAL AION 2D CONTROLLER

OPTIONAL AION 2D CONTROLLER

  • simple and lightweight
  • up to two axes (head only)
  • intuitive control with a joystick
  • adjustable speed and acceleration
  • 3 memory banks to store and playback motion path
  • simple and lightweight
  • up to two axes (head only)
  • intuitive control with a joystick
  • adjustable speed and acceleration
  • 3 memory banks to store and playback motion path

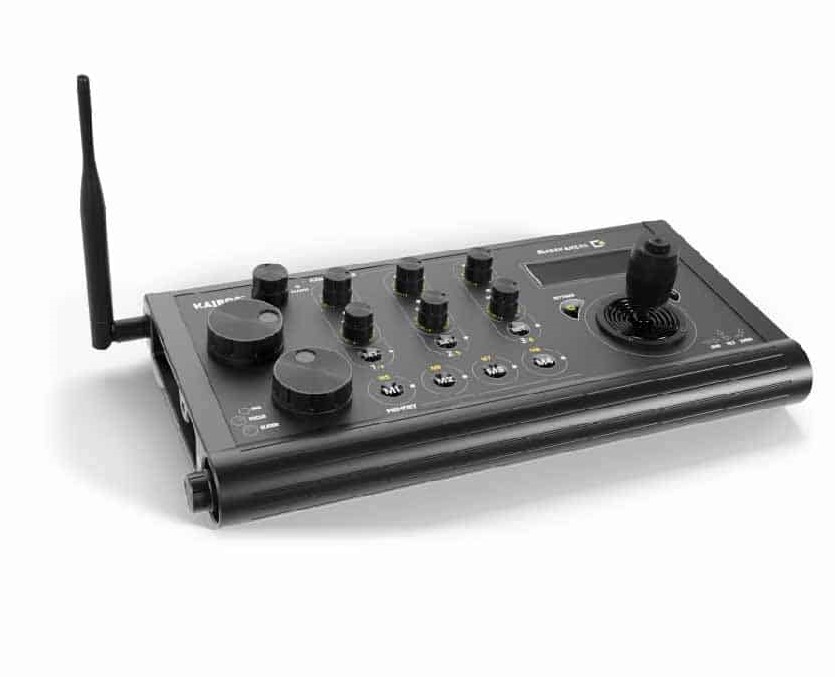

OPTIONAL KAIROS CONTROLLER

OPTIONAL KAIROS CONTROLLER

  • up to 6 axes
  • support for lens drives
  • dedicated inputs (knobs, joysticks) for all axes
  • adjustable speed and acceleration
  • 8 memory banks to store and playback positions and motion paths
  • ethernet and Wi-Fi connection (requires devices with Slidelink v3.0)
  • frequent firmware upgrades – futureproof
  • up to 6 axes
  • support for lens drives
  • dedicated inputs (knobs, joysticks) for all axes
  • adjustable speed and acceleration
  • 8 memory banks to store and playback positions and motion paths
  • ethernet and Wi-Fi connection (requires devices with Slidelink v3.0)
  • frequent firmware upgrades – futureproof

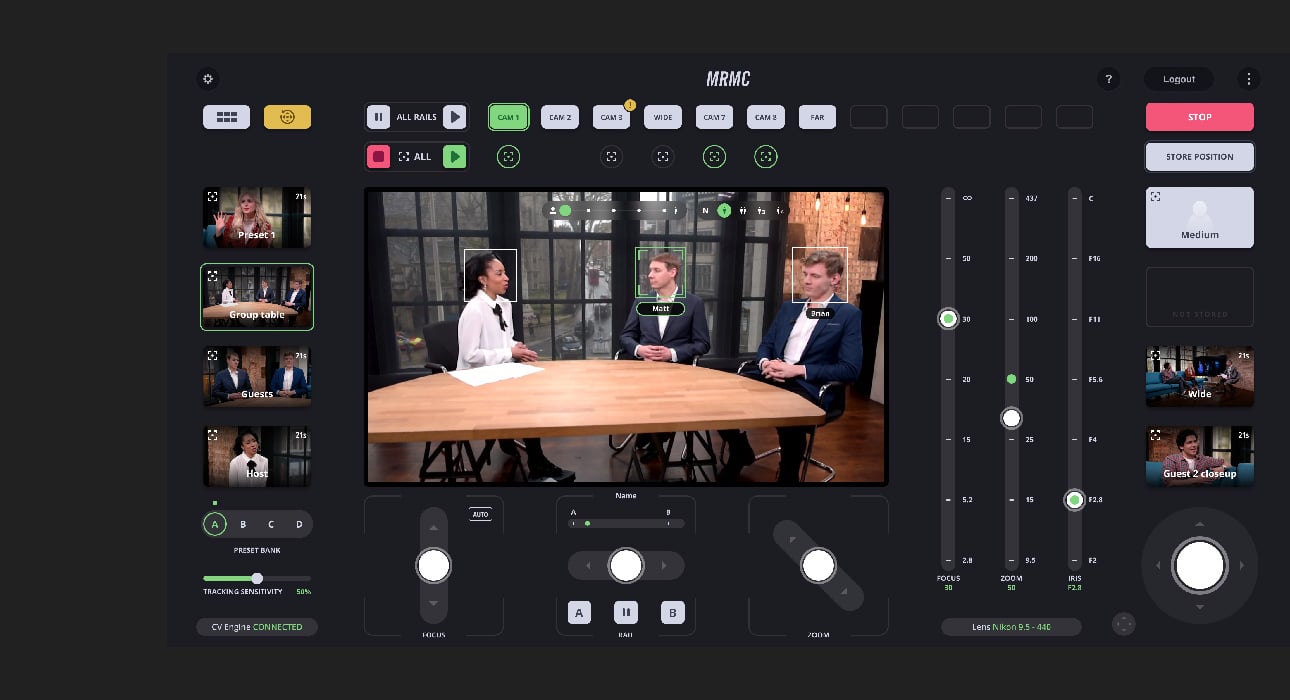

MULTI-HEAD CONTROL (MHC) SOFTWARE

MULTI-HEAD CONTROL (MHC) SOFTWARE

Whether you want an interface (skin) for different sporting events such as tennis, darts etc., or for studios, stadiums or other live events, MHC can be tailored to the user’s requirements for complete speed, control and functionality.

LEARN MORE

Whether you want an interface (skin) for different sporting events such as tennis, darts etc., or for studios, stadiums or other live events, MHC can be tailored to the user’s requirements for complete speed, control and functionality.

LEARN MORE

BROADCAST PANEL

BROADCAST PANEL

The Broadcast Panel is a robust fit-for-purpose controller designed for day-in, day-out use in professional studios or OB (Outside Broadcast) environments. The ergonomically designed panel provides precise joystick and full axis control of robotic systems and PTZs.

LEARN MORE

The Broadcast Panel is a robust fit-for-purpose controller designed for day-in, day-out use in professional studios or OB (Outside Broadcast) environments. The ergonomically designed panel provides precise joystick and full axis control of robotic systems and PTZs.

LEARN MORE

prev
next

Integrates with Polymotion Chat

Automated Control of Robotic Heads and PTZs

Using limb and face detection software Polymotion Chat tracks subject movements and provides stable and natural-looking content. The camera agnostic automated subject tracking system is available for multiple broadcast and capture scenarios with 3 different solutions available.

LEARN MORE

PRODUCT HIGHLIGHTS

FULL REMOTE OPERATION / PRODUCTION

Easy to use icon

ONE-BUTTON TOUCH PRE-SET RECALL

RELIABLE FOR VIDEO AND STILL CAPTURE

Compatible Icon

POLYMOTION CHAT AND MHC COMPATIBLE

REPEATABLE MOVES

SPECIFICATIONS

Maximum payload capacity

20 kg / 44 lb

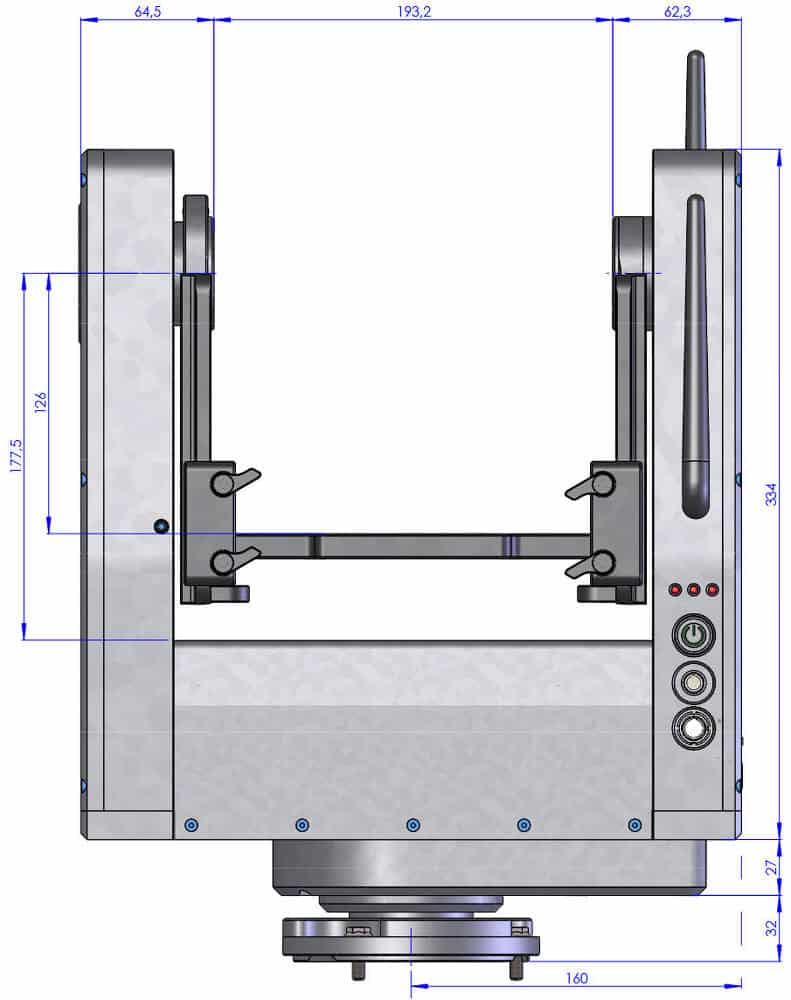

Dimensions

Width: 321mm / 12.6 in , Depth: 153 mm / 6 in, Height: 393 mm / 15.4

Weight

12 kg / 26.4 lb

Maximum rotation speed

120°/s (360°/3s)

Maximum acceleration

300°/s2

Inputs

HET-BUS & DC 36V

LEMO 6-pin

Controller

mini-LEMO 4-pin (includes 12V power out for the controller)

Service Port

USB-B

Outputs

LCS

mini-LEMO 6-pin

Trigger

mini-jack 2.5mm

USB-C

RJ-45 (Ehternet)

Power

Power

24V to 36V DC max 120W + PDMOVIE (3 axes) max 40W
