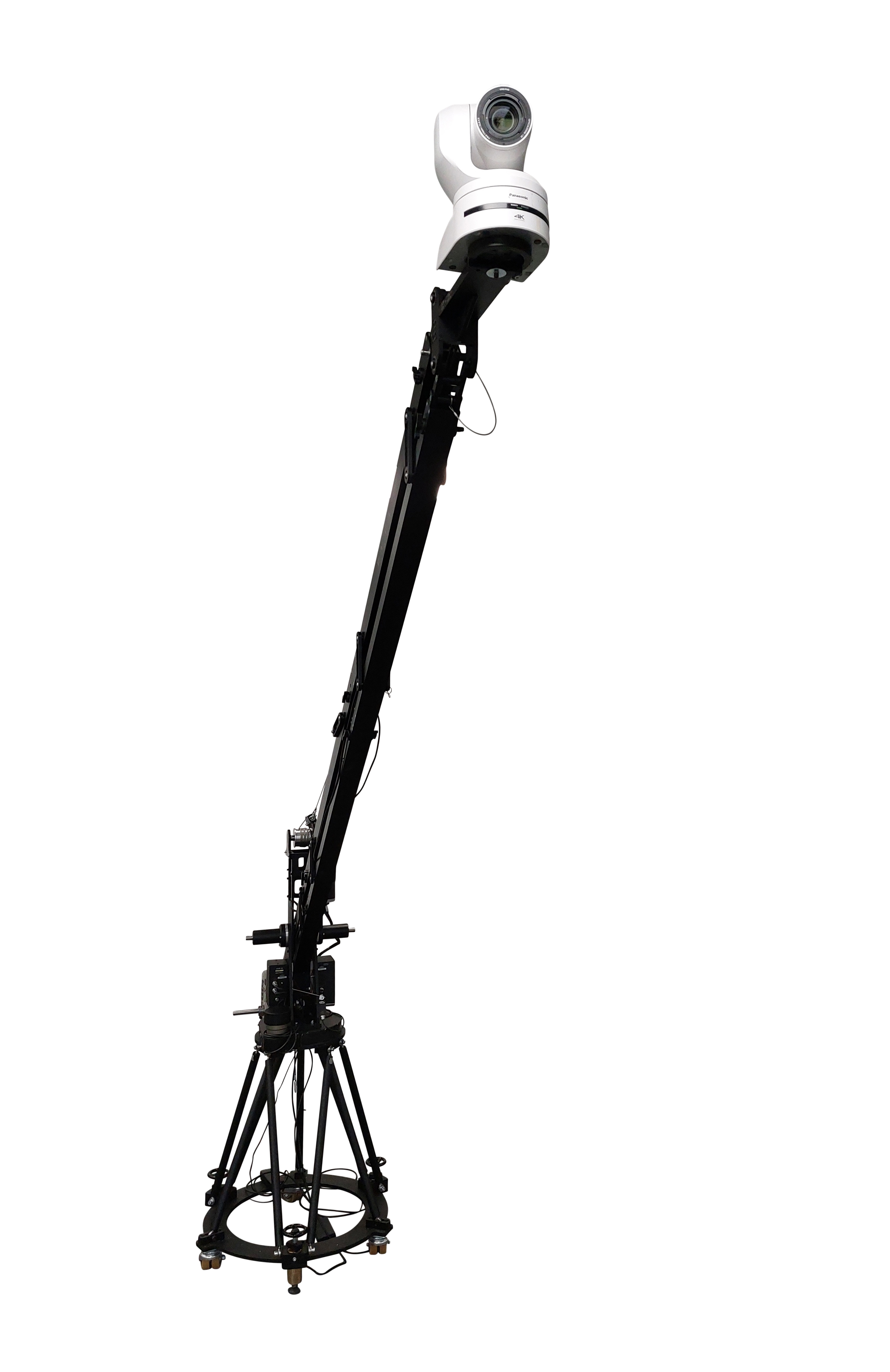

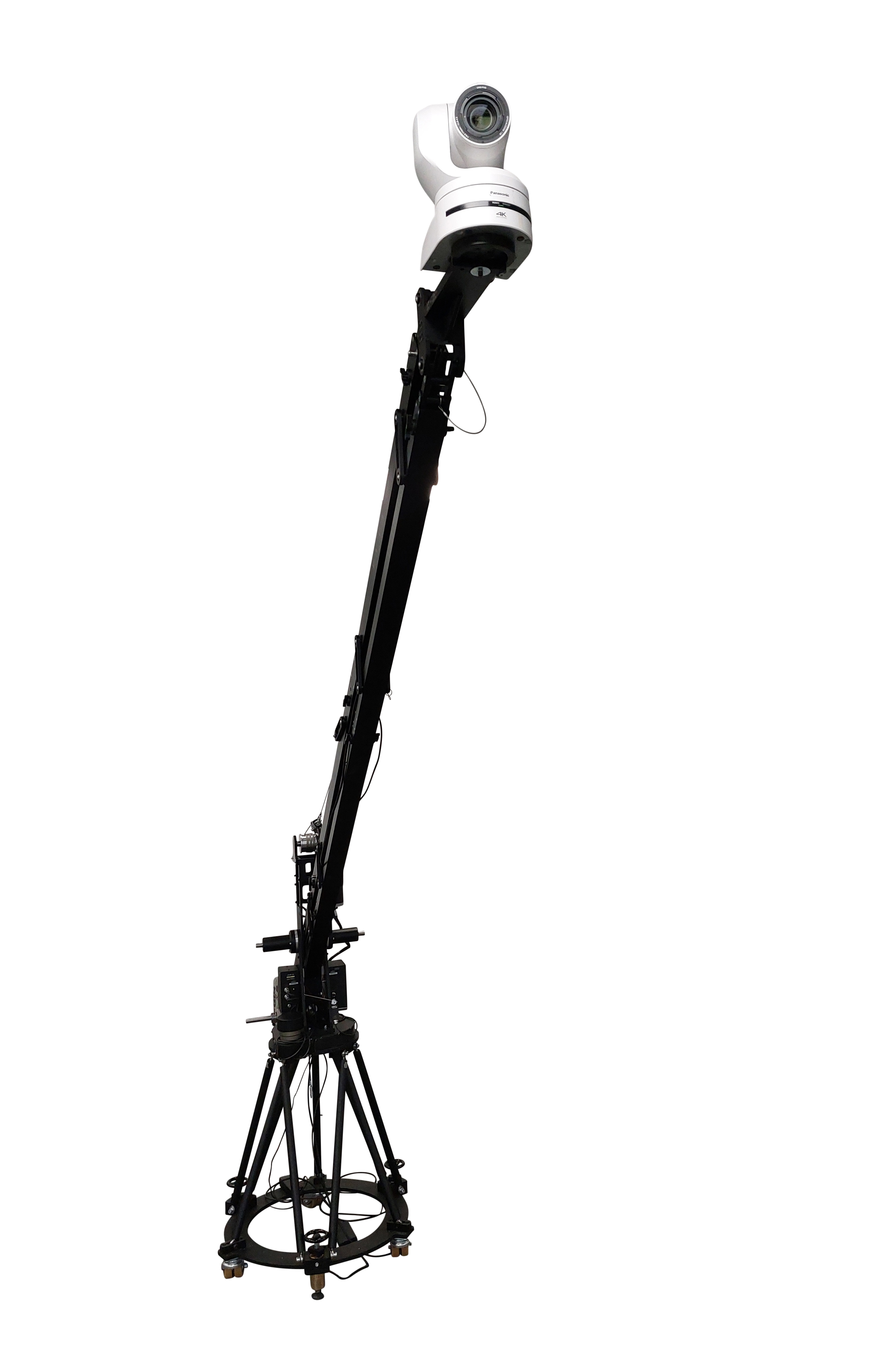

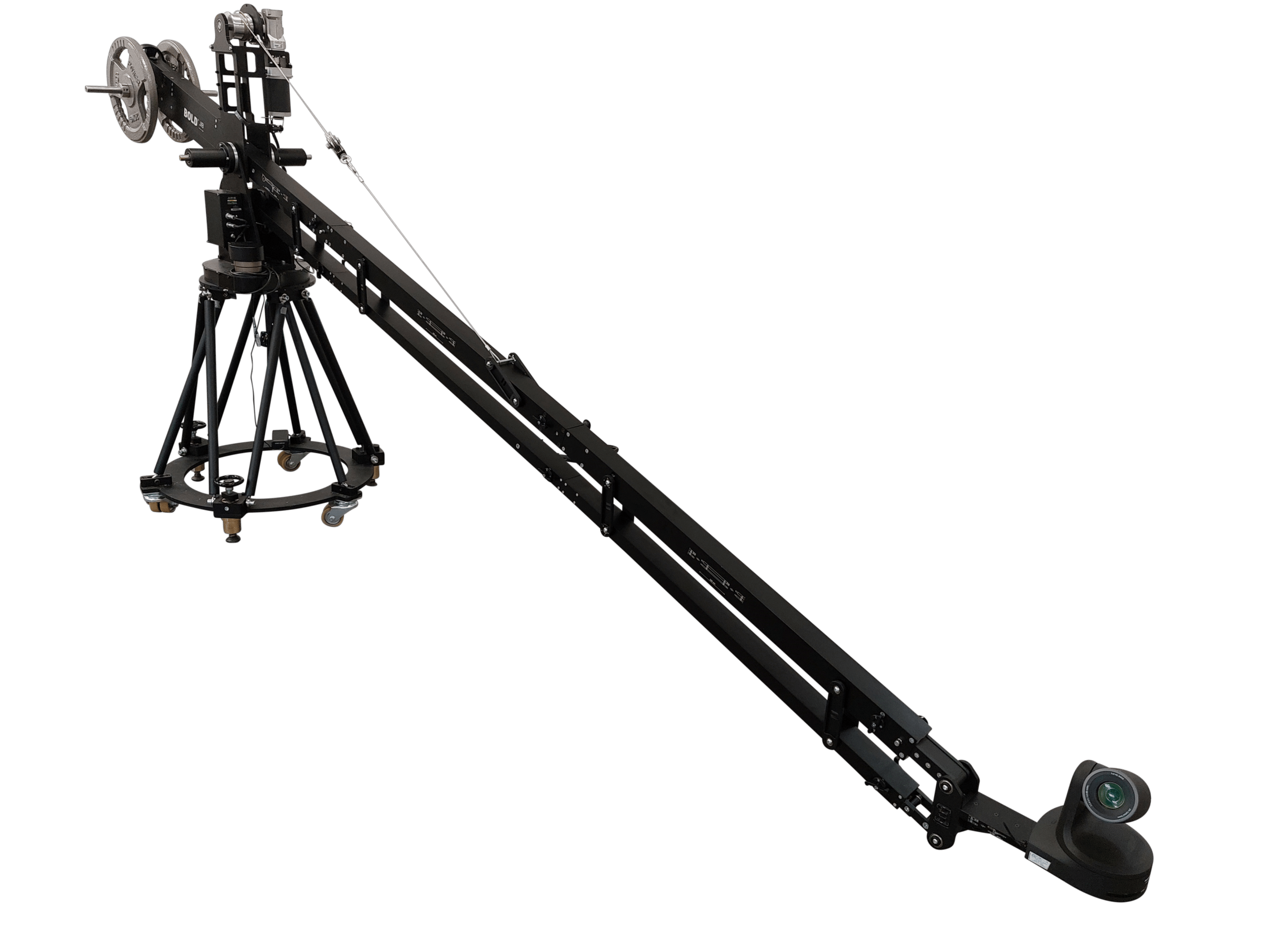

AJS-2

Advanced Jib System

Payload 6 kg / 13lb
Minimum Length 1.4 m / 4.6 ft
Maximum Length 3.4 m / 11ft

The AJS-2 takes the modular design of Slidekamera’s BOLD JIB and combines this with MRMC’s automation expertise. Providing the flexibility for manual, hybrid or fully automated operation, the AJS-2 is the perfect solution to add motion to your PTZ production.

The AJS-2 takes the modular design of Slidekamera’s BOLD JIB and combines this with MRMC’s automation expertise. Providing the flexiblity for manual, hybrid or fully automated operation, the AJS-2 is the perfect solution to add motion to your PTZ production.

A Truely Unique Jib System

Theatre audience clapping hands

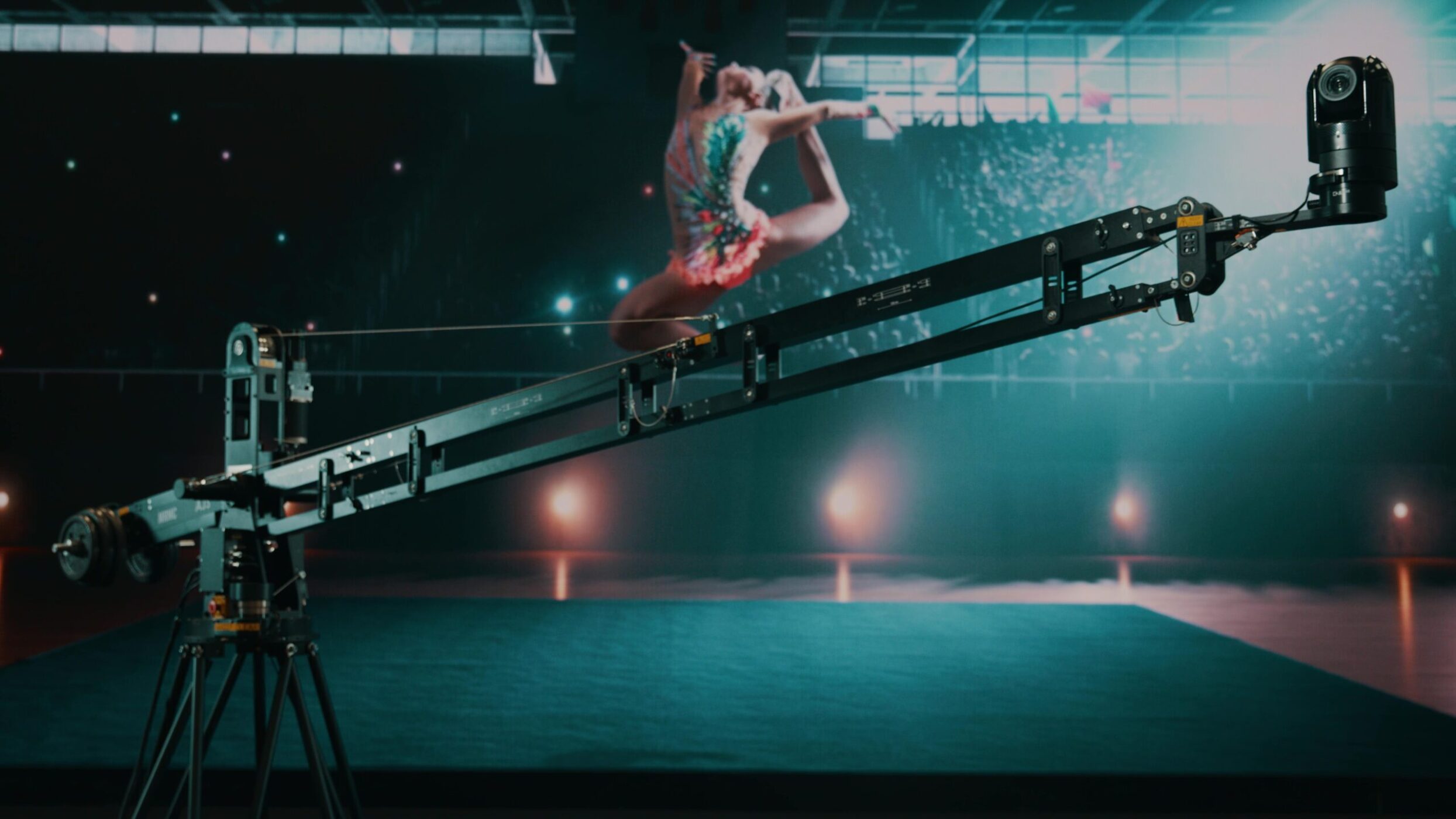

Enhance Your PTZ Production

Capturing same shot twice with a manual jib is impossible, even for the most skilled jib operators. The AJS-2 can capture consistently repeatable shots. Extremely quiet operation makes the AJS-2 perfect for live production, studio and house of worship environments.

With the AJS-2, you have the utmost flexibility to set up the kit as you need. The AJS-2 is perfect for producing content in tight spaces and precise image capture, or for moving your camera above the crowd. You can set your AJS-2 to the length you need and create epic shots without limitations.

Capturing same shot twice with a manual jib is impossible, even for the most skilled jib operators. The AJS-2 can capture consistently repeatable shots. Extremely quiet operation makes the AJS-2 perfect for live production, studio and house of worship environments.

With the AJS-2, you have the utmost flexibility to set up the kit as you need. The AJS-2 is perfect for producing content in tight spaces and precise image capture, or for moving your camera above the crowd. You can set your AJS-2 to the length you need and create epic shots without limitations.

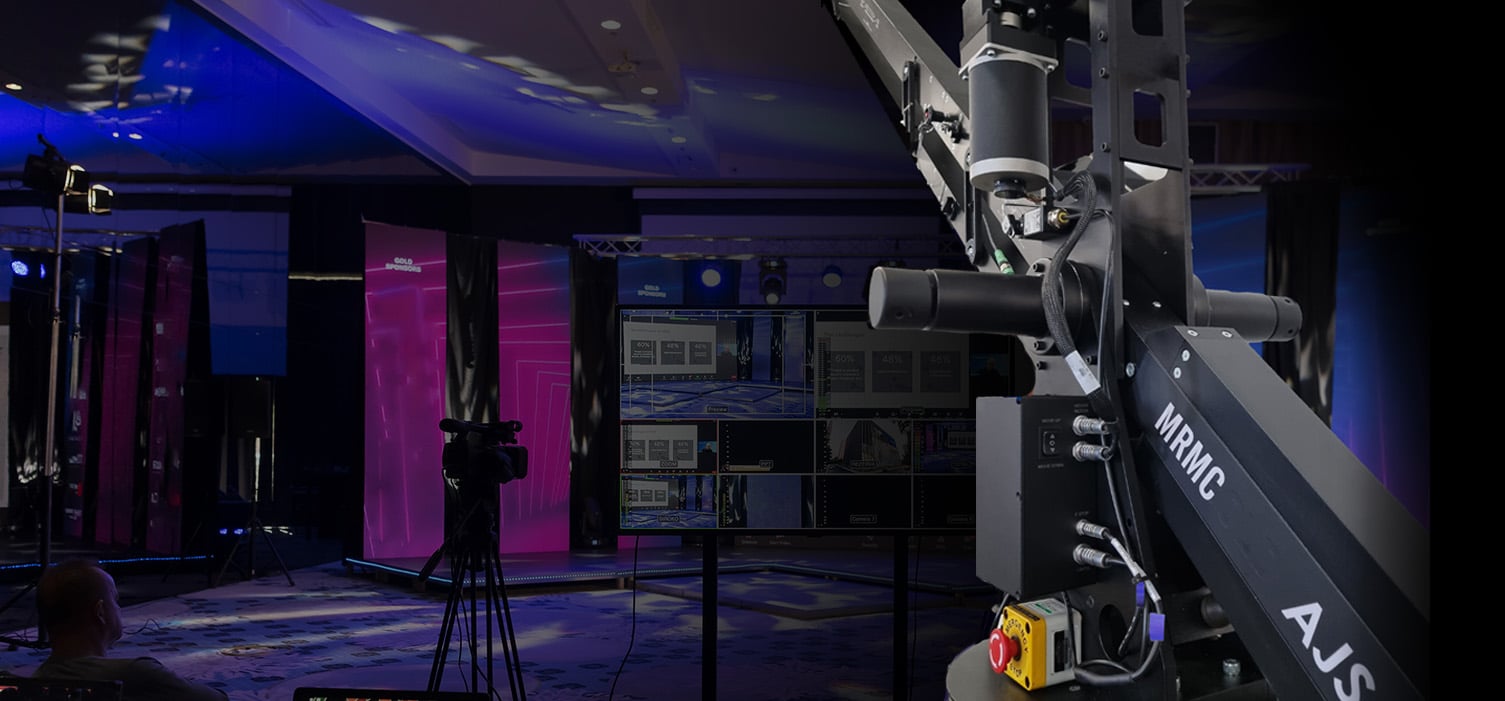

MRMC AJS

Unique Operation

Uniquely the AJS-2 offers manual, hybrid and automated operation

Hybrid control allows you to define and automate the motion paths while the head of the PTZ is manually controlled by an operator remotely or using presets. Alternatively, PTZ movement can also be automated using Polymotion Chat.

The jib allows high-end, broadcast-quality, on-air moves to be developed, stored and then push-button recalled by operators with minimal training. Moves can also be scaled allowing the duration of a move to be dynamically adjusted.

Uniquely the AJS-2 offers manual, hybrid and automated operation

Hybrid control allows you to define and automate the motion paths while the head or the PTZ is manually controlled by an operator remotely or using presets. Alternatively, PTZ movement can also be automated using Polymotion Chat.

The jib allows high-end, broadcast-quality, on-air moves to be developed, stored and then push-button recalled by operators with minimal training. Moves can also be scaled allowing the duration of a move to be dynamically adjusted.

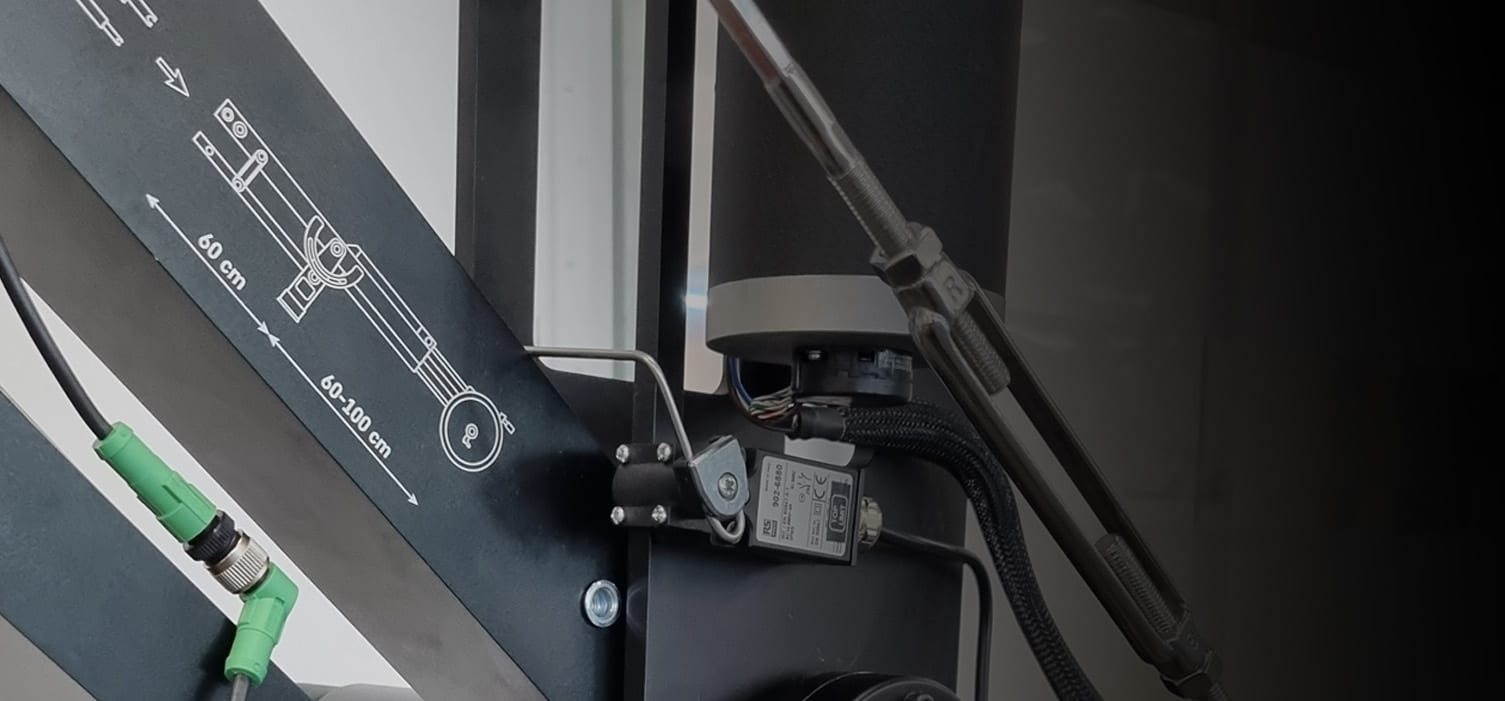

Modular AJS

Modular Design

The AJS-2 features a modular design. With a range of lengths, the AJS-2 has a maximum payload of up to 6kg / 13lbs. The jib can be paired with PTZ cameras and provides utmost flexibility to set up the kit as you need just before shooting. The AJS-2 is compatible with MRMC’s ARC-360 and can also be used in conjunction with third party PTZ cameras.

The AJS-2 features a modular design. With a range of lengths, the AJS-2 has a maximum payload of up to 6kg / 13lbs. The jib can be paired with PTZ cameras and provides utmost flexibility to set up the kit as you need just before shooting. The AJS-2 is compatible with MRMC’s ARC-360 and can also be used in conjunction with third party PTZ cameras.

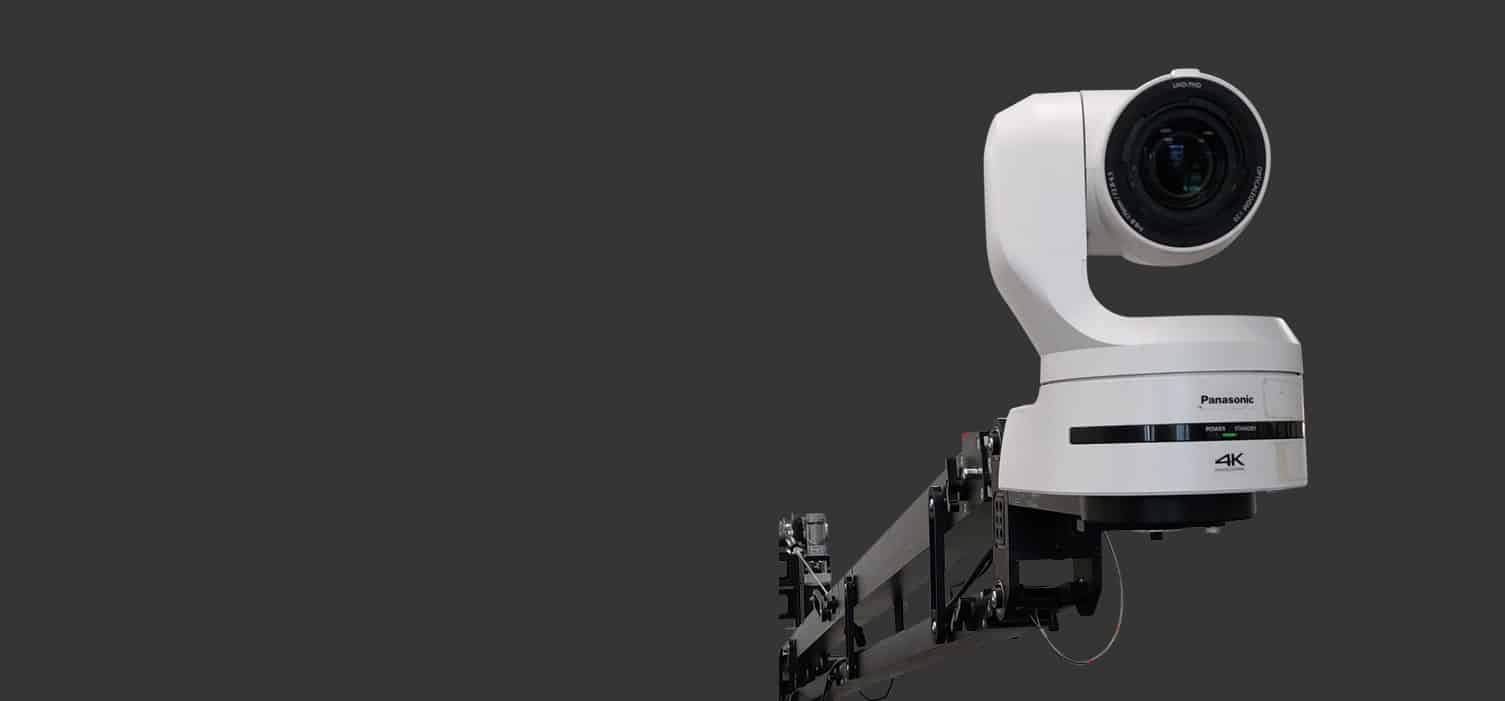

AJS-2 PTZ

A Unique Solution

The AJS-2 offers a feature-set that is truely unique:

  • 100% repeatable “Signature” moves can be developed and used on a production-by-production basis and repeated across multiple venues.
  • Broadcast-quality without the price tag, allowing productions to be easily staffed whilst providing a professional-looking end-product.
  • Easy to Operate with just 15-minutes training.
  • Ability to run fully automated under full control of Polymotion Chat, partially automated with manual boom operation and Polymotion Chat controlling the framing/tracking of the head, or in full manual mode with a joystick controlling the head make the AJS-2 a completely unique offering.
  • Shots can be recalled using REST API, allowing easy integration with third-party automation systems.

The AJS-2 offers a feature-set that is truely unique:

  • 100% repeatable “Signature” moves can be developed and used on a production-by-production basis and repeated across multiple venues.
  • Broadcast-quality without the price tag, allowing productions to be easily staffed whilst providing a professional-looking end-product.
  • Easy to Operate with just 15-minutes training.
  • Ability to run fully automated under full control of Polymotion Chat, partially automated with manual boom operation and Polymotion Chat controlling the framing/tracking of the head, or in full manual mode with a joystick controlling the head make the AJS-2 a completely unique offering.
  • Shots can be recalled using REST API, allowing easy integration with third-party automation systems.

About The AJS-2

Features

100% repeatable moves

Enabling high-end production look at an effective cost.

Pre-Sets

For recall of moves at the press of a button.

Integration with Polymotion Chat

Allowing talent tracking to be combined with sweeping jib movements.
Quiet Icon

Extremely quiet operation

Pefect for Live Production and/or Studio Environments.

Advanced Studio Integration

Contact Us For Customised Solutions

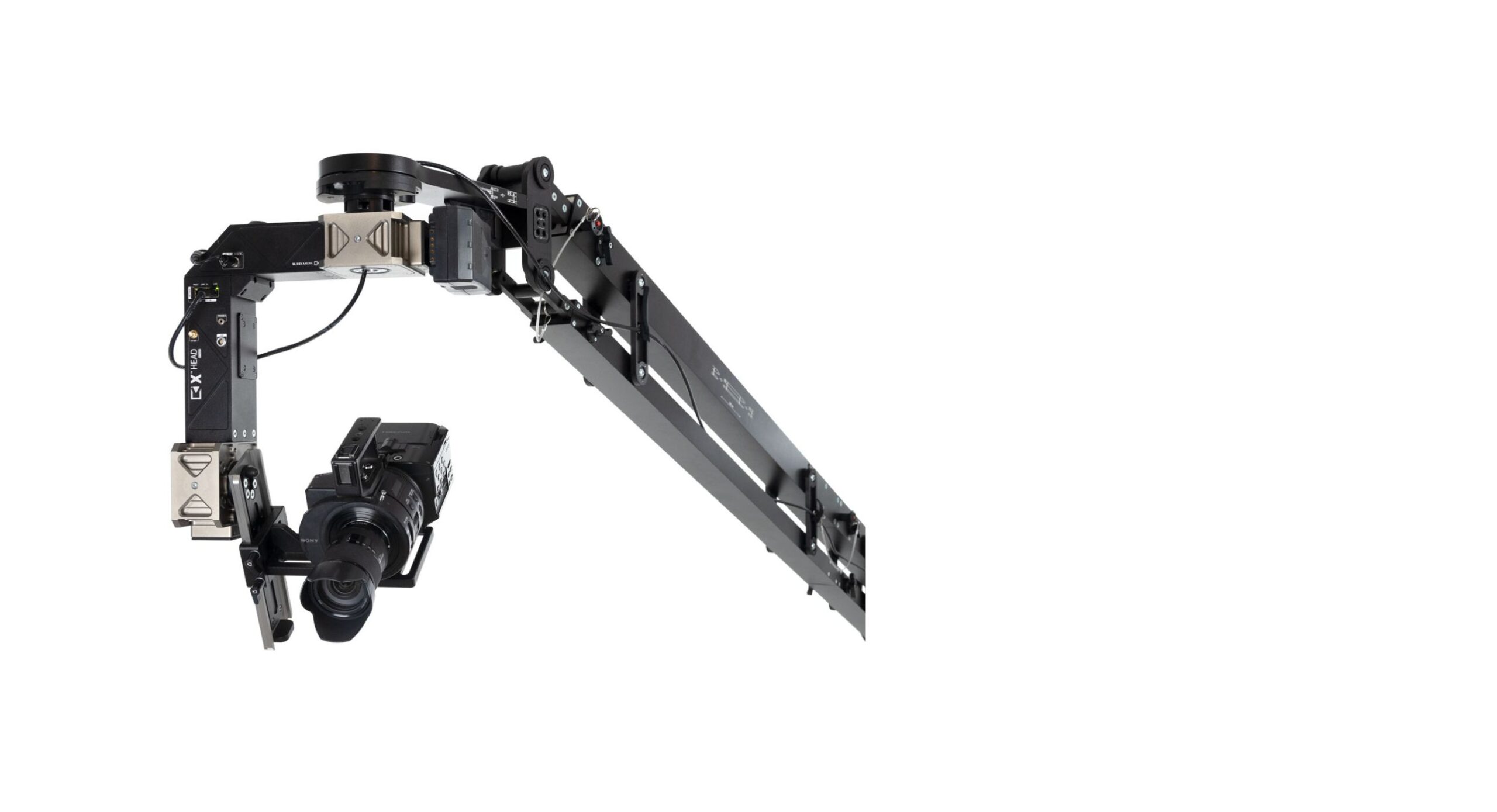

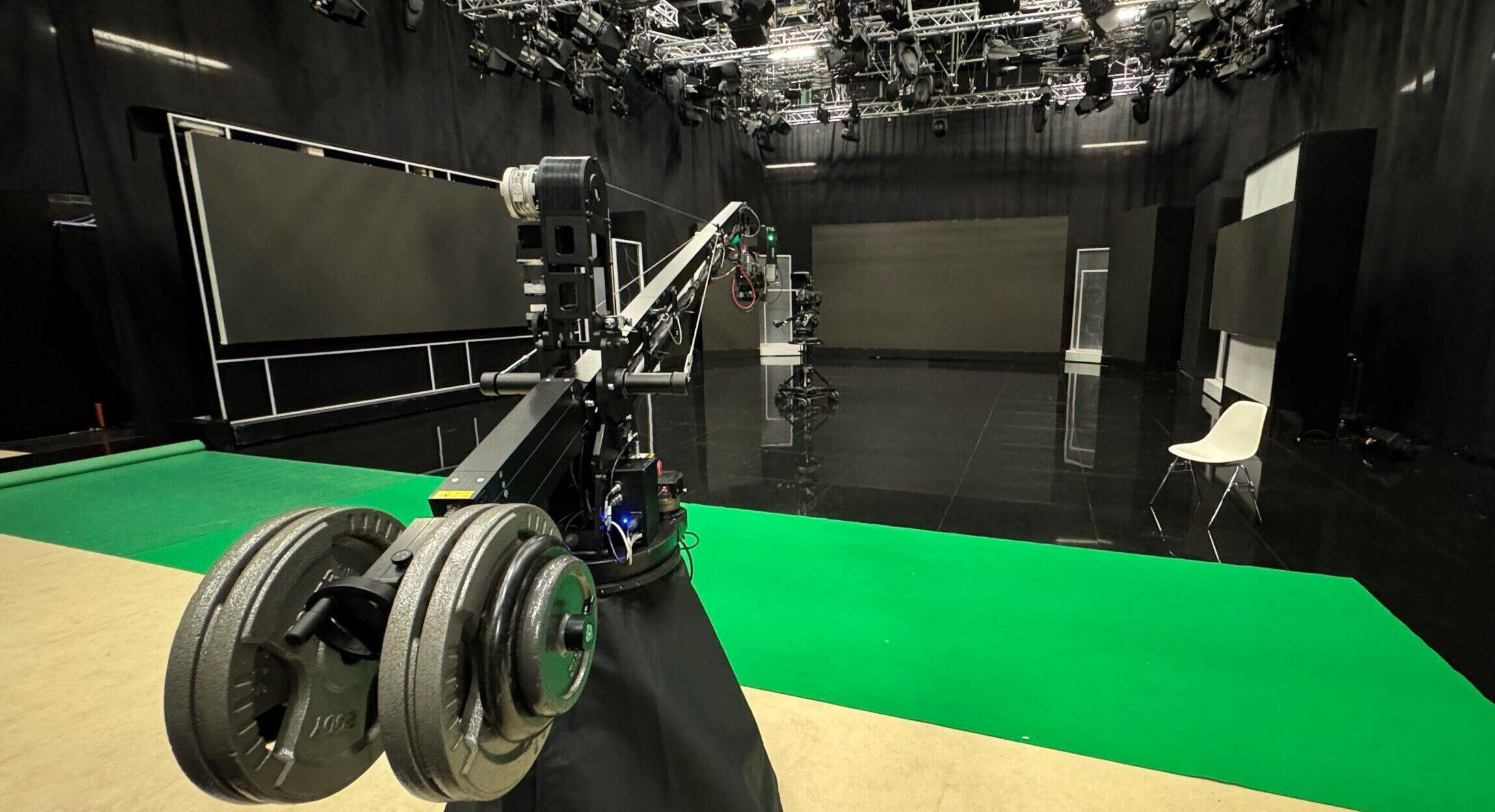

The AJS-2 can be adapated to meet the needs for more advanced studio workflows. In a recent installation with a leading news broadcaster, we designed a custom solution to integrated the AJS-2 with the Slidekamera by MRMC X-Head to support larger broadcast cameras.

If you have a project or specific requirement, contact us today to discuss with our team of technical experts.

The AJS-2 can be adapated to meet the needs for more advanced studio workflows. In a recent installation with a leading news broadcaster, we designed a custom solution to integrated the AJS-2 with the Slidekamera by MRMC X-Head to support larger broadcast cameras.

If you have a project or specific requirement, contact us today to discuss with our team of technical experts.

Specifications

Boom Specs

Maximum Payload (As Standard)

6KG / 13 lbs

Boom Platform Reach: Configurable in sections (lengths quoted from boom mounting pivot point):

1m (3.3ft), 2.2m (7.2ft), 3.4m (11.2ft)

Lift Range

Maximum 4m (13.1ft)

Maximum Speeds

Rotation: 10°/s, Lift: 150mm/s).

Self-Weights

Arm + Rotate unit

75kg / 165 lb

High-Torsion Tripod (with integrated wheels to enable installation/repositioning)

50kg / 110 lb

Power

90-240V Auto-ranging: 3A max

Controller

MRMC Broadcast Panel or Polymotion Chat
