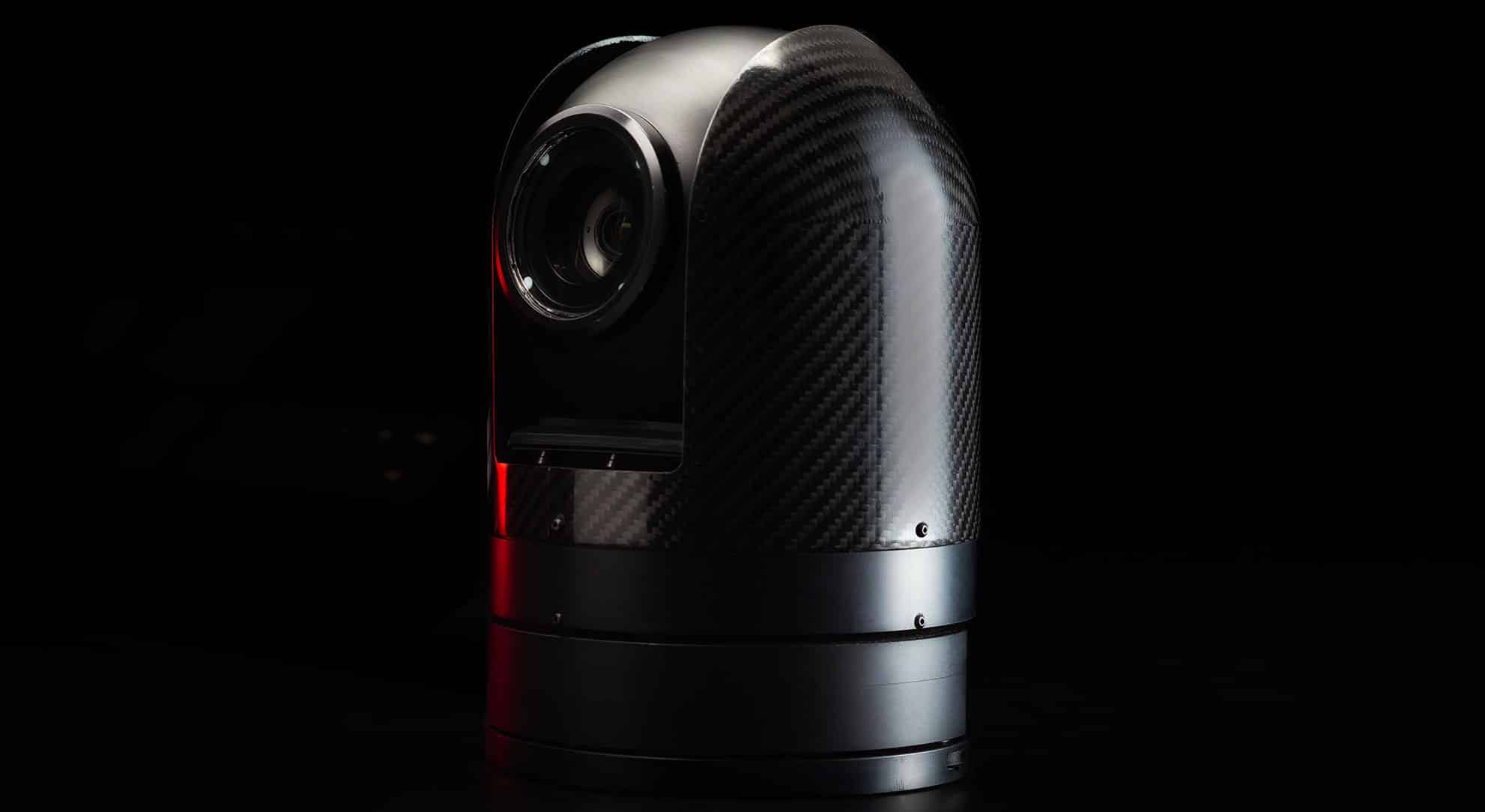

ARC360 PTZ Camera

RUGGED & WATERPROOF

Zoom 20x
Weight 2.5KG
Pans Over 360°

The ARC360 PTZ Camera is the flagship model in Agile Remote Cameras’ range of products. Housing the award-winning Sony Exmor R™ sensor, the ARC360 PTZ Camera provides the highest quality image within a precision-engineered housing. Designed to operate in a variety of conditions, the ARC360 camera offers a fully remote solution for a wide range of customer applications. The camera operates perfectly whether up the side of a mountain or on a music stage.

Designed to operate in a variety of conditions, the ARC360 camera offers a fully remote solution for a wide range of customer applications and operates perfectly in any location.

KEY FEATURES

MADE FOR LIVE

MADE FOR LIVE

With a proven pedigree in live sport, natural history and music environments, the camera has been designed with the future in mind; its unique modular design allows for a simple upgrade path for both hardware and firmware.

The camera also provides a number of features as standard, which other manufacturers’ products offer as additional optional extras, including a driven horizon axis as well as a static wiper blade that can be used when the camera is mounted externally.

With a proven pedigree in live sport, natural history and music environments, the camera has been designed with the future in mind; its unique modular design allows for a simple upgrade path for both hardware and firmware.

The camera also provides a number of features as standard, which other manufacturers’ products offer as additional optional extras, including a driven horizon axis as well as a static wiper blade that can be used when the camera is mounted externally.

DESIGNED TO BE TOUGH

DESIGNED TO BE TOUGH

The ARC 360 utilises the latest technology to ensure reliability and performance. The 14-bit positional encoders and belt drive technology provide an unsurpassed level of precision accuracy.

Built around an ARM processor, the camera’s electronics have been designed to be remotely accessed or upgraded if required, ensuring down time is kept to a minimum.

The camera can be controlled through the ARC range of controllers and has full CCU control. We are also happy to open up the camera to allow it to be controlled via third-party camera desks.

The ARC 360 utilises the latest technology to ensure reliability and performance. The 14-bit positional encoders and belt drive technology provide an unsurpassed level of precision accuracy.

Built around an ARM processor, the camera’s electronics have been designed to be remotely accessed or upgraded if required, ensuring down time is kept to a minimum.

The camera can be controlled through the ARC range of controllers and has full CCU control. We are also happy to open up the camera to allow it to be controlled via third-party camera desks.

HIGHLIGHTS

HIGHLIGHTS

  • 3-axis PTZ camera, with driven pan, tilt and horizon
  • Fully sealed, with no fogging or condensation
  • Proven reliability in extreme environments
  • Integrated wiper
  • RS 485 or native IP control interface
  • HD-SDI or 3G HD-SDI on coaxial or fibre
  • Exceptional preset recall accuracy
  • Closed loop speed control
  • Belt driven with no drift or backlash
  • Simple locking mount
  • Internal wide angle converters available
  • Can be mounted in any orientation
  • Firmware updates can be installed remotely or in the field
  • Re-clocking SFP module option
  • 3-axis PTZ camera, with driven pan, tilt and horizon
  • Fully sealed
  • Proven reliability in extreme environments
  • Integrated wiper
  • RS 485 or native IP control interface
  • HD-SDI or 3G HD-SDI on coaxial or fibre
  • Exceptional preset recall accuracy
  • Closed loop speed control
  • Belt driven with no drift or backlash
  • Simple locking mount
  • Internal wide angle converters available
  • Can be mounted in any orientation
  • Firmware updates can be installed remotely or in the field
  • Re-clocking SFP module option
EASY TO USE INTERFACE

EASY TO USE INTERFACE

The ARC Maxi Controller has been developed to provide users a flexible and easy to operate control panel, designed to provide simple integration in to IP control networks. The powerful desk can operate between 1 and 12 cameras and up to 99 cameras via our Arc Camera Control Hub software without the need for additional hardware.

Whilst it is possible to offer RS485 control via the ARC Maxi desk, it has been designed with the future in mind in allowing full integration in to ethernet architecture being used more frequently across all broadcast and live event productions.

The ARC Maxi Controller has been developed to provide users a flexible and easy to operate control panel, designed to provide simple integration in to IP control networks. The powerful desk can operate between 1 and 12 cameras and up to 99 cameras via our Arc Camera Control Hub software without the need for additional hardware.

Whilst it is possible to offer RS485 control via the ARC Maxi desk, it has been designed with the future in mind in allowing full integration in to ethernet architecture being used more frequently across all broadcast and live event productions.

Feature Highlights

FULL REMOTE OPERATION/PRODUCTION

EASY TO USE CONTROL INTERFACE

WEATHER PROOF AND ROBUST

Specifications

Size & Weight

Weight

2.5kg

Height

255mm (including mount)

Diameter

155mm

Dimensions

225mm x 155mm

Axes & Range

Pan Range

360° continuous

Tilt Range

120°

Horizon Range

+/-8°

Speed Range

180°/sec

Zoom Range

20 x optical zoom (4.1° to 70.2°)

Camera

Camera Sensor

1/2.5 Exmor R Sensor

Active Pixels

Approx 8.51 Megapixels

HD Standards

1080i 59.4/50/60/30 | 1080p 59.94/50/60/30/29.97 | 720p 59.94/50/60/30/29.97 | PAL/NTSC

HD Output

Y/Cb/Cr 4:2:2 via LVDS (8bit)

Iris

F1.6 to 28 (255 steps)

Operating Temperature

-20°c to +40°c

Connections & Power

RJ45

Data or Power & Data (PoE++)

BNC

HD-SDI or 3G-SDI

Options

IP68 Connectivity SMPTE Interface SFP Base Options
