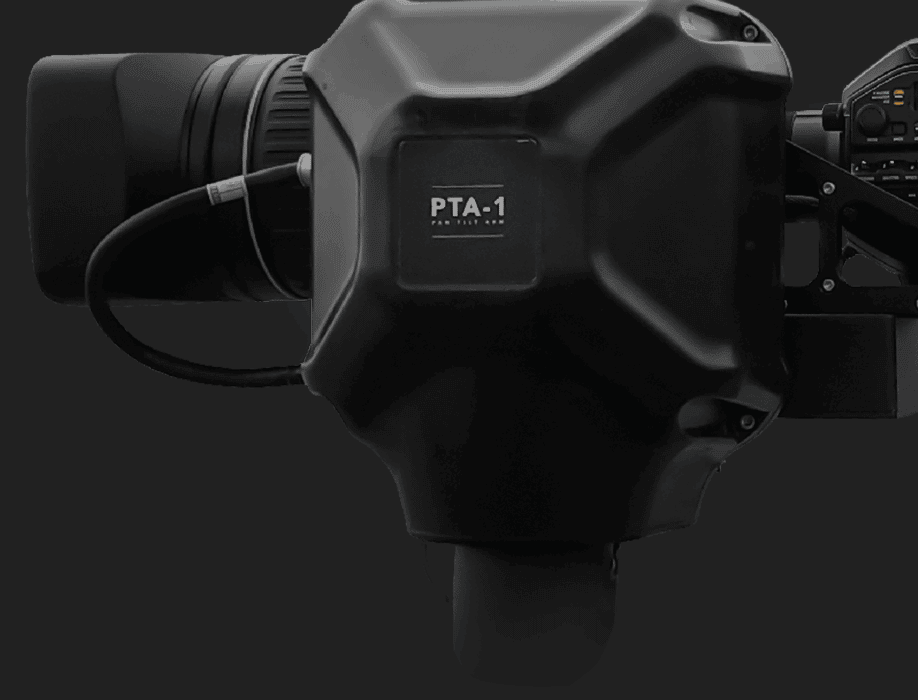

PTA-1 Robotic Arm

BROADCAST CAMERA PLATFORM

Pan/Tilt 180° /s
Weight 15.3kg
Payload 25kg

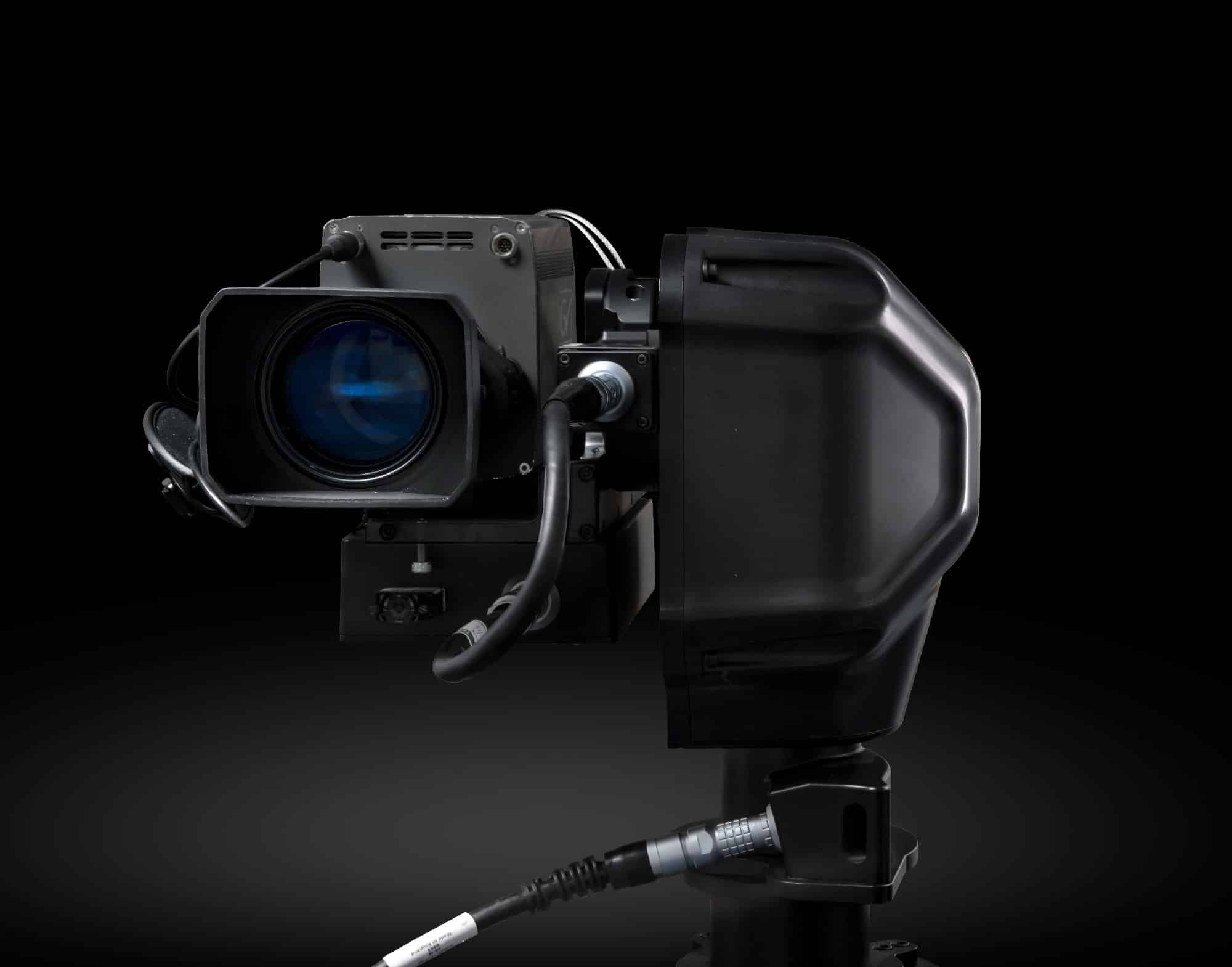

The PTA-1 is an autonomous robotic camera solution specifically designed for supporting broadcast cameras and lenses in outdoor applications.

The PTA-1 is an autonomous robotic camera solution specifically designed for supporting broadcast cameras and lenses in outdoor applications.

HIGH PAYLOAD ROBOT

HIGH PAYLOAD ROBOT

The PTA-1 can carry up to 25kgs and is fully compatible with MRMC’s Polymotion suite of applications as well as a standalone system for remote production/operation.

The camera platform robot is designed so it can be permanently fixed in position, with the camera and lens on a removable sled that can be easily detached from the robot for other uses or storage.

The PTA-1 can carry up to 25kgs and is fully compatible with MRMC’s Polymotion suite of applications as well as a standalone system for remote production/operation.

The camera platform robot is designed so it can be permanently fixed in position, with the camera and lens on a removable sled that can be easily detached from the robot for other uses or storage.

KEY FEATURES

KEY FEATURES

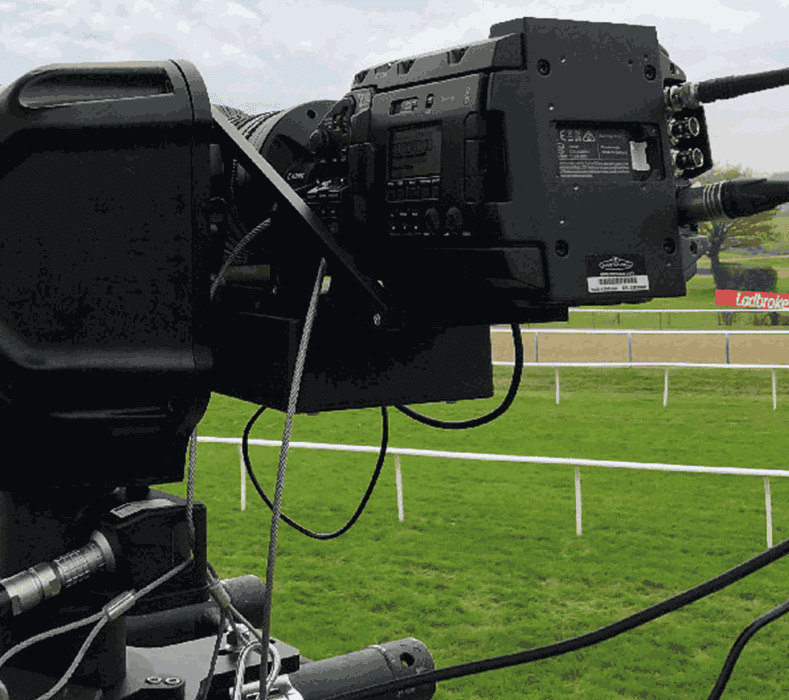

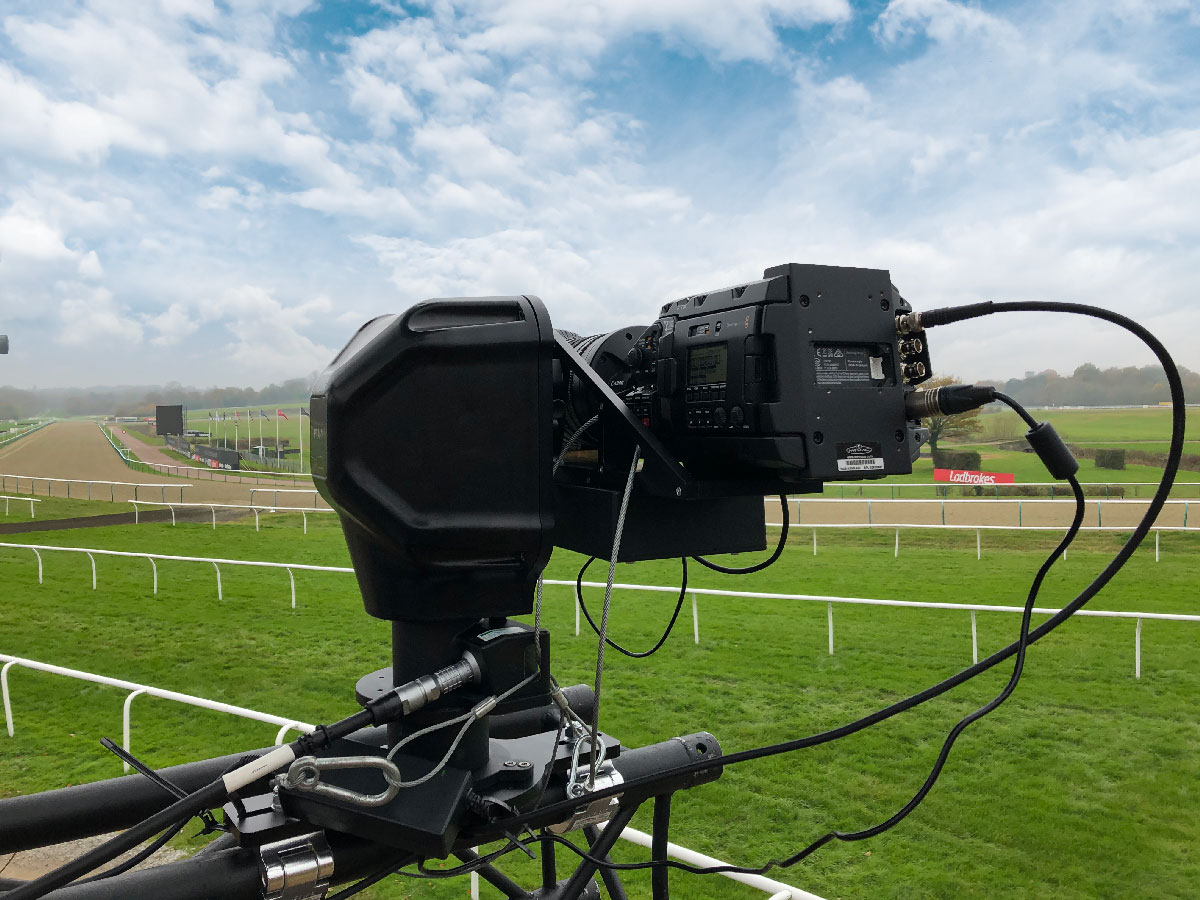

  • Fully remote operation IP65 Rated for outdoor use
  • Works with any broadcast camera and lens combination
  • High-payload capacity of 25kg without a reduction of operational speed
  • Can be deployed in locations where camera operators cannot easily work (height-restricted areas etc.)
  • Fully remote operation IP65 Rated for outdoor use
  • Works with any broadcast camera and lens combination
  • High-payload capacity of 25kg without a reduction of operational speed
  • Can be deployed in locations where camera operators cannot easily work (height-restricted areas etc.)
EASY TO USE INTERFACE

EASY TO USE INTERFACE

MHC is a class leading next generation remote control platform. This software comes in two parts, MHC server and MHC client. MHC server can dynamically control an unlimited number of robots.

The servers role is to take input information, from multiple users and sources, and then translate this to smooth fluid camera moves on any of the MRMC robotic heads.

MHC is a class leading next generation remote control platform. This software comes in two parts, MHC server and MHC client. MHC server can dynamically control an unlimited number of robots.

The servers role is to take input information, from multiple users and sources, and then translate this to smooth fluid camera moves on any of the MRMC robotic heads.

Feature Highlights

FULL REMOTE OPERATION/PRODUCTION

EASY TO USE CONTROL INTERFACE

QUICK TO USE MODULAR SYSTEM

WEATHER PROOF AND ROBUST

Specifications

Size & Weight

Size

Operational space ~1.2 m3

Weight

15.3kg

Axes

Pan (Max)

180°/s (infinite movement)

Tilt (Max)

180°/s (+/- 45 ° movement)

Connections & Power

RJ45

1000base-t

SDI

3G max. output 1080p 50/60 fps

Fibre

Optional plug in SFP for optical SDI output

Power

Supplied with 240V 16A Optional 110V 16A and UK/EU/US
