RLS-1 Rail Lift System
CREATE VERTICAL & HORIZONTAL MOVEMENT

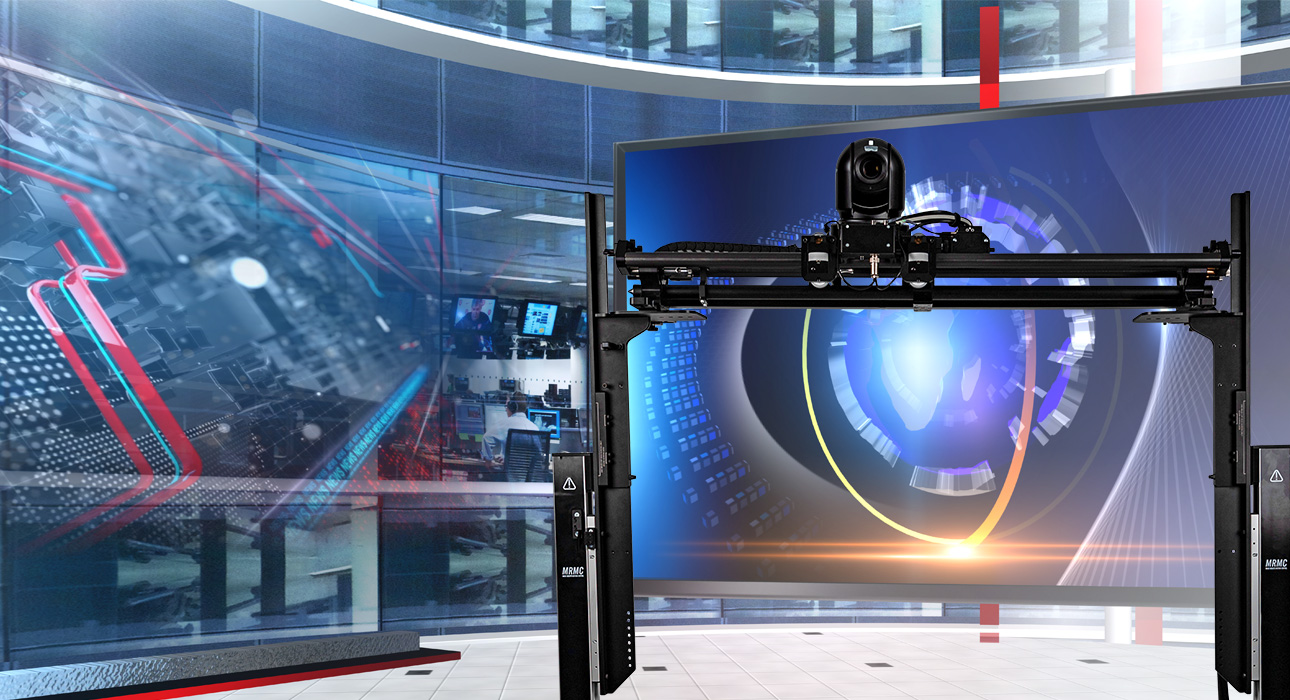

The RLS-1 Rail Lift System expands MRMC’s PTZ enablement solutions by combining vertical lift with a side-to-side motion. Along with the pan/tilt of a PTZ, this solution provides a versatile and cost-effective method to deliver 5-axis of motion. With a range of height configurations, the RLS-1 can comfortably capture sitting and standing shots without reconfiguration.
The RLS-1 Rail Lift System expands MRMC’s PTZ enablement solutions by combining vertical lift with a side-to-side motion. Along with the pan/tilt of a PTZ, this solution provides a versatile and cost-effective method to deliver 5-axis of motion. With a range of height configurations, the RLS-1 can comfortably capture sitting and standing shots without reconfiguration.
Highest Quality Motion
Achieve On-air Quality Motion
Designed to be quiet in operation, the RLS-1 offers a configurable vertical lift speed of 0.5 – 60mm/s, alongside horizontal motion of 40 cm/s / 16 in/s making it ideal for on-air movement of PTZs.
The system is easily controlled using our Multi-Head Controller software, or Polymotion Chat for automated movement.
The RLS-1 can also integrate with third-party systems via our MRP (Mark Roberts Protocol).
Designed to be quiet in operation, the RLS-1 offers a configurable vertical lift speed of 0.5 – 60mm/s, alongside horizontal motion of 40 cm/s / 16 in/s making it ideal for on-air movement of PTZs.
The system is easily controlled using our Multi-Head Controller software, or Polymotion Chat for automated movement.
The RLS-1 can also integrate with third-party systems via our MRP (Mark Roberts Protocol).
Integrated PTZ Solution
The RLS-1 system expands our PTZ enablement range and its modular design means the system can be used in a multitude of ways to provide a versatile range of motion. The RLS-1 can be quickly reconfigured from floor to ceiling and also has genlock sync input to allow synchronised FreeD positional data to be output, enabling its use with virtual graphics systems.
The RLS-1 system expands our PTZ enablement range and its modular design means the system can be used in a multitude of ways to provide a versatile range of motion. The RLS-1 can be quickly reconfigured from floor to ceiling and also has genlock sync input to allow synchronised FreeD positional data to be output, enabling its use with virtual graphics systems.

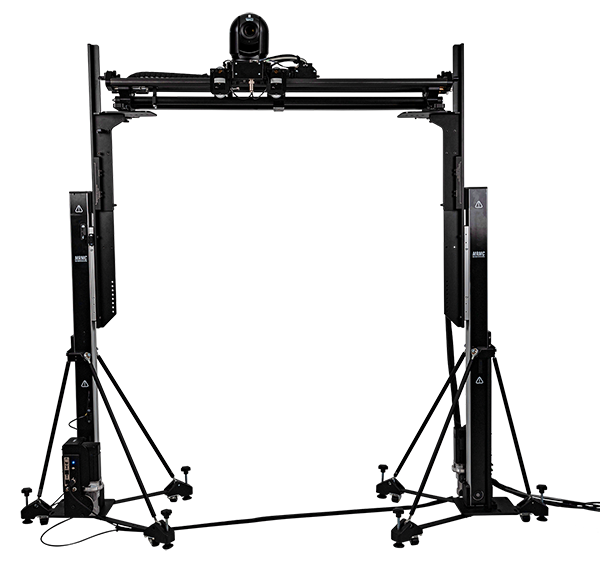

Overview of the RLS-1 Rail Lift System
Feature Highlights
SMOOTH MOVEMENT
VERY QUIET
FLEXIBLE MOUNTING & CONTROL
FULLY IP CONNECTED
SUPPORTS A TELEPROMPTER
Specifications
Payload and Size
Max. Payload
Low Mode: 10kg 22 lb Extended Mode: 5kg / 11 lb
Lift Range - Low Mode
Lowest: 516 - 1171mm / 20 - 5 in Highest: 830 - 1485mm / 33 - 58 in
Lift Range - Extended Mode
Lowest: 950 - 1605mm / 37 - 63 in Highest: 1505mm - 2160mm / 59 - 85 in
Lift Speed Range
0.5 - 60 mm/s
LLS-1 Self-Weight
Core lift unit = 21.5 kg / 47 lb, Tripod option = 5.5 kg / 12 lb, Wall kit option = 1 kg / 2.2 lb
Rail Max Speed
40cm/s / 16 in/s
Rail Length
Subject to length in sections 0.8.m / 2.6ft, 1.2m / 3.9ft, 2m / 6.5ft, 3m / 9.8ft
Connectivity & Power
Connection
RJ45 Gigabit Ethernet (1000 BASE-T) (IEEE 802.3ab)
Power
90-240V Auto-ranging: 3A max
