PTZ MONOHEAD STUDIO
To combine those two worlds, the ease of use of the PTZ camera and the precision of the motion control head, we developed a PTZ MONOHEAD – an addon for PTZ cameras that enhances the motion in the horizontal axis.
To combine those two worlds, the ease of use of the PTZ camera and the precision of the motion control head, we developed a PTZ MONOHEAD – an addon for PTZ cameras that enhances the motion in the horizontal axis.

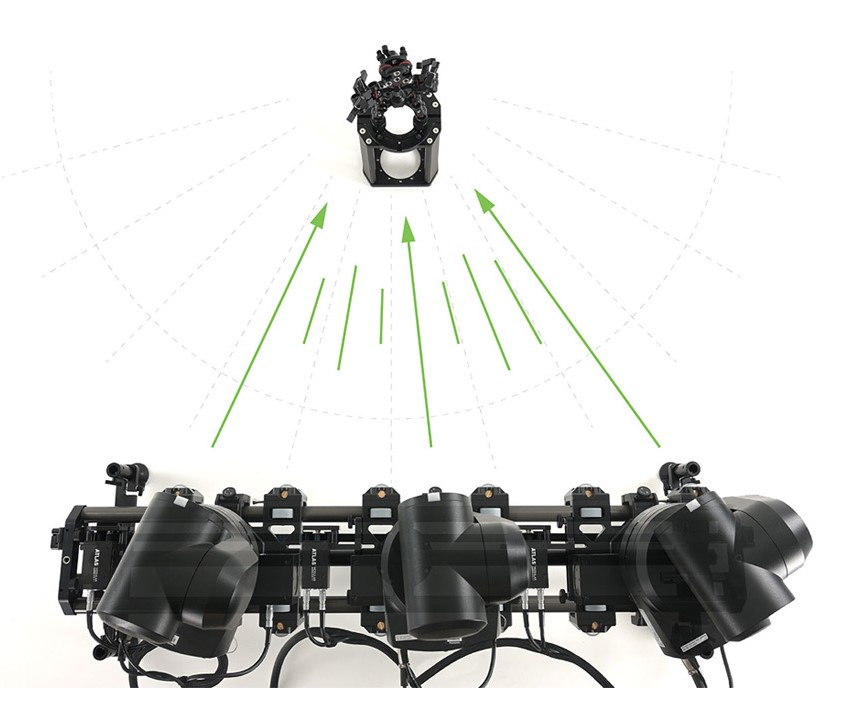

Parallax Tracking
Tracking a fixed point with a remote head is a feature many users use daily – for product videos, interviews, or live shows. Since PTZ cameras cannot perform this precise motion, we added another panorama axis that replaces the horizontal movement by rotating the whole unit. Thanks to this simple trick, you can control the horizontal rotation of the kit, keeping all other benefits of your PTZ system.
EASE OF USE

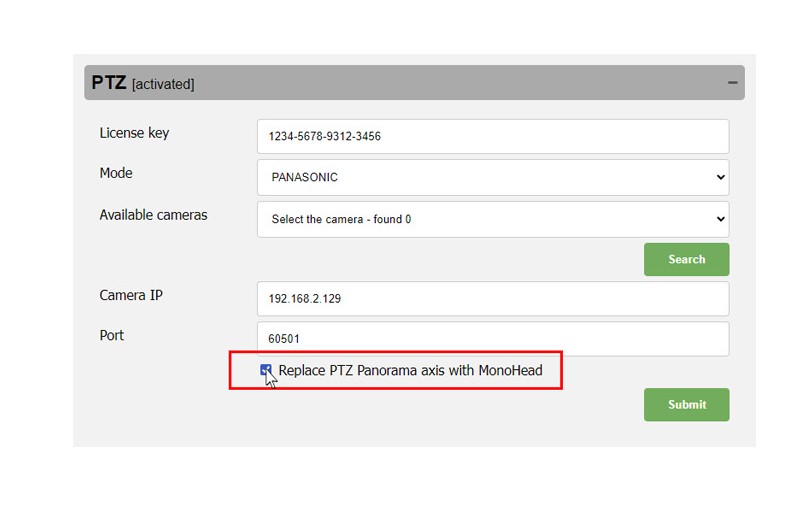

Simple to Configure
Configuration of the system is easy – with just one click, you can replace the PTZ panorama axis with the PTZ MONOHEAD. Afterwards, you can use it in sync with all axes as an integrated unit.
Configuration of the system is easy – with just one click, you can replace the PTZ panorama axis with the PTZ MONOHEAD. Afterwards, you can use it in sync with all axes as an integrated unit.

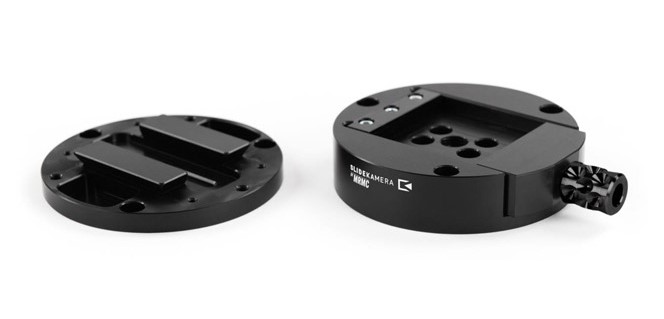

INTEGRATED QUICK-RELEASE MOUNT
The PTZ MONOHEAD is equipped with AF-48 QUICK RELEASE MOUNT, dedicated to the PTZ cameras. It allows you to mount the camera quickly and securely. It’s compatible with all cameras using 3/8″ and 1/4″ screws. It also has M4 threads for the mounting plate supplied with the Panasonic camera units.
The PTZ MONOHEAD is equipped with AF-48 QUICK RELEASE MOUNT, dedicated to the PTZ cameras. It allows you to mount the camera quickly and securely. It’s compatible with all cameras using 3/8″ and 1/4″ screws. It also has M4 threads for the mounting plate supplied with the Panasonic camera units.
COMPATIBILITY
The PTZ MONOHEAD is compatible with all Slidekamera sliders. It’s connected as a regular head, using Slidekamera’s one-cable connection for data and power. Therefore setup is fast and easy. You can control the head with the KAIROS panel, Slideye 2.0 software, or a combination of both.
The PTZ MONOHEAD is compatible with all Slidekamera sliders. It’s connected as a regular head, using Slidekamera’s one-cable connection for data and power. Therefore setup is fast and easy. You can control the head with the KAIROS panel, Slideye 2.0 software, or a combination of both.

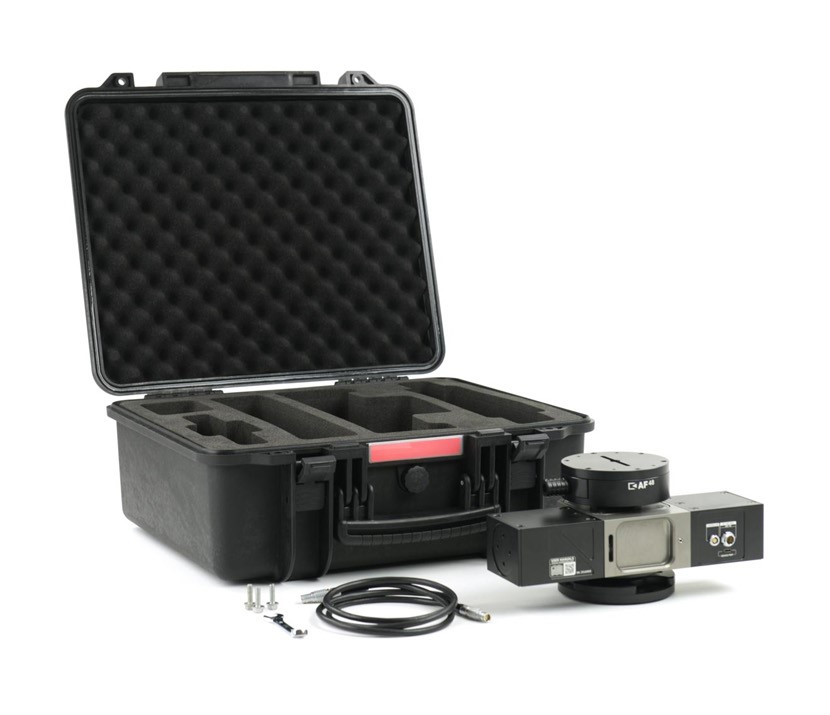

SET INCLUDES
- PTZ MONOHEAD STUDIO 1-axis remote head
- integrated AF-48 quick-release plate
- transport case
- LEMO cable (selected length)
- PTZ MONOHEAD STUDIO 1-axis remote head
- integrated AF-48 quick-release plate
- transport case
- LEMO cable (selected length)
PRODUCT HIGHLIGHTS
FULL REMOTE OPERATION / PRODUCTION
ONE-BUTTON TOUCH PRE-SET RECALL
RELIABLE FOR VIDEO AND STILL CAPTURE
REPEATABLE MOVES
SPECIFICATIONS
Maximum payload capacity
16kg
Dimensions
Width: 317mm, Depth: 136 mm, Height: 136 mm
Inputs
HET-BUS & DC 36V
LEMO 6-pin
Controller
mini-LEMO 4-pin (includes 12V power out for the controller
Service Port
2 x USB-C
Outputs
LCS
mini-LEMO 6-pin
Power
Power
24V to 36V DC max 120W + PDMOVIE (3 axes) max 40W
