Bolt PTR Robotic Head
Pan-Tilt-Roll For More Creative Control

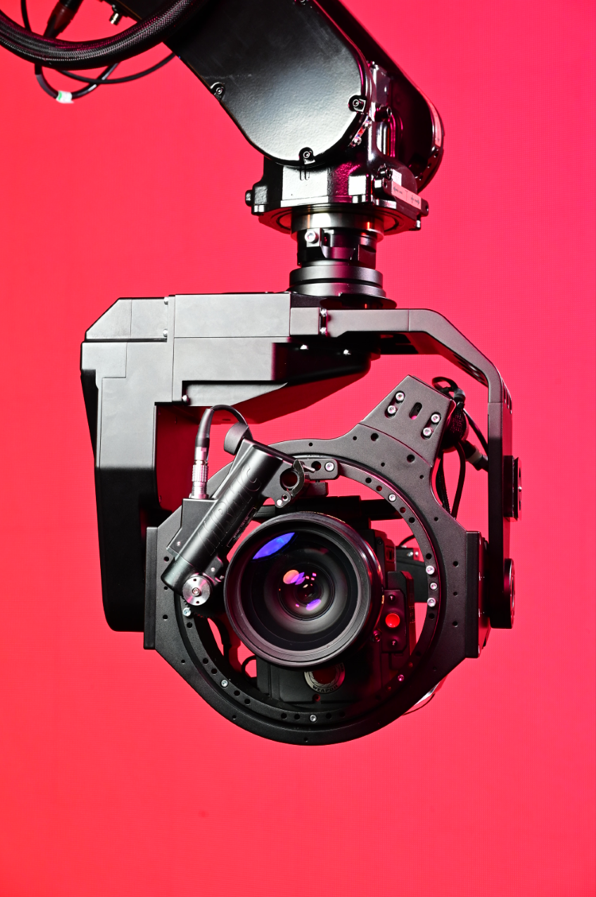

The Bolt PTR (Pan-Tilt-Roll) is a compact, high-precision camera head engineered for the Bolt and Bolt X Cinebots. This allows the camera to independently pan, tilt, and roll, separate from the arm’s movement, giving you more flexibility and control over your shots, especially in tight spaces.
The Bolt PTR (Pan-Tilt-Roll) is a compact, high-precision camera head engineered for the Bolt and Bolt X Cinebots. This allows the camera to independently pan, tilt, and roll, separate from the arm’s movement, giving you more flexibility and control over your shots, especially in tight spaces.
Bolt PTR Highlights
Precision Control
The Bolt PTR Robotic Head is designed to make filming with the Bolt and Bolt X systems more flexible and controlled. Lightweight and compact, it is fully compatible with modern, professional cameras, making it ideal for high-precision filming.
When filming in tight spaces, like car interiors, gimbal lock can limit rotation and certain manoeuvres. The Bolt PTR solves this by allowing the camera to pan, tilt, and roll independently of the arm, giving you complete control in any environment.
With its improved motor and gearbox, the Bolt PTR enhances the performance of the Bolt and Bolt X systems, offering smoother, more precise camera control that rivals the sturdiest camera rigs.
The Bolt PTR Robotic Head is designed to make filming with the Bolt and Bolt X systems more flexible and controlled. Lightweight and compact, it is fully compatible with modern, professional cameras, making it ideal for high-precision filming.
When filming in tight spaces, like car interiors, gimbal lock can limit rotation and certain manoeuvres. The Bolt PTR solves this by allowing the camera to pan, tilt, and roll independently of the arm, giving you complete control in any environment.
With its improved motor and gearbox, the Bolt PTR enhances the performance of the Bolt and Bolt X systems, offering smoother, more precise camera control that rivals the sturdiest camera rigs.
Bolt PTR Key Features
More Creative Freedom
- Sleek Design: Compact, lightweight, and agile.
- Integrated Slip Ring: Provides unlimited roll while supporting camera power, focus motors, and HD video.
- Prevents Gimbal Lock: Separate movement from the Bolt arm stops Tilt-90 taking effect.
- Reversible Camera Mount: Can position your camera away from the roll ring for greater tilt motion.
- Upgraded Motor & Gearbox: Delivers smooth, stable, and responsive movement.
- Versatile Control: Compatible with handwheels, pan bars, and other control systems.

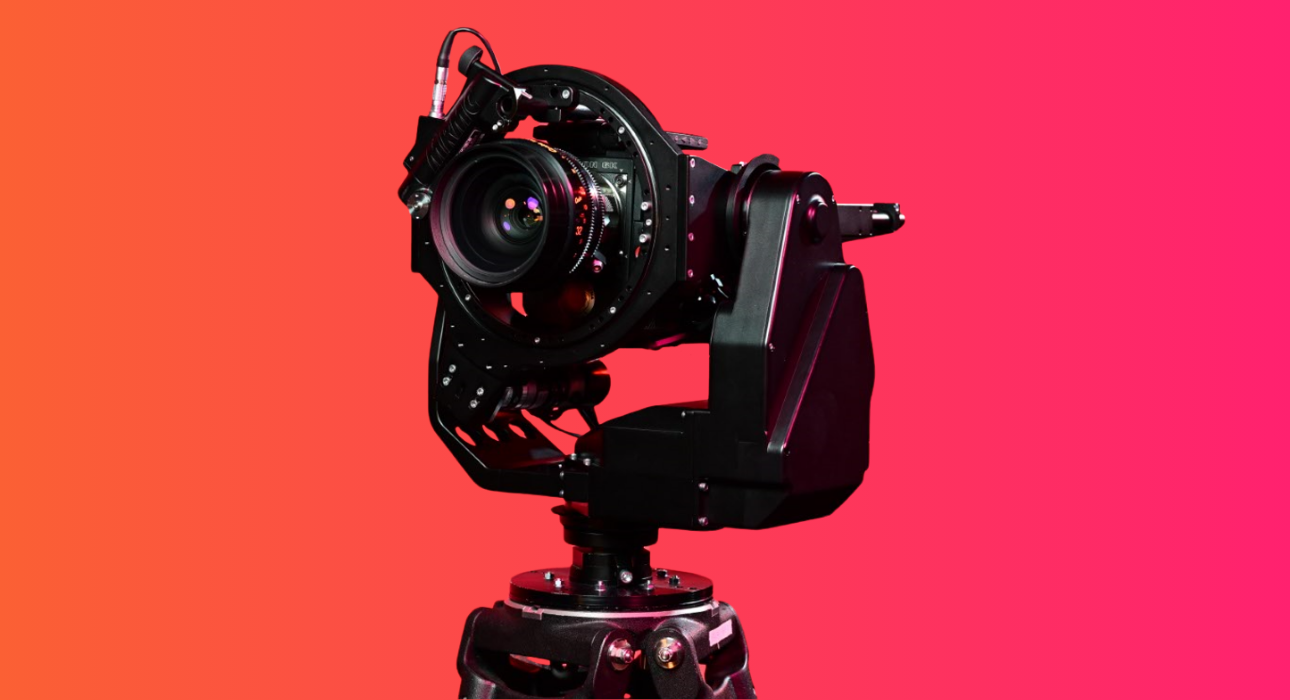

- Standalone Use: Mountable on tripods, sliders, and more.
- Ultibox Compatible: Integrates with existing Bolt/Bolt X Ultibox for lens motor control.
- Sleek Design: Compact, lightweight, and optimised for dynamic movement in confined spaces.
- Integrated Slip Ring: Provides unlimited roll while supporting camera power, focus motors, and HD video.
- Prevents Gimbal Lock: Separate movement from the Bolt arm stops Tilt-90 issues.
- Reversible Camera Mount: Can position your camera away from the roll ring for greater tilt motion.
- Upgraded Motor & Gearbox: Delivers smooth, stable, and responsive movement.
- Versatile Control: Compatible with handwheels, pan bars, and other control systems.
- Standalone Use: Mountable on tripods, sliders, and more.
- Ultibox Compatible: Integrates with existing Bolt/Bolt X Ultibox for lens motor control.
Bolt PTR Key Specifications
Peak Performance
- Dimensions: 380mm x 355mm x 530mm
- Payload: Supports professional cameras up to 10kg.
- Speed: Can move at up to 360°/sec.
- Acceleration: Capable of exceeding 1000°/s².
-
- Dimensions: 380mm x 355mm x 530mm
- Payload: Supports professional cameras up to 10kg.
- Speed: Can move at up to 360°/sec.
- Acceleration: Capable of exceeding 1000°/s².
Bolt PTR Launch Video
Specifications
Bolt PTR
Weight
10kg
Dimensions
380mm x 355mm x 530mm — Incl. slip ring
Maximum Speed
360°/s (Pan) 270°/s (Tilt) 300°/s (Roll)
Rotation
+ / - 180° (Pan) +45° / -60° (Tilt) Unlimited (Roll) — Incl. slip ring)
Acceleration
1000°/s²
Camera Payload
10kg
Supply Voltage
48VDC (Via Ulti Box)
Resolution
.0001°
Downloads
Controllers
Secure Mounting for Every Shot
