Cinebot Nano
Made For Moco On The Go
The Cinebot range just got a whole lot…smaller? Meet the Cinebot Nano, our most compact, portable, and affordable camera robot yet. Built for filmmakers, content creators, and lean crews who want pro-level motion control without the bulk, technical expertise, or price tag.
The Cinebot range just got a whole lot…smaller? Meet the Cinebot Nano, our most compact, portable, and affordable camera robot yet. Built for filmmakers, content creators, and lean crews who want pro-level motion control without the bulk, technical expertise, or price tag.
OUR MOST AFFORDABLE & PORTABLE ROBOT

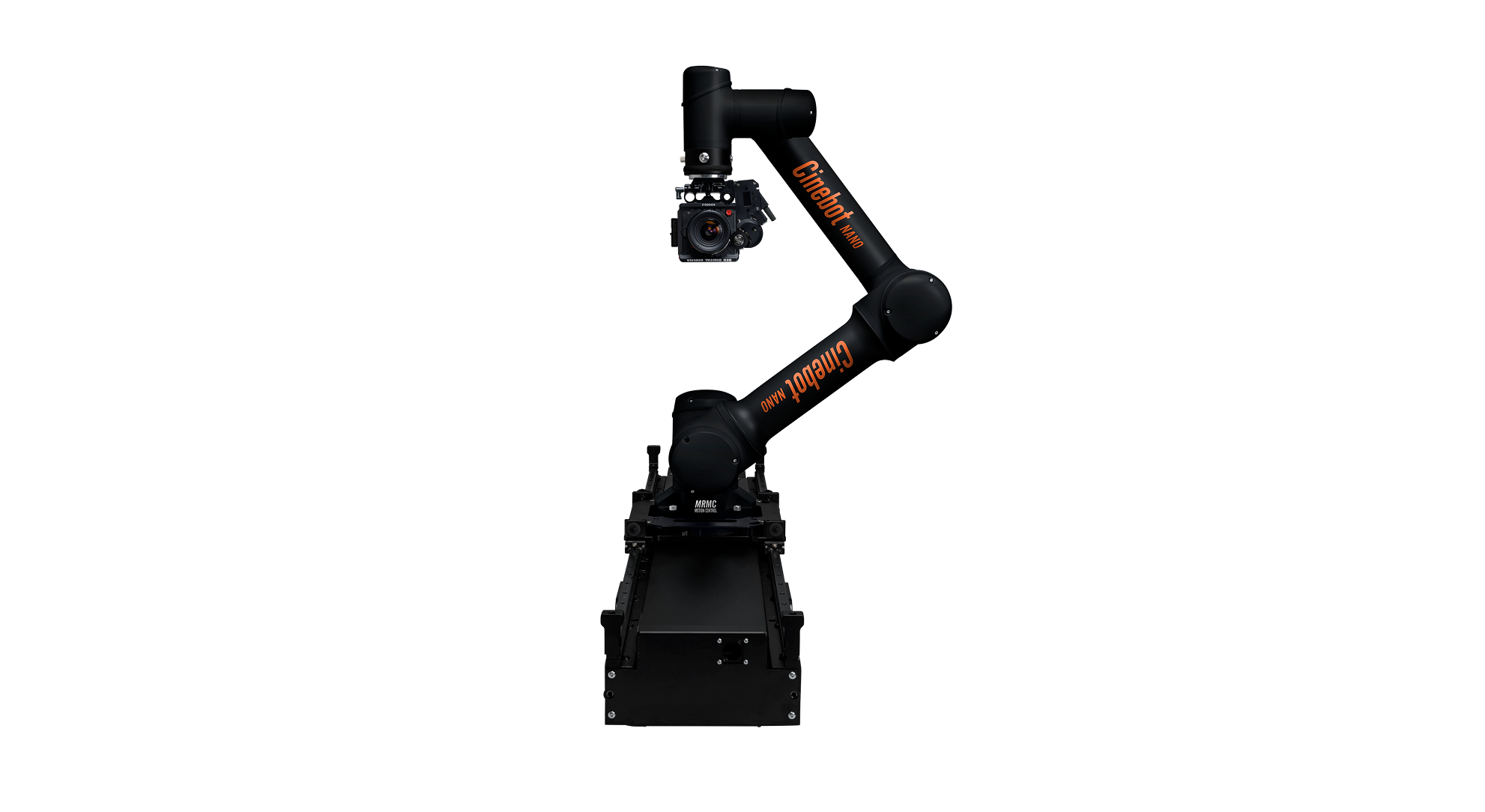

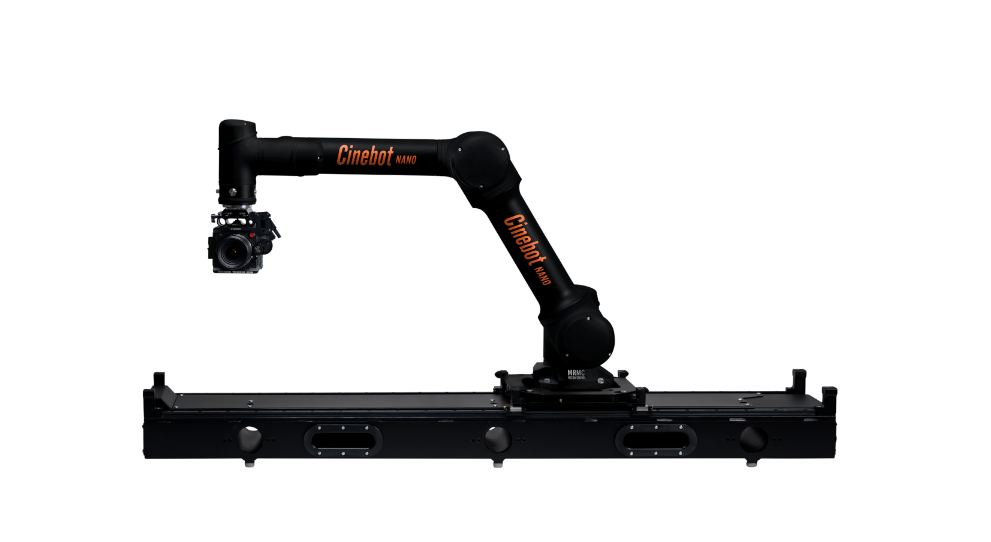

The Cinebot Nano is an award-winning 9-axis portable motion control system, being the fastest, most collaborative robot of its kind to set up and move around set. Whether mounted on pedestal or precision ball-bearing track, it delivers smooth, precise, and repeatable shots every time.
Starting at just £20k, the Nano packs into a few small cases that fit in your trunk or airport baggage. Its lightweight design and streamlined control make it great for on-location shooting, offering the highest payload and longest reach among camera robots of its size.
Each Nano comes with a 3-year warranty and our streamlined motion control software, Flair Lite, included with absolutely no license fees or subscriptions. With PushMoco, you can also hand-move the arm to store real-time keyframes, so you can start shooting right out of the box.
Key Features
Cinebot Nano Highlights
Nano By Name, Epic By Nature
- Travel Ready: Breaks down into 3 cases, each under 32kg (70lbs), for checking into flights or loading onto vehicles.
- Fast Setup: Go from case to shoot-ready in minutes with simple, intuitive design.
- PushMoco® Control: Record moves manually by hand. Push the arm into position, keyframe it, and hit play.
- Flair Lite Software: A refined version of Flair. Quick to learn, focused on our most-used features. No Fees/Subscriptions.
- Track & Tabletop Options: Use in pedestal mode or mount it to the track system for an extra degree of freedom.
- Power Anywhere: Runs from standard AC mains or up to 10 hours on battery
- Versatile Mounting: Mount to tripods, tables, carts, upside down or even on a car.
- Travel Ready: Breaks down into 3 cases, each under 32kg (70lbs), for checking into flights or loading onto vehicles.
- Fast Setup: Go from case to shoot-ready in minutes with simple, intuitive design.
- PushMoco® Control: Record moves manually by hand. Push the arm into position, keyframe it, and hit play.
- Flair Lite Software: A refined version of Flair. Quick to learn, focused on our most-used features. No Fees/Subscriptions.
- Track & Tabletop Options: Use in pedestal mode or mount it to the track system for an extra degree of freedom.
- Power Anywhere: Runs from standard AC mains or up to 10 hours on battery
- Versatile Mounting: Mount to tripods, tables, carts, upside down or even on a car.
Key Specifications
Small size, big package
- Camera Payload: Robust 7kg payload (15lbs), with complete Tilta focus and zoom control.
- Reach: Exceptional 1m (3.2ft) reach, giving you almost 2m (6.5ft) of arm-reach in any direction.
- Track System: Optional precision ball-bearing 1.45m (5ft) track system — no low-spec wheels or plastic guides.
- System Weight: 49kg (108lbs) spread across three lightweight travel-ready cases.
- Camera Payload: Robust 7kg payload (15lbs), with complete Tilta focus and zoom control.
- Reach: Exceptional 1m (3.2ft) reach, giving you almost 2m (6.5ft) of arm-reach in any direction.
- Track System: Optional precision ball-bearing 1.45m (5ft) track system — no low-spec wheels or plastic guides.
- System Weight: 49kg (108lbs) spread across three lightweight travel-ready cases.
Cinebot Nano Kits
Fully Customisable
Choose the Cinebot Nano that works for you. Build your own from scratch or start with one of three ready-made kits.
- Arm Starter Package: Get the versatile Nano arm, dovetail mount camera platform and Flair Lite software license .
- Pro Arm Package: Adds the portable control box, making the Nano easier to move on set and between locations.
- Arm & Track Package: Includes the Nano’s 1.45m (5ft) precision ball-bearing track, for a greater range of motion.
Choose the Cinebot Nano that works for you. Build your own from scratch or start with one of three ready-made kits.
- Arm Starter Package: Get the versatile Nano arm, dovetail mount camera platform and Flair Lite software license .
- Pro Arm Package: Adds the portable control box, making the Nano easier to move on set and between locations.
- Arm & Track Package: Includes the Nano’s 1.45m (5ft) precision ball-bearing track, for a greater range of motion.
Feature Highlights
Manual Control
Travel-Ready
Runs on Battery
Track and pedestal option
Fast To Setup
TARGET TRACKING
Lens Control
Repeatable
Operating envelope
Max Reach (from rotate centre)
1m / 3'2"
Height From base
1.3 m / 4'3"
Lowest Position
-0.58 m / -1'11"
Rig Performance
Arm ARC Move
3.2 m/s max speed at camera
Arm combined with track
4.2 m/s / max speed at camera
Track
1 m/s (1.45m length)
Base Rotatation
+/- 360˚, 200˚/s
Shoulder Lift
+/- 360˚, 200˚/s
Elbow
+/- 160˚, 225˚/s
Pan
+/- 360˚, 225˚/s
Tilt
+/- 360˚, 225˚/s
Roll
+/- 360˚, 225˚/s
Dimensions
Cinebot Nano Arm Length
1 m / 3'2"
Track Length
1.45m / 5"
Track width
23.5cm / 9.3" wide
Track width (with outriggers)
90cm / 35.4" wide
Weights
Cinebot Nano Arm weight
25 kg / 54 lbs
Track Weight
22 kg / 48.5lbs
Outriggers Weight (Pair)
2kg / 4.5lbs
Total Weight
49 kg / 108 lbs
Maximum camera payload
7 kg / 15.4 lbs
Power Connection
Power Requirements
110 - 264 VAC
Average Power Consumption
Less than 150 W
