Studiobot

Complete Studio Automation

The StudioBot is an MRMC robotic solution aimed at studio applications where a high level of automation is required whilst maintaining maximum creative possibilities. The system provides master camera angles and extended motion sequences, that work for every shot time after time. StudioBot comes as both a standard size, and an XL size.

Axes

of Motion

Reach (standard)

1.1

Metres

Reach (XL)

1.76

Metres

Key Features

Studiobot

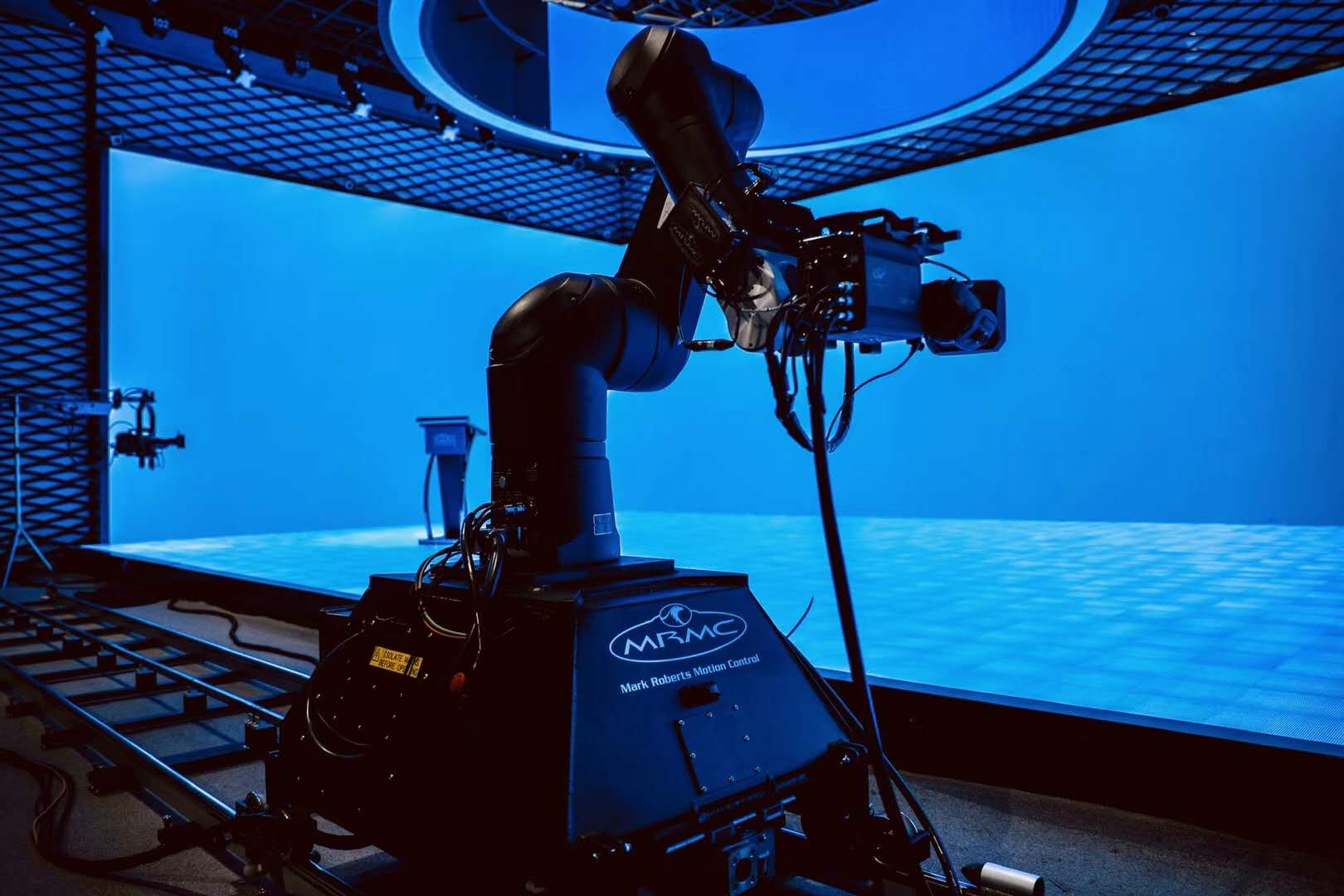

The StudioBot is a 9-axis robotics system offering a superior creative range to traditional dolly systems. With a smaller physical footprint than the larger XL system, the studiobot is ideal for small-scale studios. Offering all the benefits of integrating with studio automation and 3d graphics systems, the StudioBot creates a vast range of programmable and repeatable shots for studio environments.

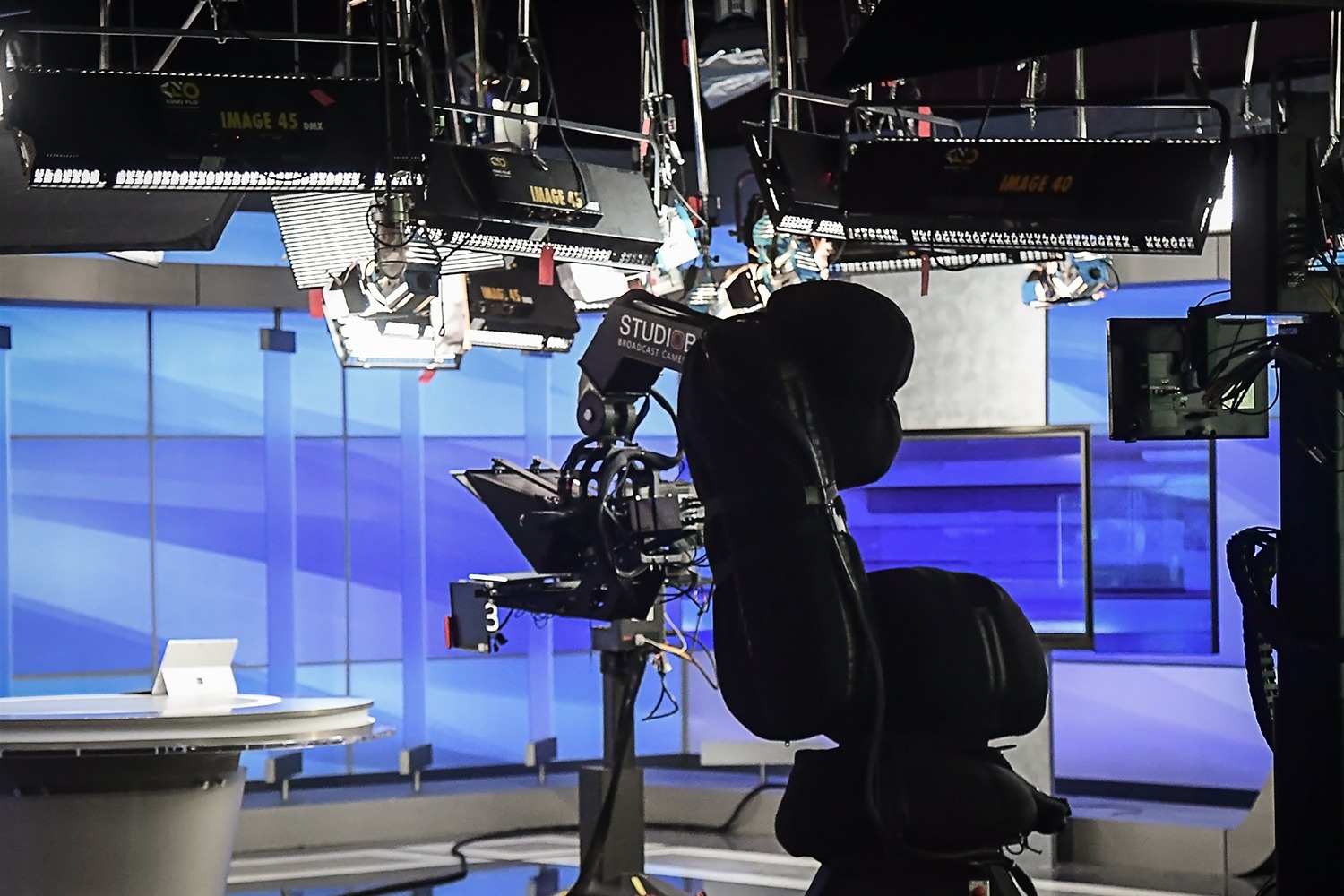

Studiobot XL

The StudioBot XL is a larger 9-axis robotics system with a large operating envelope that offers superior visual creativity to traditional dolly systems. With a high payload capacity and the ability to carry full size teleprompters, the XL supports a wide range of creative shots. Offering all the benefits of integrating with studio automation and 3d graphics systems, the StudioBot XL creates a vast range of programmable and repeatable shots for studio environments.

System Highlights

Compact system offering an unparalleled range of motion
and unique camera angles
Ultra smooth and quiet on-air shot
Fully programmable and repeatable moves
Live browsing mode for dynamic on-air move
adjustments
Simple and intuitive user interface
Integration with positional tracking systems
Available with I/O for automation and VR integration

Easy to use

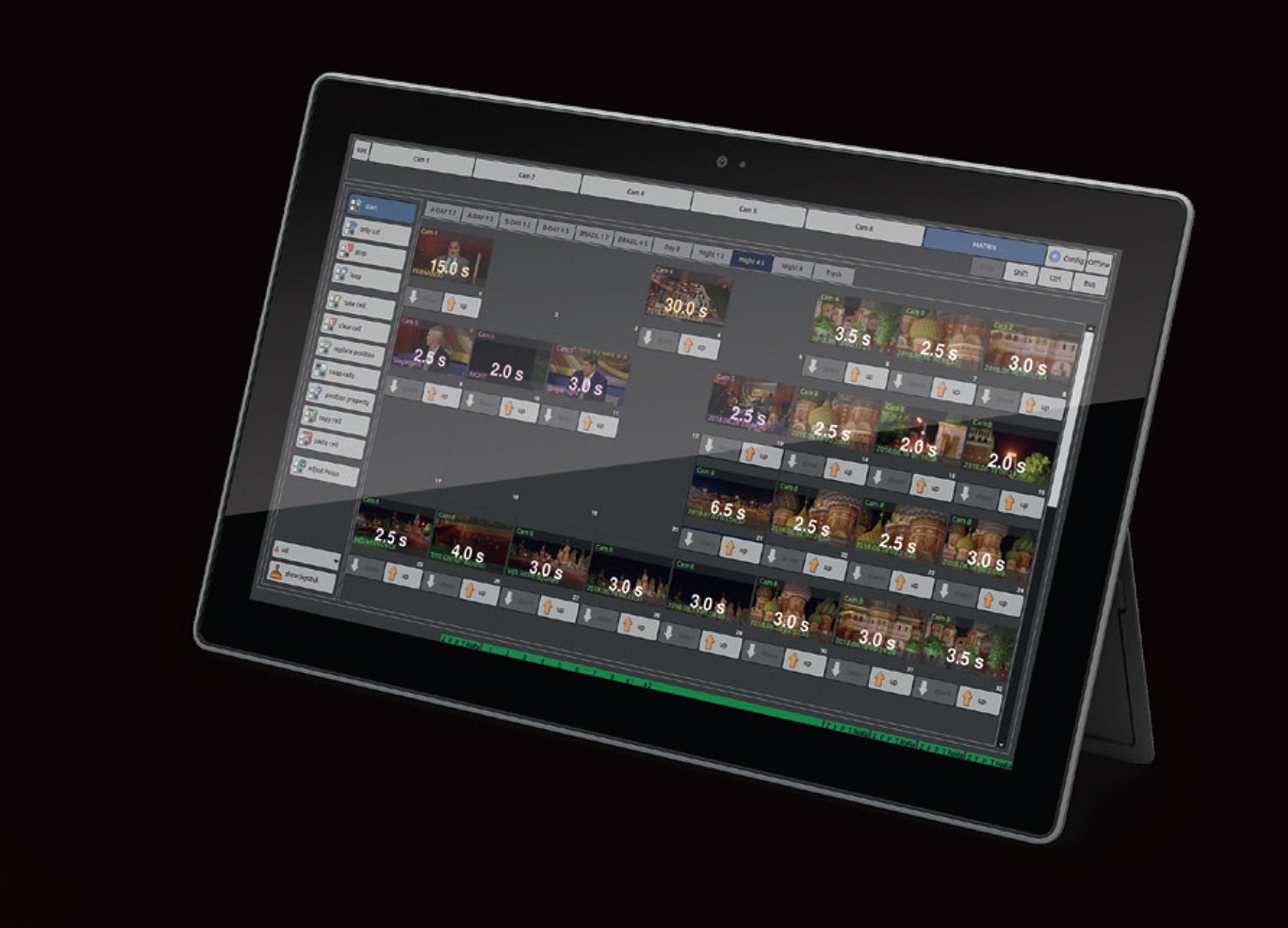

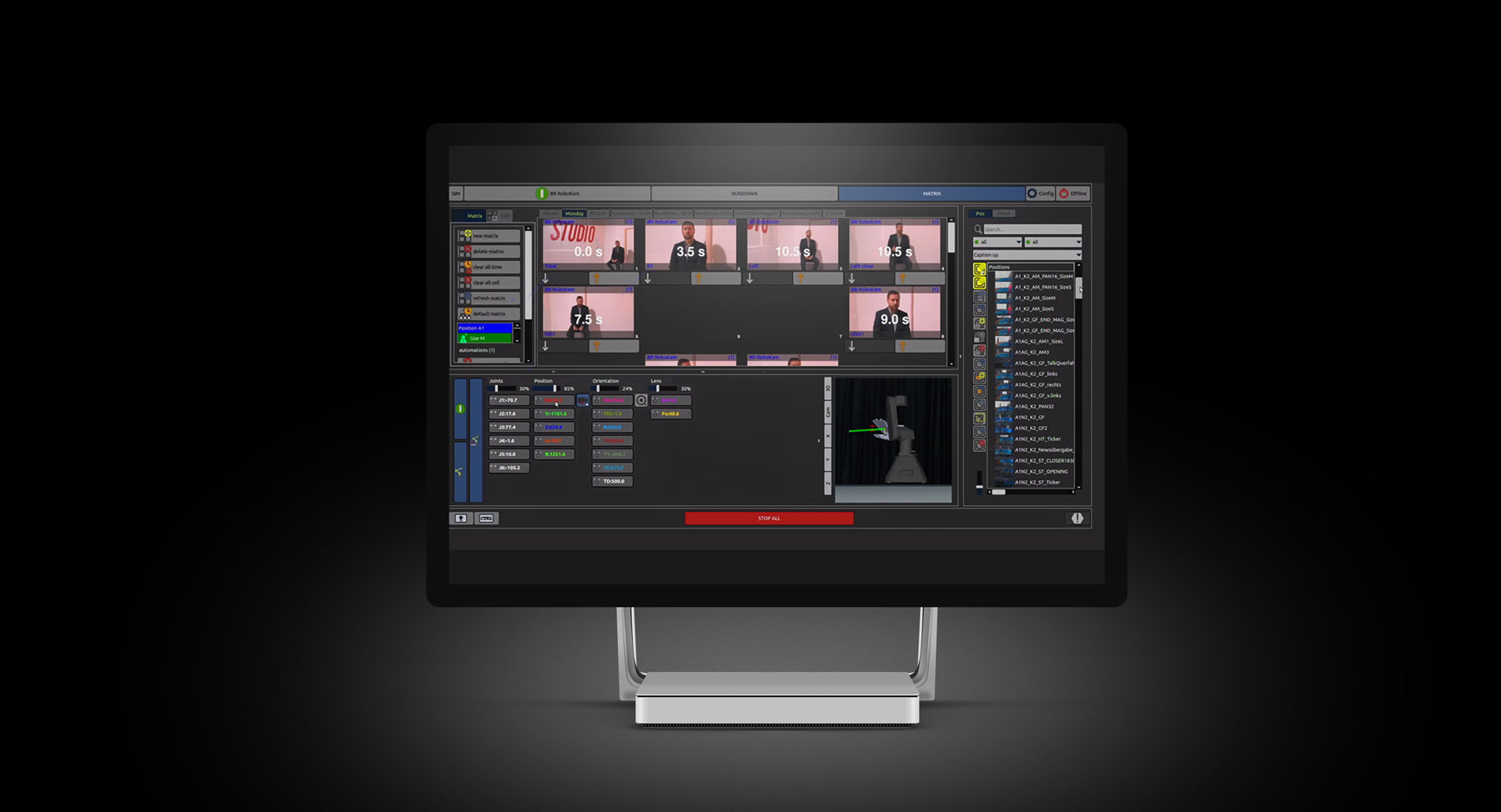

A simple and intuitive user interface allows an operator to design their moves by capturing key positions and timings which MRMC’s renowned motion software effortlessly translates to smooth and highly accurate camera moves.

With both fully automated trigger and live browse control of programmed moves, StudioBot offers the ultimate in flexibility for any production situation.

Feature Highlights

Easy to use

The simple and intuitive interface allows an operator to design their camera movements into smooth, highly accurate motion

Repeatable Moves

Program precise saveable camera preset movements

Flexible automation

The StudioBot offers the ultimate flexibility for any production situation, with both fully automated trigger and live control of programmed moves

Joystick & Broadcast Panel Control

Smooth easy operation with a broadcast panel or joystick

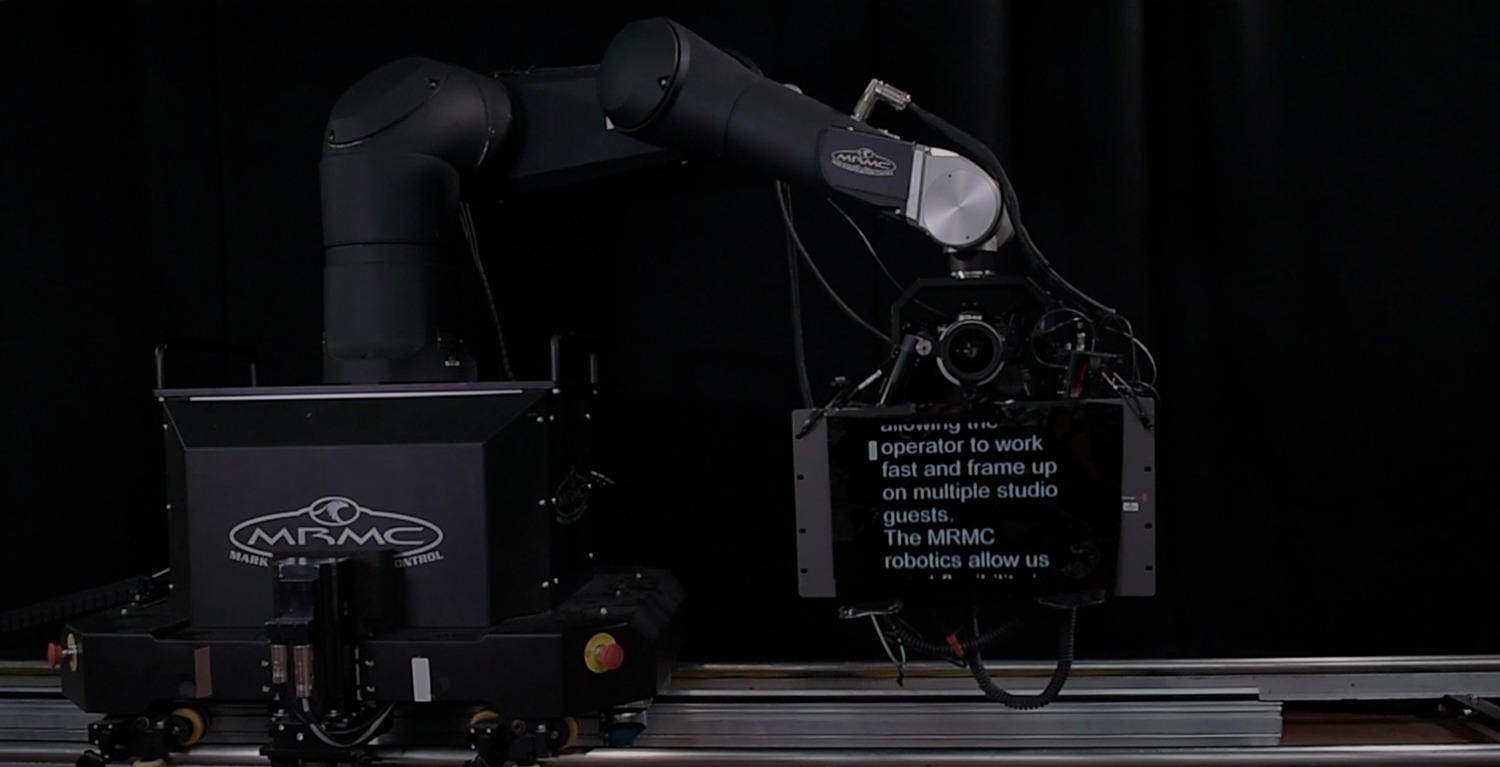

Teleprompter

Innovative teleprompter solution for vibration-free camera moves

Ceiling Mounted Option

The StudioBot X can be floor or ceiling mounted

Autotracking

Automatically tracks presenters

Collision Avoidance

Prevents collisions with studio equipment

Video Studiobot

Specifications

STUDIOBOT
Operating Envelope
- Maximum Height (with level head)

  2.35m
- Lowest position

  0.4m
- Maximum reach (from rotate centre)

  1.09m

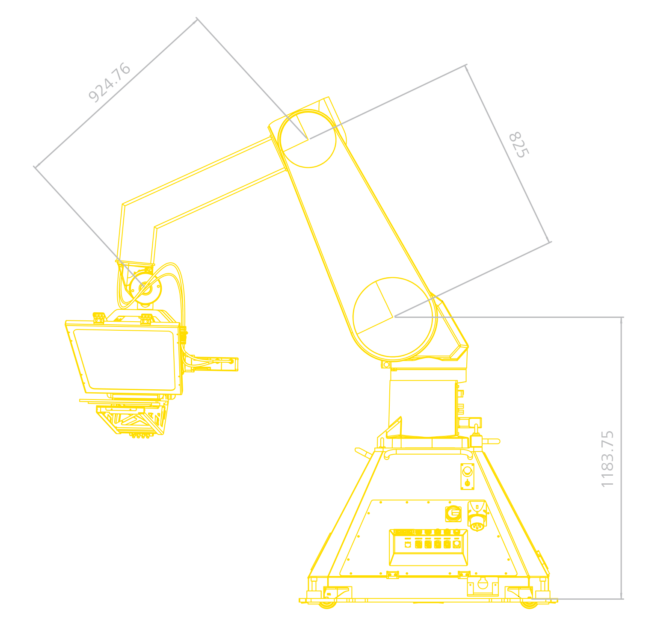

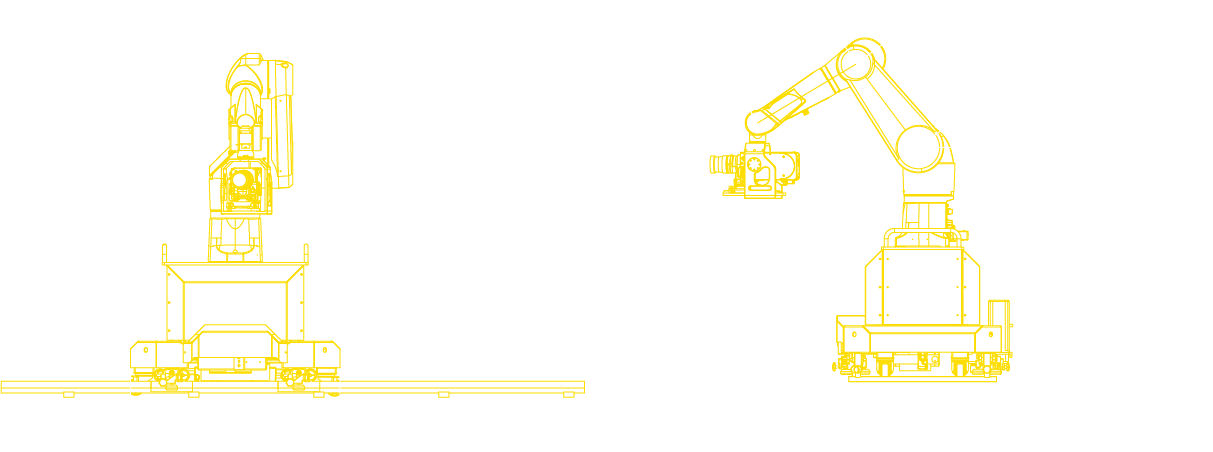

Rig Dimensions (for clearances)
- Height

  1.13m
- Base Width

  0.84m x 1.01m
- Track width

  0.62m

Rig Performance
- Axes

  Range of Travel
- Rotate

  +/- 180°
- Lift

  + 147° to - 130°
- Arm

  +/- 145°
- Pan

  +/- 270°
- Tilt

  + 140° to - 115°
- Roll

  +/- 270°

Download

Specifications

STUDIOBOT XL
Operating Envelope
- Maximum Height (with level head)

  2.8m / 9’2”
- Lowest position

  Ground level
- Maximum reach (from rotate centre)

  1.76m / 5’8”
Rig Performance
- Repeatability

  ± 0,05mm
- Robot Speed

  up to 1 m/s
- Nominal Load

  14kg
- Linear Track Speed

  1 m/s
- Redundancy Power Supply

  RAID-System
- Supported Lenses

  All Types
