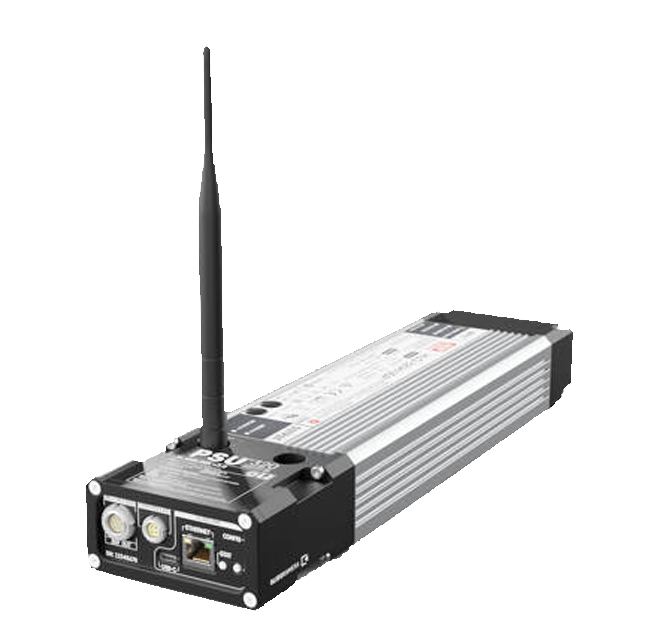

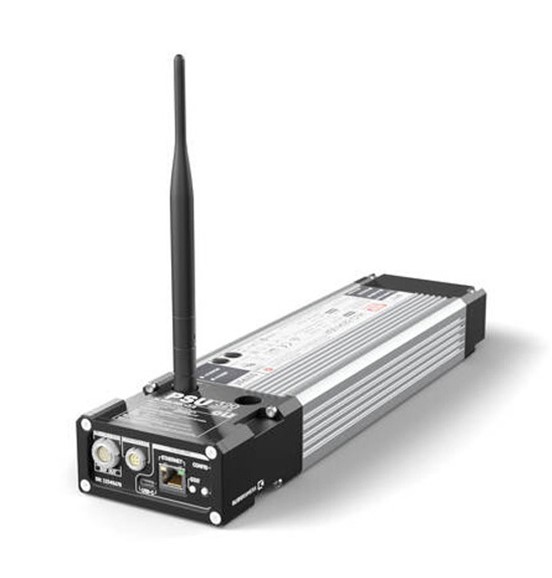

Power Supply Unit 320W with Slidelink 3.0
POWER FOR ALL
A robust power adapter with a power output of up to 320W will run all your motion control devices. Thanks to the wide input voltage range (100-240V), you won’t need to worry about separate power bricks during worldwide travels. The universal IEC C14 inlet will help you find a suitable power cable, even in the most exotic locations.
A robust power adapter with a power output of up to 320W will run all your motion control devices. Thanks to the wide input voltage range (100-240V), you won’t need to worry about separate power bricks during worldwide travels. The universal IEC C14 inlet will help you find a suitable power cable, even in the most exotic locations.
MOTION CONTROL SIMPLIFIED

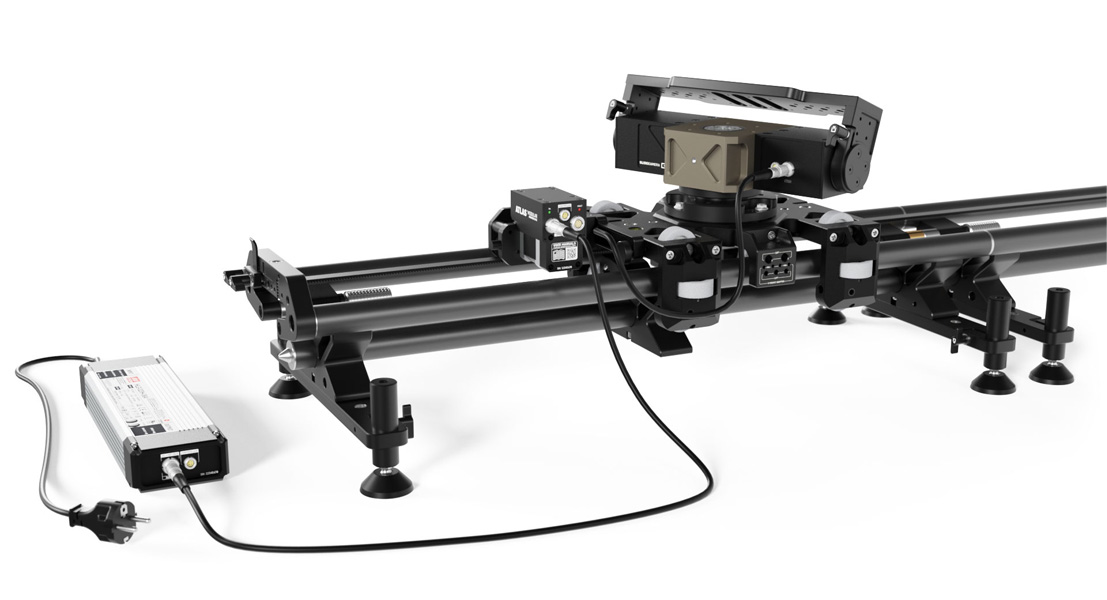

Are you tired of all those cables? So are we. That’s why we developed a system that requires only one cable for each device. You don’t need separate cables for power and data. There’s only one robust wire with professional, heavy-duty plugs. All you have to do is daisy-chain all your drives and enjoy the system’s simplicity.
Centralised Power and Control
Our new Power Supply Units are not a regular AC chargers. They’re a central hub of your motion control setup. You can plug your controller directly to the PSU, and all your devices powered from that source are connected to the controller.
Our new Power Supply Units are not a regular AC chargers. They’re a central hub of your motion control setup. You can plug your controller directly to the PSU, and all your devices powered from that source are connected to the controller.
SLIDELINK v3.0
With an integrated network module (SLIDELINK 3.0), you can use Ethernet or Wi-Fi to connect a group of motion control devices with the controller (that may be the KAIROS controller, a PC with a DRAGONFRAME software or the SLIDEKAMERA’s SLIDEYE 2.0 app).
With an integrated network module (SLIDELINK 3.0), you can use Ethernet or Wi-Fi to connect a group of motion control devices with the controller (that may be the KAIROS controller, a PC with a DRAGONFRAME software or the SLIDEKAMERA’s SLIDEYE 2.0 app).

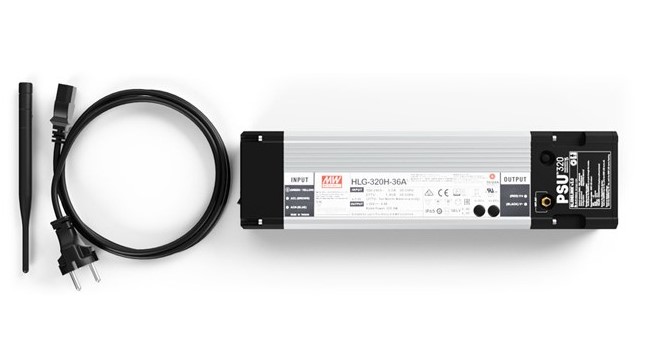

SET INCLUDES
- PSU 320 – AC adapter with a Slidelink 3.0 module
- 110/230V power cable
- Wi-Fi antenna
- PSU 320 – AC adapter with a Slidelink 3.0 module
- 110/230V power cable
- Wi-Fi antenna
Dimensions
Width
90mm
Length
346mm
Height
44mm (w/o an antenna)
Power
Power Input
100-240V 3.5A 50/60Hz
Power Output
36V 8.9A 50/60Hz
Rated Power
320W
Inputs
AC power input:
IEC C14 inlet
controller:
mini-Lemo 4-pin (includes 12V power out for the controller)
Outputs
HET-BUS & DC 36V:
LEMO 6-pin

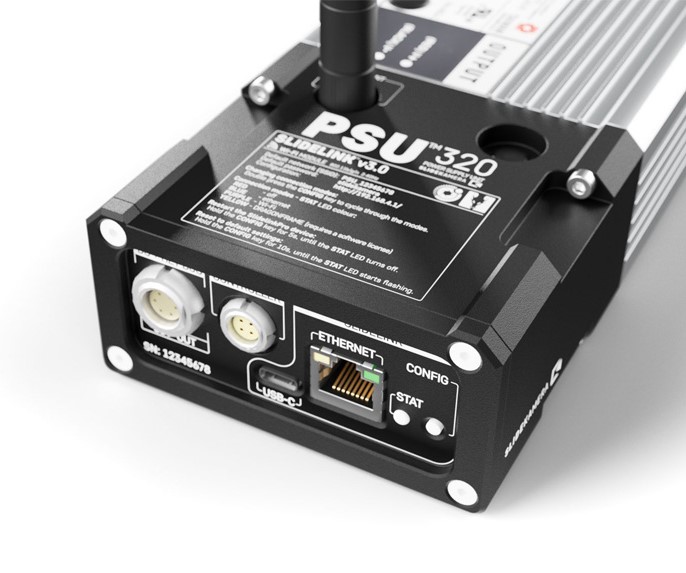

Slidelink v3.01 I/O
USB-C, RJ-45 (Ethernet)
