MONOHEAD STUDIO

Payload 16 KG
Rotation Speed 72°/s (360°/5s)
Axis One

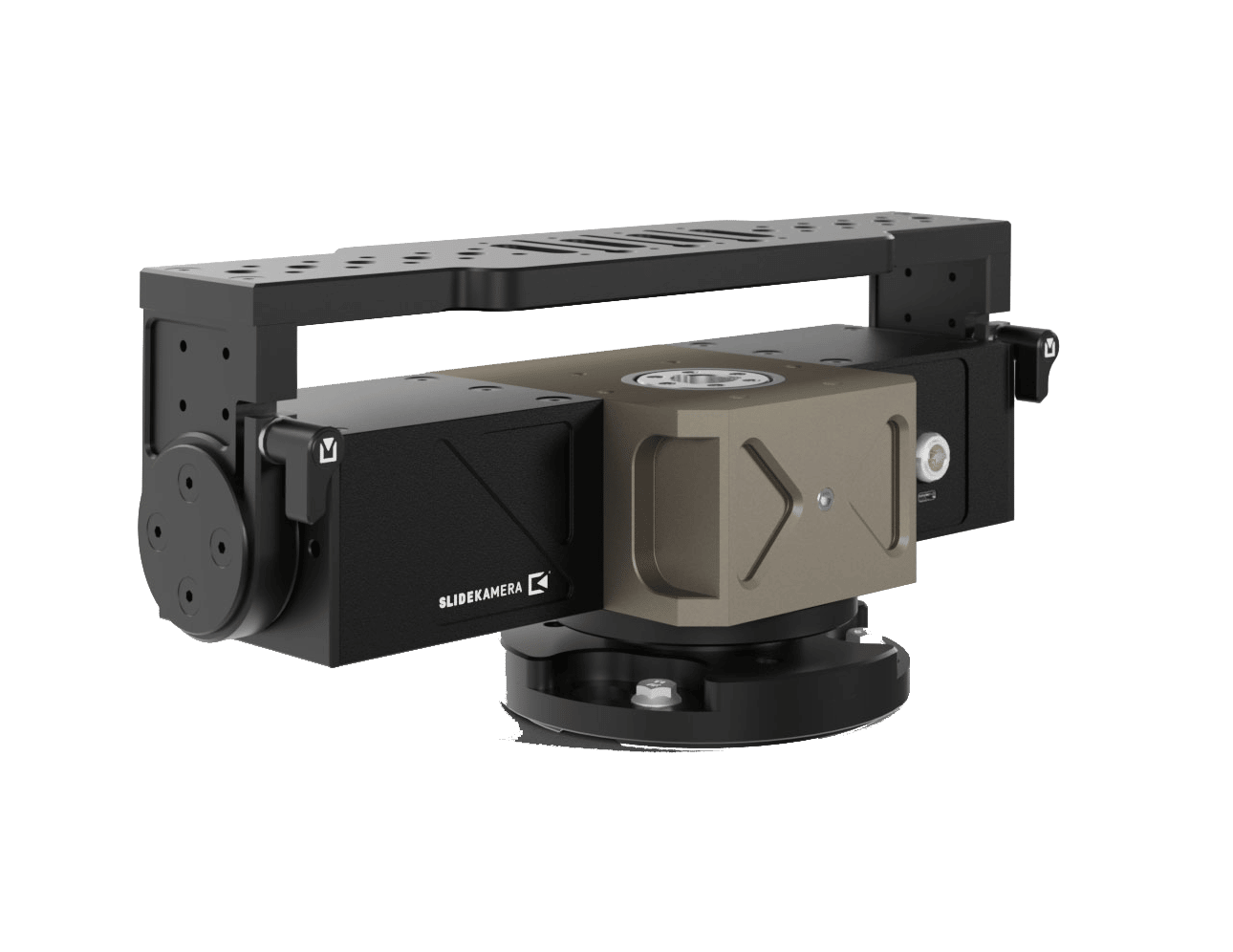

The Monohead Studio is areinforced 1-axis remote head (PAN only) with PARALLAX feature that ensures the filmed object will remain in the right spot in the frame.

FOR SHOOTING INTERVIEWS OR RECORDING LIVE SHOWS

Reinforced Design

Reinforced Design

MONOHEAD STUDIO featured a reinforced panorama gear set that increases stability and allows the user to work with heavier cameras. The head’s rigidity opens new ways for utilising the product – you can use it as a rotating device for scenography or lighting.

Seamless Set Up

UNIFIED HEAD MOUNT

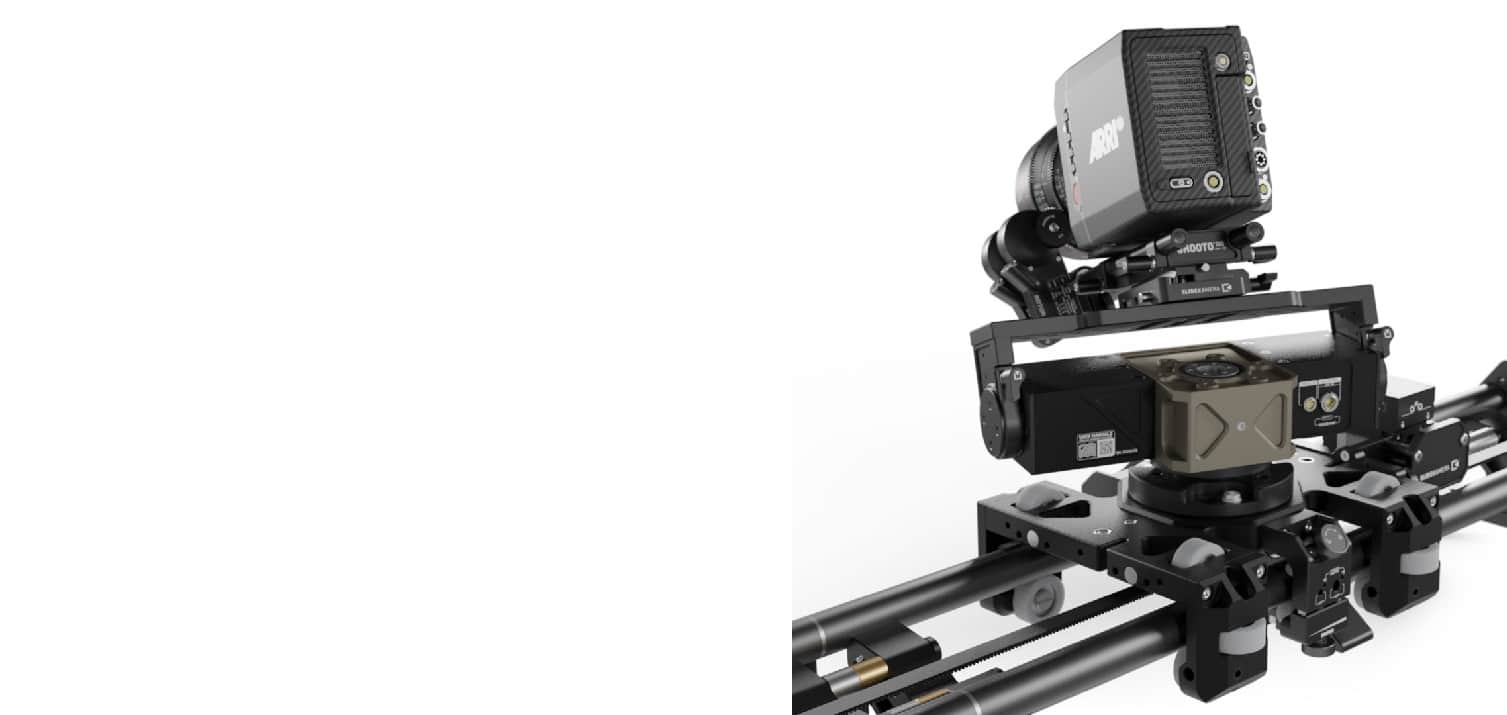

The MONOHEAD STUDIO received our unified head mount, compatible with SLIDEKAMERA’s heavy sliders (the TITAN slider and ATLAS MODULAR), as well as our jibs and tripods. This ensures that the head is mounted firmly and allows to attach the unit safely in an upside-down configuration.

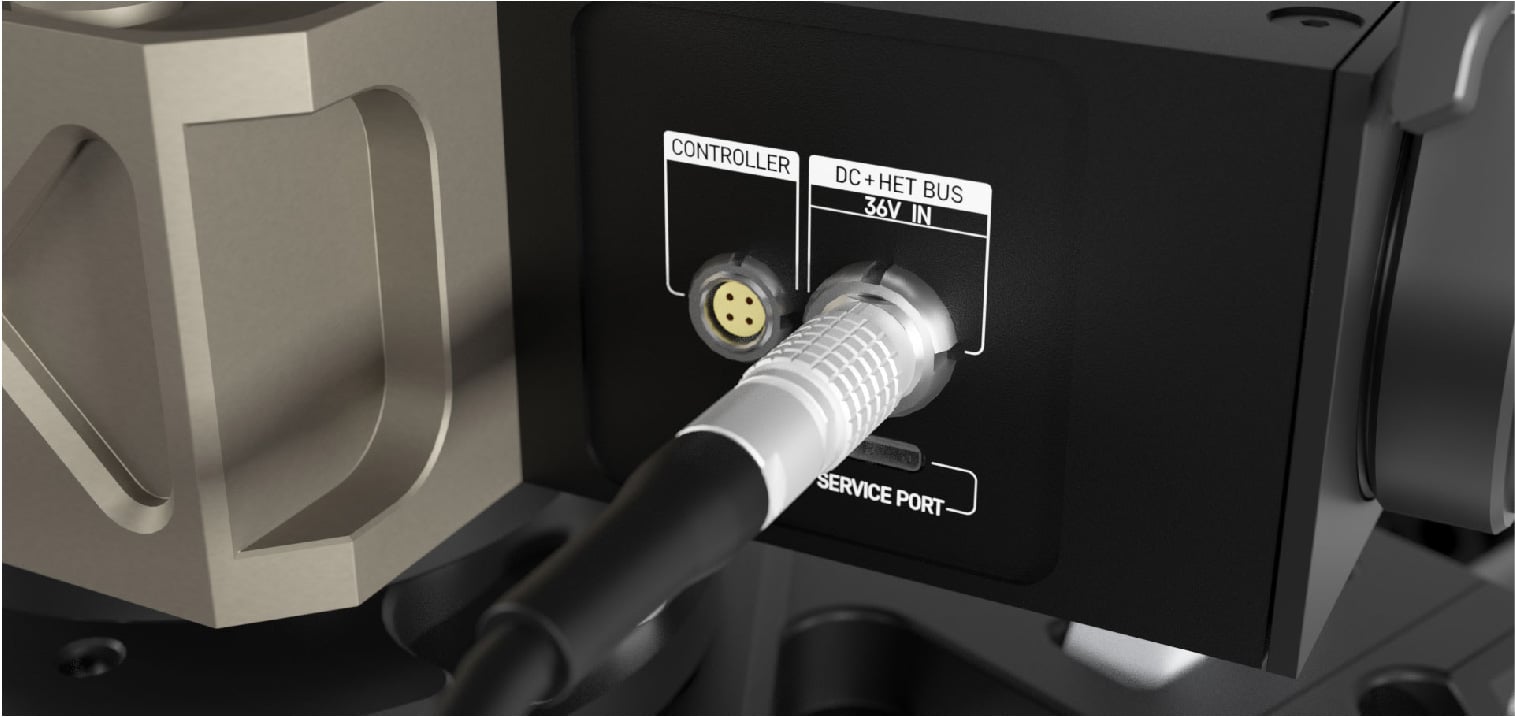

HIGH-QUALITY CONNECTORS

HIGH-QUALITY CONNECTORS

Our new lineup of devices uses heavy-duty LEMO connectors. The new design includes power and data connections in one cable, which allows you to work faster and safer – without tangling the unnecessary wires.

The connectors are compatible with a wide range of AC adaptors, from small chargers for one device to large power bricks with communication modules designed for big setups.

CONTROLLER OPTIONS

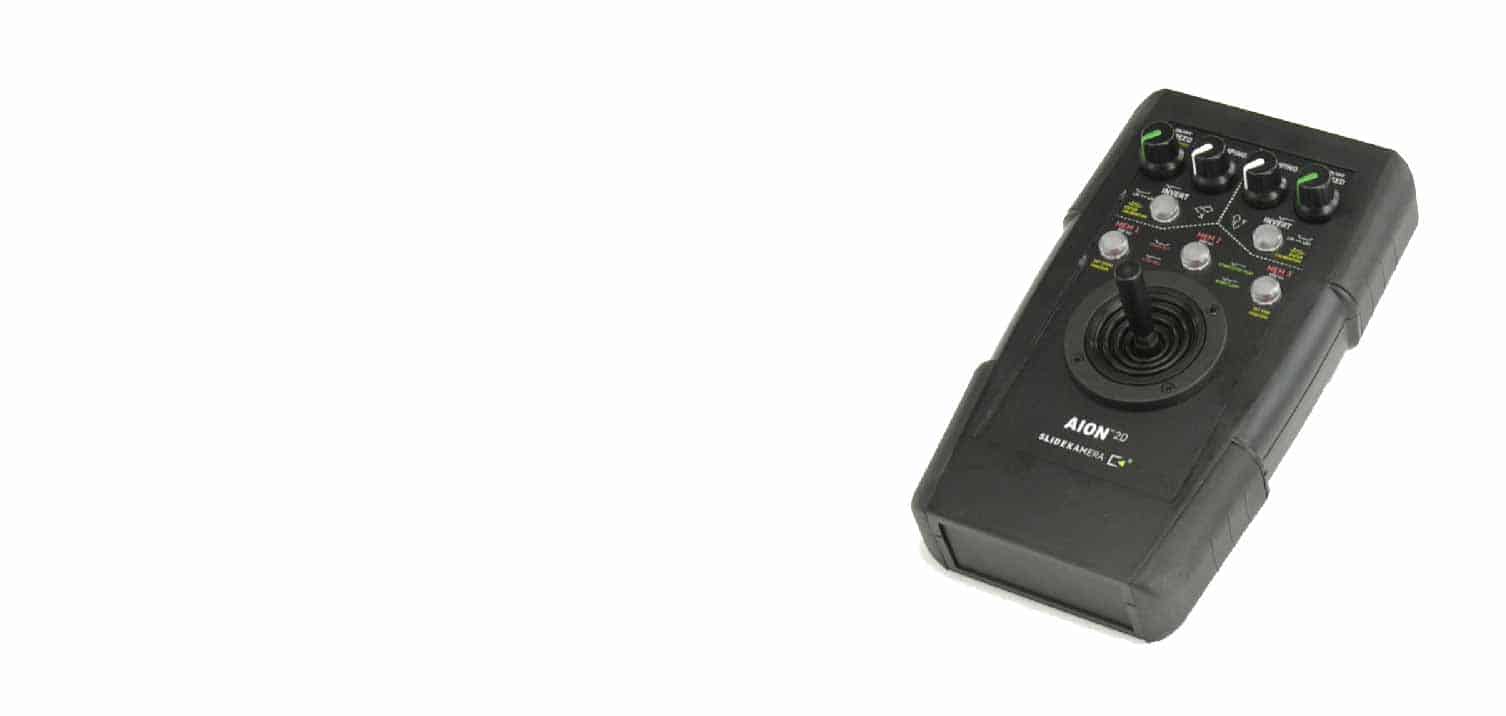

OPTIONAL AION 2D CONTROLLER

OPTIONAL AION 2D CONTROLLER

  • simple and lightweight
  • up to two axes (head only)
  • intuitive control with a joystick
  • adjustable speed and acceleration
  • 3 memory banks to store and playback motion path
  • simple and lightweight
  • up to two axes (head only)
  • intuitive control with a joystick
  • adjustable speed and acceleration
  • 3 memory banks to store and playback motion path

MULTI-HEAD CONTROL (MHC) SOFTWARE

MULTI-HEAD CONTROL (MHC) SOFTWARE

Whether you want an interface (skin) for different sporting events such as tennis, darts etc., or for studios, stadiums or other live events, MHC can be tailored to the user’s requirements for complete speed, control and functionality.

LEARN MORE

Whether you want an interface (skin) for different sporting events such as tennis, darts etc., or for studios, stadiums or other live events, MHC can be tailored to the user’s requirements for complete speed, control and functionality.

LEARN MORE

BROADCAST PANEL

BROADCAST PANEL

The Broadcast Panel is a robust fit-for-purpose controller designed for day-in, day-out use in professional studios or OB (Outside Broadcast) environments. The ergonomically designed panel provides precise joystick and full axis control of robotic systems and PTZs.

LEARN MORE

The Broadcast Panel is a robust fit-for-purpose controller designed for day-in, day-out use in professional studios or OB (Outside Broadcast) environments. The ergonomically designed panel provides precise joystick and full axis control of robotic systems and PTZs.

LEARN MORE

prev
next

Integrates with Polymotion Chat

Automated Control of Robotic Heads and PTZs

Automated Control of Robotic Heads and PTZs

Using limb and face detection software Polymotion Chat tracks subject movements and provides stable and natural-looking content. The camera agnostic automated subject tracking system is available for multiple broadcast and capture scenarios with 3 different solutions available.

LEARN MORE

Build Your Kit

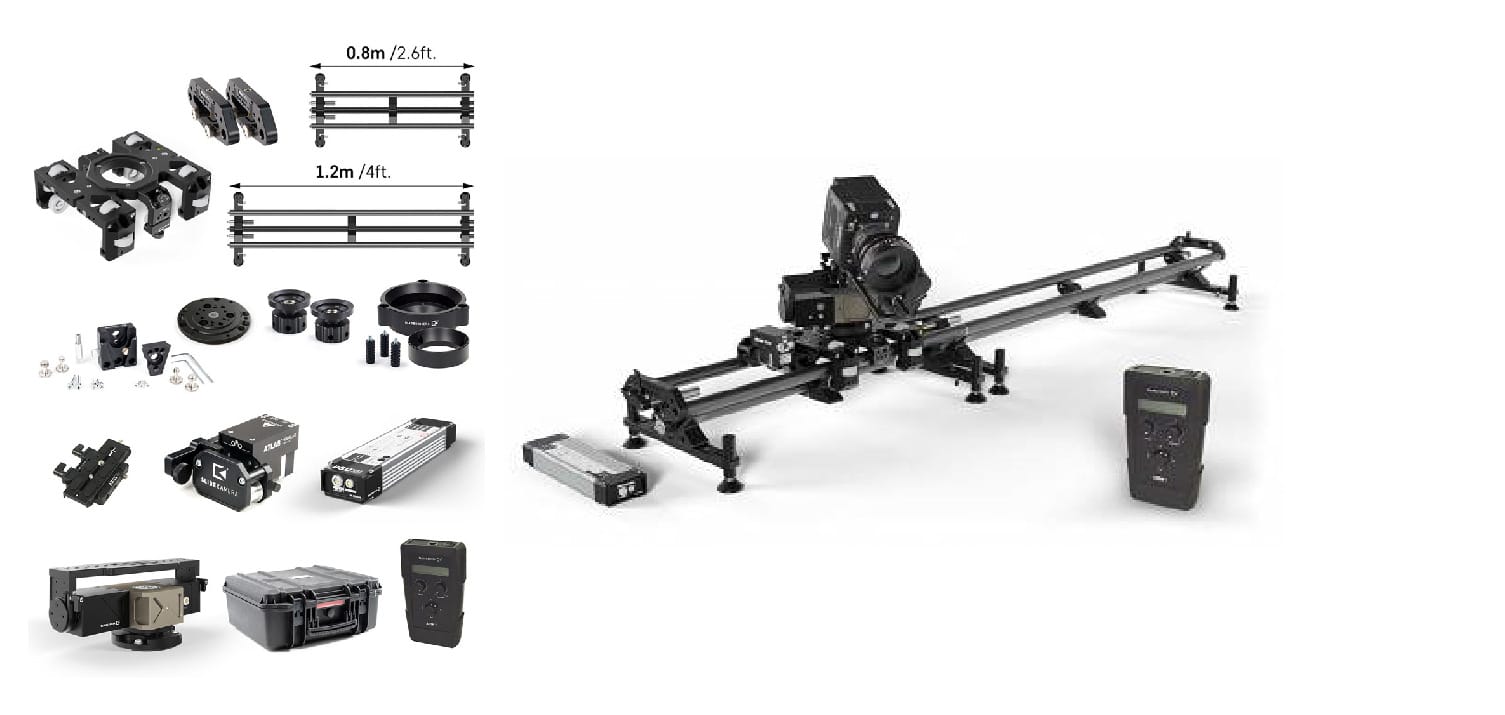

MONOHEAD STUDIO With ATLAS SLIDER

SET INCLUDES

  • ATLAS MODULAR Slider – 2m: 0.8m and 1.2m sections with feet
  • ATLAS MODULAR DOLLY MK2
  • ATLAS STEPPER DRIVE
  • MONOHEAD STUDIO 1-axis remote head
  • AION IQ
  • PSU 185 – Power Supply Unit, 110V/230V power cable

SET INCLUDES

  • ATLAS MODULAR Slider – 2m: 0.8m and 1.2m sections with feet
  • ATLAS MODULAR DOLLY MK2
  • ATLAS STEPPER DRIVE
  • MONOHEAD STUDIO 1-axis remote head
  • AION IQ
  • PSU 185 – Power Supply Unit, 110V/230V power cable

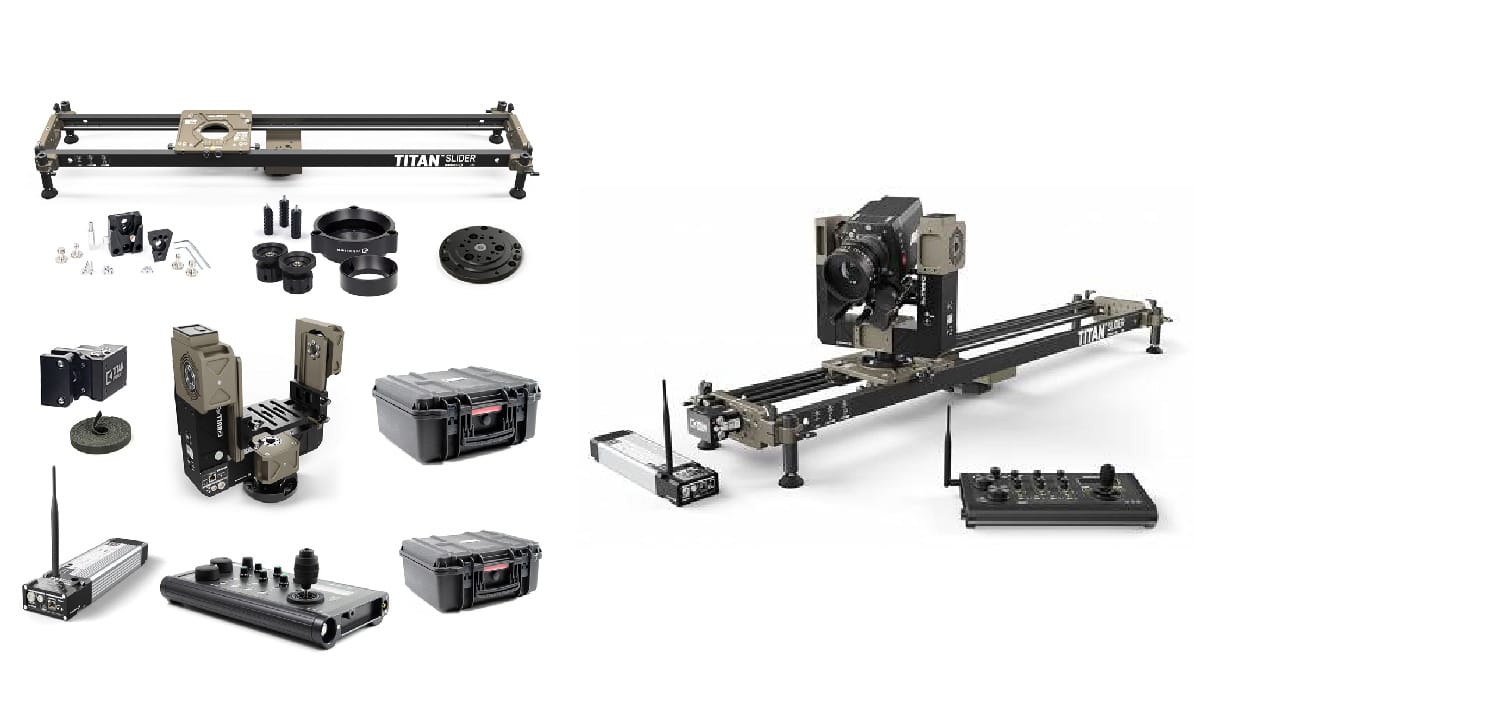

MONOHEAD STUDIO With TITAN SLIDER

SET INCLUDES

  • TITAN SLIDER
  • TITAN STEPPER DRIVE – stepper motor unit
  • timing belt – 2m (3m for 1.5m slider)
  • MONOHEAD STUDIO 1-axis remote head
  • AION IQ – 2-axis controller
  • PSU 185 – Power Supply Unit

SET INCLUDES

  • TITAN SLIDER
  • TITAN STEPPER DRIVE – stepper motor unit
  • timing belt – 2m (3m for 1.5m slider)
  • MONOHEAD STUDIO 1-axis remote head
  • AION IQ – 2-axis controller
  • PSU 185 – Power Supply Unit
prev
next

PRODUCT HIGHLIGHTS

FULL REMOTE OPERATION / PRODUCTION

ONE-BUTTON TOUCH PRE-SET RECALL

RELIABLE FOR VIDEO AND STILL CAPTURE

POLYMOTION CHAT AND MHC COMPATIBLE

REPEATABLE MOVES

SPECIFICATIONS

Maximum payload capacity

16kg

Dimensions

Width: 317mm, Depth: 136 mm, Height: 136 mm

Inputs

HET-BUS & DC 36V

LEMO 6-pin

Controller

mini-LEMO 4-pin (includes 12V power out for the controller

Service Port

2 x USB-C

Outputs

LCS

mini-LEMO 6-pin

Power

Power

24V to 36V DC max 120W + PDMOVIE (3 axes) max 40W
