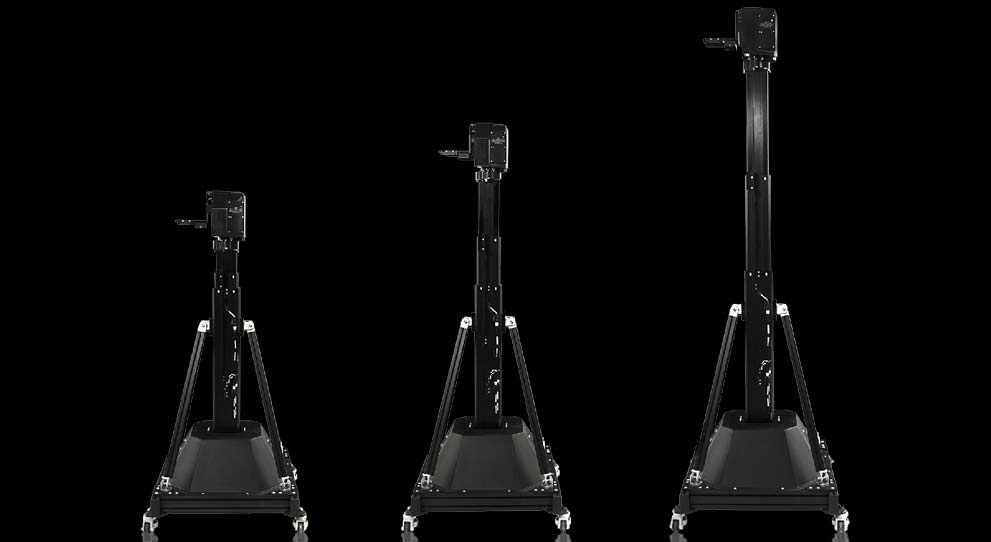

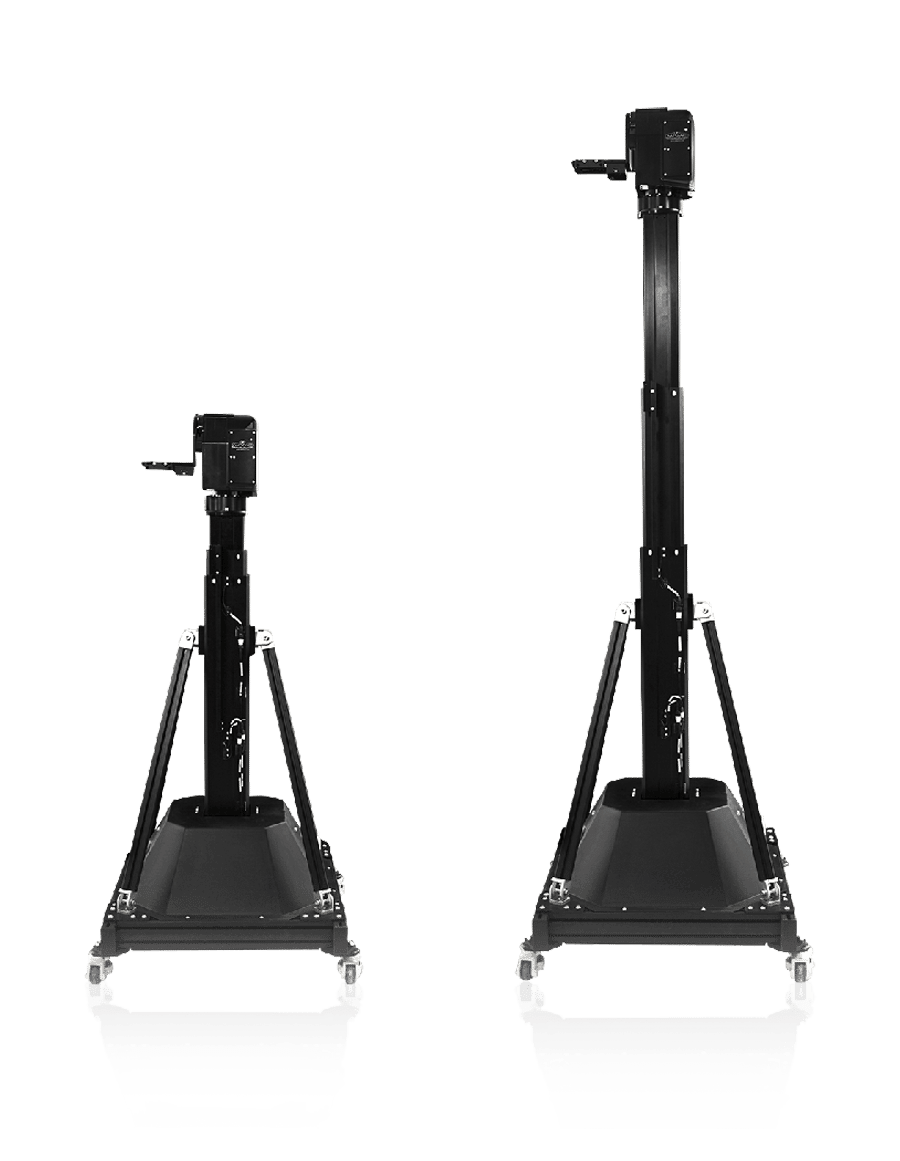

Lift Column

STUDIO BROADCAST CAMERA PEDESTAL

Set Up Time 20min
Max Height 2.02M
Speed on Track 1M/S

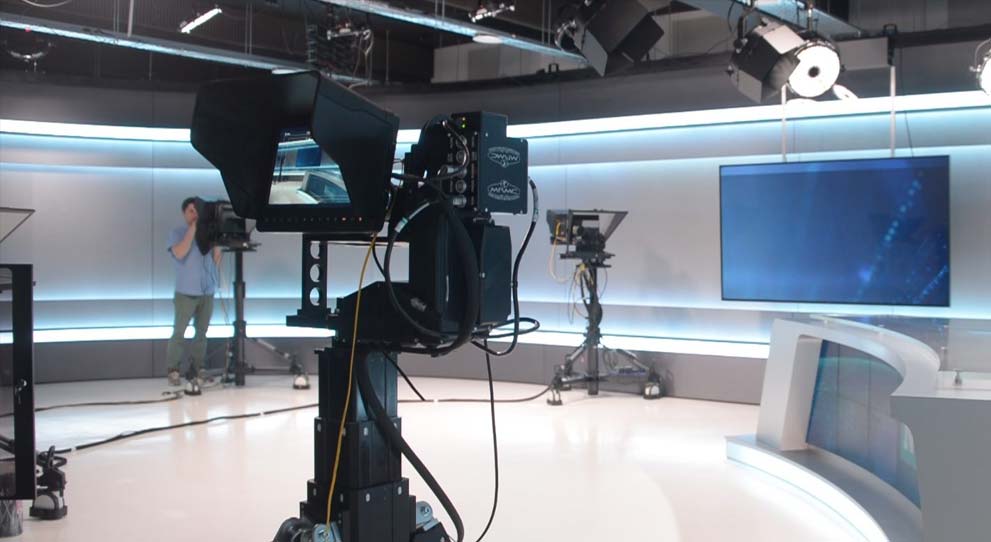

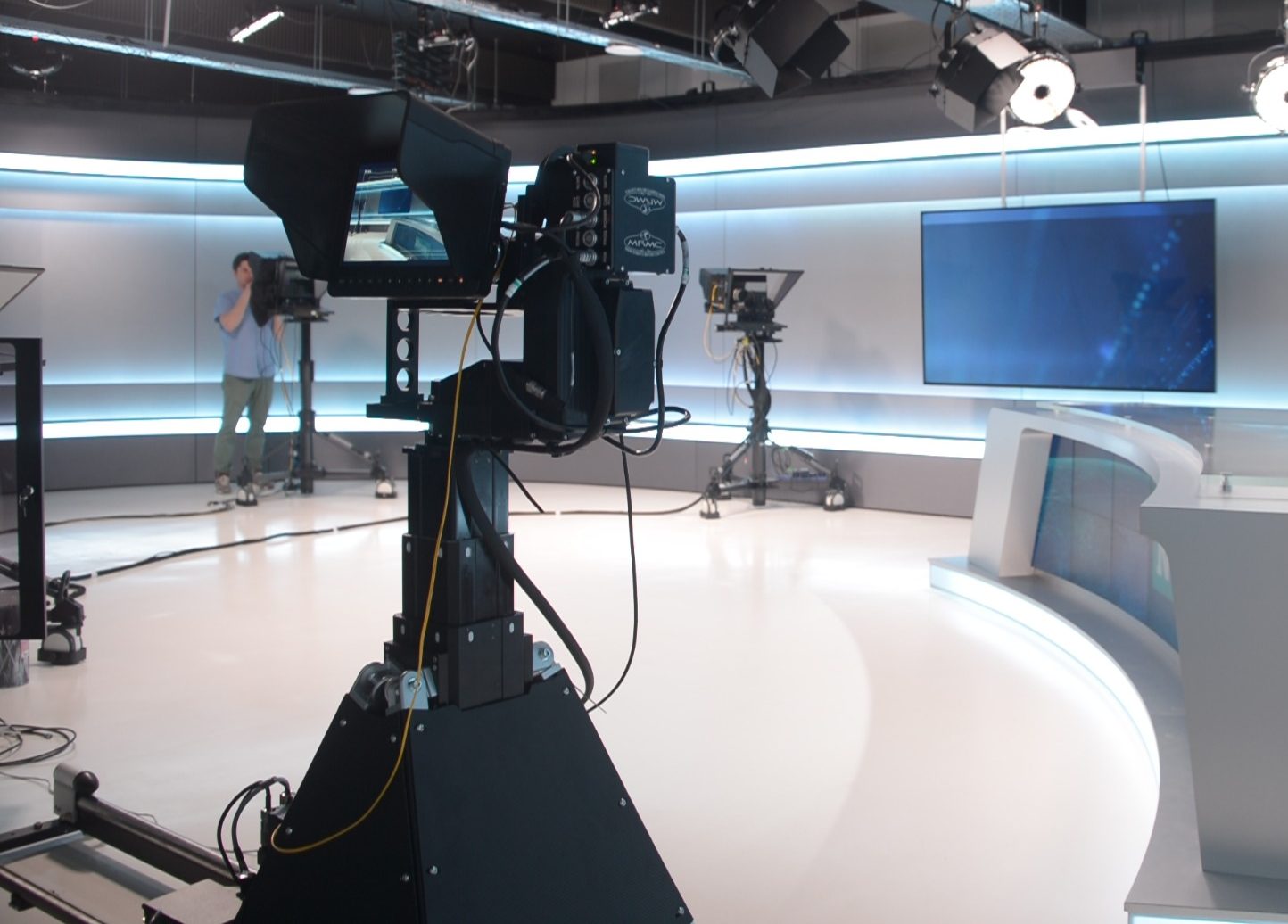

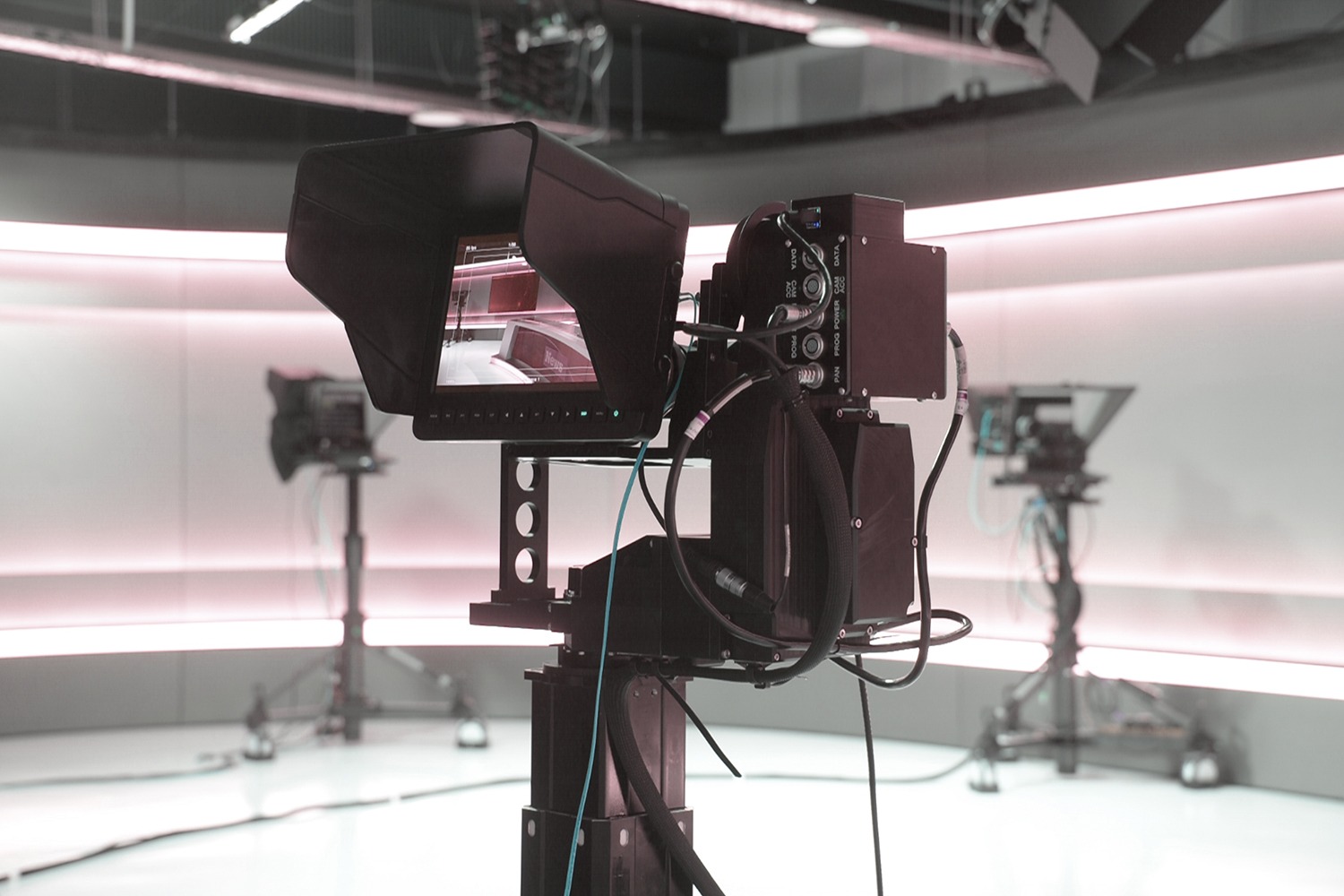

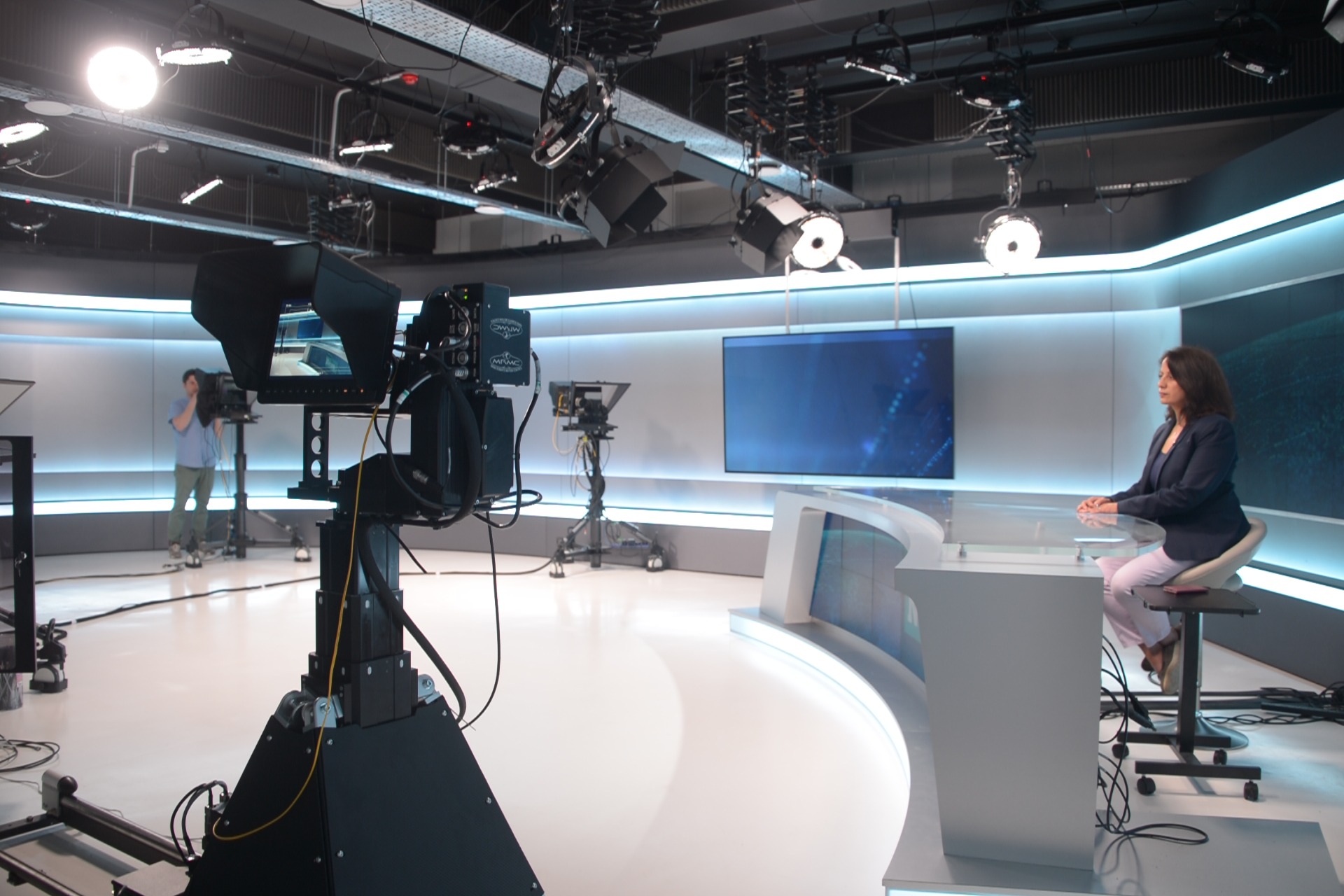

The multi-faceted broadcast Lift Column is designed to bring a dynamic look to studio broadcasting. The broadcast camera pedestal has a smooth, silent vertical motion, which helps deliver engaging visual content to even the simplest of broadcasts.

The multi-faceted broadcast Lift Column is designed to bring a dynamic look to studio broadcasting. The broadcast camera pedestal has a smooth, silent vertical motion, which helps deliver engaging visual content to even the simplest of broadcasts.

Key Features

FLEXIBLE USE

FLEXIBLE USE

Mount this compact, multi-axis studio system in a variety of ways, from a standard stationary position to being mounted on a track for more shooting variety, to an inverted position on a ceiling, to deliver a range of movements and shots.

On-Air Adjustments
Designed for quick and easy set-up, the lift column can be up and ready to shoot in 20 minutes. The ultra smooth and quiet motion make it ideal for on-air use, and a live-browsing mode allows for dynamic motion adjustments while shooting.

Mount this compact, multi-axis studio system in a variety of ways, from a standard stationary position to being mounted on a track for more shooting variety, to an inverted position on a ceiling, to deliver a range of movements and shots.

On-Air Adjustments
Designed for quick and easy set-up, the lift column can be up and ready to shoot in 20 minutes. The ultra smooth and quiet motion make it ideal for on-air use, and a live-browsing mode allows for dynamic motion adjustments while shooting.

FULL MOTION CONTROL

FULL MOTION CONTROL

Take advantage of our Flair motion control software and its simple, intuitive user interface to program and save camera movements.

Key Benefits

  • Compact multi-axis studio system with unique vertical motions
  • Ultra smooth and quiet on-air shots
  • Fully programmable and repeatable moves
  • Live browsing mode for dynamic on-air move adjustments
  • Simple and intuitive user interface
  • Integration with positional tracking systems
  • Available with I/O for automation and VR integration

Take advantage of our Flair motion control software and its simple, intuitive user interface to program and save camera movements.

Key Benefits

  • Compact multi-axis studio system with unique vertical motions
  • Ultra smooth and quiet on-air shots
  • Fully programmable and repeatable moves
  • Live browsing mode for dynamic on-air move adjustments
  • Simple and intuitive user interface
  • Integration with positional tracking systems
  • Available with I/O for automation and VR integration

Specifications

Operating Envelope

Maximum Height (with level head)

2.02m (SFH-50) / 1.93m (AFC-100)

Lowest position

1.2m (SFH-50) / 1.10m (AFC-100)

Rig Dimensions (for clearances)

Height

1.25m (SFH-50) / 1.15m (AFC-100)

Base Width

0.77m x 0.98m

Track width

0.76m

Rig Performance

Lift

200mm/s

Vertical Travel

8/10cm/s

Pan

Unlimited

Tilt

+140º to -115º

Rig Speed on Track

Up to 1m/s
