LFP Controller

Control 12Heads
Presets 10Buttons

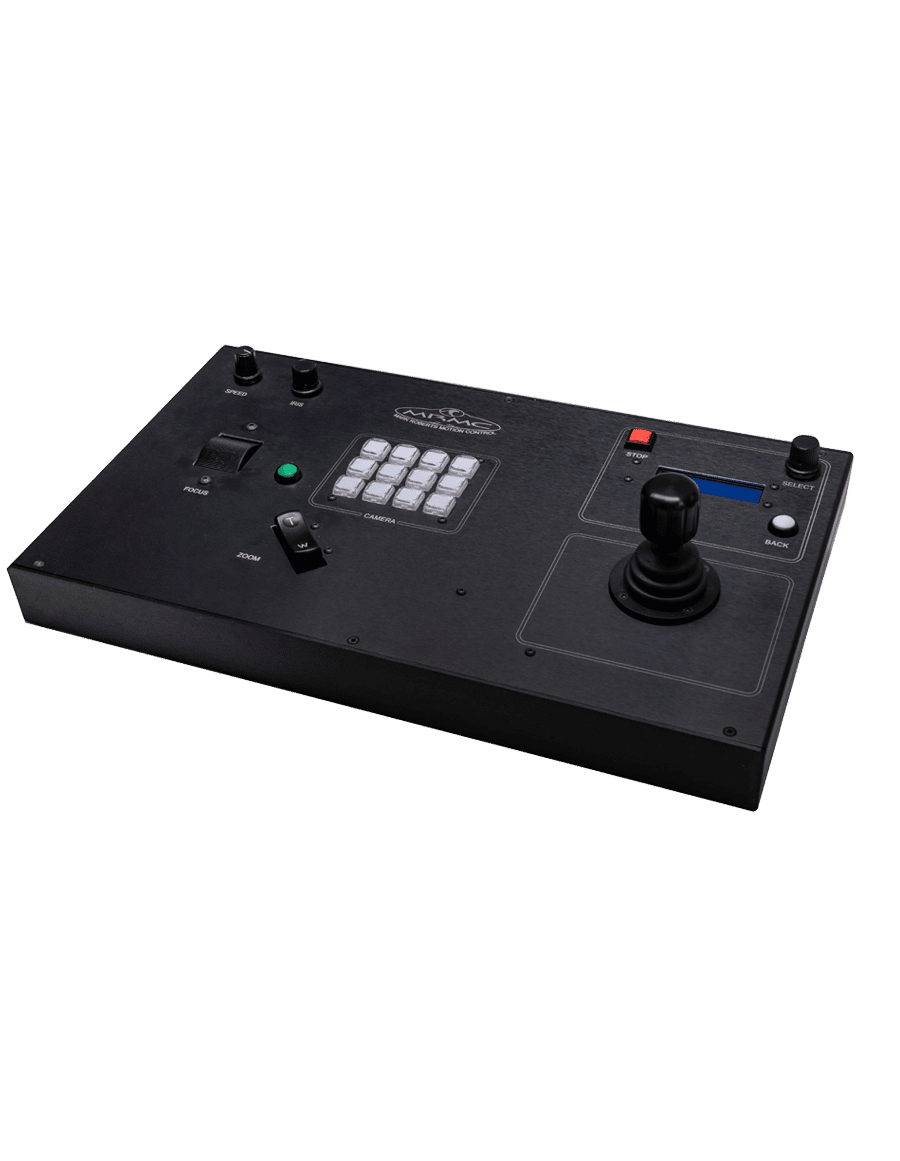

The USB Large Format Panel (LFP) is a robust controller designed for day-in, day-out use in a professional studio and OB (Outside Broadcast) environments, providing full control of our complete range of MRMC heads and rigs. Working with MHC (or RT Leaders) the LFP can control up to 12 robotic heads or camera systems, giving users complete flexibility and control in any environment.

The USB Large Format Panel (LFP) is a robust controller designed for day-in, day-out use in a professional studio and OB (Outside Broadcast) environments, providing full control of our complete range of MRMC heads and rigs. Working with MHC (or RT Leaders) the LFP can control up to 12 robotic heads or camera systems, giving users complete flexibility and control in any environment.

Key Features

CONTROL APPLICATIONS

CONTROL APPLICATIONS

The LFP Controller is ideal for a multitude of different requirements, including control of robotic heads and dolly systems for small, medium and large studios, as well as for other broadcast environments – including universities, auditoriums, OBs or houses of worship.

The LFP Controller is ideal for a multitude of different requirements, including control of robotic heads and dolly systems for small, medium and large studios, as well as for other broadcast environments – including universities, auditoriums, OBs or houses of worship.

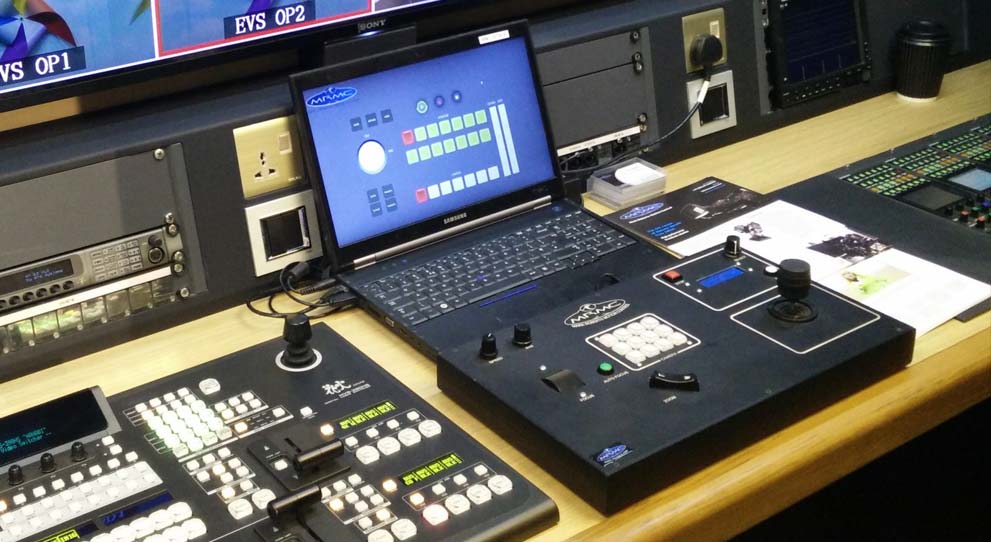

REMOTE PRODUCTION

REMOTE PRODUCTION

In conjunction with MHC (IP based system ), the LFP Controller is a plug and play system that can control heads remotely and in different locations. It can control MRMC heads or a variety of 3rd party heads such as Panasonic, Sony, BirdDog PTZs etc.

Key Features

  • 1x Master speed control dial
  • 1x Iris control dial
  • 1x E-Stop button
  • 1x LCD message screen
  • 1x Back button
  • 1x Head selection knob
  • 1x Focus wheel
  • 1x Autofocus button
  • 1x Zoom rocker
  • 10x Preset buttons
  • 1x Pan/Tilt/Zoom Joystick

In conjunction with MHC (IP based system ), the LFP Controller is a plug and play system that can control heads remotely and in different locations. It can control MRMC heads or a variety of 3rd party heads such as Panasonic, Sony, BirdDog PTZs etc.

Key Features

  • 1x Master speed control dial
  • 1x Iris control dial
  • 1x E-Stop button
  • 1x LCD message screen
  • 1x Back button
  • 1x Head selection knob
  • 1x Focus wheel
  • 1x Autofocus button
  • 1x Zoom rocker
  • 10x Preset buttons
  • 1x Pan/Tilt/Zoom Joystick

Feature Highlights

USB CONNECTION

BUTTON FUNCTIONS

Can be changed using MHC Controller Mapping function

MHC AND FLAIR COMPATIBLE

LIGHTWEIGHT AND ROBUST

Specifications

Size & Weight

Weight

2kg

Length

260mm

Width

440mm

Height

45mm

Temperature & Humidity

Range

-10 to +45°C

Humidity Tolerance

relative humidity, non-condensing

Connections & Power

Connectors

24V (power out) 3 Pin XLR Male 24V (power out) 3 Pin XLR Female USB Type A

Power

24 DC
