Bolt Jr+
Compact high-speed rig with extended reach
Bolt™ Jr+ is a compact, lightweight high-speed camera robot. This agile, smaller rig also comes with a generous camera payload (10kg) and is an ideal solution for smaller spaces or location work.
Bolt™ Jr+ is a compact, lightweight high-speed camera robot. This agile, smaller rig also comes with a generous camera payload (10kg) and is an ideal solution for smaller spaces or location work.
Key Features
Bolt Jr+ Highlights
Small but mighty
- Long reach (1.4m)
- High payload capacity (10kg)
- Small and portable
- Under half the weight of the Bolt
- Can be used as both a camera rig or model mover
- Track speed in excess of 3m/sec
- Longer reach than the Bolt Jr. (1.4m)
- High payload capacity (10kg)
- Small and portable
- Under half the weight of Bolt rig
- Can be used as both camera rig or model mover
- Track speed in excess of 3m/sec
Compact Lightweight System
Impressive and sophisticated high-speed automated image capture
The compact Bolt Jr+ is engineered to deliver similar high-speed image capture to the Bolt system, all in a smaller, more portable package. Designed for maximum performance at a lower price, it offers unique advantages, being perfect for small studio spaces and on-location projects. Weighing half as much as the Bolt, the Bolt Jr+ is a lightweight motion control solution that can be set up and ready to shoot in under an hour, making it the ideal choice for fast-paced shoots.
The compact Bolt Jr+ is engineered to deliver similar high-speed image capture to the Bolt system, all in a smaller, more portable package. Designed for maximum performance at a lower price, it offers unique advantages, being perfect for small studio spaces and on-location projects. Weighing half as much as the Bolt, the Bolt Jr+ is a lightweight motion control solution that can be set up and ready to shoot in under an hour, making it the ideal choice for fast-paced shoots.
Industry Standard Software
Flair is MRMC’s premier motion control software
Designed to give exceptional command over camera movement, Flair precisely controls up to 500 axes of motion and interfaces seamlessly with CGI packages such as Unreal Engine. Flair is the tool that makes your vision reality.
Designed to give exceptional command over camera movement, Flair precisely controls up to 500 axes of motion and interfaces seamlessly with CGI packages such as Unreal Engine. Flair is the tool that makes your vision reality.
Feature Highlights
Turntables
Portable
DMX
Timelapse
Repeatable
Target Tracking
Lens Control
Maya
Track Options

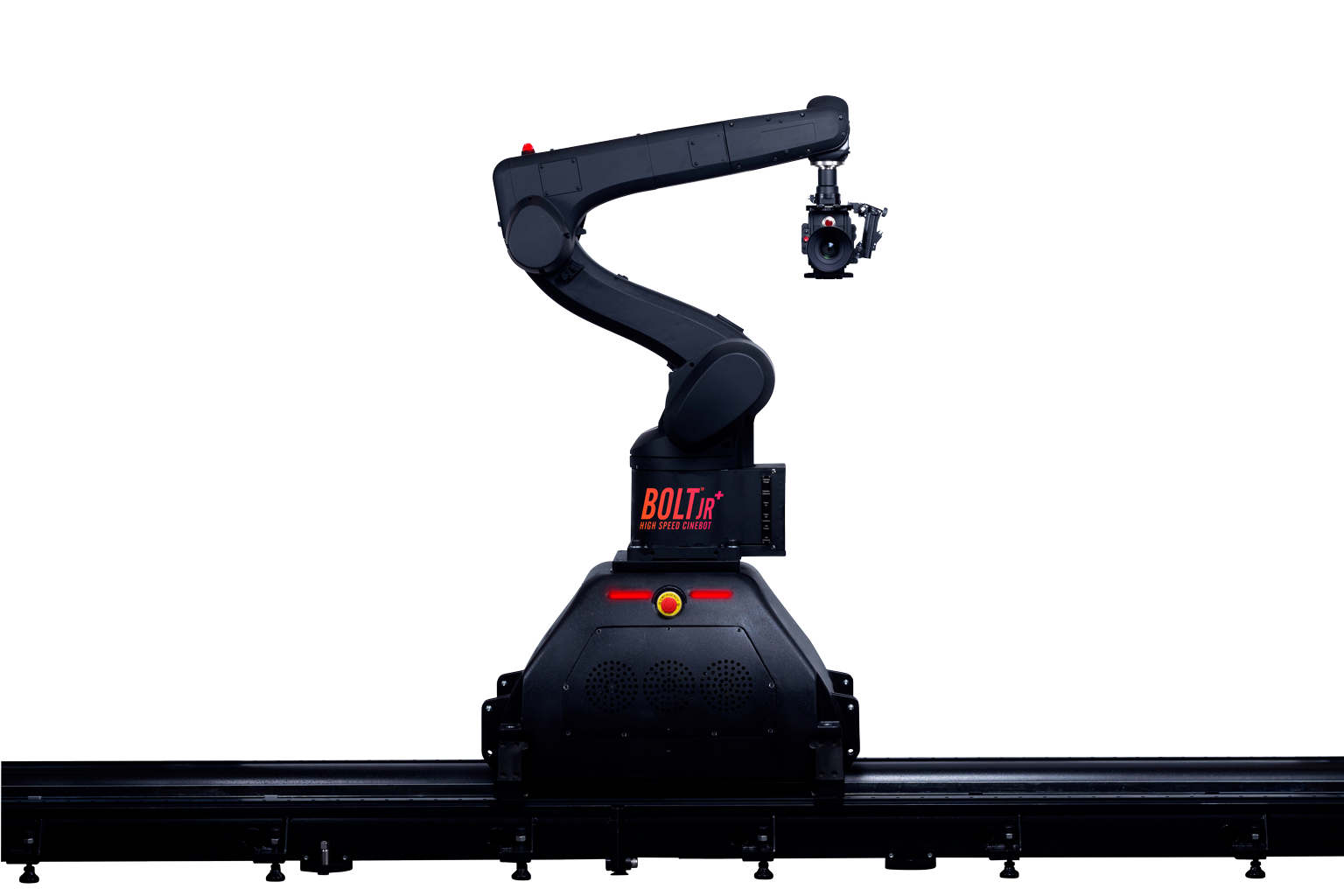

Bolt JR+ On Track
To add another dimension of movement for the Bolt Jr+, you can run the high-speed camera system on track. Run the Bolt Jr+ along a track and follow any object, person, or landscape – giving much more flexibility in terms of visual creativity. With rapid acceleration, the Bolt Jr + on Track can reach up to 11 meters per second with combined arm arc movement. Additionally, through MRMCs Flair software, you have programmable acceleration profiles so you can consistently reach and maintain desired speeds with pinpoint accuracy.
Specifications

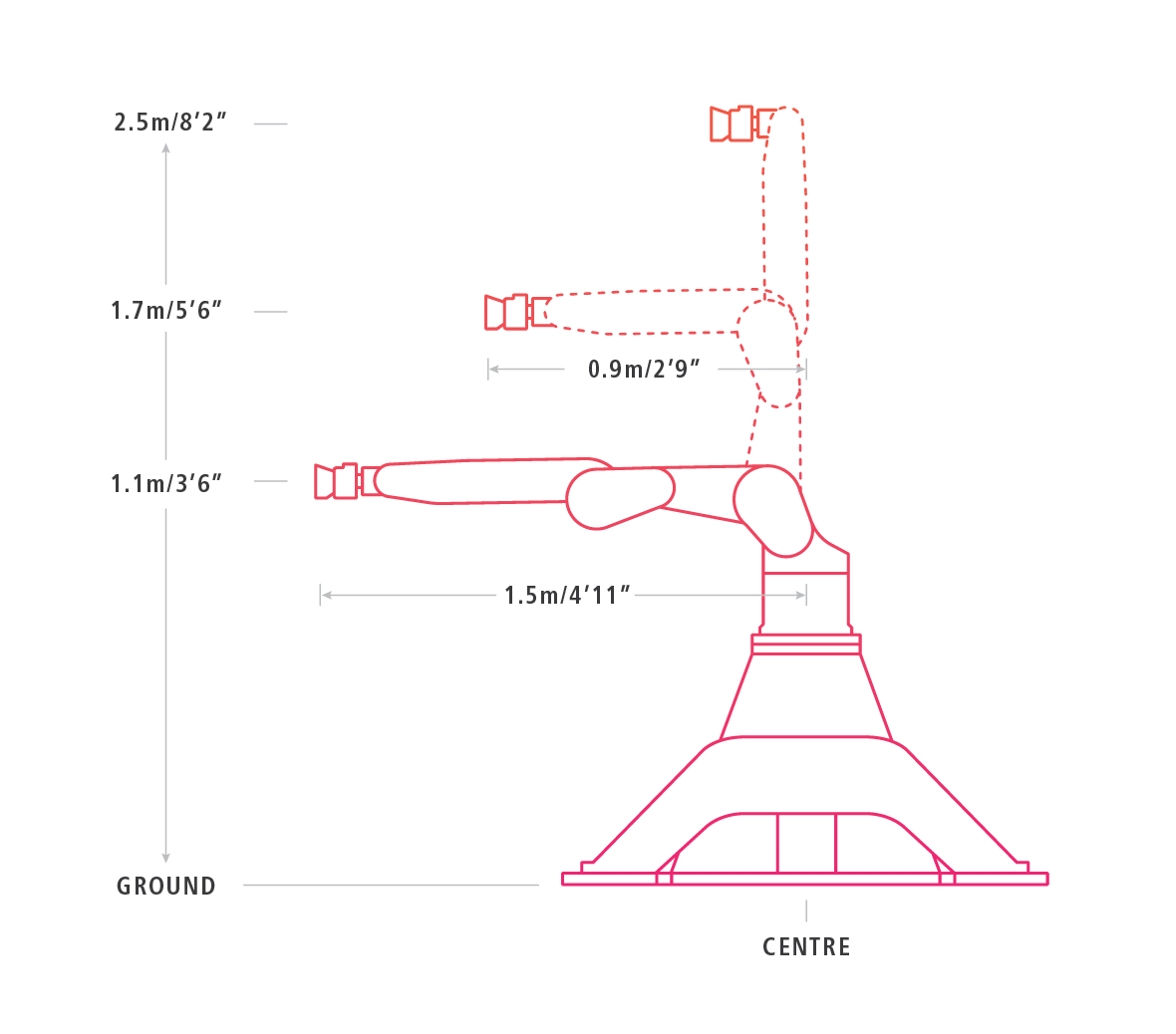

Operating envelope
Max Height (from ground)
2.5m / 8'2"
Max Reach (from rotate centre)
1.4m / 4'6"
Lowest Position
0m / 0'
Rig Performance
Arm ARC Move
6 m/s max speed at camera
Arm with Track
11 m/s max speed at camera
Track
5 m/s max speed at camera
Rotate
+/- 190˚ range of travel
Lift
+150˚/ -90˚ range of travel
Arm
+157˚ / -10˚ range of travel
Pan
+/- 200˚ range of travel
Tilt
+/- 120˚ range of travel
Roll
+/- 360˚ range of travel
Rig Weights
Bolt Jr+
318kg (701 Ibs) +
Transport wheels 50kg (110 Ibs)
Maximum camera payload
10kg / 22lbs
Power Connection
Power Requirements
1 x 200-220 VAC
Controllers
