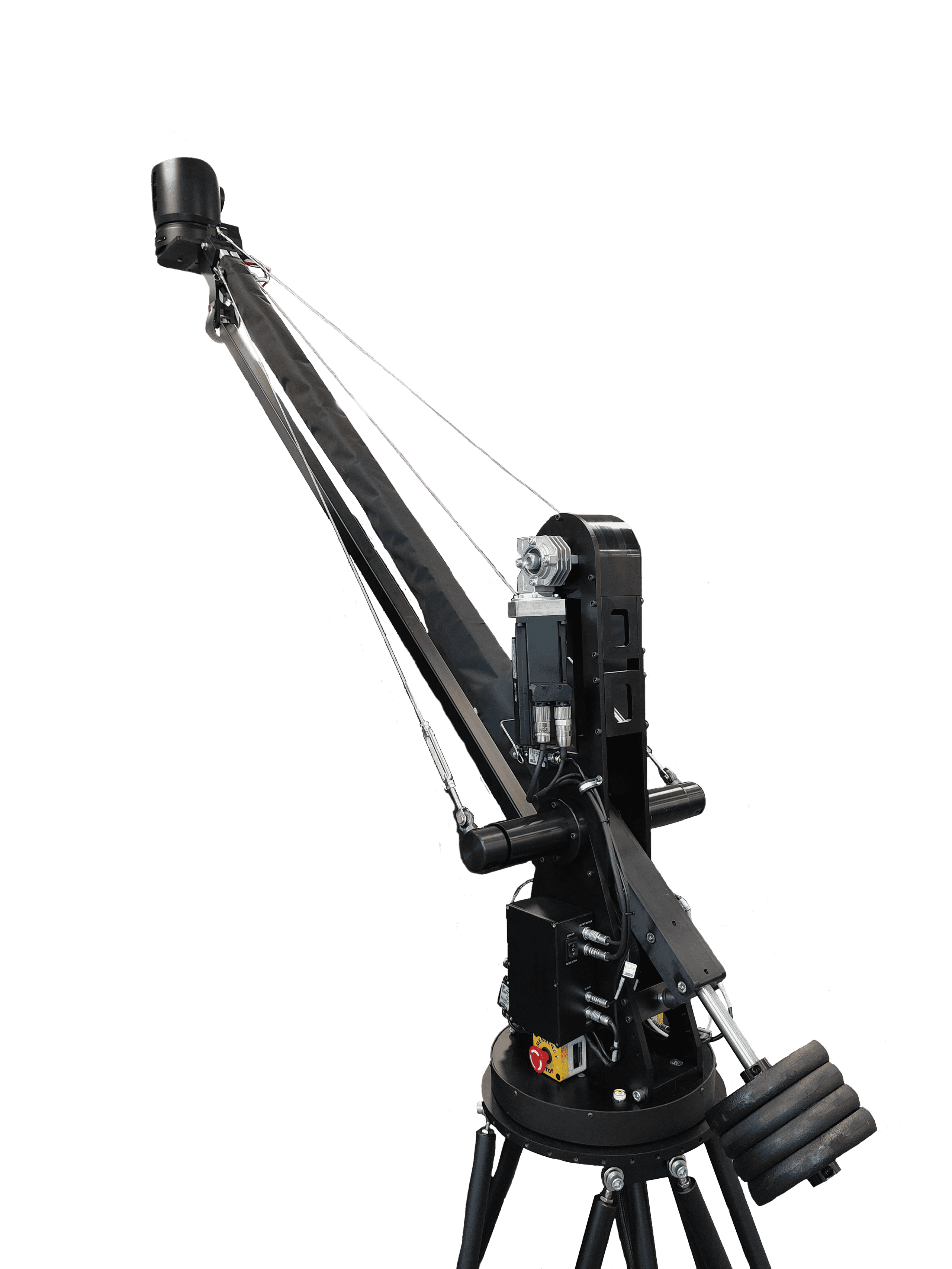

AJS-1 Auto-Jib
Robotic Broadcast PTZ Jib Platform
The AJS-1 Auto-Jib is the perfect solution to enhance your live PTZ-captured content. Capture smooth ’on-air’ movement and repeatable movement with a platform that is extremely quiet and smooth to operate.
The AJS-1 Auto-Jib is the perfect solution to enhance your live PTZ-captured content. Capture smooth ’on-air’ movement and repeatable movement with a platform that is extremely quiet and smooth to operate.
For Studios & Live Events
Smooth and Consistent Output

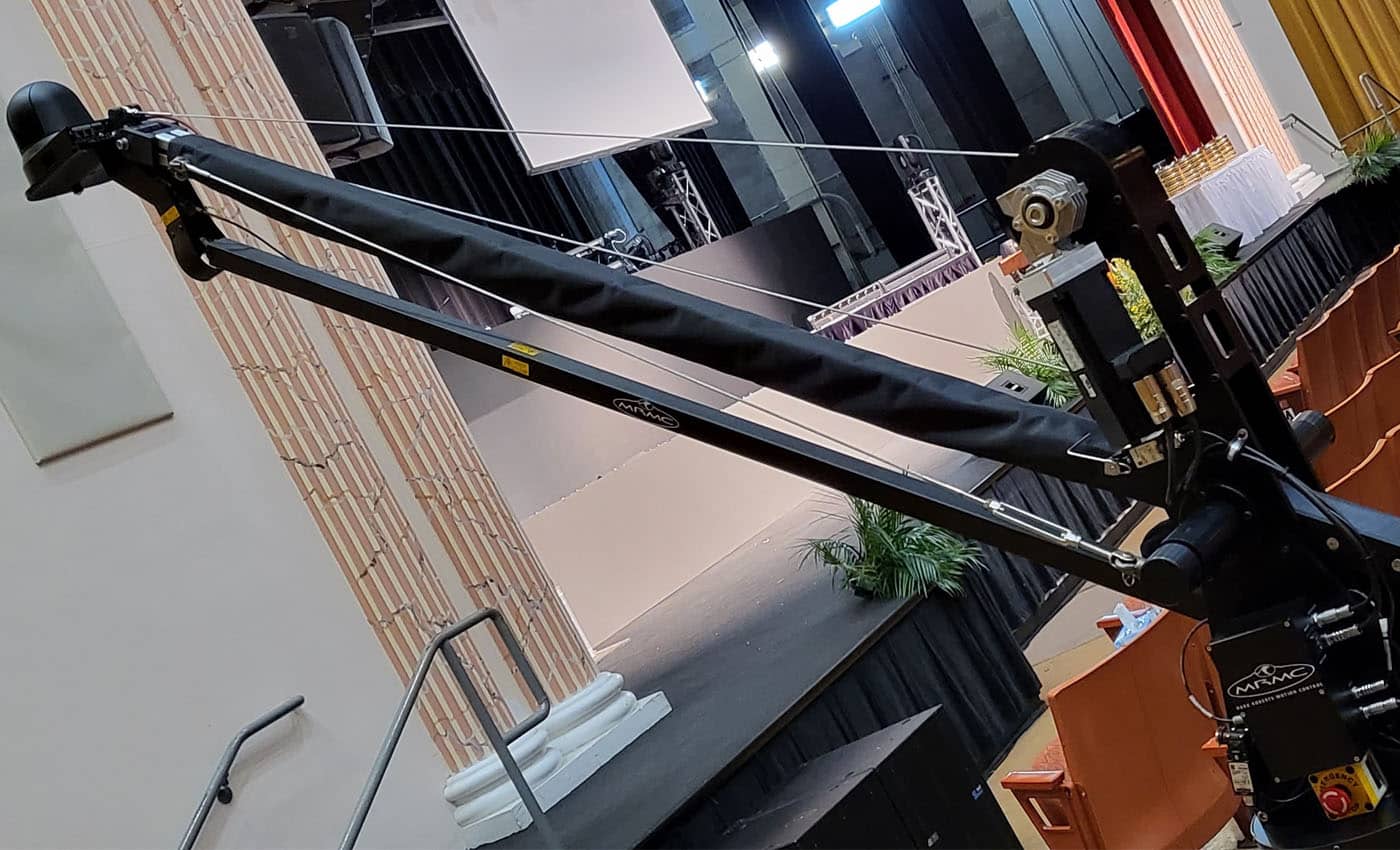

The Auto-Jib delivers smooth motion with quiet operation, ideal for all studio applications and for use in House of Worship with full remote operation capabilities. When used with MRMCs ARC-360 or any 3rd party PTZ cameras, the AJS-1 can help you achieve over-arching shots of crowds and live audiences. The system features a removable camera sled for easy installation. The AJS-1 allows for repeatable moves without the requirement for skilled operators. It can capture consistent repeatable shots, that even the best skilled operators cannot achieve using the same movement twice with a manual jib. The AJS-1 allows you to clone movements across multiple installations e.g., a church with 5 venues of worship, achieving identical signature motion at each venue.
The Auto-Jib delivers smooth motion with quiet operation, ideal for all studio applications and for use in House of Worship with full remote operation capabilities. When used with MRMCs ARC-360 or any 3rd party PTZ cameras, the AJS-1 can help you achieve over-arching shots of crowds and live audiences. The system features a removable camera sled for easy installation. The AJS-1 allows for repeatable moves without the requirement for skilled operators. It can capture consistent repeatable shots, that even the best skilled operators cannot achieve using the same movement twice with a manual jib. The AJS-1 allows you to clone movements across multiple installations e.g., a church with 5 venues of worship, achieving identical signature motion at each venue.
Integration with Tracking Software
Seamless Control
Integration with Polymotion Chat allows the use of MRMC’s award-winning tracking software to work in conjunction with the AJS-1 Jib movement. This allows for the enablement of PTZ motion and tracking using just a single operator. The jib allows high-end, broadcast-quality, on-air moves to be developed, stored and then push-button recalled by operators with minimal training. Moves can also be scaled allowing the duration of a move to be dynamically adjusted.
Integration with Polymotion Chat allows the use of MRMC’s award-winning tracking software in conjunction with the AJS-1 Jib movement. This allows the enablement of PTZ motion and tracking with the use of a single operator. The jib allows high-end, broadcast-quality, on-air moves to be developed, stored and then push-button recalled by operators with minimal training. Moves can also be scaled allowing the duration of the move to be dynamically adjusted.
Case Study
Triumph Church

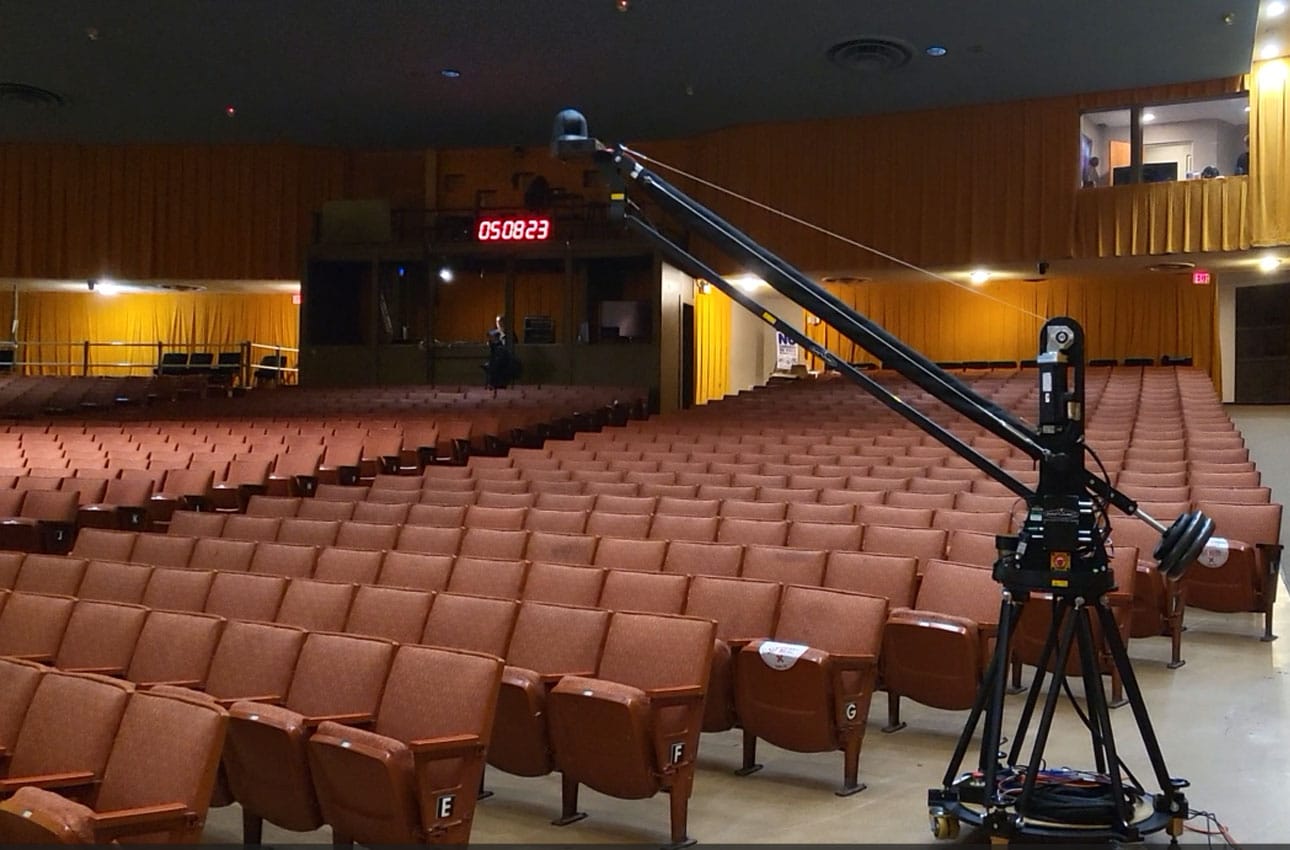

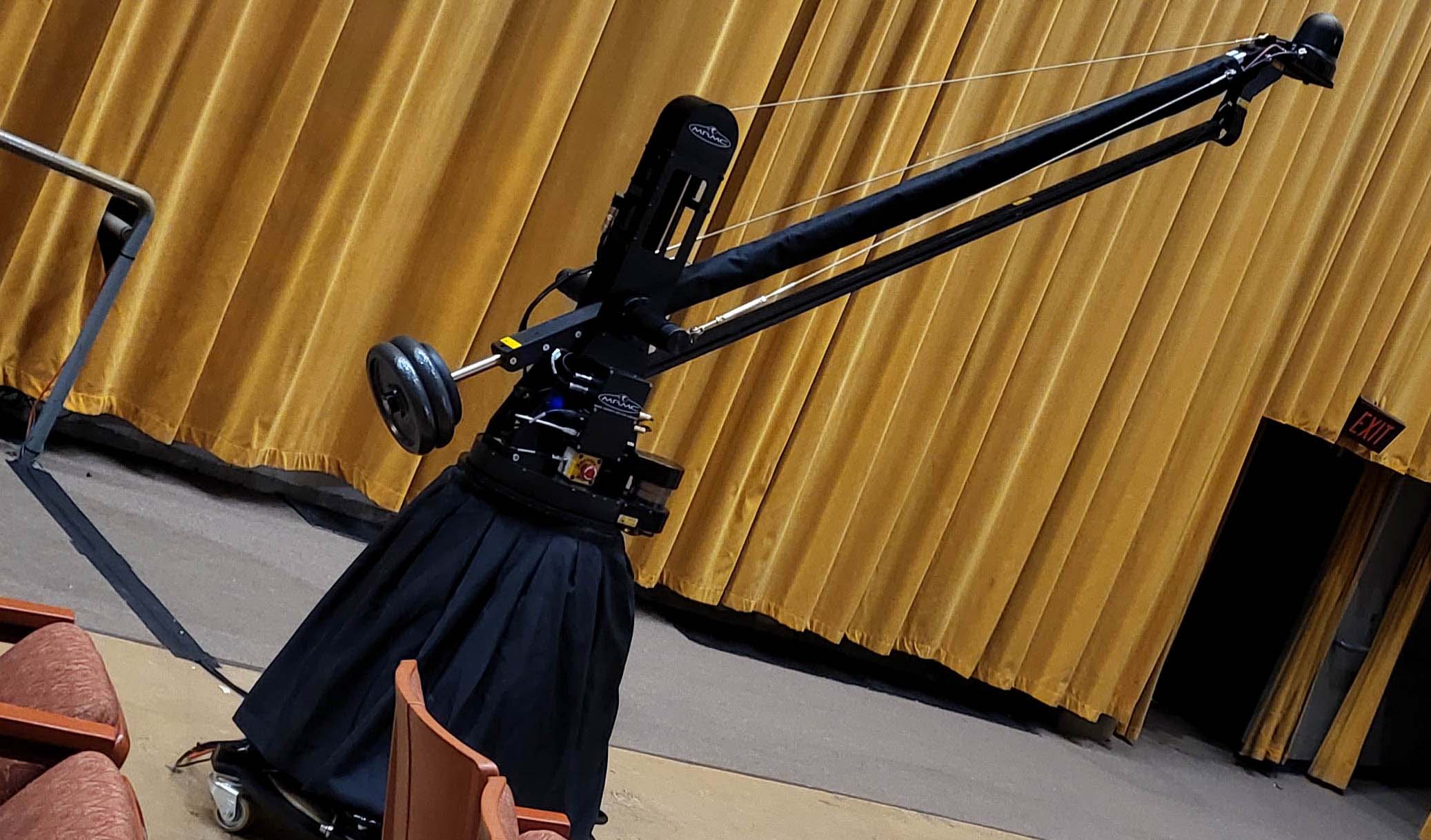

During the 2020 COVID-19 pandemic, Triumph Church seamlessly transitioned to live streaming of worship services as well as broadcasting worship services on local NBC, CBS and ABC affiliated channels.This fast growth has encouraged the church to invest in broadcast-level set-up so that it can effectively deliver its packed schedule. Four days per week, the church delivers 1-2 sermons per evening from the 500-seater auditorium and would invest heavily in bringing AV personnel to support with the production, managing content creation and delivery from their central control room. The desire to streamline their operations, lead to a consultation with Triumph’s systems integrator partner, Key Code Media and then to MRMC Broadcast to see if there was a solution that could help. MRMC’s Auto-Jib System, AJS-1 fit the bill. Previously, the production team used a traditional crane, operated by several production staff to capture over crowd shots and wider shots of the stage. Read Full Case Study HERE
During the 2020 COVID-19 pandemic, Triumph Church seamlessly transitioned to live streaming of worship services as well as broadcasting worship services on local NBC, CBS and ABC affiliated channels.This fast growth has encouraged the church to invest in broadcast-level set-up so that it can effectively deliver its packed schedule. Four days per week, the church delivers 1-2 sermons per evening from the 500-seater auditorium and would invest heavily in bringing AV personnel to support with the production, managing content creation and delivery from their central control room. The desire to streamline their operations, lead to a consultation with Triumph’s systems integrator partner, Key Code Media and then to MRMC Broadcast to see if there was a solution that could help. MRMC’s Auto-Jib System, AJS-1 fit the bill. Previously, the production team used a traditional crane, operated by several production staff to capture over crowd shots and wider shots of the stage. Read Full Case Study HERE
Feature Highlights
SMOOTH MOVEMENT
4.2KG Payload Capacity
Full Remote Operation / Production
Easy to Use Control Interface
Specifications
Payload and Size
Max. Payload
4.2Kg PTZ Camera Unit
Weight
75Kg Jib arm with rotate unit. 50 Kg Detachable / moveable tripod
Range
Max Speed
Rotation: 10º/s
Lift
150mm/s
Safety E-Stops
Min, 2 Support for additional e-stops
Reach
Boom Platform: 2000mm from pivot Lift Reach: 2890mm Mx, 300mm Min Horizontal: 2454mm
Connectivity & Power
Connection
Jib Arm: 1Gb Ethernet & Power Camera: SDI video, 1Gb Ethernet & Power
Power
90 - 240VAC, 3A, IEC Type Cable
