Cinebot Mini
Portable, User-friendly Mocobot

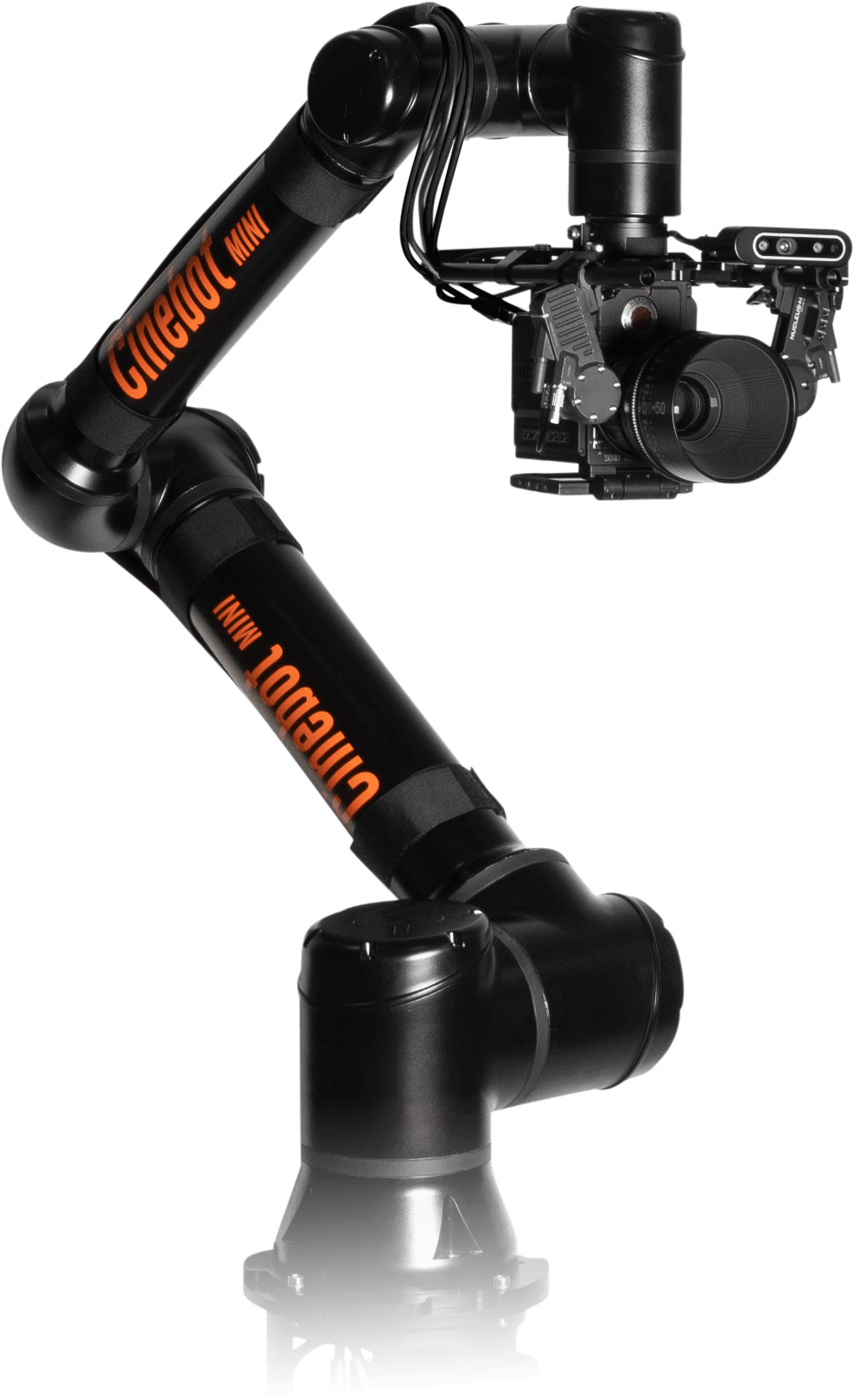

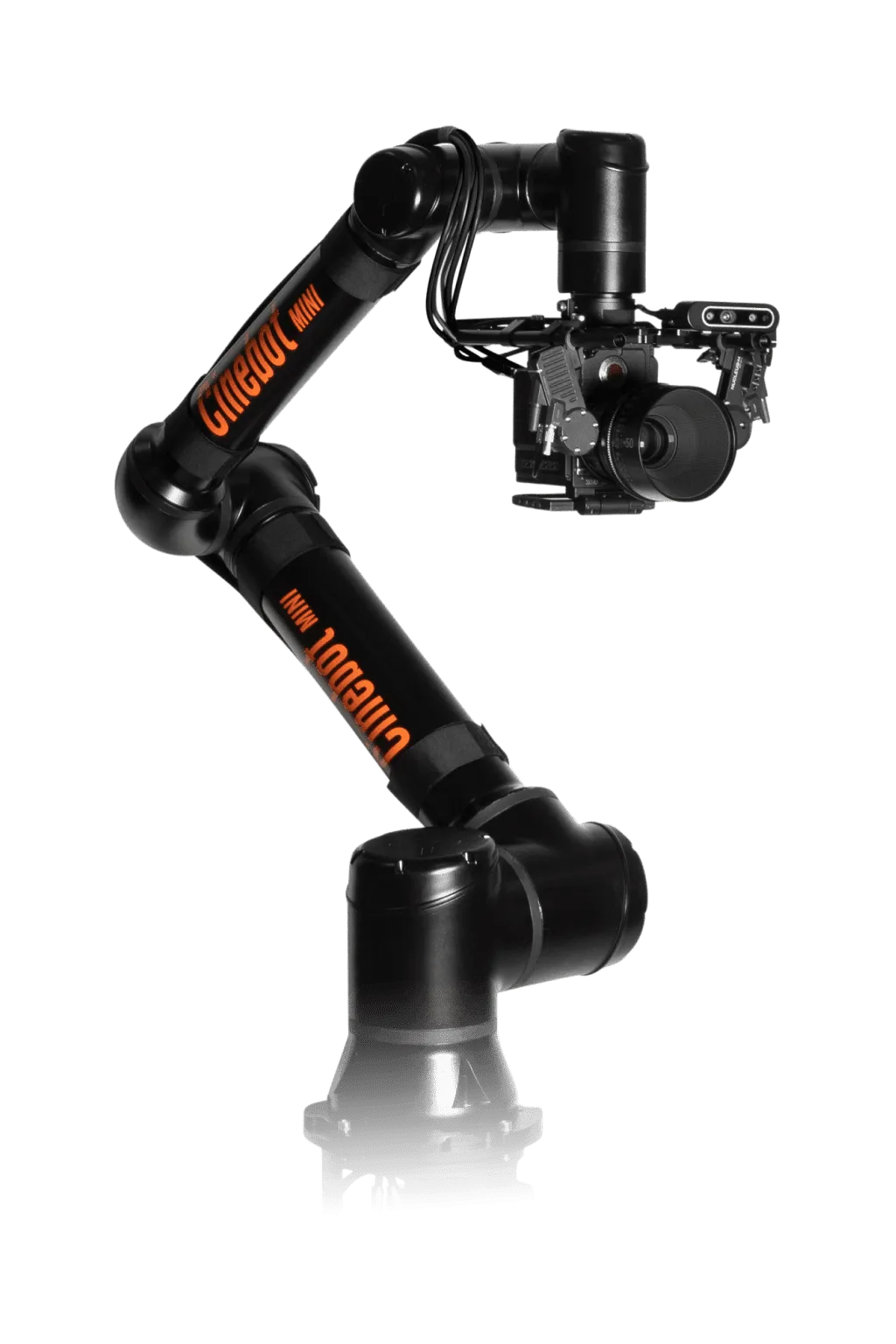

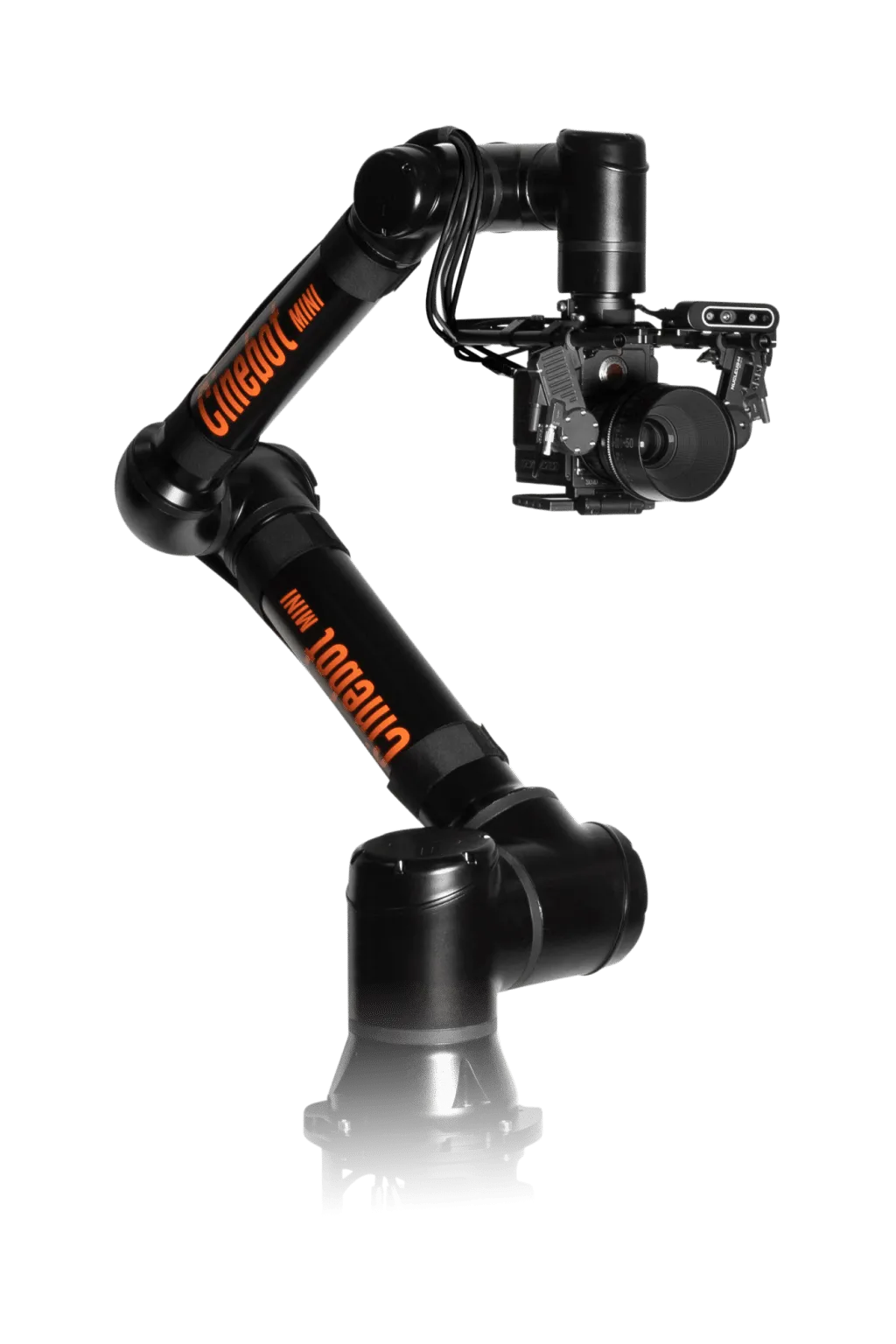

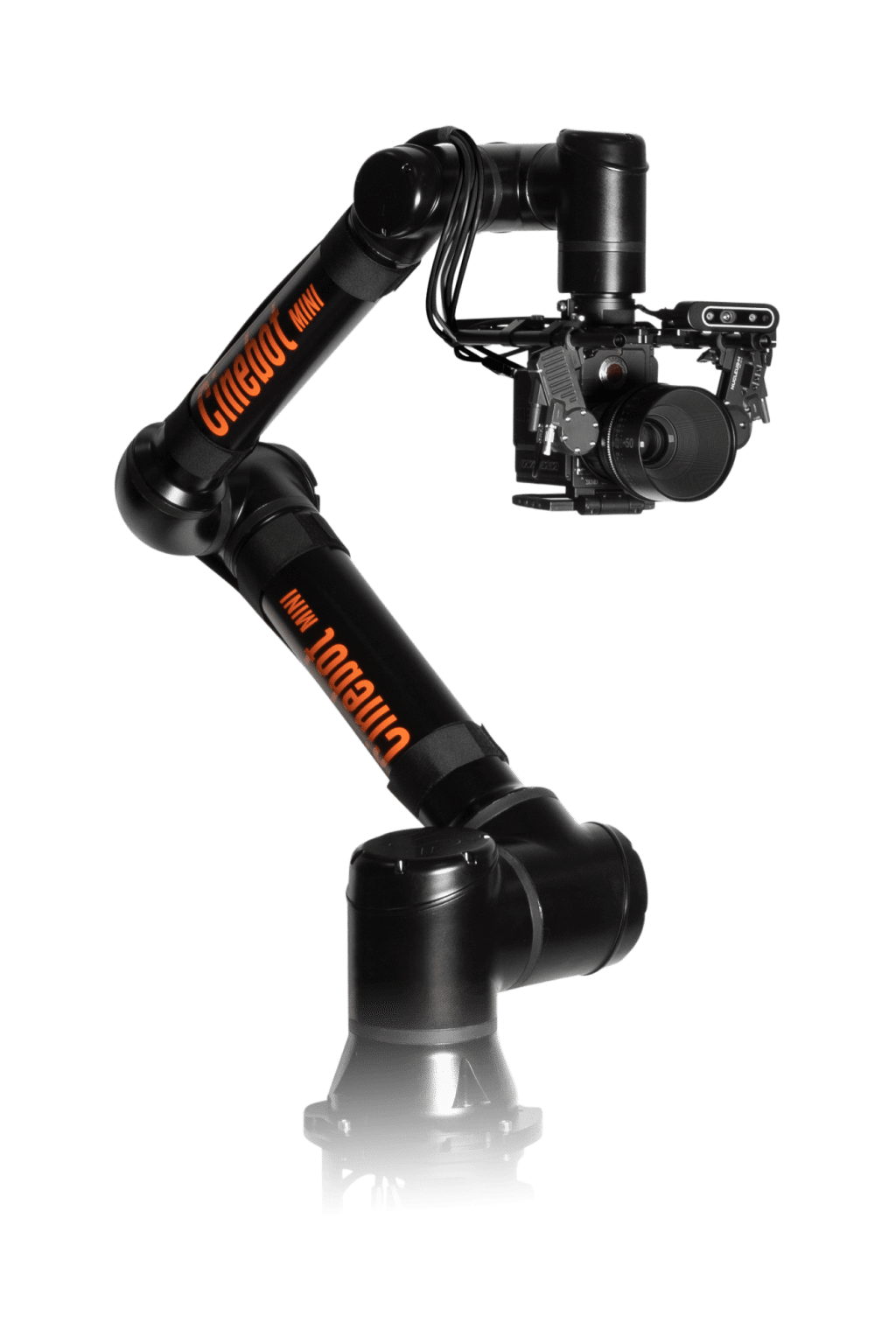

The Cinebot Mini mocobot is a compact motion control robot for high-end live-action shooting. Purpose-built for ease-of-use, and extremely portable, the lightweight system is designed to simplify shooting situations, on set, on location or in a studio, while still delivering professional-level motion control work.
Record & Replicate any Manual Movements
The innovative Cinebot Mini is available on track or pedestal and integrates motion control with the familiarity and type of control that is used on everyday sets, using regular grip equipment. Cinematographers can hand-hold the camera in various positions, and the robotic arm will record them. They can also push the track (PushMoco®) like a standard dolly, and this movement can be recorded and played back. Enjoy flexible control options, from direct handheld manipulation to simple control through a mobile device, with all information recorded in Flair. Upgrade your filming experience with the Cinebot Mini, the ultimate tool for accessible and dynamic camera movements.
Key Features
Cinebot Mini Highlights
Engineered for Simplicity
- Small, Lightweight & Portable: Cinebot Mini is compact, lightweight, and easily portable, allowing for convenient transportation, setup and location work.
- Manual Camera Control: Users can manually point and record camera positions or keyframes, providing simple control over camera movements.
- Can Run on Battery: The Cinebot Mini has a battery option that can last up to 10 hours, providing extended operation without a main power source.
- Smartphone Input: Moves can be recorded or inputted directly from a mobile phone, offering flexibility and convenience in controlling the robot.
- User-Friendly Control: The system is designed with simplicity in mind, providing easy control for grips and directors of photography (DPs), minimising the need for complex programming on set.
- Small, Lightweight & Portable: Cinebot Mini is compact, lightweight, and easily portable, allowing for convenient transportation, setup and location work.
- Manual Camera Control: Users can manually point and record camera positions or keyframes, providing simple control over camera movements.
- Runs on Battery: The Cinebot Mini has a battery option that can last up to 10 hours, providing extended operation without a main power source.
- Smartphone Input: Moves can be recorded or inputted directly from a mobile phone, offering flexibility and convenience in controlling the robot.
- User-Friendly Control: The system is designed with simplicity in mind, providing easy control for grips and directors of photography (DPs), minimising the need for complex programming on set.
Key Specifications
- Camera Payload: The robot can support up to 10kg, accommodating a wide range of professional cameras and equipment.
- Reach: With a 1.3m arm reach, operators can shoot from various angles & positions to create dynamic camera movements.
- Track and pedestal option: The Cinebot Mini offers flexibility with a track and pedestal option. It can be used on an adjustable pedestal for height variation or equipped with a track for an additional axis of movement, expanding creative possibilities.
CINEBOT MINI LAUNCH REEL
Feature Highlights
Manual Control
Control On Mobile Device
Runs on Battery
Lightweight & Portable
Track and pedestal option
TARGET TRACKING
Lens Control
Repeatable
Through-The-Lens
Cinebot Mini On Track Specifications
Operating envelope
Max Height On Track (from ground)
2.6m
Max Reach (from rotate centre)
1.3m / 4'2"
Lowest Position
0m / 0'
Rig Performance
Arm ARC Move
2.7m/s max. speed at camera
Arm combined with track
4.7m/s max. speed at camera
Track
2m/s (1.8m lengths)
Base Rotatation
+/- 360˚ 120˚/s
Shoulder Lift
+/- 360˚ 120˚s
Elbow
+/- 360˚ 180˚s
Pan
+/- 360˚ 180˚s
Tilt
+/- 360˚ 180˚s
Roll
+/- 360˚ 180˚s
TRACK & RISER SPECIFICATIONS
Track width
61cm wide
Track Weight (1.8m length)
27kg / 59lbs
Track Weight (1.2m length)
17kg / 37lbs
Standard Riser
35cm / 13.7 inches
Optional Large Riser
50cm / 19.6 inches
Weights
Cinebot Mini
Arm weight 33.5kg
Base Weight Only
37.5kg / 83lbs
Maximum camera payload
10kg / 22lbs
Power Connection
Power Requirements
110 - 240 VAC
