6-Axis Robotic Arm

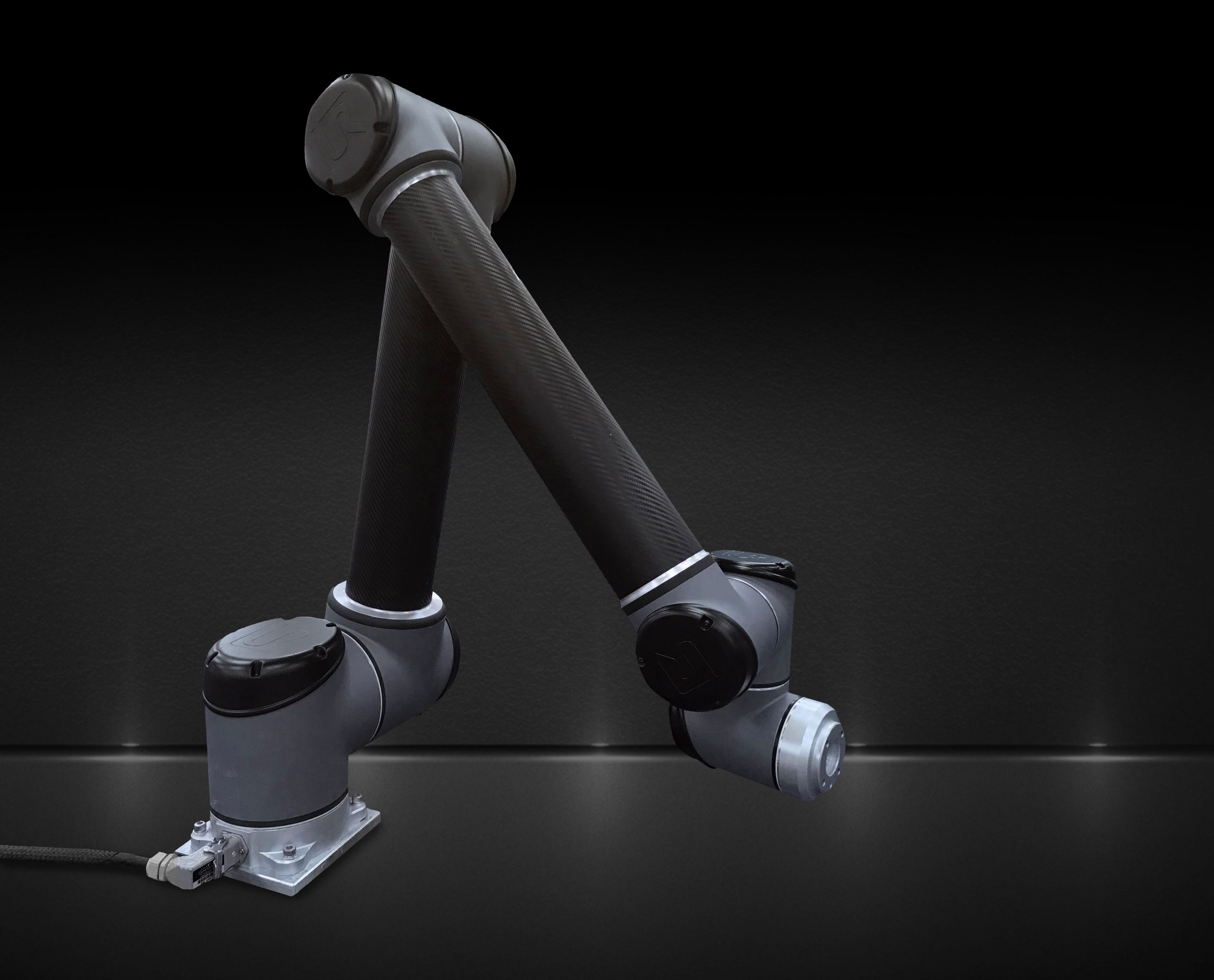

The UR10 robotic arm is a cost effective solution for customers looking for a lower cost robotic solution for wider shots or slow movements on closer framing. The 6 axis full motion arm provides similar shots as the more robust and stable Studiobot robotic arms with the flexibility to mount on the floor, ceiling or on tracks. The 8KG payload is suitable for smaller camera and lens combinations such as box or cine cameras or all in one ENG units.

Reach
1.3
M
Pant/Tilt
30
°/s
Payload
8
kg

Key Features

Offering a Different Dimension

Suitable for wide sweeping shots or for pan and tilt for close-ups, the UR10 offers a different dimension to other robotics at a sensible price. Control is simple using the RT Leaders software allowing for preset shows where the arm is moved on a predefined journey over time or manually controlled using the joystick panel.

Additionally, Polymotion Chat can be used to automate the control of the tracking and framing of the pan-tilt aspects of the arm leaving the operator the freedom to focus on getting the best shots possible.

Easy to mount

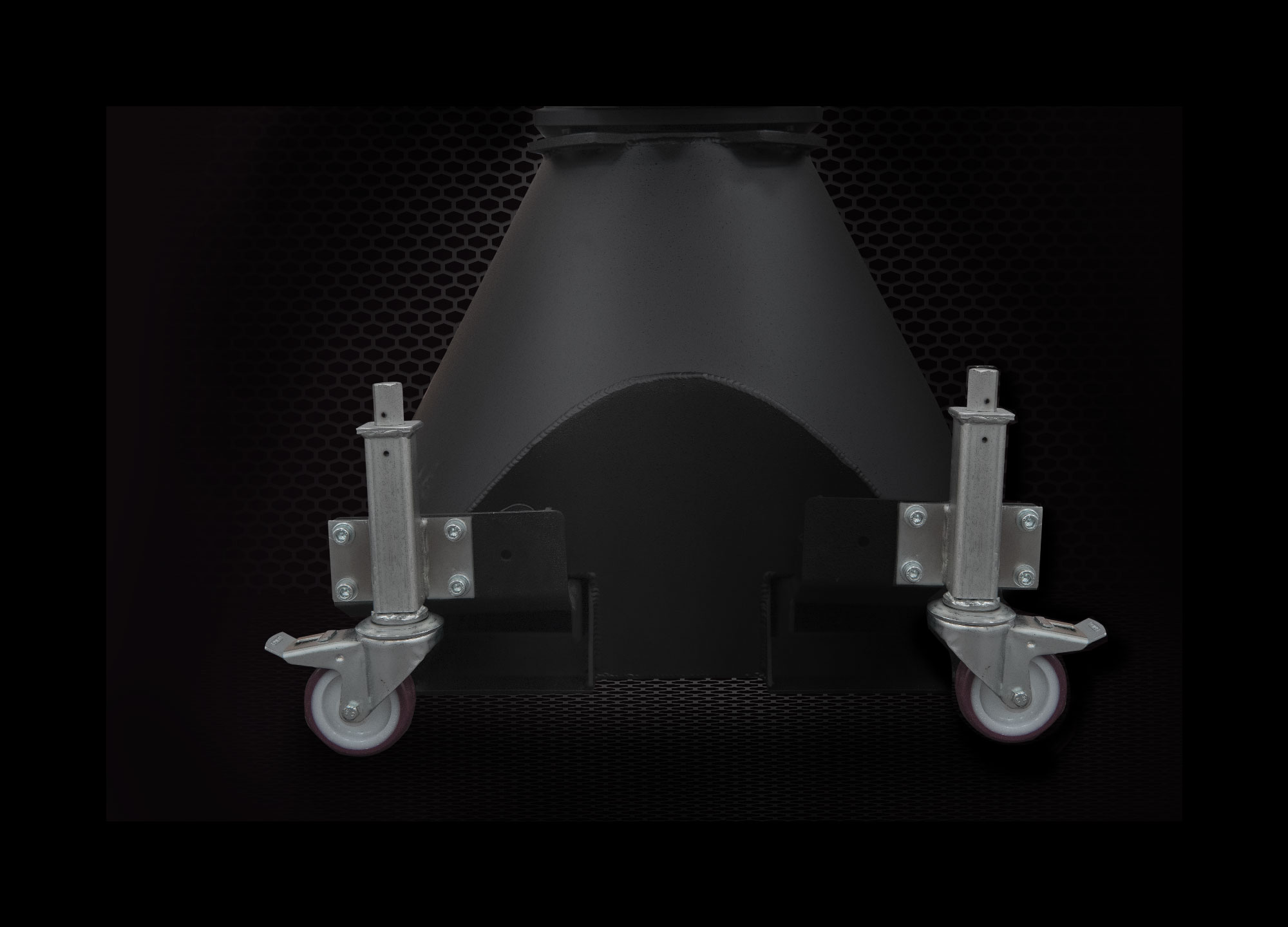

Mounting the UR10 for broadcast is as flexible as the arm itself. We have solutions for mounting on the ceiling, floor based rails, a dolly with wheels or a fixed base. The arm is lightweight enough to be moved by one person when using the base with wheels (dolly) or this movement can be automated with a powered carriage.

Easy to Use Interface

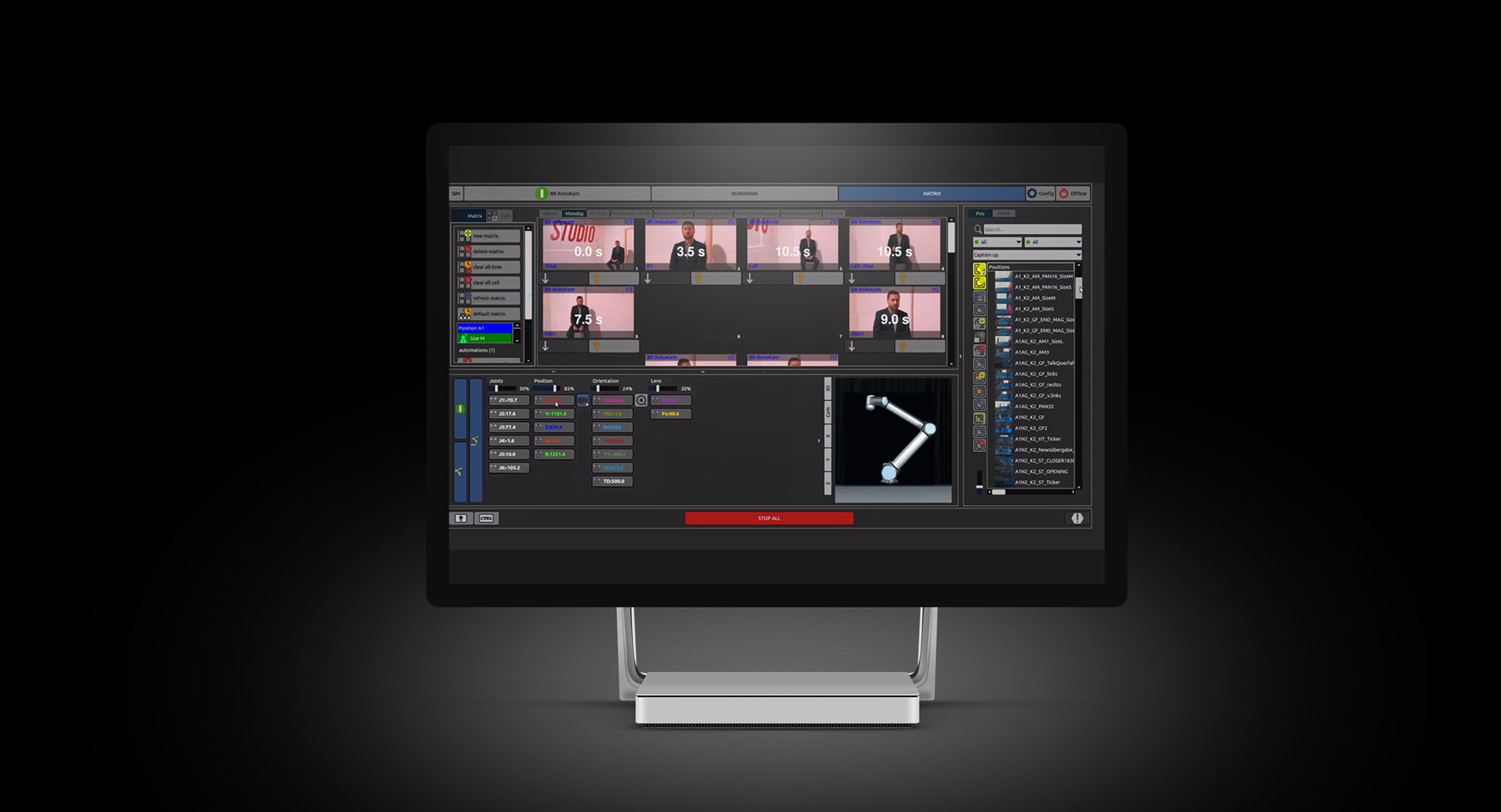

The UR10 software control is a simple graphical user interface (GUI) for creating and editing shots, moves and playlists. It can be used simultaneously by up to four robotic camera systems. There are no programming skills needed. All movements can be created in this graphical interface.

Feature Highlights

EASY TO USE CONTROL INTERFACE

The simple and intuitive interface allows an operator to design their camera movements into smooth, highly accurate motion.

JOYSTICK CONSOLE

For moving the robot and the linear track with joysticks.

REPEATABLE MOVES

Program precise saveable camera preset movements.

CEILING MOUNTED OPTION

The UR10 can be floor or ceiling mounted.

Specifications

  • Key Specs.
    • Reach
      1.3m
    • Payload
      8kg
    • Weight
      90kg
    • Repeatability
      +/- 0.1mm
    • Preset Positions
      999
    • Noise Levels
      Low
  • Axes
    • Pan / Tilt
      30°/s
  • Power Supply
    • Power
      100-240V, 50-60Hz
