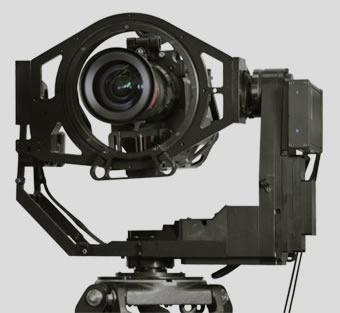

SFH-50: OVERVIEW

Remote and Motion Control Head

The SFH-50 is a slightly larger version of the SFH-30 pan tilt head, designed to allow for slightly larger cameras to be placed on optical centre. This is particularly useful for cameras such as the RED One and Alexa – while the SFH-30 can carry both of them, the SFH-50 has a bit more room to support them better. Additionally the SFH-50 has options for a secondary tilt support and a 360 degree roll.

The SFH-50 pan tilt head has been designed to provide precision and accuracy not normally found on similar sized heads, making it suitable for a much wider range of applications. Precise enough to be completely pixel accurate with HD and super-HD cameras, compact and lightweight to be used on any location for that perfect time-lapse shot and strong enough to take a wide range of cameras and lenses, the SFH-50 offers a huge scope. The head can be used with any of our intelligent controllers such as the MSA-20 Handwheels, Joystick Console, Pan Bars or a PDA running AEON. When combined with our Academy Award winning Flair software, it delivers features for every occasion, from Virtual Studio interfacing, to animation, time-lapse, timecode triggering, GPI, GPO and of course the head is fast enough to be usable for live action too.

• Has an optional 360 degree Roll Axis.
• Low cost
• High precision
• Stepper or Servo motor options

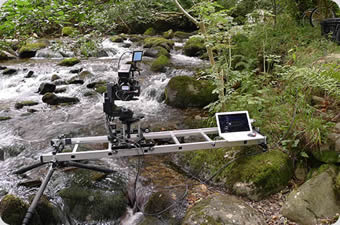

• Compact & lightweight, great for location work.
• Optional homing sensors
• Optional optical encoders
• Works over-slung or under-slung, so that it mounts to any crane, dolly or tripod.
• Can also be used as a model mover, imagine using it to twist a Swiss watch.
• Ideal for digital SLR, HD cameras, RED, Arri Alexa, etc.
• Additional axes available e.g. track, zoom, focus
• Designed to work with Flair motion control software
• Precision and repeatability suitable for virtual studios, virtual reality, web promo videos, animation and time-lapse
